cannal源码赏析 - example模块

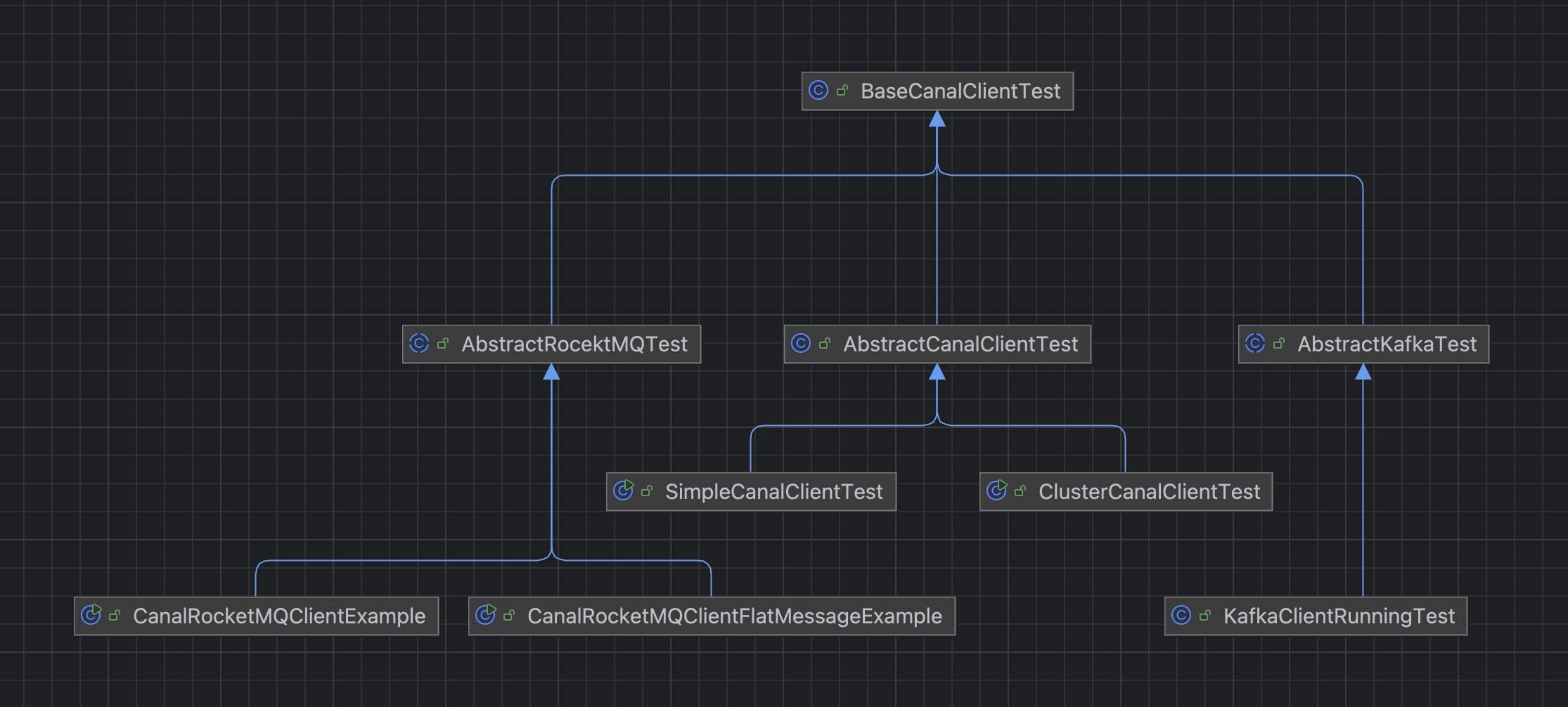

public class BaseCanalClientTest {

    protected final static Logger             logger             = LoggerFactory
        .getLogger(AbstractCanalClientTest.class);
    protected static final String             SEP                = SystemUtils.LINE_SEPARATOR;
    protected static final String             DATE_FORMAT        = "yyyy-MM-dd HH:mm:ss";
    protected volatile boolean                running            = false;
    protected Thread.UncaughtExceptionHandler handler            = (t, e) -> logger.error("parse events has an error",
        e);
    protected Thread                          thread             = null;
    protected CanalConnector                  connector;
    protected static String                   context_format     = null;
    protected static String                   row_format         = null;
    protected static String                   transaction_format = null;
    protected String                          destination;

    static {
        context_format = SEP + "****************************************************" + SEP;
        context_format += "* Batch Id: [{}] ,count : [{}] , memsize : [{}] , Time : {}" + SEP;
        context_format += "* Start : [{}] " + SEP;
        context_format += "* End : [{}] " + SEP;
        context_format += "****************************************************" + SEP;

        row_format = SEP
                     + "----------------> binlog[{}:{}] , name[{},{}] , eventType : {} , executeTime : {}({}) , gtid : ({}) , delay : {} ms"
                     + SEP;

        transaction_format = SEP + "================> binlog[{}:{}] , executeTime : {}({}) , gtid : ({}) , delay : {}ms"
                             + SEP;

    }

    protected void printSummary(Message message, long batchId, int size) {
        long memsize = 0;
        for (Entry entry : message.getEntries()) {
            memsize += entry.getHeader().getEventLength();
        }

        String startPosition = null;
        String endPosition = null;
        if (!CollectionUtils.isEmpty(message.getEntries())) {
            startPosition = buildPositionForDump(message.getEntries().get(0));
            endPosition = buildPositionForDump(message.getEntries().get(message.getEntries().size() - 1));
        }

        SimpleDateFormat format = new SimpleDateFormat(DATE_FORMAT);
        logger.info(context_format,
            new Object[] { batchId, size, memsize, format.format(new Date()), startPosition, endPosition });
    }

    protected String buildPositionForDump(Entry entry) {
        long time = entry.getHeader().getExecuteTime();
        Date date = new Date(time);
        SimpleDateFormat format = new SimpleDateFormat(DATE_FORMAT);
        String position = entry.getHeader().getLogfileName() + ":" + entry.getHeader().getLogfileOffset() + ":"
                          + entry.getHeader().getExecuteTime() + "(" + format.format(date) + ")";
        if (StringUtils.isNotEmpty(entry.getHeader().getGtid())) {
            position += " gtid(" + entry.getHeader().getGtid() + ")";
        }
        return position;
    }

    protected void printEntry(List<Entry> entrys) {
        for (Entry entry : entrys) {
            long executeTime = entry.getHeader().getExecuteTime();
            long delayTime = new Date().getTime() - executeTime;
            Date date = new Date(entry.getHeader().getExecuteTime());
            SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");

            if (entry.getEntryType() == EntryType.TRANSACTIONBEGIN
                || entry.getEntryType() == EntryType.TRANSACTIONEND) {
                if (entry.getEntryType() == EntryType.TRANSACTIONBEGIN) {
                    TransactionBegin begin = null;
                    try {
                        begin = TransactionBegin.parseFrom(entry.getStoreValue());
                    } catch (InvalidProtocolBufferException e) {
                        throw new RuntimeException("parse event has an error , data:" + entry.toString(), e);
                    }
                    // 打印事务头信息，执行的线程id，事务耗时
                    logger.info(transaction_format,
                        new Object[] { entry.getHeader().getLogfileName(),
                                       String.valueOf(entry.getHeader().getLogfileOffset()),
                                       String.valueOf(entry.getHeader().getExecuteTime()),
                                       simpleDateFormat.format(date), entry.getHeader().getGtid(),
                                       String.valueOf(delayTime) });
                    logger.info(" BEGIN ----> Thread id: {}", begin.getThreadId());
                    printXAInfo(begin.getPropsList());
                } else if (entry.getEntryType() == EntryType.TRANSACTIONEND) {
                    TransactionEnd end = null;
                    try {
                        end = TransactionEnd.parseFrom(entry.getStoreValue());
                    } catch (InvalidProtocolBufferException e) {
                        throw new RuntimeException("parse event has an error , data:" + entry.toString(), e);
                    }
                    // 打印事务提交信息，事务id
                    logger.info("----------------\n");
                    logger.info(" END ----> transaction id: {}", end.getTransactionId());
                    printXAInfo(end.getPropsList());
                    logger.info(transaction_format,
                        new Object[] { entry.getHeader().getLogfileName(),
                                       String.valueOf(entry.getHeader().getLogfileOffset()),
                                       String.valueOf(entry.getHeader().getExecuteTime()),
                                       simpleDateFormat.format(date), entry.getHeader().getGtid(),
                                       String.valueOf(delayTime) });
                }

                continue;
            }

            if (entry.getEntryType() == EntryType.ROWDATA) {
                RowChange rowChange = null;
                try {
                    rowChange = RowChange.parseFrom(entry.getStoreValue());
                } catch (Exception e) {
                    throw new RuntimeException("parse event has an error , data:" + entry.toString(), e);
                }

                EventType eventType = rowChange.getEventType();

                logger.info(row_format,
                    new Object[] { entry.getHeader().getLogfileName(),
                                   String.valueOf(entry.getHeader().getLogfileOffset()),
                                   entry.getHeader().getSchemaName(), entry.getHeader().getTableName(), eventType,
                                   String.valueOf(entry.getHeader().getExecuteTime()), simpleDateFormat.format(date),
                                   entry.getHeader().getGtid(), String.valueOf(delayTime) });

                if (eventType == EventType.QUERY || rowChange.getIsDdl()) {
                    logger.info("ddl : " + rowChange.getIsDdl() + " ,  sql ----> " + rowChange.getSql() + SEP);
                    continue;
                }

                printXAInfo(rowChange.getPropsList());
                for (RowData rowData : rowChange.getRowDatasList()) {
                    if (eventType == EventType.DELETE) {
                        printColumn(rowData.getBeforeColumnsList());
                    } else if (eventType == EventType.INSERT) {
                        printColumn(rowData.getAfterColumnsList());
                    } else {
                        printColumn(rowData.getAfterColumnsList());
                    }
                }
            }
        }
    }

    protected void printColumn(List<Column> columns) {
        for (Column column : columns) {
            StringBuilder builder = new StringBuilder();
            try {
                if (StringUtils.containsIgnoreCase(column.getMysqlType(), "BLOB")
                    || StringUtils.containsIgnoreCase(column.getMysqlType(), "BINARY")) {
                    // get value bytes
                    builder.append(
                        column.getName() + " : " + new String(column.getValue().getBytes("ISO-8859-1"), "UTF-8"));
                } else {
                    builder.append(column.getName() + " : " + column.getValue());
                }
            } catch (UnsupportedEncodingException e) {
            }
            builder.append("    type=" + column.getMysqlType());
            if (column.getUpdated()) {
                builder.append("    update=" + column.getUpdated());
            }
            builder.append(SEP);
            logger.info(builder.toString());
        }
    }

    protected void printXAInfo(List<Pair> pairs) {
        if (pairs == null) {
            return;
        }

        String xaType = null;
        String xaXid = null;
        for (Pair pair : pairs) {
            String key = pair.getKey();
            if (StringUtils.endsWithIgnoreCase(key, "XA_TYPE")) {
                xaType = pair.getValue();
            } else if (StringUtils.endsWithIgnoreCase(key, "XA_XID")) {
                xaXid = pair.getValue();
            }
        }

        if (xaType != null && xaXid != null) {
            logger.info(" ------> " + xaType + " " + xaXid);
        }
    }

    public void setConnector(CanalConnector connector) {
        this.connector = connector;
    }

    /**
     * 获取当前Entry的 GTID信息示例
     *
     * @param header
     * @return
     */
    public static String getCurrentGtid(CanalEntry.Header header) {
        List<CanalEntry.Pair> props = header.getPropsList();
        if (props != null && props.size() > 0) {
            for (CanalEntry.Pair pair : props) {
                if ("curtGtid".equals(pair.getKey())) {
                    return pair.getValue();
                }
            }
        }
        return "";
    }

    /**
     * 获取当前Entry的 GTID Sequence No信息示例
     *
     * @param header
     * @return
     */
    public static String getCurrentGtidSn(CanalEntry.Header header) {
        List<CanalEntry.Pair> props = header.getPropsList();
        if (props != null && props.size() > 0) {
            for (CanalEntry.Pair pair : props) {
                if ("curtGtidSn".equals(pair.getKey())) {
                    return pair.getValue();
                }
            }
        }
        return "";
    }

    /**
     * 获取当前Entry的 GTID Last Committed信息示例
     *
     * @param header
     * @return
     */
    public static String getCurrentGtidLct(CanalEntry.Header header) {
        List<CanalEntry.Pair> props = header.getPropsList();
        if (props != null && props.size() > 0) {
            for (CanalEntry.Pair pair : props) {
                if ("curtGtidLct".equals(pair.getKey())) {
                    return pair.getValue();
                }
            }
        }
        return "";
    }

}

public abstract class AbstractRocektMQTest extends BaseCanalClientTest {

    public static String  topic              = "example";
    public static String  groupId            = "group";
    public static String  nameServers        = "127.0.0.1:9876";
    public static String  accessKey          = "";
    public static String  secretKey          = "";
    public static boolean enableMessageTrace = false;
    public static String  accessChannel      = "local";
    public static String  namespace          = "";
}

public class CanalRocketMQClientExample extends AbstractRocektMQTest {

    protected final static Logger           logger  = LoggerFactory.getLogger(CanalRocketMQClientExample.class);

    private RocketMQCanalConnector          connector;

    private static volatile boolean         running = false;

    private Thread                          thread  = null;

    private Thread.UncaughtExceptionHandler handler = (t, e) -> logger.error("parse events has an error", e);

    public CanalRocketMQClientExample(String nameServers, String topic, String groupId){
        connector = new RocketMQCanalConnector(nameServers, topic, groupId, 500, false);
    }

    public CanalRocketMQClientExample(String nameServers, String topic, String groupId, boolean enableMessageTrace,
                                      String accessKey, String secretKey, String accessChannel, String namespace){
        connector = new RocketMQCanalConnector(nameServers,
            topic,
            groupId,
            accessKey,
            secretKey,
            -1,
            false,
            enableMessageTrace,
            null,
            accessChannel,
            namespace);
    }

    public static void main(String[] args) {
        try {
            final CanalRocketMQClientExample rocketMQClientExample = new CanalRocketMQClientExample(nameServers,
                topic,
                groupId,
                enableMessageTrace,
                accessKey,
                secretKey,
                accessChannel,
                namespace);
            logger.info("## Start the rocketmq consumer: {}-{}", topic, groupId);
            rocketMQClientExample.start();
            logger.info("## The canal rocketmq consumer is running now ......");
            Runtime.getRuntime().addShutdownHook(new Thread(() -> {
                try {
                    logger.info("## Stop the rocketmq consumer");
                    rocketMQClientExample.stop();
                } catch (Throwable e) {
                    logger.warn("## Something goes wrong when stopping rocketmq consumer:", e);
                } finally {
                    logger.info("## Rocketmq consumer is down.");
                }
            }));
            while (running)
                ;
        } catch (Throwable e) {
            logger.error("## Something going wrong when starting up the rocketmq consumer:", e);
            System.exit(0);
        }
    }

    public void start() {
        Assert.notNull(connector, "connector is null");
        thread = new Thread(this::process);
        thread.setUncaughtExceptionHandler(handler);
        thread.start();
        running = true;
    }

    public void stop() {
        if (!running) {
            return;
        }
        running = false;
        if (thread != null) {
            try {
                thread.join();
            } catch (InterruptedException e) {
                // ignore
            }
        }
    }

    private void process() {
        while (!running) {
            try {
                Thread.sleep(1000);
            } catch (InterruptedException e) {
            }
        }

        while (running) {
            try {
                connector.connect();
                connector.subscribe();
                while (running) {
                    List<Message> messages = connector.getListWithoutAck(1000L, TimeUnit.MILLISECONDS); // 获取message
                    for (Message message : messages) {
                        long batchId = message.getId();
                        int size = message.getEntries().size();
                        if (batchId == -1 || size == 0) {
                            // try {
                            // Thread.sleep(1000);
                            // } catch (InterruptedException e) {
                            // }
                        } else {
                            printSummary(message, batchId, size);
                            printEntry(message.getEntries());
                            // logger.info(message.toString());
                        }
                    }

                    connector.ack(); // 提交确认
                }
            } catch (Exception e) {
                logger.error(e.getMessage(), e);
            }
        }

        connector.unsubscribe();
        // connector.stopRunning();
    }
}

public class CanalRocketMQClientFlatMessageExample extends AbstractRocektMQTest {

    protected final static Logger           logger  = LoggerFactory
        .getLogger(CanalRocketMQClientFlatMessageExample.class);

    private RocketMQCanalConnector          connector;

    private static volatile boolean         running = false;

    private Thread                          thread  = null;

    private Thread.UncaughtExceptionHandler handler = (t, e) -> logger.error("parse events has an error", e);

    public CanalRocketMQClientFlatMessageExample(String nameServers, String topic, String groupId){
        connector = new RocketMQCanalConnector(nameServers, topic, groupId, 500, true);
    }

    public static void main(String[] args) {
        try {
            final CanalRocketMQClientFlatMessageExample rocketMQClientExample = new CanalRocketMQClientFlatMessageExample(
                nameServers,
                topic,
                groupId);
            logger.info("## Start the rocketmq consumer: {}-{}", topic, groupId);
            rocketMQClientExample.start();
            logger.info("## The canal rocketmq consumer is running now ......");
            Runtime.getRuntime().addShutdownHook(new Thread(() -> {
                try {
                    logger.info("## Stop the rocketmq consumer");
                    rocketMQClientExample.stop();
                } catch (Throwable e) {
                    logger.warn("## Something goes wrong when stopping rocketmq consumer:", e);
                } finally {
                    logger.info("## Rocketmq consumer is down.");
                }
            }));
            while (running)
                ;
        } catch (Throwable e) {
            logger.error("## Something going wrong when starting up the rocketmq consumer:", e);
            System.exit(0);
        }
    }

    public void start() {
        Assert.notNull(connector, "connector is null");
        thread = new Thread(this::process);
        thread.setUncaughtExceptionHandler(handler);
        thread.start();
        running = true;
    }

    public void stop() {
        if (!running) {
            return;
        }
        running = false;
        if (thread != null) {
            try {
                thread.join();
            } catch (InterruptedException e) {
                // ignore
            }
        }
    }

    private void process() {
        while (!running) {
            try {
                Thread.sleep(1000);
            } catch (InterruptedException e) {
            }
        }

        while (running) {
            try {
                connector.connect();
                connector.subscribe();
                while (running) {
                    List<FlatMessage> messages = connector.getFlatList(100L, TimeUnit.MILLISECONDS); // 获取message
                    for (FlatMessage message : messages) {
                        long batchId = message.getId();
                        if (batchId == -1 || message.getData() == null) {
                            // try {
                            // Thread.sleep(1000);
                            // } catch (InterruptedException e) {
                            // }
                        } else {
                            logger.info(message.toString());
                        }
                    }

                    connector.ack(); // 提交确认
                }
            } catch (Exception e) {
                logger.error(e.getMessage(), e);
            }
        }

        connector.unsubscribe();
        // connector.stopRunning();
    }
}

public class AbstractCanalClientTest extends BaseCanalClientTest {

    public AbstractCanalClientTest(String destination){
        this(destination, null);
    }

    public AbstractCanalClientTest(String destination, CanalConnector connector){
        this.destination = destination;
        this.connector = connector;
    }

    protected void start() {
        Assert.notNull(connector, "connector is null");
        thread = new Thread(this::process);

        thread.setUncaughtExceptionHandler(handler);
        running = true;
        thread.start();
    }

    protected void stop() {
        if (!running) {
            return;
        }
        running = false;
        if (thread != null) {
            try {
                thread.join();
            } catch (InterruptedException e) {
                // ignore
            }
        }

        MDC.remove("destination");
    }

    protected void process() {
        int batchSize = 5 * 1024;
        while (running) {
            try {
                MDC.put("destination", destination);
                connector.connect();
                connector.subscribe();
                while (running) {
                    Message message = connector.getWithoutAck(batchSize); // 获取指定数量的数据
                    long batchId = message.getId();
                    int size = message.getEntries().size();
                    if (batchId == -1 || size == 0) {
                        // try {
                        // Thread.sleep(1000);
                        // } catch (InterruptedException e) {
                        // }
                    } else {
                        printSummary(message, batchId, size);
                        printEntry(message.getEntries());
                    }

                    if (batchId != -1) {
                        connector.ack(batchId); // 提交确认
                    }
                }
            } catch (Throwable e) {
                logger.error("process error!", e);
                try {
                    Thread.sleep(1000L);
                } catch (InterruptedException e1) {
                    // ignore
                }

                connector.rollback(); // 处理失败, 回滚数据
            } finally {
                connector.disconnect();
                MDC.remove("destination");
            }
        }
    }

}

public class ClusterCanalClientTest extends AbstractCanalClientTest {

    public ClusterCanalClientTest(String destination){
        super(destination);
    }

    public static void main(String args[]) {
        String destination = "product-syn";

        // 基于固定canal server的地址，建立链接，其中一台server发生crash，可以支持failover
        // CanalConnector connector = CanalConnectors.newClusterConnector(
        // Arrays.asList(new InetSocketAddress(
        // AddressUtils.getHostIp(),
        // 11111)),
        // "stability_test", "", "");

        // 基于zookeeper动态获取canal server的地址，建立链接，其中一台server发生crash，可以支持failover
        CanalConnector connector = CanalConnectors.newClusterConnector("192.168.100.111:2181",
                destination,
                "canal",
                "canal");

        final ClusterCanalClientTest clientTest = new ClusterCanalClientTest(destination);
        clientTest.setConnector(connector);
        clientTest.start();

        Runtime.getRuntime().addShutdownHook(new Thread(() -> {
            try {
                logger.info("## stop the canal client");
                clientTest.stop();
            } catch (Throwable e) {
                logger.warn("##something goes wrong when stopping canal:", e);
            } finally {
                logger.info("## canal client is down.");
            }
        }));
    }
}

public class SimpleCanalClientTest extends AbstractCanalClientTest {

    public SimpleCanalClientTest(String destination){
        super(destination);
    }

    public static void main(String args[]) {
        // 根据ip，直接创建链接，无HA的功能
        String destination = "product-syn";
        String ip = "192.168.100.111";
        CanalConnector connector = CanalConnectors
            .newSingleConnector(new InetSocketAddress(ip, 11111), destination, "canal", "canal");

        final SimpleCanalClientTest clientTest = new SimpleCanalClientTest(destination);
        clientTest.setConnector(connector);
        clientTest.start();
        Runtime.getRuntime().addShutdownHook(new Thread(() -> {
            try {
                logger.info("## stop the canal client");
                clientTest.stop();
            } catch (Throwable e) {
                logger.warn("##something goes wrong when stopping canal:", e);
            } finally {
                logger.info("## canal client is down.");
            }
        }));
    }

}

public abstract class AbstractKafkaTest extends BaseCanalClientTest {

    public static String  topic     = "example";
    public static Integer partition = null;
    public static String  groupId   = "g4";
    public static String  servers   = "127.0.0.1:9092";
    public static String  zkServers = "127.0.0.1:2181";

    public void sleep(long time) {
        try {
            Thread.sleep(time);
        } catch (InterruptedException e) {
        }
    }
}

public class KafkaClientRunningTest extends AbstractKafkaTest {

    private Logger  logger  = LoggerFactory.getLogger(KafkaClientRunningTest.class);

    private boolean running = true;

    public void testKafkaConsumer() {
        final ExecutorService executor = Executors.newFixedThreadPool(1);
        final KafkaCanalConnector connector = new KafkaCanalConnector(servers, topic, partition, groupId, null, false);
        executor.submit(() -> {
            connector.connect();
            connector.subscribe();
            while (running) {
                List<Message> messages = connector.getList(3L, TimeUnit.SECONDS);
                if (messages != null) {
                    System.out.println(messages);
                }
                connector.ack();
            }
            connector.unsubscribe();
            connector.disconnect();
        });

        sleep(60000);
        running = false;
        executor.shutdown();
        logger.info("shutdown completed");
    }

}
