cannal源码赏析 - instance模块

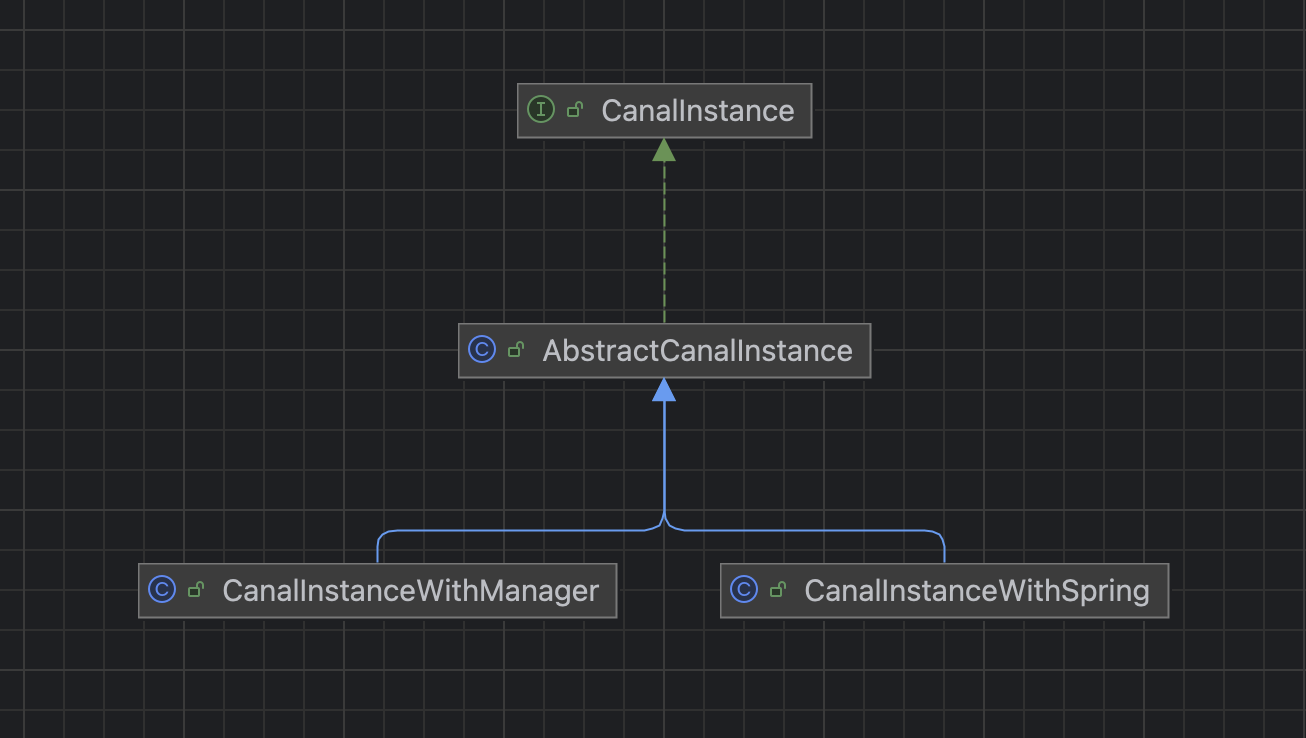

1. 核心类图

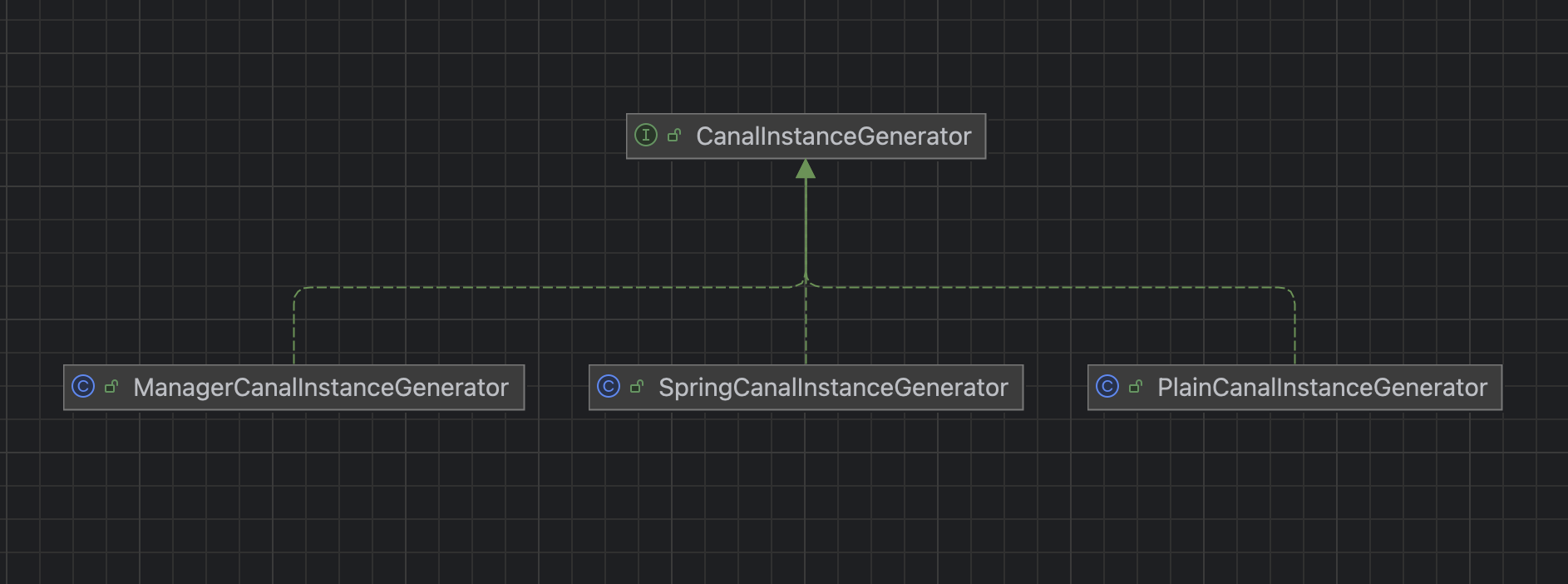

2. Generator

2.1 ManagerCanalInstanceGenerator

public class ManagerCanalInstanceGenerator implements CanalInstanceGenerator {

    private CanalConfigClient canalConfigClient;

    public CanalInstance generate(String destination) {
        Canal canal = canalConfigClient.findCanal(destination);
        String filter = canalConfigClient.findFilter(destination);
        return new CanalInstanceWithManager(canal, filter);
    }

    // ================ setter / getter ================

    public void setCanalConfigClient(CanalConfigClient canalConfigClient) {
        this.canalConfigClient = canalConfigClient;
    }

}

2.2 PlainCanalInstanceGenerator

public class PlainCanalInstanceGenerator implements CanalInstanceGenerator {

    private static final Logger    logger      = LoggerFactory.getLogger(PlainCanalInstanceGenerator.class);
    private String                 springXml;
    private PlainCanalConfigClient canalConfigClient;
    private String                 defaultName = "instance";
    private BeanFactory            beanFactory;
    private Properties             canalConfig;

    public PlainCanalInstanceGenerator(Properties canalConfig){
        this.canalConfig = canalConfig;
    }

    public CanalInstance generate(String destination) {
        synchronized (CanalEventParser.class) {
            try {
                PlainCanal canal = canalConfigClient.findInstance(destination, null);
                if (canal == null) {
                    throw new CanalException("instance : " + destination + " config is not found");
                }
                Properties properties = canal.getProperties();
                // merge local
                properties.putAll(canalConfig);

                // 设置动态properties,替换掉本地properties
                com.alibaba.otter.canal.instance.spring.support.PropertyPlaceholderConfigurer.propertiesLocal.set(properties);
                // 设置当前正在加载的通道，加载spring查找文件时会用到该变量
                System.setProperty("canal.instance.destination", destination);
                this.beanFactory = getBeanFactory(springXml);
                String beanName = destination;
                if (!beanFactory.containsBean(beanName)) {
                    beanName = defaultName;
                }

                return (CanalInstance) beanFactory.getBean(beanName);
            } catch (Throwable e) {
                logger.error("generator instance failed.", e);
                throw new CanalException(e);
            } finally {
                System.setProperty("canal.instance.destination", "");
                com.alibaba.otter.canal.instance.spring.support.PropertyPlaceholderConfigurer.propertiesLocal.remove();
            }
        }
    }

    // ================ setter / getter ================

    private BeanFactory getBeanFactory(String springXml) {
        if (!StringUtils.startsWithIgnoreCase(springXml, "classpath:")) {
            springXml = "classpath:" + springXml;
        }
        ApplicationContext applicationContext = new ClassPathXmlApplicationContext(springXml);
        return applicationContext;
    }

    public void setCanalConfigClient(PlainCanalConfigClient canalConfigClient) {
        this.canalConfigClient = canalConfigClient;
    }

    public void setSpringXml(String springXml) {
        this.springXml = springXml;
    }

}

2.3 SpringCanalInstanceGenerator

public class SpringCanalInstanceGenerator implements CanalInstanceGenerator {

    private static final Logger logger      = LoggerFactory.getLogger(SpringCanalInstanceGenerator.class);
    private String              springXml;
    private String              defaultName = "instance";
    private BeanFactory         beanFactory;

    public CanalInstance generate(String destination) {
        synchronized (CanalEventParser.class) {
            try {
                // 设置当前正在加载的通道，加载spring查找文件时会用到该变量
                System.setProperty("canal.instance.destination", destination);
                this.beanFactory = getBeanFactory(springXml);
                String beanName = destination;
                if (!beanFactory.containsBean(beanName)) {
                    beanName = defaultName;
                }

                return (CanalInstance) beanFactory.getBean(beanName);
            } catch (Throwable e) {
                logger.error("generator instance failed.", e);
                throw new CanalException(e);
            } finally {
                System.setProperty("canal.instance.destination", "");
            }
        }
    }

    private BeanFactory getBeanFactory(String springXml) {
        if (!StringUtils.startsWithIgnoreCase(springXml, "classpath:")) {
            springXml = "classpath:" + springXml;
        }
        ApplicationContext applicationContext = new ClassPathXmlApplicationContext(springXml);
        return applicationContext;
    }

    public void setSpringXml(String springXml) {
        this.springXml = springXml;
    }
}

3. Manager

3.1 CanalInstanceWithManager

public class CanalInstanceWithManager extends AbstractCanalInstance {

    private static final Logger logger = LoggerFactory.getLogger(CanalInstanceWithManager.class);
    protected String            filter;                                                          // 过滤表达式
    protected CanalParameter    parameters;                                                      // 对应参数

    public CanalInstanceWithManager(Canal canal, String filter){
        this.parameters = canal.getCanalParameter();
        this.canalId = canal.getId();
        this.destination = canal.getName();
        this.filter = filter;

        logger.info("init CanalInstance for {}-{} with parameters:{}", canalId, destination, parameters);
        // 初始化报警机制
        initAlarmHandler();
        // 初始化metaManager
        initMetaManager();
        // 初始化eventStore
        initEventStore();
        // 初始化eventSink
        initEventSink();
        // 初始化eventParser;
        initEventParser();

        // 基础工具，需要提前start，会有先订阅再根据filter条件启动parse的需求
        if (!alarmHandler.isStart()) {
            alarmHandler.start();
        }

        if (!metaManager.isStart()) {
            metaManager.start();
        }
        logger.info("init successful....");
    }

    public void start() {
        // 初始化metaManager
        logger.info("start CannalInstance for {}-{} with parameters:{}", canalId, destination, parameters);
        super.start();
    }

    @SuppressWarnings("resource")
    protected void initAlarmHandler() {
        logger.info("init alarmHandler begin...");
        String alarmHandlerClass = parameters.getAlarmHandlerClass();
        String alarmHandlerPluginDir = parameters.getAlarmHandlerPluginDir();
        if (alarmHandlerClass == null || alarmHandlerPluginDir == null) {
            alarmHandler = new LogAlarmHandler();
        } else {
            try {
                File externalLibDir = new File(alarmHandlerPluginDir);
                File[] jarFiles = externalLibDir.listFiles((dir, name) -> name.endsWith(".jar"));
                if (jarFiles == null || jarFiles.length == 0) {
                    throw new IllegalStateException(String.format("alarmHandlerPluginDir [%s] can't find any name endswith \".jar\" file.",
                        alarmHandlerPluginDir));
                }
                URL[] urls = new URL[jarFiles.length];
                for (int i = 0; i < jarFiles.length; i++) {
                    urls[i] = jarFiles[i].toURI().toURL();
                }
                ClassLoader currentClassLoader = new URLClassLoader(urls,
                    CanalInstanceWithManager.class.getClassLoader());
                Class<CanalAlarmHandler> _alarmClass = (Class<CanalAlarmHandler>) currentClassLoader.loadClass(alarmHandlerClass);
                alarmHandler = _alarmClass.newInstance();
                logger.info("init [{}] alarm handler success.", alarmHandlerClass);
            } catch (Throwable e) {
                String errorMsg = String.format("init alarmHandlerPluginDir [%s] alarm handler [%s] error: %s",
                    alarmHandlerPluginDir,
                    alarmHandlerClass,
                    ExceptionUtils.getFullStackTrace(e));
                logger.error(errorMsg);
                throw new CanalException(errorMsg, e);
            }
        }
        logger.info("init alarmHandler end! \n\t load CanalAlarmHandler:{} ", alarmHandler.getClass().getName());
    }

    protected void initMetaManager() {
        logger.info("init metaManager begin...");
        MetaMode mode = parameters.getMetaMode();
        if (mode.isMemory()) {
            metaManager = new MemoryMetaManager();
        } else if (mode.isZookeeper()) {
            metaManager = new ZooKeeperMetaManager();
            ((ZooKeeperMetaManager) metaManager).setZkClientx(getZkclientx());
        } else if (mode.isMixed()) {
            // metaManager = new MixedMetaManager();
            metaManager = new PeriodMixedMetaManager();// 换用优化过的mixed, at
                                                       // 2012-09-11
            // 设置内嵌的zk metaManager
            ZooKeeperMetaManager zooKeeperMetaManager = new ZooKeeperMetaManager();
            zooKeeperMetaManager.setZkClientx(getZkclientx());
            ((PeriodMixedMetaManager) metaManager).setZooKeeperMetaManager(zooKeeperMetaManager);
        } else if (mode.isLocalFile()) {
            FileMixedMetaManager fileMixedMetaManager = new FileMixedMetaManager();
            fileMixedMetaManager.setDataDir(parameters.getDataDir());
            fileMixedMetaManager.setPeriod(parameters.getMetaFileFlushPeriod());
            metaManager = fileMixedMetaManager;
        } else {
            throw new CanalException("unsupport MetaMode for " + mode);
        }

        logger.info("init metaManager end! \n\t load CanalMetaManager:{} ", metaManager.getClass().getName());
    }

    protected void initEventStore() {
        logger.info("init eventStore begin...");
        StorageMode mode = parameters.getStorageMode();
        if (mode.isMemory()) {
            MemoryEventStoreWithBuffer memoryEventStore = new MemoryEventStoreWithBuffer();
            memoryEventStore.setBufferSize(parameters.getMemoryStorageBufferSize());
            memoryEventStore.setBufferMemUnit(parameters.getMemoryStorageBufferMemUnit());
            memoryEventStore.setBatchMode(BatchMode.valueOf(parameters.getStorageBatchMode().name()));
            memoryEventStore.setDdlIsolation(parameters.getDdlIsolation());
            memoryEventStore.setRaw(parameters.getMemoryStorageRawEntry());
            eventStore = memoryEventStore;
        } else if (mode.isFile()) {
            // 后续版本支持
            throw new CanalException("unsupport MetaMode for " + mode);
        } else if (mode.isMixed()) {
            // 后续版本支持
            throw new CanalException("unsupport MetaMode for " + mode);
        } else {
            throw new CanalException("unsupport MetaMode for " + mode);
        }

        if (eventStore instanceof AbstractCanalStoreScavenge) {
            StorageScavengeMode scavengeMode = parameters.getStorageScavengeMode();
            AbstractCanalStoreScavenge eventScavengeStore = (AbstractCanalStoreScavenge) eventStore;
            eventScavengeStore.setDestination(destination);
            eventScavengeStore.setCanalMetaManager(metaManager);
            eventScavengeStore.setOnAck(scavengeMode.isOnAck());
            eventScavengeStore.setOnFull(scavengeMode.isOnFull());
            eventScavengeStore.setOnSchedule(scavengeMode.isOnSchedule());
            if (scavengeMode.isOnSchedule()) {
                eventScavengeStore.setScavengeSchedule(parameters.getScavengeSchdule());
            }
        }
        logger.info("init eventStore end! \n\t load CanalEventStore:{}", eventStore.getClass().getName());
    }

    protected void initEventSink() {
        logger.info("init eventSink begin...");

        int groupSize = getGroupSize();
        if (groupSize <= 1) {
            eventSink = new EntryEventSink();
        } else {
            eventSink = new GroupEventSink(groupSize);
        }

        if (eventSink instanceof EntryEventSink) {
            ((EntryEventSink) eventSink).setFilterTransactionEntry(false);
            ((EntryEventSink) eventSink).setEventStore(getEventStore());
        }
        // if (StringUtils.isNotEmpty(filter)) {
        // AviaterRegexFilter aviaterFilter = new AviaterRegexFilter(filter);
        // ((AbstractCanalEventSink) eventSink).setFilter(aviaterFilter);
        // }
        logger.info("init eventSink end! \n\t load CanalEventSink:{}", eventSink.getClass().getName());
    }

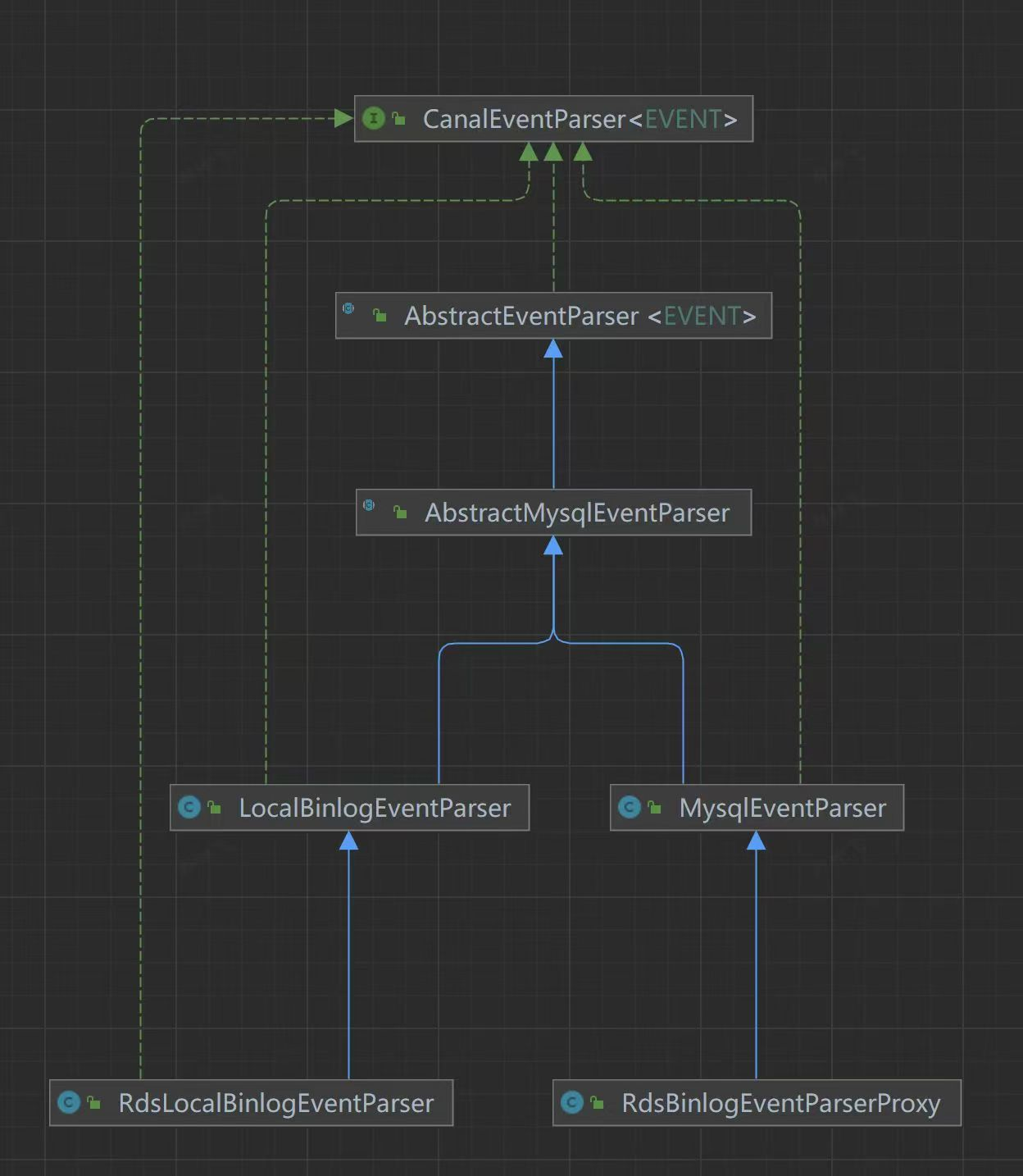

    protected void initEventParser() {
        logger.info("init eventParser begin...");
        SourcingType type = parameters.getSourcingType();

        List<List<DataSourcing>> groupDbAddresses = parameters.getGroupDbAddresses();
        if (!CollectionUtils.isEmpty(groupDbAddresses)) {
            int size = groupDbAddresses.get(0).size();// 取第一个分组的数量，主备分组的数量必须一致
            List<CanalEventParser> eventParsers = new ArrayList<>();
            for (int i = 0; i < size; i++) {
                List<InetSocketAddress> dbAddress = new ArrayList<>();
                SourcingType lastType = null;
                for (List<DataSourcing> groupDbAddress : groupDbAddresses) {
                    if (lastType != null && !lastType.equals(groupDbAddress.get(i).getType())) {
                        throw new CanalException(String.format("master/slave Sourcing type is unmatch. %s vs %s",
                            lastType,
                            groupDbAddress.get(i).getType()));
                    }

                    lastType = groupDbAddress.get(i).getType();
                    dbAddress.add(groupDbAddress.get(i).getDbAddress());
                }

                // 初始化其中的一个分组parser
                eventParsers.add(doInitEventParser(lastType, dbAddress));
            }

            if (eventParsers.size() > 1) { // 如果存在分组，构造分组的parser
                GroupEventParser groupEventParser = new GroupEventParser();
                groupEventParser.setEventParsers(eventParsers);
                this.eventParser = groupEventParser;
            } else {
                this.eventParser = eventParsers.get(0);
            }
        } else {
            // 创建一个空数据库地址的parser，可能使用了tddl指定地址，启动的时候才会从tddl获取地址
            this.eventParser = doInitEventParser(type, new ArrayList<>());
        }

        logger.info("init eventParser end! \n\t load CanalEventParser:{}", eventParser.getClass().getName());
    }

    private CanalEventParser doInitEventParser(SourcingType type, List<InetSocketAddress> dbAddresses) {
        CanalEventParser eventParser;
        if (type.isMysql()) {
            MysqlEventParser mysqlEventParser = null;
            if (StringUtils.isNotEmpty(parameters.getRdsAccesskey())
                && StringUtils.isNotEmpty(parameters.getRdsSecretkey())
                && StringUtils.isNotEmpty(parameters.getRdsInstanceId())) {

                mysqlEventParser = new RdsBinlogEventParserProxy();
                ((RdsBinlogEventParserProxy) mysqlEventParser).setAccesskey(parameters.getRdsAccesskey());
                ((RdsBinlogEventParserProxy) mysqlEventParser).setSecretkey(parameters.getRdsSecretkey());
                ((RdsBinlogEventParserProxy) mysqlEventParser).setInstanceId(parameters.getRdsInstanceId());
            } else {
                mysqlEventParser = new MysqlEventParser();
            }
            mysqlEventParser.setDestination(destination);
            // 编码参数
            mysqlEventParser.setConnectionCharset(parameters.getConnectionCharset());
            // 网络相关参数1
            mysqlEventParser.setDefaultConnectionTimeoutInSeconds(parameters.getDefaultConnectionTimeoutInSeconds());
            mysqlEventParser.setSendBufferSize(parameters.getSendBufferSize());
            mysqlEventParser.setReceiveBufferSize(parameters.getReceiveBufferSize());
            // 心跳检查参数
            mysqlEventParser.setDetectingEnable(parameters.getDetectingEnable());
            mysqlEventParser.setDetectingSQL(parameters.getDetectingSQL());
            mysqlEventParser.setDetectingIntervalInSeconds(parameters.getDetectingIntervalInSeconds());
            // 数据库信息参数
            mysqlEventParser.setSlaveId(parameters.getSlaveId());
            if (!CollectionUtils.isEmpty(dbAddresses)) {
                mysqlEventParser.setMasterInfo(new AuthenticationInfo(dbAddresses.get(0),
                    parameters.getDbUsername(),
                    parameters.getDbPassword(),
                    parameters.getDefaultDatabaseName(),
                    parameters.getSslInfo()));

                if (dbAddresses.size() > 1) {
                    mysqlEventParser.setStandbyInfo(new AuthenticationInfo(dbAddresses.get(1),
                        parameters.getDbUsername(),
                        parameters.getDbPassword(),
                        parameters.getDefaultDatabaseName(),
                        parameters.getSslInfo()));
                }
            }

            if (!CollectionUtils.isEmpty(parameters.getPositions())) {
                EntryPosition masterPosition = JsonUtils.unmarshalFromString(parameters.getPositions().get(0),
                    EntryPosition.class);
                // binlog位置参数
                mysqlEventParser.setMasterPosition(masterPosition);

                if (parameters.getPositions().size() > 1) {
                    EntryPosition standbyPosition = JsonUtils.unmarshalFromString(parameters.getPositions().get(1),
                        EntryPosition.class);
                    mysqlEventParser.setStandbyPosition(standbyPosition);
                }
            }
            mysqlEventParser.setFallbackIntervalInSeconds(parameters.getFallbackIntervalInSeconds());
            mysqlEventParser.setProfilingEnabled(false);
            mysqlEventParser.setFilterTableError(parameters.getFilterTableError());
            mysqlEventParser.setParallel(parameters.getParallel());
            mysqlEventParser.setIsGTIDMode(BooleanUtils.toBoolean(parameters.getGtidEnable()));
            mysqlEventParser.setMultiStreamEnable(parameters.getMultiStreamEnable());
            // tsdb
            if (parameters.getTsdbSnapshotInterval() != null) {
                mysqlEventParser.setTsdbSnapshotInterval(parameters.getTsdbSnapshotInterval());
            }
            if (parameters.getTsdbSnapshotExpire() != null) {
                mysqlEventParser.setTsdbSnapshotExpire(parameters.getTsdbSnapshotExpire());
            }
            boolean tsdbEnable = BooleanUtils.toBoolean(parameters.getTsdbEnable());
            // manager启动模式默认使用mysql tsdb机制
            final String tsdbSpringXml = "classpath:spring/tsdb/mysql-tsdb.xml";
            if (tsdbEnable) {
                mysqlEventParser.setTableMetaTSDBFactory(new DefaultTableMetaTSDBFactory() {

                    @Override
                    public void destory(String destination) {
                        TableMetaTSDBBuilder.destory(destination);
                    }

                    @Override
                    public TableMetaTSDB build(String destination, String springXml) {
                        synchronized (CanalInstanceWithManager.class) {
                            try {
                                System.setProperty("canal.instance.tsdb.url", parameters.getTsdbJdbcUrl());
                                System.setProperty("canal.instance.tsdb.dbUsername", parameters.getTsdbJdbcUserName());
                                System.setProperty("canal.instance.tsdb.dbPassword", parameters.getTsdbJdbcPassword());
                                System.setProperty("canal.instance.destination", destination);

                                return TableMetaTSDBBuilder.build(destination, tsdbSpringXml);
                            } finally {
                                // reset
                                System.setProperty("canal.instance.destination", "");
                                System.setProperty("canal.instance.tsdb.url", "");
                                System.setProperty("canal.instance.tsdb.dbUsername", "");
                                System.setProperty("canal.instance.tsdb.dbPassword", "");
                            }
                        }
                    }
                });
                mysqlEventParser.setTsdbJdbcUrl(parameters.getTsdbJdbcUrl());
                mysqlEventParser.setTsdbJdbcUserName(parameters.getTsdbJdbcUserName());
                mysqlEventParser.setTsdbJdbcPassword(parameters.getTsdbJdbcPassword());
                mysqlEventParser.setTsdbSpringXml(tsdbSpringXml);
                mysqlEventParser.setEnableTsdb(tsdbEnable);
            }
            eventParser = mysqlEventParser;
        } else if (type.isLocalBinlog()) {
            LocalBinlogEventParser localBinlogEventParser = new LocalBinlogEventParser();
            localBinlogEventParser.setDestination(destination);
            localBinlogEventParser.setBufferSize(parameters.getReceiveBufferSize());
            localBinlogEventParser.setConnectionCharset(parameters.getConnectionCharset());
            localBinlogEventParser.setDirectory(parameters.getLocalBinlogDirectory());
            localBinlogEventParser.setProfilingEnabled(false);
            localBinlogEventParser.setDetectingEnable(parameters.getDetectingEnable());
            localBinlogEventParser.setDetectingIntervalInSeconds(parameters.getDetectingIntervalInSeconds());
            localBinlogEventParser.setFilterTableError(parameters.getFilterTableError());
            localBinlogEventParser.setParallel(parameters.getParallel());
            // 数据库信息，反查表结构时需要
            if (!CollectionUtils.isEmpty(dbAddresses)) {
                localBinlogEventParser.setMasterInfo(new AuthenticationInfo(dbAddresses.get(0),
                    parameters.getDbUsername(),
                    parameters.getDbPassword(),
                    parameters.getDefaultDatabaseName(),
                    parameters.getSslInfo()));
            }

            eventParser = localBinlogEventParser;
        } else if (type.isOracle()) {
            throw new CanalException("unsupport SourcingType for " + type);
        } else {
            throw new CanalException("unsupport SourcingType for " + type);
        }

        // add transaction support at 2012-12-06
        if (eventParser instanceof AbstractEventParser) {
            AbstractEventParser abstractEventParser = (AbstractEventParser) eventParser;
            abstractEventParser.setTransactionSize(parameters.getTransactionSize());
            abstractEventParser.setLogPositionManager(initLogPositionManager());
            abstractEventParser.setAlarmHandler(getAlarmHandler());
            abstractEventParser.setEventSink(getEventSink());

            if (StringUtils.isNotEmpty(filter)) {
                AviaterRegexFilter aviaterFilter = new AviaterRegexFilter(filter);
                abstractEventParser.setEventFilter(aviaterFilter);
            }

            // 设置黑名单
            if (StringUtils.isNotEmpty(parameters.getBlackFilter())) {
                AviaterRegexFilter aviaterFilter = new AviaterRegexFilter(parameters.getBlackFilter());
                abstractEventParser.setEventBlackFilter(aviaterFilter);
            }
        }
        if (eventParser instanceof MysqlEventParser) {
            MysqlEventParser mysqlEventParser = (MysqlEventParser) eventParser;

            // 初始化haController，绑定与eventParser的关系，haController会控制eventParser
            CanalHAController haController = initHaController();
            mysqlEventParser.setHaController(haController);
        }
        return eventParser;
    }

    protected CanalHAController initHaController() {
        logger.info("init haController begin...");
        HAMode haMode = parameters.getHaMode();
        CanalHAController haController = null;
        if (haMode.isHeartBeat()) {
            haController = new HeartBeatHAController();
            ((HeartBeatHAController) haController).setDetectingRetryTimes(parameters.getDetectingRetryTimes());
            ((HeartBeatHAController) haController).setSwitchEnable(parameters.getHeartbeatHaEnable());
        } else {
            throw new CanalException("unsupport HAMode for " + haMode);
        }
        logger.info("init haController end! \n\t load CanalHAController:{}", haController.getClass().getName());

        return haController;
    }

    protected CanalLogPositionManager initLogPositionManager() {
        logger.info("init logPositionPersistManager begin...");
        IndexMode indexMode = parameters.getIndexMode();
        CanalLogPositionManager logPositionManager;
        if (indexMode.isMemory()) {
            logPositionManager = new MemoryLogPositionManager();
        } else if (indexMode.isZookeeper()) {
            logPositionManager = new ZooKeeperLogPositionManager(getZkclientx());
        } else if (indexMode.isMixed()) {
            MemoryLogPositionManager memoryLogPositionManager = new MemoryLogPositionManager();
            ZooKeeperLogPositionManager zooKeeperLogPositionManager = new ZooKeeperLogPositionManager(getZkclientx());
            logPositionManager = new PeriodMixedLogPositionManager(memoryLogPositionManager,
                zooKeeperLogPositionManager,
                1000L);
        } else if (indexMode.isMeta()) {
            logPositionManager = new MetaLogPositionManager(metaManager);
        } else if (indexMode.isMemoryMetaFailback()) {
            MemoryLogPositionManager primary = new MemoryLogPositionManager();
            MetaLogPositionManager secondary = new MetaLogPositionManager(metaManager);

            logPositionManager = new FailbackLogPositionManager(primary, secondary);
        } else {
            throw new CanalException("unsupport indexMode for " + indexMode);
        }

        logger.info("init logPositionManager end! \n\t load CanalLogPositionManager:{}", logPositionManager.getClass()
            .getName());

        return logPositionManager;
    }

    protected void startEventParserInternal(CanalEventParser eventParser, boolean isGroup) {
        if (eventParser instanceof AbstractEventParser) {
            AbstractEventParser abstractEventParser = (AbstractEventParser) eventParser;
            abstractEventParser.setAlarmHandler(getAlarmHandler());
        }

        super.startEventParserInternal(eventParser, isGroup);
    }

    private int getGroupSize() {
        List<List<DataSourcing>> groupDbAddresses = parameters.getGroupDbAddresses();
        if (!CollectionUtils.isEmpty(groupDbAddresses)) {
            return groupDbAddresses.get(0).size();
        } else {
            // 可能是基于tddl的启动
            return 1;
        }
    }

    private synchronized ZkClientx getZkclientx() {
        // 做一下排序，保证相同的机器只使用同一个链接
        List<String> zkClusters = new ArrayList<>(parameters.getZkClusters());
        Collections.sort(zkClusters);

        return ZkClientx.getZkClient(StringUtils.join(zkClusters, ";"));
    }

    public void setAlarmHandler(CanalAlarmHandler alarmHandler) {
        this.alarmHandler = alarmHandler;
    }

}

3.2 CanalInstanceWithSpring

public class CanalInstanceWithSpring extends AbstractCanalInstance {

    private static final Logger logger = LoggerFactory.getLogger(CanalInstanceWithSpring.class);

    public void start() {
        logger.info("start CannalInstance for {}-{} ", new Object[] { 1, destination });
        super.start();
    }

    // ======== setter ========

    public void setDestination(String destination) {
        this.destination = destination;
    }

    public void setEventParser(CanalEventParser eventParser) {
        this.eventParser = eventParser;
    }

    public void setEventSink(CanalEventSink<List<CanalEntry.Entry>> eventSink) {
        this.eventSink = eventSink;
    }

    public void setEventStore(CanalEventStore<Event> eventStore) {
        this.eventStore = eventStore;
    }

    public void setMetaManager(CanalMetaManager metaManager) {
        this.metaManager = metaManager;
    }

    public void setAlarmHandler(CanalAlarmHandler alarmHandler) {
        this.alarmHandler = alarmHandler;
    }

    public void setMqConfig(CanalMQConfig mqConfig) {
        this.mqConfig = mqConfig;
    }

}

4. CanalConfigClient

4.1 CanalConfigClient

public class CanalConfigClient {

    /**
     * 根据对应的destinantion查询Canal信息
     */
    public Canal findCanal(String destination) {
        // TODO 根据自己的业务实现
        throw new UnsupportedOperationException();
    }

    /**
     * 根据对应的destinantion查询filter信息
     */
    public String findFilter(String destination) {
        // TODO 根据自己的业务实现
        throw new UnsupportedOperationException();
    }

}

4.2 PlainCanalConfigClient

public class PlainCanalConfigClient extends AbstractCanalLifeCycle implements CanalLifeCycle {

    private final static Integer REQUEST_TIMEOUT = 5000;
    private String               configURL;
    private String               user;
    private String               passwd;
    private HttpHelper           httpHelper;
    private String               localIp;
    private int                  adminPort;
    private boolean              autoRegister;
    private String               autoCluster;
    private String               name;

    public PlainCanalConfigClient(String configURL, String user, String passwd, String localIp, int adminPort,
                                  boolean autoRegister, String autoCluster, String name){
        this(configURL, user, passwd, localIp, adminPort);
        this.autoCluster = autoCluster;
        this.autoRegister = autoRegister;
        this.name = name;
    }

    public PlainCanalConfigClient(String configURL, String user, String passwd, String localIp, int adminPort){
        this.configURL = configURL;
        if (!StringUtils.startsWithIgnoreCase(configURL, "http")) {
            this.configURL = "http://" + configURL;
        } else {
            this.configURL = configURL;
        }
        this.user = user;
        this.passwd = passwd;
        this.httpHelper = new HttpHelper();
        if (StringUtils.isEmpty(localIp)) {
            this.localIp = "127.0.0.1";// 本地测试用
        } else {
            this.localIp = localIp;
        }
        this.adminPort = adminPort;
    }

    /**
     * 加载canal.properties文件
     *
     * @return 远程配置的properties
     */
    public PlainCanal findServer(String md5) {
        if (StringUtils.isEmpty(md5)) {
            md5 = "";
        }
        String url = configURL + "/api/v1/config/server_polling?ip=" + localIp + "&port=" + adminPort + "&md5=" + md5
                     + "&register=" + (autoRegister ? 1 : 0) + "&cluster=" + StringUtils.stripToEmpty(autoCluster) + "&name=" + StringUtils.stripToEmpty(name);
        return queryConfig(url);
    }

    /**
     * 加载远程的instance.properties
     */
    public PlainCanal findInstance(String destination, String md5) {
        if (StringUtils.isEmpty(md5)) {
            md5 = "";
        }
        String url = configURL + "/api/v1/config/instance_polling/" + UrlEscapers.urlPathSegmentEscaper().escape(destination) + "?md5=" + md5;
        return queryConfig(url);
    }

    /**
     * 返回需要运行的instance列表
     */
    public String findInstances(String md5) {
        if (StringUtils.isEmpty(md5)) {
            md5 = "";
        }
        String url = configURL + "/api/v1/config/instances_polling?md5=" + md5 + "&ip=" + localIp + "&port="
                     + adminPort;
        ResponseModel<CanalConfig> config = doQuery(url);
        if (config.data != null) {
            return config.data.content;
        } else {
            return null;
        }
    }

    private PlainCanal queryConfig(String url) {
        try {
            ResponseModel<CanalConfig> config = doQuery(url);
            return processData(config.data);
        } catch (Throwable e) {
            throw new CanalException("load manager config failed.", e);
        }
    }

    private ResponseModel<CanalConfig> doQuery(String url) {
        Map<String, String> heads = new HashMap<>();
        heads.put("user", user);
        heads.put("passwd", passwd);
        String response = httpHelper.get(url, heads, REQUEST_TIMEOUT);
        ResponseModel<CanalConfig> resp = JSON.parseObject(response,
            new TypeReference<ResponseModel<CanalConfig>>() {
            });

        if (!HttpHelper.REST_STATE_OK.equals(resp.code)) {
            throw new CanalException("requestGet for canal config error: " + resp.message);
        }

        return resp;
    }

    private PlainCanal processData(CanalConfig config) throws IOException, NoSuchAlgorithmException {
        Properties properties = new Properties();
        String md5 = null;
        String status = null;
        if (config != null && StringUtils.isNotEmpty(config.content)) {
            md5 = SecurityUtil.md5String(config.content);
            status = config.status;
            properties.load(new ByteArrayInputStream(config.content.getBytes(StandardCharsets.UTF_8)));
        } else {
            // null代表没有新配置变更
            return null;
        }

        return new PlainCanal(properties, status, md5);
    }

    private static class ResponseModel<T> {

        public Integer code;
        public String  message;
        public T       data;
    }

    private static class CanalConfig {

        public String content;
        public String status;

    }
}

1. CanalEventParser

/**
 * 数据复制控制器
 *
 * @author jianghang 2012-6-21 下午04:03:25
 * @version 1.0.0
 */
public interface CanalEventParser<EVENT> extends CanalLifeCycle {

}

2. AbstractEventParser

/**
 * 抽象的EventParser, 最大化共用mysql/oracle版本的实现
 *
 * @author jianghang 2013-1-20 下午08:10:25
 * @version 1.0.0
 */
public abstract class AbstractEventParser<EVENT> extends AbstractCanalLifeCycle implements CanalEventParser<EVENT> {

    protected final Logger                           logger                     = LoggerFactory.getLogger(this.getClass());

    protected CanalLogPositionManager                logPositionManager         = null;
    protected CanalEventSink<List<CanalEntry.Entry>> eventSink                  = null;
    protected CanalEventFilter                       eventFilter                = null;
    protected CanalEventFilter                       eventBlackFilter           = null;

    // 字段过滤
    protected String		  			  			fieldFilter;
    protected Map<String, List<String>> 			fieldFilterMap;
    protected String		  			  			fieldBlackFilter;
    protected Map<String, List<String>> 			fieldBlackFilterMap;

    private CanalAlarmHandler                        alarmHandler               = null;

    // 统计参数
    protected AtomicBoolean                          profilingEnabled           = new AtomicBoolean(false);                // profile开关参数
    protected AtomicLong                             receivedEventCount         = new AtomicLong();
    protected AtomicLong                             parsedEventCount           = new AtomicLong();
    protected AtomicLong                             consumedEventCount         = new AtomicLong();
    protected long                                   parsingInterval            = -1;
    protected long                                   processingInterval         = -1;

    // 认证信息
    protected volatile AuthenticationInfo            runningInfo;
    protected String                                 destination;

    // binLogParser
    protected BinlogParser                           binlogParser               = null;

    protected Thread                                 parseThread                = null;

    protected Thread.UncaughtExceptionHandler        handler                    = (t, e) -> logger.error("parse events has an error",
        e);

    protected EventTransactionBuffer                 transactionBuffer;
    protected int                                    transactionSize            = 1024;
    protected AtomicBoolean                          needTransactionPosition    = new AtomicBoolean(false);
    protected long                                   lastEntryTime              = 0L;
    protected volatile boolean                       detectingEnable            = true;                                    // 是否开启心跳检查
    protected Integer                                detectingIntervalInSeconds = 3;                                       // 检测频率
    protected volatile Timer                         timer;
    protected TimerTask                              heartBeatTimerTask;
    protected Throwable                              exception                  = null;

    protected boolean                                isGTIDMode                 = false;                                   // 是否是GTID模式
    protected boolean                                parallel                   = true;                                    // 是否开启并行解析模式
    protected Integer                                parallelThreadSize         = Runtime.getRuntime()
                                                                                    .availableProcessors() * 60 / 100;     // 60%的能力跑解析,剩余部分处理网络
    protected int                                    parallelBufferSize         = 256;                                     // 必须为2的幂
    protected MultiStageCoprocessor                  multiStageCoprocessor;
    protected ParserExceptionHandler                 parserExceptionHandler;
    protected long                                   serverId;

    protected abstract BinlogParser buildParser();

    protected abstract ErosaConnection buildErosaConnection();

    protected abstract MultiStageCoprocessor buildMultiStageCoprocessor();

    protected abstract EntryPosition findStartPosition(ErosaConnection connection) throws IOException;

    protected void preDump(ErosaConnection connection) {
    }

    protected boolean processTableMeta(EntryPosition position) {
        return true;
    }

    protected void afterDump(ErosaConnection connection) {
    }

    public void sendAlarm(String destination, String msg) {
        if (this.alarmHandler != null) {
            this.alarmHandler.sendAlarm(destination, msg);
        }
    }

    public AbstractEventParser(){
        // 初始化一下
        transactionBuffer = new EventTransactionBuffer(transaction -> {
            boolean successed = consumeTheEventAndProfilingIfNecessary(transaction);
            if (!running) {
                return;
            }

            if (!successed) {
                throw new CanalParseException("consume failed!");
            }

            LogPosition position = buildLastTransactionPosition(transaction);
            if (position != null) { // 可能position为空
                logPositionManager.persistLogPosition(AbstractEventParser.this.destination, position);
            }
        });
    }

    public void start() {
        super.start();
        MDC.put("destination", destination);
        // 配置transaction buffer
        // 初始化缓冲队列
        transactionBuffer.setBufferSize(transactionSize);// 设置buffer大小
        transactionBuffer.start();
        // 构造bin log parser
        binlogParser = buildParser();// 初始化一下BinLogParser
        binlogParser.start();
        // 启动工作线程
        parseThread = new Thread(new Runnable() {

            public void run() {
                MDC.put("destination", String.valueOf(destination));
                ErosaConnection erosaConnection = null;
                boolean isMariaDB = false;
                while (running) {
                    try {
                        // 开始执行replication
                        // 1. 构造Erosa连接
                        erosaConnection = buildErosaConnection();

                        // 2. 启动一个心跳线程
                        startHeartBeat(erosaConnection);

                        // 3. 执行dump前的准备工作
                        preDump(erosaConnection);

                        erosaConnection.connect();// 链接

                        long queryServerId = erosaConnection.queryServerId();
                        if (queryServerId != 0) {
                            serverId = queryServerId;
                        }

                        if (erosaConnection instanceof MysqlConnection) {
                            isMariaDB = ((MysqlConnection) erosaConnection).isMariaDB();
                        }
                        // 4. 获取最后的位置信息
                        long start = System.currentTimeMillis();
                        logger.warn("---> begin to find start position, it will be long time for reset or first position");
                        EntryPosition position = findStartPosition(erosaConnection);
                        final EntryPosition startPosition = position;
                        if (startPosition == null) {
                            throw new PositionNotFoundException("can't find start position for " + destination);
                        }

                        if (!processTableMeta(startPosition)) {
                            throw new CanalParseException("can't find init table meta for " + destination
                                                          + " with position : " + startPosition);
                        }
                        long end = System.currentTimeMillis();
                        logger.warn("---> find start position successfully, {}", startPosition.toString() + " cost : "
                                                                                 + (end - start)
                                                                                 + "ms , the next step is binlog dump");
                        // 重新链接，因为在找position过程中可能有状态，需要断开后重建
                        erosaConnection.reconnect();

                        final SinkFunction sinkHandler = new SinkFunction<EVENT>() {

                            private LogPosition lastPosition;

                            public boolean sink(EVENT event) {
                                try {
                                    CanalEntry.Entry entry = parseAndProfilingIfNecessary(event, false);

                                    if (!running) {
                                        return false;
                                    }

                                    if (entry != null) {
                                        exception = null; // 有正常数据流过，清空exception
                                        transactionBuffer.add(entry);
                                        // 记录一下对应的positions
                                        this.lastPosition = buildLastPosition(entry);
                                        // 记录一下最后一次有数据的时间
                                        lastEntryTime = System.currentTimeMillis();
                                    }
                                    return running;
                                } catch (TableIdNotFoundException e) {
                                    throw e;
                                } catch (Throwable e) {
                                    if (e.getCause() instanceof TableIdNotFoundException) {
                                        throw (TableIdNotFoundException) e.getCause();
                                    }
                                    // 记录一下，出错的位点信息
                                    processSinkError(e,
                                        this.lastPosition,
                                        startPosition.getJournalName(),
                                        startPosition.getPosition());
                                    throw new CanalParseException(e); // 继续抛出异常，让上层统一感知
                                }
                            }

                        };

                        // 4. 开始dump数据
                        if (parallel) {
                            // build stage processor
                            multiStageCoprocessor = buildMultiStageCoprocessor();
                            if (isGTIDMode() && StringUtils.isNotEmpty(startPosition.getGtid())) {
                                // 判断所属instance是否启用GTID模式，是的话调用ErosaConnection中GTID对应方法dump数据
                                GTIDSet gtidSet = parseGtidSet(startPosition.getGtid(), isMariaDB);
                                ((MysqlMultiStageCoprocessor) multiStageCoprocessor).setGtidSet(gtidSet);
                                multiStageCoprocessor.start();
                                erosaConnection.dump(gtidSet, multiStageCoprocessor);
                            } else {
                                multiStageCoprocessor.start();
                                if (StringUtils.isEmpty(startPosition.getJournalName())
                                    && startPosition.getTimestamp() != null) {
                                    erosaConnection.dump(startPosition.getTimestamp(), multiStageCoprocessor);
                                } else {
                                    erosaConnection.dump(startPosition.getJournalName(),
                                        startPosition.getPosition(),
                                        multiStageCoprocessor);
                                }
                            }
                        } else {
                            if (isGTIDMode() && StringUtils.isNotEmpty(startPosition.getGtid())) {
                                // 判断所属instance是否启用GTID模式，是的话调用ErosaConnection中GTID对应方法dump数据
                                erosaConnection.dump(parseGtidSet(startPosition.getGtid(), isMariaDB), sinkHandler);
                            } else {
                                if (StringUtils.isEmpty(startPosition.getJournalName())
                                    && startPosition.getTimestamp() != null) {
                                    erosaConnection.dump(startPosition.getTimestamp(), sinkHandler);
                                } else {
                                    erosaConnection.dump(startPosition.getJournalName(),
                                        startPosition.getPosition(),
                                        sinkHandler);
                                }
                            }
                        }
                    } catch (TableIdNotFoundException e) {
                        exception = e;
                        // 特殊处理TableIdNotFound异常,出现这样的异常，一种可能就是起始的position是一个事务当中，导致tablemap
                        // Event时间没解析过
                        needTransactionPosition.compareAndSet(false, true);
                        logger.error(String.format("dump address %s has an error, retrying. caused by ",
                            runningInfo.getAddress().toString()), e);
                    } catch (Throwable e) {
                        processDumpError(e);
                        exception = e;
                        if (!running) {
                            if (!(e instanceof java.nio.channels.ClosedByInterruptException || e.getCause() instanceof java.nio.channels.ClosedByInterruptException)) {
                                throw new CanalParseException(String.format("dump address %s has an error, retrying. ",
                                    runningInfo.getAddress().toString()), e);
                            }
                        } else {
                            logger.error(String.format("dump address %s has an error, retrying. caused by ",
                                runningInfo.getAddress().toString()), e);
                            sendAlarm(destination, ExceptionUtils.getFullStackTrace(e));
                        }
                        if (parserExceptionHandler != null) {
                            parserExceptionHandler.handle(e);
                        }
                    } finally {
                        // 重新置为中断状态
                        Thread.interrupted();
                        // 关闭一下链接
                        afterDump(erosaConnection);
                        try {
                            if (erosaConnection != null) {
                                erosaConnection.disconnect();
                            }
                        } catch (IOException e1) {
                            if (!running) {
                                throw new CanalParseException(String.format("disconnect address %s has an error, retrying. ",
                                    runningInfo.getAddress().toString()),
                                    e1);
                            } else {
                                logger.error("disconnect address {} has an error, retrying., caused by ",
                                    runningInfo.getAddress().toString(),
                                    e1);
                            }
                        }
                    }
                    // 出异常了，退出sink消费，释放一下状态
                    eventSink.interrupt();
                    transactionBuffer.reset();// 重置一下缓冲队列，重新记录数据
                    binlogParser.reset();// 重新置位
                    if (multiStageCoprocessor != null && multiStageCoprocessor.isStart()) {
                        // 处理 RejectedExecutionException
                        try {
                            multiStageCoprocessor.stop();
                        } catch (Throwable t) {
                            logger.debug("multi processor rejected:", t);
                        }
                    }

                    if (running) {
                        // sleep一段时间再进行重试
                        try {
                            Thread.sleep(10000 + RandomUtils.nextInt(10000));
                        } catch (InterruptedException e) {
                        }
                    }
                }
                MDC.remove("destination");
            }
        });

        parseThread.setUncaughtExceptionHandler(handler);
        parseThread.setName(String.format("destination = %s , address = %s , EventParser",
            destination,
            runningInfo == null ? null : runningInfo.getAddress()));
        parseThread.start();
    }

    public void stop() {
        super.stop();

        stopHeartBeat(); // 先停止心跳
        parseThread.interrupt(); // 尝试中断
        eventSink.interrupt();

        if (multiStageCoprocessor != null && multiStageCoprocessor.isStart()) {
            try {
                multiStageCoprocessor.stop();
            } catch (Throwable t) {
                logger.debug("multi processor rejected:", t);
            }
        }

        try {
            parseThread.join();// 等待其结束
        } catch (InterruptedException e) {
            // ignore
        }

        if (binlogParser.isStart()) {
            binlogParser.stop();
        }
        if (transactionBuffer.isStart()) {
            transactionBuffer.stop();
        }
    }

    protected boolean consumeTheEventAndProfilingIfNecessary(List<CanalEntry.Entry> entrys) throws CanalSinkException,
                                                                                           InterruptedException {
        long startTs = -1;
        boolean enabled = getProfilingEnabled();
        if (enabled) {
            startTs = System.currentTimeMillis();
        }

        boolean result = eventSink.sink(entrys, (runningInfo == null) ? null : runningInfo.getAddress(), destination);

        if (enabled) {
            this.processingInterval = System.currentTimeMillis() - startTs;
        }

        if (consumedEventCount.incrementAndGet() < 0) {
            consumedEventCount.set(0);
        }

        return result;
    }

    protected CanalEntry.Entry parseAndProfilingIfNecessary(EVENT bod, boolean isSeek) throws Exception {
        long startTs = -1;
        boolean enabled = getProfilingEnabled();
        if (enabled) {
            startTs = System.currentTimeMillis();
        }
        CanalEntry.Entry event = binlogParser.parse(bod, isSeek);
        if (enabled) {
            this.parsingInterval = System.currentTimeMillis() - startTs;
        }

        if (parsedEventCount.incrementAndGet() < 0) {
            parsedEventCount.set(0);
        }
        return event;
    }

    public Boolean getProfilingEnabled() {
        return profilingEnabled.get();
    }

    protected LogPosition buildLastTransactionPosition(List<CanalEntry.Entry> entries) { // 初始化一下
        for (int i = entries.size() - 1; i > 0; i--) {
            CanalEntry.Entry entry = entries.get(i);
            if (entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONEND) {// 尽量记录一个事务做为position
                return buildLastPosition(entry);
            }
        }

        return null;
    }

    protected LogPosition buildLastPosition(CanalEntry.Entry entry) { // 初始化一下
        LogPosition logPosition = new LogPosition();
        EntryPosition position = new EntryPosition();
        position.setJournalName(entry.getHeader().getLogfileName());
        position.setPosition(entry.getHeader().getLogfileOffset());
        position.setTimestamp(entry.getHeader().getExecuteTime());
        // add serverId at 2016-06-28
        position.setServerId(entry.getHeader().getServerId());
        // set gtid
        position.setGtid(entry.getHeader().getGtid());

        logPosition.setPostion(position);

        LogIdentity identity = new LogIdentity(runningInfo.getAddress(), -1L);
        logPosition.setIdentity(identity);
        return logPosition;
    }

    protected void processSinkError(Throwable e, LogPosition lastPosition, String startBinlogFile, Long startPosition) {
        if (lastPosition != null) {
            logger.warn(String.format("ERROR ## parse this event has an error , last position : [%s]",
                lastPosition.getPostion()),
                e);
        } else {
            logger.warn(String.format("ERROR ## parse this event has an error , last position : [%s,%s]",
                startBinlogFile,
                startPosition), e);
        }
    }

    protected void processDumpError(Throwable e) {
        // do nothing
    }

    protected void startHeartBeat(ErosaConnection connection) {
        lastEntryTime = 0L; // 初始化
        if (timer == null) {// lazy初始化一下
            String name = String.format("destination = %s , address = %s , HeartBeatTimeTask",
                destination,
                runningInfo == null ? null : runningInfo.getAddress().toString());
            synchronized (AbstractEventParser.class) {
                // synchronized (MysqlEventParser.class) {
                // why use MysqlEventParser.class, u know, MysqlEventParser is
                // the child class 4 AbstractEventParser,
                // do this is ...
                if (timer == null) {
                    timer = new Timer(name, true);
                }
            }
        }

        if (heartBeatTimerTask == null) {// fixed issue #56，避免重复创建heartbeat线程
            heartBeatTimerTask = buildHeartBeatTimeTask(connection);
            Integer interval = detectingIntervalInSeconds;
            timer.schedule(heartBeatTimerTask, interval * 1000L, interval * 1000L);
            logger.info("start heart beat.... ");
        }
    }

    protected TimerTask buildHeartBeatTimeTask(ErosaConnection connection) {
        return new TimerTask() {

            public void run() {
                try {
                    if (exception == null || lastEntryTime > 0) {
                        // 如果未出现异常，或者有第一条正常数据
                        long now = System.currentTimeMillis();
                        long inteval = (now - lastEntryTime) / 1000;
                        if (inteval >= detectingIntervalInSeconds) {
                            Header.Builder headerBuilder = Header.newBuilder();
                            headerBuilder.setExecuteTime(now);
                            Entry.Builder entryBuilder = Entry.newBuilder();
                            entryBuilder.setHeader(headerBuilder.build());
                            entryBuilder.setEntryType(EntryType.HEARTBEAT);
                            Entry entry = entryBuilder.build();
                            // 提交到sink中，目前不会提交到store中，会在sink中进行忽略
                            consumeTheEventAndProfilingIfNecessary(Arrays.asList(entry));
                        }
                    }

                } catch (Throwable e) {
                    logger.warn("heartBeat run failed ", e);
                }
            }

        };
    }

    protected void stopHeartBeat() {
        lastEntryTime = 0L; // 初始化
        if (timer != null) {
            timer.cancel();
            timer = null;
        }
        heartBeatTimerTask = null;
    }

    /**
     * 解析字段过滤规则
     */
    private Map<String, List<String>> parseFieldFilterMap(String config) {

    	Map<String, List<String>> map = new HashMap<>();

		if (StringUtils.isNotBlank(config)) {
			for (String filter : config.split(",")) {
				if (StringUtils.isBlank(filter)) {
					continue;
				}

				String[] filterConfig = filter.split(":");
				if (filterConfig.length != 2) {
					continue;
				}

				map.put(filterConfig[0].trim().toUpperCase(), Arrays.asList(filterConfig[1].trim().toUpperCase().split("/")));
			}
		}

		return map;
    }

    public void setEventFilter(CanalEventFilter eventFilter) {
        this.eventFilter = eventFilter;
    }

    public void setEventBlackFilter(CanalEventFilter eventBlackFilter) {
        this.eventBlackFilter = eventBlackFilter;
    }

    public Long getParsedEventCount() {
        return parsedEventCount.get();
    }

    public Long getConsumedEventCount() {
        return consumedEventCount.get();
    }

    public void setProfilingEnabled(boolean profilingEnabled) {
        this.profilingEnabled = new AtomicBoolean(profilingEnabled);
    }

    public long getParsingInterval() {
        return parsingInterval;
    }

    public long getProcessingInterval() {
        return processingInterval;
    }

    public void setEventSink(CanalEventSink<List<CanalEntry.Entry>> eventSink) {
        this.eventSink = eventSink;
    }

    public void setDestination(String destination) {
        this.destination = destination;
    }

    public void setBinlogParser(BinlogParser binlogParser) {
        this.binlogParser = binlogParser;
    }

    public BinlogParser getBinlogParser() {
        return binlogParser;
    }

    public void setAlarmHandler(CanalAlarmHandler alarmHandler) {
        this.alarmHandler = alarmHandler;
    }

    public CanalAlarmHandler getAlarmHandler() {
        return this.alarmHandler;
    }

    public void setLogPositionManager(CanalLogPositionManager logPositionManager) {
        this.logPositionManager = logPositionManager;
    }

    public void setTransactionSize(int transactionSize) {
        this.transactionSize = transactionSize;
    }

    public CanalLogPositionManager getLogPositionManager() {
        return logPositionManager;
    }

    public void setDetectingEnable(boolean detectingEnable) {
        this.detectingEnable = detectingEnable;
    }

    public void setDetectingIntervalInSeconds(Integer detectingIntervalInSeconds) {
        this.detectingIntervalInSeconds = detectingIntervalInSeconds;
    }

    public Throwable getException() {
        return exception;
    }

    public boolean isGTIDMode() {
        return isGTIDMode;
    }

    public void setIsGTIDMode(boolean isGTIDMode) {
        this.isGTIDMode = isGTIDMode;
    }

    public boolean isParallel() {
        return parallel;
    }

    public void setParallel(boolean parallel) {
        this.parallel = parallel;
    }

    public int getParallelThreadSize() {
        return parallelThreadSize;
    }

    public void setParallelThreadSize(Integer parallelThreadSize) {
        if (parallelThreadSize != null) {
            this.parallelThreadSize = parallelThreadSize;
        }
    }

    public Integer getParallelBufferSize() {
        return parallelBufferSize;
    }

    public void setParallelBufferSize(int parallelBufferSize) {
        this.parallelBufferSize = parallelBufferSize;
    }

    public ParserExceptionHandler getParserExceptionHandler() {
        return parserExceptionHandler;
    }

    public void setParserExceptionHandler(ParserExceptionHandler parserExceptionHandler) {
        this.parserExceptionHandler = parserExceptionHandler;
    }

    public long getServerId() {
        return serverId;
    }

    public void setServerId(long serverId) {
        this.serverId = serverId;
    }

    public String getFieldFilter() {
		return fieldFilter;
	}

	public void setFieldFilter(String fieldFilter) {
		this.fieldFilter = fieldFilter.trim();
		this.fieldFilterMap = parseFieldFilterMap(fieldFilter);
	}

	public String getFieldBlackFilter() {
		return fieldBlackFilter;
	}

	public void setFieldBlackFilter(String fieldBlackFilter) {
		this.fieldBlackFilter = fieldBlackFilter;
		this.fieldBlackFilterMap = parseFieldFilterMap(fieldBlackFilter);
	}

	/**
	 * 获取表字段过滤规则
	 * @return
	 * 	key:	schema.tableName
	 * 	value:	字段列表
	 */
	public Map<String, List<String>> getFieldFilterMap() {
		return fieldFilterMap;
	}

	/**
	 * 获取表字段过滤规则黑名单
	 * @return
	 * 	key:	schema.tableName
	 * 	value:	字段列表
	 */
	public Map<String, List<String>> getFieldBlackFilterMap() {
		return fieldBlackFilterMap;
	}
}

2.1 BinlogParser

/**
 * 解析binlog的接口
 *
 * @author: yuanzu Date: 12-9-20 Time: 下午8:46
 */
public interface BinlogParser<T> extends CanalLifeCycle {

    CanalEntry.Entry parse(T event, boolean isSeek) throws CanalParseException;

    void reset();
}

2.1.1 AbstractBinlogParser

public abstract class AbstractBinlogParser<T> extends AbstractCanalLifeCycle implements BinlogParser<T> {

    public void reset() {
    }

    public Entry parse(T event, TableMeta tableMeta) throws CanalParseException {
        return null;
    }

    public Entry parse(T event) throws CanalParseException {
        return null;
    }

    public void stop() {
        reset();
        super.stop();
    }

}

2.1.2 LogEventConvert

/**
 * 基于{@linkplain LogEvent}转化为Entry对象的处理
 *
 * @author jianghang 2013-1-17 下午02:41:14
 * @version 1.0.0
 */
public class LogEventConvert extends AbstractCanalLifeCycle implements BinlogParser<LogEvent> {

    public static final String          XA_XID              = "XA_XID";
    public static final String          XA_TYPE             = "XA_TYPE";
    public static final String          XA_START            = "XA START";
    public static final String          XA_END              = "XA END";
    public static final String          XA_COMMIT           = "XA COMMIT";
    public static final String          XA_ROLLBACK         = "XA ROLLBACK";
    public static final String          ISO_8859_1          = "ISO-8859-1";
    public static final String          UTF_8               = "UTF-8";
    public static final int             TINYINT_MAX_VALUE   = 256;
    public static final int             SMALLINT_MAX_VALUE  = 65536;
    public static final int             MEDIUMINT_MAX_VALUE = 16777216;
    public static final long            INTEGER_MAX_VALUE   = 4294967296L;
    public static final BigInteger      BIGINT_MAX_VALUE    = new BigInteger("18446744073709551616");
    public static final int             version             = 1;
    public static final String          BEGIN               = "BEGIN";
    public static final String          COMMIT              = "COMMIT";
    public static final Logger          logger              = LoggerFactory.getLogger(LogEventConvert.class);

    private volatile AviaterRegexFilter nameFilter;                                                          // 运行时引用可能会有变化，比如规则发生变化时
    private volatile AviaterRegexFilter nameBlackFilter;
    private Map<String, List<String>>   fieldFilterMap      = new HashMap<>();
    private Map<String, List<String>>   fieldBlackFilterMap = new HashMap<>();

    private TableMetaCache              tableMetaCache;
    private Charset                     charset             = Charset.defaultCharset();
    private boolean                     filterQueryDcl      = false;
    private boolean                     filterQueryDml      = false;
    private boolean                     filterQueryDdl      = false;
    // 是否跳过table相关的解析异常,比如表不存在或者列数量不匹配,issue 92
    private boolean                     filterTableError    = false;
    // 新增rows过滤，用于仅订阅除rows以外的数据
    private boolean                     filterRows          = false;
    private boolean                     useDruidDdlFilter   = true;

    public LogEventConvert(){

    }

    @Override
    public Entry parse(LogEvent logEvent, boolean isSeek) throws CanalParseException {
        if (logEvent == null || logEvent instanceof UnknownLogEvent) {
            return null;
        }

        int eventType = logEvent.getHeader().getType();
        switch (eventType) {
            case LogEvent.QUERY_EVENT:
                return parseQueryEvent((QueryLogEvent) logEvent, isSeek);
            case LogEvent.XID_EVENT:
                return parseXidEvent((XidLogEvent) logEvent);
            case LogEvent.TABLE_MAP_EVENT:
                parseTableMapEvent((TableMapLogEvent) logEvent);
                break;
            case LogEvent.WRITE_ROWS_EVENT_V1:
            case LogEvent.WRITE_ROWS_EVENT:
                return parseRowsEvent((WriteRowsLogEvent) logEvent);
            case LogEvent.UPDATE_ROWS_EVENT_V1:
            case LogEvent.PARTIAL_UPDATE_ROWS_EVENT:
            case LogEvent.UPDATE_ROWS_EVENT:
                return parseRowsEvent((UpdateRowsLogEvent) logEvent);
            case LogEvent.DELETE_ROWS_EVENT_V1:
            case LogEvent.DELETE_ROWS_EVENT:
                return parseRowsEvent((DeleteRowsLogEvent) logEvent);
            case LogEvent.ROWS_QUERY_LOG_EVENT:
                return parseRowsQueryEvent((RowsQueryLogEvent) logEvent);
            case LogEvent.ANNOTATE_ROWS_EVENT:
                return parseAnnotateRowsEvent((AnnotateRowsEvent) logEvent);
            case LogEvent.USER_VAR_EVENT:
                return parseUserVarLogEvent((UserVarLogEvent) logEvent);
            case LogEvent.INTVAR_EVENT:
                return parseIntrvarLogEvent((IntvarLogEvent) logEvent);
            case LogEvent.RAND_EVENT:
                return parseRandLogEvent((RandLogEvent) logEvent);
            case LogEvent.GTID_LOG_EVENT:
                return parseGTIDLogEvent((GtidLogEvent) logEvent);
            case LogEvent.HEARTBEAT_LOG_EVENT:
                return parseHeartbeatLogEvent((HeartbeatLogEvent) logEvent);
            case LogEvent.HEARTBEAT_LOG_EVENT_V2:
                return parseHeartbeatV2LogEvent((HeartbeatV2LogEvent) logEvent);
            case LogEvent.GTID_EVENT:
            case LogEvent.GTID_LIST_EVENT:
                return parseMariaGTIDLogEvent(logEvent);
            default:
                break;
        }

        return null;
    }

    public void reset() {
        // do nothing
        if (tableMetaCache != null) {
            tableMetaCache.clearTableMeta();
        }
    }

    private Entry parseHeartbeatLogEvent(HeartbeatLogEvent logEvent) {
        Header.Builder headerBuilder = Header.newBuilder();
        headerBuilder.setEventType(EventType.MHEARTBEAT);
        Entry.Builder entryBuilder = Entry.newBuilder();
        entryBuilder.setHeader(headerBuilder.build());
        entryBuilder.setEntryType(EntryType.HEARTBEAT);
        return entryBuilder.build();
    }

    private Entry parseHeartbeatV2LogEvent(HeartbeatV2LogEvent logEvent) {
        Header.Builder headerBuilder = Header.newBuilder();
        headerBuilder.setEventType(EventType.MHEARTBEAT);
        Entry.Builder entryBuilder = Entry.newBuilder();
        entryBuilder.setHeader(headerBuilder.build());
        entryBuilder.setEntryType(EntryType.HEARTBEAT);
        return entryBuilder.build();
    }

    private Entry parseGTIDLogEvent(GtidLogEvent logEvent) {
        LogHeader logHeader = logEvent.getHeader();
        Pair.Builder builder = Pair.newBuilder();
        builder.setKey("gtid");
        builder.setValue(logEvent.getGtidStr());

        if (logEvent.getLastCommitted() != -1) {
            builder.setKey("lastCommitted");
            builder.setValue(String.valueOf(logEvent.getLastCommitted()));
            builder.setKey("sequenceNumber");
            builder.setValue(String.valueOf(logEvent.getSequenceNumber()));
        }

        Header header = createHeader(logHeader, "", "", EventType.GTID);
        return createEntry(header, EntryType.GTIDLOG, builder.build().toByteString());
    }

    private Entry parseMariaGTIDLogEvent(LogEvent logEvent) {
        LogHeader logHeader = logEvent.getHeader();
        Pair.Builder builder = Pair.newBuilder();
        builder.setKey("gtid");
        if (logEvent instanceof MariaGtidLogEvent) {
            builder.setValue(((MariaGtidLogEvent) logEvent).getGtidStr());
        } else if (logEvent instanceof MariaGtidListLogEvent) {
            builder.setValue(((MariaGtidListLogEvent) logEvent).getGtidStr());
        }
        Header header = createHeader(logHeader, "", "", EventType.GTID);
        return createEntry(header, EntryType.GTIDLOG, builder.build().toByteString());
    }

    private Entry parseQueryEvent(QueryLogEvent event, boolean isSeek) {
        String queryString = event.getQuery();
        if (StringUtils.startsWithIgnoreCase(queryString, XA_START)) {
            // xa start use TransactionBegin
            TransactionBegin.Builder beginBuilder = TransactionBegin.newBuilder();
            beginBuilder.setThreadId(event.getSessionId());
            beginBuilder.addProps(createSpecialPair(XA_TYPE, XA_START));
            beginBuilder.addProps(createSpecialPair(XA_XID, getXaXid(queryString, XA_START)));
            TransactionBegin transactionBegin = beginBuilder.build();
            Header header = createHeader(event.getHeader(), "", "", null);
            return createEntry(header, EntryType.TRANSACTIONBEGIN, transactionBegin.toByteString());
        } else if (StringUtils.startsWithIgnoreCase(queryString, XA_END)) {
            // xa start use TransactionEnd
            TransactionEnd.Builder endBuilder = TransactionEnd.newBuilder();
            endBuilder.setTransactionId(String.valueOf(0L));
            endBuilder.addProps(createSpecialPair(XA_TYPE, XA_END));
            endBuilder.addProps(createSpecialPair(XA_XID, getXaXid(queryString, XA_END)));
            TransactionEnd transactionEnd = endBuilder.build();
            Header header = createHeader(event.getHeader(), "", "", null);
            return createEntry(header, EntryType.TRANSACTIONEND, transactionEnd.toByteString());
        } else if (StringUtils.startsWithIgnoreCase(queryString, XA_COMMIT)) {
            // xa commit
            Header header = createHeader(event.getHeader(), "", "", EventType.XACOMMIT);
            RowChange.Builder rowChangeBuider = RowChange.newBuilder();
            rowChangeBuider.setSql(queryString);
            rowChangeBuider.addProps(createSpecialPair(XA_TYPE, XA_COMMIT));
            rowChangeBuider.addProps(createSpecialPair(XA_XID, getXaXid(queryString, XA_COMMIT)));
            rowChangeBuider.setEventType(EventType.XACOMMIT);
            return createEntry(header, EntryType.ROWDATA, rowChangeBuider.build().toByteString());
        } else if (StringUtils.startsWithIgnoreCase(queryString, XA_ROLLBACK)) {
            // xa rollback
            Header header = createHeader(event.getHeader(), "", "", EventType.XAROLLBACK);
            RowChange.Builder rowChangeBuider = RowChange.newBuilder();
            rowChangeBuider.setSql(queryString);
            rowChangeBuider.addProps(createSpecialPair(XA_TYPE, XA_ROLLBACK));
            rowChangeBuider.addProps(createSpecialPair(XA_XID, getXaXid(queryString, XA_ROLLBACK)));
            rowChangeBuider.setEventType(EventType.XAROLLBACK);
            return createEntry(header, EntryType.ROWDATA, rowChangeBuider.build().toByteString());
        } else if (StringUtils.endsWithIgnoreCase(queryString, BEGIN)) {
            TransactionBegin transactionBegin = createTransactionBegin(event.getSessionId());
            Header header = createHeader(event.getHeader(), "", "", null);
            return createEntry(header, EntryType.TRANSACTIONBEGIN, transactionBegin.toByteString());
        } else if (StringUtils.endsWithIgnoreCase(queryString, COMMIT)) {
            TransactionEnd transactionEnd = createTransactionEnd(0L); // MyISAM可能不会有xid事件
            Header header = createHeader(event.getHeader(), "", "", null);
            return createEntry(header, EntryType.TRANSACTIONEND, transactionEnd.toByteString());
        } else {
            boolean notFilter = false;
            EventType type = EventType.QUERY;
            String tableName = null;
            String schemaName = null;
            if (useDruidDdlFilter) {
                List<DdlResult> results = DruidDdlParser.parse(queryString, event.getDbName());
                for (DdlResult result : results) {
                    if (!processFilter(queryString, result)) {
                        // 只要有一个数据不进行过滤
                        notFilter = true;
                    }
                }
                if (results.size() > 0) {
                    // 如果针对多行的DDL,只能取第一条
                    type = results.get(0).getType();
                    schemaName = results.get(0).getSchemaName();
                    tableName = results.get(0).getTableName();
                }
            } else {
                DdlResult result = SimpleDdlParser.parse(queryString, event.getDbName());
                if (!processFilter(queryString, result)) {
                    notFilter = true;
                }

                type = result.getType();
                schemaName = result.getSchemaName();
                tableName = result.getTableName();
            }

            if (!notFilter) {
                // 如果是过滤的数据就不处理了
                return null;
            }

            boolean isDml = (type == EventType.INSERT || type == EventType.UPDATE || type == EventType.DELETE);

            // filterQueryDdl=true的情况下,也得更新tablemeta
            if (!isSeek && !isDml) {
                // 使用新的表结构元数据管理方式
                EntryPosition position = createPosition(event.getHeader());
                tableMetaCache.apply(position, event.getDbName(), queryString, null);
            }

            if (filterQueryDdl) {
                // 全部DDL过滤,那就忽略事件生成
                return null;
            }

            Header header = createHeader(event.getHeader(), schemaName, tableName, type);
            RowChange.Builder rowChangeBuilder = RowChange.newBuilder();
            rowChangeBuilder.setIsDdl(!isDml);
            rowChangeBuilder.setSql(queryString);
            if (StringUtils.isNotEmpty(event.getDbName())) {// 可能为空
                rowChangeBuilder.setDdlSchemaName(event.getDbName());
            }
            rowChangeBuilder.setEventType(type);
            return createEntry(header, EntryType.ROWDATA, rowChangeBuilder.build().toByteString());
        }
    }

    private String getXaXid(String queryString, String type) {
        return StringUtils.substringAfter(queryString, type);
    }

    private boolean processFilter(String queryString, DdlResult result) {
        String schemaName = result.getSchemaName();
        String tableName = result.getTableName();
        // fixed issue https://github.com/alibaba/canal/issues/58
        // 更新下table meta cache
        if (tableMetaCache != null
            && (result.getType() == EventType.ALTER || result.getType() == EventType.ERASE || result.getType() == EventType.RENAME)) {
            // 对外返回，保证兼容，还是返回QUERY类型，这里暂不解析tableName，所以无法支持过滤
            for (DdlResult renameResult = result; renameResult != null; renameResult = renameResult.getRenameTableResult()) {
                String schemaName0 = renameResult.getSchemaName();
                String tableName0 = renameResult.getTableName();
                if (StringUtils.isNotEmpty(tableName0)) {
                    // 如果解析到了正确的表信息，则根据全名进行清除
                    tableMetaCache.clearTableMeta(schemaName0, tableName0);
                } else {
                    // 如果无法解析正确的表信息，则根据schema进行清除
                    tableMetaCache.clearTableMetaWithSchemaName(schemaName0);
                }
            }
        }

        // fixed issue https://github.com/alibaba/canal/issues/58
        if (result.getType() == EventType.ALTER || result.getType() == EventType.ERASE
            || result.getType() == EventType.CREATE || result.getType() == EventType.TRUNCATE
            || result.getType() == EventType.RENAME || result.getType() == EventType.CINDEX
            || result.getType() == EventType.DINDEX) { // 针对DDL类型

            if (!filterQueryDdl && (StringUtils.isEmpty(tableName)
                || (result.getType() == EventType.RENAME && StringUtils.isEmpty(result.getOriTableName())))) {
                // 如果解析不出tableName,记录一下日志，方便bugfix，目前直接抛出异常，中断解析
                throw new CanalParseException("SimpleDdlParser process query failed. pls submit issue with this queryString: "
                                              + queryString + " , and DdlResult: " + result.toString());
                // return null;
            } else {
                // check name filter
                String name = schemaName + "." + tableName;
                if (nameFilter != null && !nameFilter.filter(name)) {
                    if (result.getType() == EventType.RENAME) {
                        // rename校验只要源和目标满足一个就进行操作
                        if (nameFilter != null
                            && !nameFilter.filter(result.getOriSchemaName() + "." + result.getOriTableName())) {
                            return true;
                        }
                    } else {
                        // 其他情况返回null
                        return true;
                    }
                }

                if (nameBlackFilter != null && nameBlackFilter.filter(name)) {
                    if (result.getType() == EventType.RENAME) {
                        // rename校验只要源和目标满足一个就进行操作
                        if (nameBlackFilter != null
                            && nameBlackFilter.filter(result.getOriSchemaName() + "." + result.getOriTableName())) {
                            return true;
                        }
                    } else {
                        // 其他情况返回null
                        return true;
                    }
                }
            }
        } else if (result.getType() == EventType.INSERT || result.getType() == EventType.UPDATE
                   || result.getType() == EventType.DELETE) {
            // 对外返回，保证兼容，还是返回QUERY类型，这里暂不解析tableName，所以无法支持过滤
            if (filterQueryDml) {
                return true;
            }
        } else if (filterQueryDcl) {
            return true;
        }

        return false;
    }

    private Entry parseRowsQueryEvent(RowsQueryLogEvent event) {
        if (filterQueryDml) {
            return null;
        }
        // mysql5.6支持，需要设置binlog-rows-query-log-events=1，可详细打印原始DML语句
        String queryString = null;
        try {
            queryString = new String(event.getRowsQuery().getBytes(ISO_8859_1), charset);
            String tableName = null;
            if (useDruidDdlFilter) {
                List<DdlResult> results = DruidDdlParser.parse(queryString, null);
                if (results.size() > 0) {
                    tableName = results.get(0).getTableName();
                }
            }

            return buildQueryEntry(queryString, event.getHeader(), tableName);
        } catch (UnsupportedEncodingException e) {
            throw new CanalParseException(e);
        }
    }

    private Entry parseAnnotateRowsEvent(AnnotateRowsEvent event) {
        if (filterQueryDml) {
            return null;
        }
        // mariaDb支持，需要设置binlog_annotate_row_events=true，可详细打印原始DML语句
        String queryString = null;
        try {
            queryString = new String(event.getRowsQuery().getBytes(ISO_8859_1), charset);
            return buildQueryEntry(queryString, event.getHeader());
        } catch (UnsupportedEncodingException e) {
            throw new CanalParseException(e);
        }
    }

    private Entry parseUserVarLogEvent(UserVarLogEvent event) {
        if (filterQueryDml) {
            return null;
        }

        return buildQueryEntry(event.getQuery(), event.getHeader());
    }

    private Entry parseIntrvarLogEvent(IntvarLogEvent event) {
        if (filterQueryDml) {
            return null;
        }

        return buildQueryEntry(event.getQuery(), event.getHeader());
    }

    private Entry parseRandLogEvent(RandLogEvent event) {
        if (filterQueryDml) {
            return null;
        }

        return buildQueryEntry(event.getQuery(), event.getHeader());
    }

    private Entry parseXidEvent(XidLogEvent event) {
        TransactionEnd transactionEnd = createTransactionEnd(event.getXid());
        Header header = createHeader(event.getHeader(), "", "", null);
        return createEntry(header, EntryType.TRANSACTIONEND, transactionEnd.toByteString());
    }

    public TableMeta parseRowsEventForTableMeta(RowsLogEvent event) {
        TableMapLogEvent table = event.getTable();
        if (table == null) {
            // tableId对应的记录不存在
            throw new TableIdNotFoundException("not found tableId:" + event.getTableId());
        }

        boolean isHeartBeat = isAliSQLHeartBeat(table.getDbName(), table.getTableName());
        boolean isRDSHeartBeat = tableMetaCache.isOnRDS() && isRDSHeartBeat(table.getDbName(), table.getTableName());

        String fullname = table.getDbName() + "." + table.getTableName();
        // check name filter
        if (nameFilter != null && !nameFilter.filter(fullname)) {
            return null;
        }
        if (nameBlackFilter != null && nameBlackFilter.filter(fullname)) {
            return null;
        }

        // if (isHeartBeat || isRDSHeartBeat) {
        // // 忽略rds模式的mysql.ha_health_check心跳数据
        // return null;
        // }
        TableMeta tableMeta = null;
        if (isRDSHeartBeat) {
            // 处理rds模式的mysql.ha_health_check心跳数据
            // 主要RDS的心跳表基本无权限,需要mock一个tableMeta
            FieldMeta idMeta = new FieldMeta("id", "bigint(20)", true, false, "0");
            FieldMeta typeMeta = new FieldMeta("type", "char(1)", false, true, "0");
            tableMeta = new TableMeta(table.getDbName(), table.getTableName(), Arrays.asList(idMeta, typeMeta));
        } else if (isHeartBeat) {
            // 处理alisql模式的test.heartbeat心跳数据
            // 心跳表基本无权限,需要mock一个tableMeta
            FieldMeta idMeta = new FieldMeta("id", "smallint(6)", false, true, null);
            FieldMeta typeMeta = new FieldMeta("ts", "int(11)", true, false, null);
            tableMeta = new TableMeta(table.getDbName(), table.getTableName(), Arrays.asList(idMeta, typeMeta));
        }

        EntryPosition position = createPosition(event.getHeader());
        if (tableMetaCache != null && tableMeta == null) {// 入错存在table meta
            tableMeta = getTableMeta(table.getDbName(), table.getTableName(), true, position);
            if (tableMeta == null) {
                if (!filterTableError) {
                    throw new CanalParseException("not found [" + fullname + "] in db , pls check!");
                }
            }
        }

        return tableMeta;
    }

    public Entry parseRowsEvent(RowsLogEvent event) {
        return parseRowsEvent(event, null);
    }

    public void parseTableMapEvent(TableMapLogEvent event) {
        try {
            String charsetDbName = new String(event.getDbName().getBytes(ISO_8859_1), charset);
            event.setDbname(charsetDbName);

            String charsetTbName = new String(event.getTableName().getBytes(ISO_8859_1), charset);
            event.setTblname(charsetTbName);
        } catch (UnsupportedEncodingException e) {
            throw new CanalParseException(e);
        }
    }

    public Entry parseRowsEvent(RowsLogEvent event, TableMeta tableMeta) {
        if (filterRows) {
            return null;
        }
        try {
            if (tableMeta == null) { // 如果没有外部指定
                tableMeta = parseRowsEventForTableMeta(event);
            }

            if (tableMeta == null) {
                // 拿不到表结构,执行忽略
                return null;
            }

            EventType eventType = null;
            int type = event.getHeader().getType();
            if (LogEvent.WRITE_ROWS_EVENT_V1 == type || LogEvent.WRITE_ROWS_EVENT == type) {
                eventType = EventType.INSERT;
            } else if (LogEvent.UPDATE_ROWS_EVENT_V1 == type || LogEvent.UPDATE_ROWS_EVENT == type
                       || LogEvent.PARTIAL_UPDATE_ROWS_EVENT == type) {
                eventType = EventType.UPDATE;
            } else if (LogEvent.DELETE_ROWS_EVENT_V1 == type || LogEvent.DELETE_ROWS_EVENT == type) {
                eventType = EventType.DELETE;
            } else {
                throw new CanalParseException("unsupport event type :" + event.getHeader().getType());
            }

            RowChange.Builder rowChangeBuider = RowChange.newBuilder();
            rowChangeBuider.setTableId(event.getTableId());
            rowChangeBuider.setIsDdl(false);

            rowChangeBuider.setEventType(eventType);
            RowsLogBuffer buffer = event.getRowsBuf(charset);
            BitSet columns = event.getColumns();
            BitSet changeColumns = event.getChangeColumns();

            boolean tableError = false;
            int rowsCount = 0;
            while (buffer.nextOneRow(columns, false)) {
                // 处理row记录
                RowData.Builder rowDataBuilder = RowData.newBuilder();
                if (EventType.INSERT == eventType) {
                    // insert的记录放在before字段中
                    tableError |= parseOneRow(rowDataBuilder, event, buffer, columns, true, tableMeta);
                } else if (EventType.DELETE == eventType) {
                    // delete的记录放在before字段中
                    tableError |= parseOneRow(rowDataBuilder, event, buffer, columns, false, tableMeta);
                } else {
                    // update需要处理before/after
                    tableError |= parseOneRow(rowDataBuilder, event, buffer, columns, false, tableMeta);
                    if (!buffer.nextOneRow(changeColumns, true)) {
                        rowChangeBuider.addRowDatas(rowDataBuilder.build());
                        break;
                    }

                    tableError |= parseOneRow(rowDataBuilder, event, buffer, changeColumns, true, tableMeta);
                }

                rowsCount++;
                rowChangeBuider.addRowDatas(rowDataBuilder.build());
            }
            TableMapLogEvent table = event.getTable();
            Header header = createHeader(event.getHeader(),
                table.getDbName(),
                table.getTableName(),
                eventType,
                rowsCount);

            RowChange rowChange = rowChangeBuider.build();
            if (tableError) {
                Entry entry = createEntry(header, EntryType.ROWDATA, ByteString.EMPTY);
                logger.warn("table parser error : {}storeValue: {}", entry.toString(), rowChange.toString());
                return null;
            } else {
                Entry entry = createEntry(header, EntryType.ROWDATA, rowChange.toByteString());
                return entry;
            }
        } catch (Exception e) {
            throw new CanalParseException("parse row data failed.", e);
        }
    }

    private EntryPosition createPosition(LogHeader logHeader) {
        return new EntryPosition(logHeader.getLogFileName(), logHeader.getLogPos() - logHeader.getEventLen(), // startPos
            logHeader.getWhen() * 1000L,
            logHeader.getServerId()); // 记录到秒
    }

    private boolean parseOneRow(RowData.Builder rowDataBuilder, RowsLogEvent event, RowsLogBuffer buffer, BitSet cols,
                                boolean isAfter, TableMeta tableMeta) throws UnsupportedEncodingException {
        int columnCnt = event.getTable().getColumnCnt();
        ColumnInfo[] columnInfo = event.getTable().getColumnInfo();
        // mysql8.0针对set @@global.binlog_row_metadata='FULL' 可以记录部分的metadata信息
        boolean existOptionalMetaData = event.getTable().isExistOptionalMetaData();
        boolean tableError = false;
        // check table fileds count，只能处理加字段
        boolean existRDSNoPrimaryKey = false;
        // 获取字段过滤条件
        List<String> fieldList = null;
        List<String> blackFieldList = null;

        if (tableMeta != null) {
            fieldList = fieldFilterMap.get(tableMeta.getFullName().toUpperCase());
            blackFieldList = fieldBlackFilterMap.get(tableMeta.getFullName().toUpperCase());
        }

        if (tableMeta != null && columnInfo.length > tableMeta.getFields().size()) {
            if (tableMetaCache.isOnRDS() || tableMetaCache.isOnPolarX()) {
                // 特殊处理下RDS的场景
                List<FieldMeta> primaryKeys = tableMeta.getPrimaryFields();
                if (primaryKeys == null || primaryKeys.isEmpty()) {
                    if (columnInfo.length == tableMeta.getFields().size() + 1
                        && columnInfo[columnInfo.length - 1].type == LogEvent.MYSQL_TYPE_LONGLONG) {
                        existRDSNoPrimaryKey = true;
                    }
                }
            }

            EntryPosition position = createPosition(event.getHeader());
            if (!existRDSNoPrimaryKey) {
                // online ddl增加字段操作步骤：
                // 1. 新增一张临时表，将需要做ddl表的数据全量导入
                // 2. 在老表上建立I/U/D的trigger，增量的将数据插入到临时表
                // 3. 锁住应用请求，将临时表rename为老表的名字，完成增加字段的操作
                // 尝试做一次reload，可能因为ddl没有正确解析，或者使用了类似online ddl的操作
                // 因为online ddl没有对应表名的alter语法，所以不会有clear cache的操作
                tableMeta = getTableMeta(event.getTable().getDbName(), event.getTable().getTableName(), false, position);// 强制重新获取一次
                if (tableMeta == null) {
                    tableError = true;
                    if (!filterTableError) {
                        throw new CanalParseException("not found [" + event.getTable().getDbName() + "."
                                                      + event.getTable().getTableName() + "] in db , pls check!");
                    }
                }

                // 在做一次判断
                if (tableMeta != null && columnInfo.length > tableMeta.getFields().size()) {
                    tableError = true;
                    if (!filterTableError) {
                        throw new CanalParseException("column size is not match for table:" + tableMeta.getFullName()
                                                      + "," + columnInfo.length + " vs " + tableMeta.getFields().size());
                    }
                }
                // } else {
                // logger.warn("[" + event.getTable().getDbName() + "." +
                // event.getTable().getTableName()
                // + "] is no primary key , skip alibaba_rds_row_id column");
            }
        }

        for (int i = 0; i < columnCnt; i++) {
            ColumnInfo info = columnInfo[i];
            // mysql 5.6开始支持nolob/mininal类型,并不一定记录所有的列,需要进行判断
            if (!cols.get(i)) {
                continue;
            }

            if (existRDSNoPrimaryKey && i == columnCnt - 1 && info.type == LogEvent.MYSQL_TYPE_LONGLONG) {
                // 不解析最后一列
                String rdsRowIdColumnName = "__#alibaba_rds_row_id#__";
                if (tableMetaCache.isOnPolarX()) {
                    rdsRowIdColumnName = "_drds_implicit_id_";
                }
                buffer.nextValue(rdsRowIdColumnName, i, info.type, info.meta, false);
                Column.Builder columnBuilder = Column.newBuilder();
                columnBuilder.setName(rdsRowIdColumnName);
                columnBuilder.setIsKey(true);
                columnBuilder.setMysqlType("bigint");
                columnBuilder.setIndex(i);
                columnBuilder.setIsNull(false);
                Serializable value = buffer.getValue();
                columnBuilder.setValue(value.toString());
                columnBuilder.setSqlType(Types.BIGINT);
                columnBuilder.setUpdated(false);

                if (needField(fieldList, blackFieldList, columnBuilder.getName())) {
                    if (isAfter) {
                        rowDataBuilder.addAfterColumns(columnBuilder.build());
                    } else {
                        rowDataBuilder.addBeforeColumns(columnBuilder.build());
                    }
                }
                continue;
            }

            FieldMeta fieldMeta = null;
            if (tableMeta != null && !tableError) {
                // 处理file meta
                fieldMeta = tableMeta.getFields().get(i);
            }

            if (fieldMeta != null && existOptionalMetaData && tableMetaCache.isOnTSDB()) {
                // check column info
                boolean check = StringUtils.equalsIgnoreCase(fieldMeta.getColumnName(), info.name);
                check &= (fieldMeta.isUnsigned() == info.unsigned);
                check &= (fieldMeta.isNullable() == info.nullable);

                if (!check) {
                    throw new CanalParseException("MySQL8.0 unmatch column metadata & pls submit issue , table : "
                                                  + tableMeta.getFullName() + ", db fieldMeta : "
                                                  + fieldMeta.toString() + " , binlog fieldMeta : " + info.toString()
                                                  + " , on : " + event.getHeader().getLogFileName() + ":"
                                                  + (event.getHeader().getLogPos() - event.getHeader().getEventLen()));
                }
            }

            Column.Builder columnBuilder = Column.newBuilder();
            if (fieldMeta != null) {
                columnBuilder.setName(fieldMeta.getColumnName());
                columnBuilder.setIsKey(fieldMeta.isKey());
                // 增加mysql type类型,issue 73
                columnBuilder.setMysqlType(fieldMeta.getColumnType());
            } else if (existOptionalMetaData) {
                columnBuilder.setName(info.name);
                columnBuilder.setIsKey(info.pk);
                // mysql8.0里没有mysql type类型
                // columnBuilder.setMysqlType(fieldMeta.getColumnType());
            }
            columnBuilder.setIndex(i);
            columnBuilder.setIsNull(false);

            // fixed issue
            // https://github.com/alibaba/canal/issues/66，特殊处理binary/varbinary，不能做编码处理
            boolean isBinary = false;
            if (fieldMeta != null) {
                if (StringUtils.containsIgnoreCase(fieldMeta.getColumnType(), "VARBINARY")) {
                    isBinary = true;
                } else if (StringUtils.containsIgnoreCase(fieldMeta.getColumnType(), "BINARY")) {
                    isBinary = true;
                }
            }

            buffer.nextValue(columnBuilder.getName(), i, info.type, info.meta, isBinary);
            int javaType = buffer.getJavaType();
            if (buffer.isNull()) {
                columnBuilder.setIsNull(true);

                // 处理各种类型
                switch (javaType) {
                    case Types.BINARY:
                    case Types.VARBINARY:
                    case Types.LONGVARBINARY:

                        // https://github.com/alibaba/canal/issues/4652
                        // mysql binlog中blob/text都处理为blob类型，需要反查table
                        // meta，按编码解析text
                        if (fieldMeta != null && isText(fieldMeta.getColumnType())) {
                            javaType = Types.CLOB;
                        } else {
                            javaType = Types.BLOB;
                        }
                        break;
                }
            } else {
                final Serializable value = buffer.getValue();
                // 处理各种类型
                switch (javaType) {
                    case Types.INTEGER:
                    case Types.TINYINT:
                    case Types.SMALLINT:
                    case Types.BIGINT:
                        // 处理unsigned类型
                        Number number = (Number) value;
                        boolean isUnsigned = (fieldMeta != null ? fieldMeta.isUnsigned() : (existOptionalMetaData ? info.unsigned : false));
                        if (isUnsigned && number.longValue() < 0) {
                            switch (buffer.getLength()) {
                                case 1: /* MYSQL_TYPE_TINY */
                                    columnBuilder.setValue(String.valueOf(Integer.valueOf(TINYINT_MAX_VALUE
                                                                                          + number.intValue())));
                                    javaType = Types.SMALLINT; // 往上加一个量级
                                    break;

                                case 2: /* MYSQL_TYPE_SHORT */
                                    columnBuilder.setValue(String.valueOf(Integer.valueOf(SMALLINT_MAX_VALUE
                                                                                          + number.intValue())));
                                    javaType = Types.INTEGER; // 往上加一个量级
                                    break;

                                case 3: /* MYSQL_TYPE_INT24 */
                                    columnBuilder.setValue(String.valueOf(Integer.valueOf(MEDIUMINT_MAX_VALUE
                                                                                          + number.intValue())));
                                    javaType = Types.INTEGER; // 往上加一个量级
                                    break;

                                case 4: /* MYSQL_TYPE_LONG */
                                    columnBuilder.setValue(String.valueOf(Long.valueOf(INTEGER_MAX_VALUE
                                                                                       + number.longValue())));
                                    javaType = Types.BIGINT; // 往上加一个量级
                                    break;

                                case 8: /* MYSQL_TYPE_LONGLONG */
                                    columnBuilder.setValue(BIGINT_MAX_VALUE.add(BigInteger.valueOf(number.longValue()))
                                        .toString());
                                    javaType = Types.DECIMAL; // 往上加一个量级，避免执行出错
                                    break;
                            }
                        } else {
                            // 对象为number类型，直接valueof即可
                            columnBuilder.setValue(String.valueOf(value));
                        }
                        break;
                    case Types.REAL: // float
                    case Types.DOUBLE: // double
                        // 对象为number类型，直接valueof即可
                        columnBuilder.setValue(String.valueOf(value));
                        break;
                    case Types.BIT:// bit
                        // 对象为number类型
                        columnBuilder.setValue(String.valueOf(value));
                        break;
                    case Types.DECIMAL:
                        columnBuilder.setValue(((BigDecimal) value).toPlainString());
                        break;
                    case Types.TIMESTAMP:
                        // 修复时间边界值
                        // String v = value.toString();
                        // v = v.substring(0, v.length() - 2);
                        // columnBuilder.setValue(v);
                        // break;
                    case Types.TIME:
                    case Types.DATE:
                        // 需要处理year
                        columnBuilder.setValue(value.toString());
                        break;
                    case Types.BINARY:
                    case Types.VARBINARY:
                    case Types.LONGVARBINARY:
                        // fixed text encoding
                        // https://github.com/AlibabaTech/canal/issues/18
                        // mysql binlog中blob/text都处理为blob类型，需要反查table
                        // meta，按编码解析text
                        if (fieldMeta != null && isText(fieldMeta.getColumnType())) {
                            columnBuilder.setValue(new String((byte[]) value, charset));
                            javaType = Types.CLOB;
                        } else {
                            // byte数组，直接使用iso-8859-1保留对应编码，浪费内存
                            columnBuilder.setValue(new String((byte[]) value, ISO_8859_1));
                            // columnBuilder.setValueBytes(ByteString.copyFrom((byte[])
                            // value));
                            javaType = Types.BLOB;
                        }
                        break;
                    case Types.CHAR:
                    case Types.VARCHAR:
                        columnBuilder.setValue(value.toString());
                        break;
                    default:
                        columnBuilder.setValue(value.toString());
                }
            }

            columnBuilder.setSqlType(javaType);
            // 设置是否update的标记位
            columnBuilder.setUpdated(isAfter
                                     && isUpdate(rowDataBuilder.getBeforeColumnsList(),
                                         columnBuilder.getIsNull() ? null : columnBuilder.getValue(),
                                         i));
            if (needField(fieldList, blackFieldList, columnBuilder.getName())) {
                if (isAfter) {
                    rowDataBuilder.addAfterColumns(columnBuilder.build());
                } else {
                    rowDataBuilder.addBeforeColumns(columnBuilder.build());
                }
            }
        }

        return tableError;

    }

    private Entry buildQueryEntry(String queryString, LogHeader logHeader, String tableName) {
        Header header = createHeader(logHeader, "", tableName, EventType.QUERY);
        RowChange.Builder rowChangeBuider = RowChange.newBuilder();
        rowChangeBuider.setSql(queryString);
        rowChangeBuider.setEventType(EventType.QUERY);
        return createEntry(header, EntryType.ROWDATA, rowChangeBuider.build().toByteString());
    }

    private Entry buildQueryEntry(String queryString, LogHeader logHeader) {
        Header header = createHeader(logHeader, "", "", EventType.QUERY);
        RowChange.Builder rowChangeBuider = RowChange.newBuilder();
        rowChangeBuider.setSql(queryString);
        rowChangeBuider.setEventType(EventType.QUERY);
        return createEntry(header, EntryType.ROWDATA, rowChangeBuider.build().toByteString());
    }

    private Header createHeader(LogHeader logHeader, String schemaName, String tableName, EventType eventType) {
        return createHeader(logHeader, schemaName, tableName, eventType, -1);
    }

    private Header createHeader(LogHeader logHeader, String schemaName, String tableName, EventType eventType,
                                Integer rowsCount) {
        // header会做信息冗余,方便以后做检索或者过滤
        Header.Builder headerBuilder = Header.newBuilder();
        headerBuilder.setVersion(version);
        headerBuilder.setLogfileName(logHeader.getLogFileName());
        // 记录的是该binlog的start offest
        headerBuilder.setLogfileOffset(logHeader.getLogPos() - logHeader.getEventLen());
        headerBuilder.setServerId(logHeader.getServerId());
        headerBuilder.setServerenCode(UTF_8);// 经过java输出后所有的编码为unicode
        headerBuilder.setExecuteTime(logHeader.getWhen() * 1000L);
        headerBuilder.setSourceType(Type.MYSQL);
        if (eventType != null) {
            headerBuilder.setEventType(eventType);
        }
        if (schemaName != null) {
            headerBuilder.setSchemaName(schemaName);
        }
        if (tableName != null) {
            headerBuilder.setTableName(tableName);
        }
        headerBuilder.setEventLength(logHeader.getEventLen());
        // enable gtid position
        if (StringUtils.isNotEmpty(logHeader.getGtidSetStr())) {
            headerBuilder.setGtid(logHeader.getGtidSetStr());
        }
        // add current gtid
        if (StringUtils.isNotEmpty(logHeader.getCurrentGtid())) {
            Pair pair = createSpecialPair("curtGtid", logHeader.getCurrentGtid());
            headerBuilder.addProps(pair);
        }
        // add current gtid sequence no
        if (StringUtils.isNotEmpty(logHeader.getCurrentGtidSn())) {
            Pair pair = createSpecialPair("curtGtidSn", logHeader.getCurrentGtidSn());
            headerBuilder.addProps(pair);
        }

        // add current gtid last committed
        if (StringUtils.isNotEmpty(logHeader.getCurrentGtidLastCommit())) {
            Pair pair = createSpecialPair("curtGtidLct", logHeader.getCurrentGtidLastCommit());
            headerBuilder.addProps(pair);
        }

        // add rowsCount suppport
        if (rowsCount > 0) {
            Pair pair = createSpecialPair("rowsCount", String.valueOf(rowsCount));
            headerBuilder.addProps(pair);
        }
        return headerBuilder.build();
    }

    private boolean isUpdate(List<Column> bfColumns, String newValue, int index) {
        if (bfColumns == null) {
            throw new CanalParseException("ERROR ## the bfColumns is null");
        }

        if (index < 0) {
            return false;
        }

        for (Column column : bfColumns) {
            if (column.getIndex() == index) {// 比较before / after的column index
                if (column.getIsNull() && newValue == null) {
                    // 如果全是null
                    return false;
                } else if (newValue != null && (!column.getIsNull() && column.getValue().equals(newValue))) {
                    // fixed issue #135, old column is Null
                    // 如果不为null，并且相等
                    return false;
                }
            }
        }

        // 比如nolob/minial模式下,可能找不到before记录,认为是有变化
        return true;
    }

    private TableMeta getTableMeta(String dbName, String tbName, boolean useCache, EntryPosition position) {
        try {
            return tableMetaCache.getTableMeta(dbName, tbName, useCache, position);
        } catch (Throwable e) {
            String message = ExceptionUtils.getRootCauseMessage(e);
            if (filterTableError) {
                if (StringUtils.contains(message, "errorNumber=1146") && StringUtils.contains(message, "doesn't exist")) {
                    return null;
                } else if (StringUtils.contains(message, "errorNumber=1142")
                           && StringUtils.contains(message, "command denied")) {
                    return null;
                }
            }

            throw new CanalParseException(e);
        }
    }

    private boolean isText(String columnType) {
        return "LONGTEXT".equalsIgnoreCase(columnType) || "MEDIUMTEXT".equalsIgnoreCase(columnType)
               || "TEXT".equalsIgnoreCase(columnType) || "TINYTEXT".equalsIgnoreCase(columnType);
    }

    private boolean isAliSQLHeartBeat(String schema, String table) {
        return "test".equalsIgnoreCase(schema) && "heartbeat".equalsIgnoreCase(table);
    }

    private boolean isRDSHeartBeat(String schema, String table) {
        return "mysql".equalsIgnoreCase(schema) && "ha_health_check".equalsIgnoreCase(table);
    }

    /**
     * 字段过滤判断
     */
    private boolean needField(List<String> fieldList, List<String> blackFieldList, String columnName) {
        if (fieldList == null || fieldList.isEmpty()) {
            return blackFieldList == null || blackFieldList.isEmpty()
                   || !blackFieldList.contains(columnName.toUpperCase());
        } else {
            return fieldList.contains(columnName.toUpperCase());
        }
    }

    public static TransactionBegin createTransactionBegin(long threadId) {
        TransactionBegin.Builder beginBuilder = TransactionBegin.newBuilder();
        beginBuilder.setThreadId(threadId);
        return beginBuilder.build();
    }

    public static TransactionEnd createTransactionEnd(long transactionId) {
        TransactionEnd.Builder endBuilder = TransactionEnd.newBuilder();
        endBuilder.setTransactionId(String.valueOf(transactionId));
        return endBuilder.build();
    }

    public static Pair createSpecialPair(String key, String value) {
        Pair.Builder pairBuilder = Pair.newBuilder();
        pairBuilder.setKey(key);
        pairBuilder.setValue(value);
        return pairBuilder.build();
    }

    public static Entry createEntry(Header header, EntryType entryType, ByteString storeValue) {
        Entry.Builder entryBuilder = Entry.newBuilder();
        entryBuilder.setHeader(header);
        entryBuilder.setEntryType(entryType);
        entryBuilder.setStoreValue(storeValue);
        return entryBuilder.build();
    }

    public void setCharset(Charset charset) {
        this.charset = charset;
    }

    public void setNameFilter(AviaterRegexFilter nameFilter) {
        this.nameFilter = nameFilter;
        logger.warn("--> init table filter : " + nameFilter.toString());
    }

    public void setNameBlackFilter(AviaterRegexFilter nameBlackFilter) {
        this.nameBlackFilter = nameBlackFilter;
        logger.warn("--> init table black filter : " + nameBlackFilter.toString());
    }

    public void setFieldFilterMap(Map<String, List<String>> fieldFilterMap) {
        if (fieldFilterMap != null) {
            this.fieldFilterMap = fieldFilterMap;
        } else {
            this.fieldFilterMap = new HashMap<>();
        }

        for (Map.Entry<String, List<String>> entry : this.fieldFilterMap.entrySet()) {
            logger.warn("--> init field filter : " + entry.getKey() + "->" + entry.getValue());
        }
    }

    public void setFieldBlackFilterMap(Map<String, List<String>> fieldBlackFilterMap) {
        if (fieldBlackFilterMap != null) {
            this.fieldBlackFilterMap = fieldBlackFilterMap;
        } else {
            this.fieldBlackFilterMap = new HashMap<>();
        }

        for (Map.Entry<String, List<String>> entry : this.fieldBlackFilterMap.entrySet()) {
            logger.warn("--> init field black filter : " + entry.getKey() + "->" + entry.getValue());
        }
    }

    public void setTableMetaCache(TableMetaCache tableMetaCache) {
        this.tableMetaCache = tableMetaCache;
    }

    public void setFilterQueryDcl(boolean filterQueryDcl) {
        this.filterQueryDcl = filterQueryDcl;
    }

    public void setFilterQueryDml(boolean filterQueryDml) {
        this.filterQueryDml = filterQueryDml;
    }

    public void setFilterQueryDdl(boolean filterQueryDdl) {
        this.filterQueryDdl = filterQueryDdl;
    }

    public void setFilterTableError(boolean filterTableError) {
        this.filterTableError = filterTableError;
    }

    public void setFilterRows(boolean filterRows) {
        this.filterRows = filterRows;
    }

    public void setUseDruidDdlFilter(boolean useDruidDdlFilter) {
        this.useDruidDdlFilter = useDruidDdlFilter;
    }
}

2.2 CanalLogPositionManager

/**
 * Created by yinxiu on 17/3/17. Email: marklin.hz@gmail.com
 */
public interface CanalLogPositionManager extends CanalLifeCycle {

    LogPosition getLatestIndexBy(String destination);

    void persistLogPosition(String destination, LogPosition logPosition) throws CanalParseException;

}

2.2.1 AbstractLogPositionManager

/**
 * Created by yinxiu on 17/3/17. Email: marklin.hz@gmail.com
 */
public abstract class AbstractLogPositionManager extends AbstractCanalLifeCycle implements CanalLogPositionManager {
}

2.2.2 MemoryLogPositionManager

/**
 * Created by yinxiu on 17/3/17. Email: marklin.hz@gmail.com
 */
public class MemoryLogPositionManager extends AbstractLogPositionManager {

    private Map<String, LogPosition> positions;

    @Override
    public void start() {
        super.start();
        positions = new MapMaker().makeMap();
    }

    @Override
    public void stop() {
        super.stop();
        positions.clear();
    }

    @Override
    public LogPosition getLatestIndexBy(String destination) {
        return positions.get(destination);
    }

    @Override
    public void persistLogPosition(String destination, LogPosition logPosition) throws CanalParseException {
        positions.put(destination, logPosition);
    }

    public Set<String> destinations() {
        return positions.keySet();
    }

}

2.2.3 ZooKeeperLogPositionManager

/**
 * Created by yinxiu on 17/3/17. Email: marklin.hz@gmail.com
 */
public class ZooKeeperLogPositionManager extends AbstractLogPositionManager {

    private final ZkClientx zkClientx;

    public ZooKeeperLogPositionManager(ZkClientx zkClient){
        if (zkClient == null) {
            throw new NullPointerException("null zkClient");
        }

        this.zkClientx = zkClient;
    }

    @Override
    public LogPosition getLatestIndexBy(String destination) {
        String path = ZookeeperPathUtils.getParsePath(destination);
        byte[] data = zkClientx.readData(path, true);
        if (data == null || data.length == 0) {
            return null;
        }

        return JsonUtils.unmarshalFromByte(data, LogPosition.class);
    }

    @Override
    public void persistLogPosition(String destination, LogPosition logPosition) throws CanalParseException {
        String path = ZookeeperPathUtils.getParsePath(destination);
        byte[] data = JsonUtils.marshalToByte(logPosition);
        try {
            zkClientx.writeData(path, data);
        } catch (ZkNoNodeException e) {
            zkClientx.createPersistent(path, data, true);
        }
    }

}

2.2.4 MetaLogPositionManager

/**
 * Created by yinxiu on 17/3/18. Email: marklin.hz@gmail.com
 */
public class MetaLogPositionManager extends AbstractLogPositionManager {

    private final static Logger    logger = LoggerFactory.getLogger(MetaLogPositionManager.class);

    private final CanalMetaManager metaManager;

    public MetaLogPositionManager(CanalMetaManager metaManager){
        if (metaManager == null) {
            throw new NullPointerException("null metaManager");
        }

        this.metaManager = metaManager;
    }

    @Override
    public void stop() {
        super.stop();

        if (metaManager.isStart()) {
            metaManager.stop();
        }
    }

    @Override
    public void start() {
        super.start();

        if (!metaManager.isStart()) {
            metaManager.start();
        }
    }

    @Override
    public LogPosition getLatestIndexBy(String destination) {
        List<ClientIdentity> clientIdentities = metaManager.listAllSubscribeInfo(destination);
        LogPosition result = null;
        if (!CollectionUtils.isEmpty(clientIdentities)) {
            // 尝试找到一个最小的logPosition
            for (ClientIdentity clientIdentity : clientIdentities) {
                LogPosition position = (LogPosition) metaManager.getCursor(clientIdentity);
                if (position == null) {
                    continue;
                }

                if (result == null) {
                    result = position;
                } else {
                    result = CanalEventUtils.min(result, position);
                }
            }
        }

        return result;
    }

    @Override
    public void persistLogPosition(String destination, LogPosition logPosition) throws CanalParseException {
        // do nothing
        logger.info("destination [{}] persist LogPosition:{}", destination, logPosition);
    }

2.2.5 MixedLogPositionManager

/**
 * Created by yinxiu on 17/3/17. Email: marklin.hz@gmail.com Memory first.
 * Asynchronous commit position info to ZK.
 */
public class MixedLogPositionManager extends AbstractLogPositionManager {

    private final Logger                      logger = LoggerFactory.getLogger(MixedLogPositionManager.class);

    private final MemoryLogPositionManager    memoryLogPositionManager;
    private final ZooKeeperLogPositionManager zooKeeperLogPositionManager;

    private final ExecutorService             executor;

    public MixedLogPositionManager(ZkClientx zkClient){
        if (zkClient == null) {
            throw new NullPointerException("null zkClient");
        }

        this.memoryLogPositionManager = new MemoryLogPositionManager();
        this.zooKeeperLogPositionManager = new ZooKeeperLogPositionManager(zkClient);

        this.executor = Executors.newFixedThreadPool(1);
    }

    @Override
    public void start() {
        super.start();

        if (!memoryLogPositionManager.isStart()) {
            memoryLogPositionManager.start();
        }

        if (!zooKeeperLogPositionManager.isStart()) {
            zooKeeperLogPositionManager.start();
        }
    }

    @Override
    public void stop() {
        super.stop();

        executor.shutdown();
        zooKeeperLogPositionManager.stop();
        memoryLogPositionManager.stop();
    }

    @Override
    public LogPosition getLatestIndexBy(String destination) {
        LogPosition logPosition = memoryLogPositionManager.getLatestIndexBy(destination);
        if (logPosition != null) {
            return logPosition;
        }
        logPosition = zooKeeperLogPositionManager.getLatestIndexBy(destination);
        // 这里保持和重构前的逻辑一致,重新添加到Memory中
        if (logPosition != null) {
            memoryLogPositionManager.persistLogPosition(destination, logPosition);
        }
        return logPosition;
    }

    @Override
    public void persistLogPosition(final String destination, final LogPosition logPosition) throws CanalParseException {
        memoryLogPositionManager.persistLogPosition(destination, logPosition);
        executor.submit(() -> {
            try {
                zooKeeperLogPositionManager.persistLogPosition(destination, logPosition);
            } catch (Exception e) {
                logger.error("ERROR # persist to zookeeper has an error", e);
            }
        });
    }
}

2.2.6 PeriodMixedLogPositionManager

/**
 * Created by yinxiu on 17/3/18. Email: marklin.hz@gmail.com
 */
public class PeriodMixedLogPositionManager extends AbstractLogPositionManager {

    private static final Logger         logger       = LoggerFactory.getLogger(PeriodMixedLogPositionManager.class);

    private MemoryLogPositionManager    memoryLogPositionManager;
    private ZooKeeperLogPositionManager zooKeeperLogPositionManager;
    private ScheduledExecutorService    executorService;

    private long                        period;
    private Set<String>                 persistTasks;

    @SuppressWarnings("serial")
    private final LogPosition           nullPosition = new LogPosition() {
                                                     };

    public PeriodMixedLogPositionManager(MemoryLogPositionManager memoryLogPositionManager,
                                         ZooKeeperLogPositionManager zooKeeperLogPositionManager, long period){
        if (memoryLogPositionManager == null) {
            throw new NullPointerException("null memoryLogPositionManager");
        }

        if (zooKeeperLogPositionManager == null) {
            throw new NullPointerException("null zooKeeperLogPositionManager");
        }

        if (period <= 0) {
            throw new IllegalArgumentException("period must be positive, given: " + period);
        }

        this.memoryLogPositionManager = memoryLogPositionManager;
        this.zooKeeperLogPositionManager = zooKeeperLogPositionManager;
        this.period = period;
        this.persistTasks = Collections.synchronizedSet(new HashSet<>());
        this.executorService = Executors.newScheduledThreadPool(1);
    }

    @Override
    public void stop() {
        super.stop();

        if (zooKeeperLogPositionManager.isStart()) {
            zooKeeperLogPositionManager.stop();
        }

        if (memoryLogPositionManager.isStart()) {
            memoryLogPositionManager.stop();
        }

        executorService.shutdown();
    }

    @Override
    public void start() {
        super.start();

        if (!memoryLogPositionManager.isStart()) {
            memoryLogPositionManager.start();
        }

        if (!zooKeeperLogPositionManager.isStart()) {
            zooKeeperLogPositionManager.start();
        }

        // 启动定时工作任务
        executorService.scheduleAtFixedRate(() -> {
            List<String> tasks = new ArrayList<>(persistTasks);
            for (String destination : tasks) {
                try {
                    // 定时将内存中的最新值刷到zookeeper中，多次变更只刷一次
                    zooKeeperLogPositionManager.persistLogPosition(destination, getLatestIndexBy(destination));
                    persistTasks.remove(destination);
                } catch (Throwable e) {
                    // ignore
                    logger.error("period update" + destination + " curosr failed!", e);
                }
            }
        }, period, period, TimeUnit.MILLISECONDS);
    }

    @Override
    public LogPosition getLatestIndexBy(String destination) {
        LogPosition logPosition = memoryLogPositionManager.getLatestIndexBy(destination);
        if (logPosition == nullPosition) {
            return null;
        } else {
            return logPosition;
        }
    }

    @Override
    public void persistLogPosition(String destination, LogPosition logPosition) throws CanalParseException {
        persistTasks.add(destination);
        memoryLogPositionManager.persistLogPosition(destination, logPosition);
    }
}

2.2.7 FileMixedLogPositionManager

/**
 * Created by yinxiu on 17/3/18. Email: marklin.hz@gmail.com 基于文件刷新的log
 * position实现
 *
 * <pre>
 * 策略：
 * 1. 先写内存，然后定时刷新数据到File
 * 2. 数据采取overwrite模式(只保留最后一次)
 * </pre>
 */
public class FileMixedLogPositionManager extends AbstractLogPositionManager {

    private final static Logger      logger       = LoggerFactory.getLogger(FileMixedLogPositionManager.class);
    private final static Charset     charset      = Charset.forName("UTF-8");

    private File                     dataDir;

    private Map<String, File>        dataFileCaches;

    private ScheduledExecutorService executorService;

    @SuppressWarnings("serial")
    private final LogPosition        nullPosition = new LogPosition() {
                                                  };

    private MemoryLogPositionManager memoryLogPositionManager;

    private long                     period;
    private Set<String>              persistTasks;

    public FileMixedLogPositionManager(File dataDir, long period, MemoryLogPositionManager memoryLogPositionManager){
        if (dataDir == null) {
            throw new NullPointerException("null dataDir");
        }
        if (period <= 0) {
            throw new IllegalArgumentException("period must be positive, given: " + period);
        }
        if (memoryLogPositionManager == null) {
            throw new NullPointerException("null memoryLogPositionManager");
        }
        this.dataDir = dataDir;
        this.period = period;
        this.memoryLogPositionManager = memoryLogPositionManager;

        this.dataFileCaches = MigrateMap.makeComputingMap(this::getDataFile);

        this.executorService = Executors.newScheduledThreadPool(1);
        this.persistTasks = Collections.synchronizedSet(new HashSet<>());
    }

    @Override
    public void start() {
        super.start();

        if (!dataDir.exists()) {
            try {
                FileUtils.forceMkdir(dataDir);
            } catch (IOException e) {
                throw new CanalMetaManagerException(e);
            }
        }

        if (!dataDir.canRead() || !dataDir.canWrite()) {
            throw new CanalMetaManagerException("dir[" + dataDir.getPath() + "] can not read/write");
        }

        if (!memoryLogPositionManager.isStart()) {
            memoryLogPositionManager.start();
        }

        // 启动定时工作任务
        executorService.scheduleAtFixedRate(() -> {
            List<String> tasks = new ArrayList<>(persistTasks);
            for (String destination : tasks) {
                try {
                    // 定时将内存中的最新值刷到file中，多次变更只刷一次
                    flushDataToFile(destination);
                    persistTasks.remove(destination);
                } catch (Throwable e) {
                    // ignore
                    logger.error("period update" + destination + " curosr failed!", e);
                }
            }
        }, period, period, TimeUnit.MILLISECONDS);

    }

    @Override
    public void stop() {
        super.stop();

        flushDataToFile();
        executorService.shutdown();
        memoryLogPositionManager.stop();
    }

    @Override
    public LogPosition getLatestIndexBy(String destination) {
        LogPosition logPosition = memoryLogPositionManager.getLatestIndexBy(destination);
        if (logPosition != null) {
            return logPosition;
        }
        logPosition = loadDataFromFile(dataFileCaches.get(destination));
        if (logPosition == null) {
            return nullPosition;
        }
        return logPosition;
    }

    @Override
    public void persistLogPosition(String destination, LogPosition logPosition) throws CanalParseException {
        persistTasks.add(destination);
        memoryLogPositionManager.persistLogPosition(destination, logPosition);
    }

    // ============================ helper method ======================

    private File getDataFile(String destination) {
        File destinationMetaDir = new File(dataDir, destination);
        if (!destinationMetaDir.exists()) {
            try {
                FileUtils.forceMkdir(destinationMetaDir);
            } catch (IOException e) {
                throw new CanalMetaManagerException(e);
            }
        }

        String dataFileName = "parse.dat";
        return new File(destinationMetaDir, dataFileName);
    }

    private void flushDataToFile() {
        for (String destination : memoryLogPositionManager.destinations()) {
            flushDataToFile(destination);
        }
    }

    private void flushDataToFile(String destination) {
        flushDataToFile(destination, dataFileCaches.get(destination));
    }

    private void flushDataToFile(String destination, File dataFile) {
        LogPosition position = memoryLogPositionManager.getLatestIndexBy(destination);
        if (position != null && position != nullPosition) {
            String json = JsonUtils.marshalToString(position);
            try {
                FileUtils.writeStringToFile(dataFile, json);
            } catch (IOException e) {
                throw new CanalMetaManagerException(e);
            }
        }
    }

    private LogPosition loadDataFromFile(File dataFile) {
        try {
            if (!dataFile.exists()) {
                return null;
            }

            String json = FileUtils.readFileToString(dataFile, charset);
            return JsonUtils.unmarshalFromString(json, LogPosition.class);
        } catch (IOException e) {
            throw new CanalMetaManagerException(e);
        }
    }
}

2.2.8 FailbackLogPositionManager

/**
 * Created by yinxiu on 17/3/18. Email: marklin.hz@gmail.com
 * 实现基于failover查找的机制完成meta的操作
 *
 * <pre>
 * 应用场景：比如针对内存buffer，出现HA切换，先尝试从内存buffer区中找到lastest position，如果不存在才尝试找一下meta里消费的信息
 * </pre>
 */
public class FailbackLogPositionManager extends AbstractLogPositionManager {

    private final static Logger           logger = LoggerFactory.getLogger(FailbackLogPositionManager.class);

    private final CanalLogPositionManager primary;
    private final CanalLogPositionManager secondary;

    public FailbackLogPositionManager(CanalLogPositionManager primary, CanalLogPositionManager secondary){
        if (primary == null) {
            throw new NullPointerException("nul primary LogPositionManager");
        }
        if (secondary == null) {
            throw new NullPointerException("nul secondary LogPositionManager");
        }

        this.primary = primary;
        this.secondary = secondary;
    }

    @Override
    public void start() {
        super.start();

        if (!primary.isStart()) {
            primary.start();
        }

        if (!secondary.isStart()) {
            secondary.start();
        }
    }

    @Override
    public void stop() {
        super.stop();

        if (secondary.isStart()) {
            secondary.stop();
        }

        if (primary.isStart()) {
            primary.stop();
        }
    }

    @Override
    public LogPosition getLatestIndexBy(String destination) {
        LogPosition logPosition = primary.getLatestIndexBy(destination);
        if (logPosition != null) {
            return logPosition;
        }
        return secondary.getLatestIndexBy(destination);
    }

    @Override
    public void persistLogPosition(String destination, LogPosition logPosition) throws CanalParseException {
        try {
            primary.persistLogPosition(destination, logPosition);
        } catch (CanalParseException e) {
            logger.warn("persistLogPosition use primary log position manager exception. destination: {}, logPosition: {}",
                destination,
                logPosition,
                e);
            secondary.persistLogPosition(destination, logPosition);
        }
    }
}

3. AbstractMysqlEventParser

public abstract class AbstractMysqlEventParser extends AbstractEventParser {

    protected static final long    BINLOG_START_OFFEST       = 4L;

    protected TableMetaTSDBFactory tableMetaTSDBFactory      = new DefaultTableMetaTSDBFactory();
    protected boolean              enableTsdb                = false;
    protected String               tsdbJdbcUrl;
    protected String               tsdbJdbcUserName;
    protected String               tsdbJdbcPassword;
    protected int                  tsdbSnapshotInterval      = 24;
    protected int                  tsdbSnapshotExpire        = 360;
    protected String               tsdbSpringXml;
    protected TableMetaTSDB        tableMetaTSDB;

    // 编码信息
    protected Charset              connectionCharset         = Charset.forName("UTF-8");
    protected boolean              filterQueryDcl            = false;
    protected boolean              filterQueryDml            = false;
    protected boolean              filterQueryDdl            = false;
    protected boolean              filterRows                = false;
    protected boolean              filterTableError          = false;
    protected boolean              useDruidDdlFilter         = true;

    protected boolean              filterDmlInsert           = false;
    protected boolean              filterDmlUpdate           = false;
    protected boolean              filterDmlDelete           = false;
    // instance received binlog bytes
    protected final AtomicLong     receivedBinlogBytes       = new AtomicLong(0L);
    private final AtomicLong       eventsPublishBlockingTime = new AtomicLong(0L);

    protected BinlogParser buildParser() {
        LogEventConvert convert = new LogEventConvert();
        if (eventFilter != null && eventFilter instanceof AviaterRegexFilter) {
            convert.setNameFilter((AviaterRegexFilter) eventFilter);
        }

        if (eventBlackFilter != null && eventBlackFilter instanceof AviaterRegexFilter) {
            convert.setNameBlackFilter((AviaterRegexFilter) eventBlackFilter);
        }

        convert.setFieldFilterMap(getFieldFilterMap());
        convert.setFieldBlackFilterMap(getFieldBlackFilterMap());

        convert.setCharset(connectionCharset);
        convert.setFilterQueryDcl(filterQueryDcl);
        convert.setFilterQueryDml(filterQueryDml);
        convert.setFilterQueryDdl(filterQueryDdl);
        convert.setFilterRows(filterRows);
        convert.setFilterTableError(filterTableError);
        convert.setUseDruidDdlFilter(useDruidDdlFilter);
        return convert;
    }

    public void setEventFilter(CanalEventFilter eventFilter) {
        super.setEventFilter(eventFilter);

        // 触发一下filter变更
        if (eventFilter != null && eventFilter instanceof AviaterRegexFilter) {
            if (binlogParser instanceof LogEventConvert) {
                ((LogEventConvert) binlogParser).setNameFilter((AviaterRegexFilter) eventFilter);
            }

            if (tableMetaTSDB != null && tableMetaTSDB instanceof DatabaseTableMeta) {
                ((DatabaseTableMeta) tableMetaTSDB).setFilter(eventFilter);
            }
        }
    }

    public void setEventBlackFilter(CanalEventFilter eventBlackFilter) {
        super.setEventBlackFilter(eventBlackFilter);

        // 触发一下filter变更
        if (eventBlackFilter != null && eventBlackFilter instanceof AviaterRegexFilter) {
            if (binlogParser instanceof LogEventConvert) {
                ((LogEventConvert) binlogParser).setNameBlackFilter((AviaterRegexFilter) eventBlackFilter);
            }

            if (tableMetaTSDB != null && tableMetaTSDB instanceof DatabaseTableMeta) {
                ((DatabaseTableMeta) tableMetaTSDB).setBlackFilter(eventBlackFilter);
            }
        }
    }

    @Override
    public void setFieldFilter(String fieldFilter) {
        super.setFieldFilter(fieldFilter);

        // 触发一下filter变更
        if (binlogParser instanceof LogEventConvert) {
            ((LogEventConvert) binlogParser).setFieldFilterMap(getFieldFilterMap());
        }

        if (tableMetaTSDB != null && tableMetaTSDB instanceof DatabaseTableMeta) {
            ((DatabaseTableMeta) tableMetaTSDB).setFieldFilterMap(getFieldFilterMap());
        }
    }

    @Override
    public void setFieldBlackFilter(String fieldBlackFilter) {
        super.setFieldBlackFilter(fieldBlackFilter);

        // 触发一下filter变更
        if (binlogParser instanceof LogEventConvert) {
            ((LogEventConvert) binlogParser).setFieldBlackFilterMap(getFieldBlackFilterMap());
        }

        if (tableMetaTSDB != null && tableMetaTSDB instanceof DatabaseTableMeta) {
            ((DatabaseTableMeta) tableMetaTSDB).setFieldBlackFilterMap(getFieldBlackFilterMap());
        }
    }

    /**
     * 回滚到指定位点
     *
     * @param position
     * @return
     */
    protected boolean processTableMeta(EntryPosition position) {
        if (tableMetaTSDB != null) {
            if (position.getTimestamp() == null || position.getTimestamp() <= 0) {
                throw new CanalParseException("use gtid and TableMeta TSDB should be config timestamp > 0");
            }

            return tableMetaTSDB.rollback(position);
        }

        return true;
    }

    public void start() throws CanalParseException {
        if (enableTsdb) {
            if (tableMetaTSDB == null) {
                synchronized (CanalEventParser.class) {
                    buildTableMetaTSDB(tsdbSpringXml);
                }
            }
        }

        super.start();
    }

    public void stop() throws CanalParseException {
        if (enableTsdb) {
            tableMetaTSDBFactory.destory(destination);
            tableMetaTSDB = null;
        }

        super.stop();
    }

    protected synchronized void buildTableMetaTSDB(String tsdbSpringXml) {
        if (tableMetaTSDB != null) {
            return;
        }

        try {
            // 设置当前正在加载的通道，加载spring查找文件时会用到该变量
            System.setProperty("canal.instance.tsdb.url", tsdbJdbcUrl);
            System.setProperty("canal.instance.tsdb.dbUsername", tsdbJdbcUserName);
            System.setProperty("canal.instance.tsdb.dbPassword", tsdbJdbcPassword);
            // 初始化
            this.tableMetaTSDB = tableMetaTSDBFactory.build(destination, tsdbSpringXml);
        } catch (Throwable e) {
            logger.warn("failed to build TableMetaTSDB ",e);
            throw new CanalParseException(e);
        } finally {
            // reset
            Properties props = System.getProperties();
            props.remove("canal.instance.tsdb.url");
            props.remove("canal.instance.tsdb.dbUsername");
            props.remove("canal.instance.tsdb.dbPassword");
        }
    }

    protected MultiStageCoprocessor buildMultiStageCoprocessor() {
        MysqlMultiStageCoprocessor mysqlMultiStageCoprocessor = new MysqlMultiStageCoprocessor(parallelBufferSize,
            parallelThreadSize,
            (LogEventConvert) binlogParser,
            transactionBuffer,
            destination, filterDmlInsert, filterDmlUpdate, filterDmlDelete);
        mysqlMultiStageCoprocessor.setEventsPublishBlockingTime(eventsPublishBlockingTime);
        return mysqlMultiStageCoprocessor;
    }

    // ============================ setter / getter =========================

    public void setConnectionCharsetStd(Charset connectionCharset) {
        this.connectionCharset = connectionCharset;
    }

    public void setConnectionCharset(String connectionCharset) {
        if ("UTF8MB4".equalsIgnoreCase(connectionCharset)) {
            connectionCharset = "UTF-8";
        }

        this.connectionCharset = Charset.forName(connectionCharset);
    }

    public void setFilterQueryDcl(boolean filterQueryDcl) {
        this.filterQueryDcl = filterQueryDcl;
    }

    public void setFilterQueryDml(boolean filterQueryDml) {
        this.filterQueryDml = filterQueryDml;
    }

    public void setFilterQueryDdl(boolean filterQueryDdl) {
        this.filterQueryDdl = filterQueryDdl;
    }

    public void setFilterRows(boolean filterRows) {
        this.filterRows = filterRows;
    }

    public void setFilterTableError(boolean filterTableError) {
        this.filterTableError = filterTableError;
    }

    public boolean isUseDruidDdlFilter() {
        return useDruidDdlFilter;
    }

    public void setUseDruidDdlFilter(boolean useDruidDdlFilter) {
        this.useDruidDdlFilter = useDruidDdlFilter;
    }

    public boolean isFilterDmlInsert() {
        return filterDmlInsert;
    }

    public void setFilterDmlInsert(boolean filterDmlInsert) {
        this.filterDmlInsert = filterDmlInsert;
    }

    public boolean isFilterDmlUpdate() {
        return filterDmlUpdate;
    }

    public void setFilterDmlUpdate(boolean filterDmlUpdate) {
        this.filterDmlUpdate = filterDmlUpdate;
    }

    public boolean isFilterDmlDelete() {
        return filterDmlDelete;
    }

    public void setFilterDmlDelete(boolean filterDmlDelete) {
        this.filterDmlDelete = filterDmlDelete;
    }

    public void setEnableTsdb(boolean enableTsdb) {
        this.enableTsdb = enableTsdb;
    }

    public void setTsdbSpringXml(String tsdbSpringXml) {
        this.tsdbSpringXml = tsdbSpringXml;
    }

    public void setTableMetaTSDBFactory(TableMetaTSDBFactory tableMetaTSDBFactory) {
        this.tableMetaTSDBFactory = tableMetaTSDBFactory;
    }

    public AtomicLong getEventsPublishBlockingTime() {
        return this.eventsPublishBlockingTime;
    }

    public AtomicLong getReceivedBinlogBytes() {
        return this.receivedBinlogBytes;
    }

    public int getTsdbSnapshotInterval() {
        return tsdbSnapshotInterval;
    }

    public void setTsdbSnapshotInterval(int tsdbSnapshotInterval) {
        this.tsdbSnapshotInterval = tsdbSnapshotInterval;
    }

    public int getTsdbSnapshotExpire() {
        return tsdbSnapshotExpire;
    }

    public void setTsdbSnapshotExpire(int tsdbSnapshotExpire) {
        this.tsdbSnapshotExpire = tsdbSnapshotExpire;
    }

    public void setTsdbJdbcUrl(String tsdbJdbcUrl) {
        this.tsdbJdbcUrl = tsdbJdbcUrl;
    }

    public void setTsdbJdbcUserName(String tsdbJdbcUserName) {
        this.tsdbJdbcUserName = tsdbJdbcUserName;
    }

    public void setTsdbJdbcPassword(String tsdbJdbcPassword) {
        this.tsdbJdbcPassword = tsdbJdbcPassword;
    }
}

4. MysqlEventParser

/**
 * 基于向mysql server复制binlog实现
 *
 * <pre>
 * 1. 自身不控制mysql主备切换，由ha机制来控制. 比如接入tddl/cobar/自身心跳包成功率
 * 2. 切换机制
 * </pre>
 *
 * @author jianghang 2012-6-21 下午04:06:32
 * @version 1.0.0
 */
public class MysqlEventParser extends AbstractMysqlEventParser implements CanalEventParser, CanalHASwitchable {

    private CanalHAController    haController                      = null;
    private int                  defaultConnectionTimeoutInSeconds = 30;
    private int                  receiveBufferSize                 = 64 * 1024;
    private int                  sendBufferSize                    = 64 * 1024;
    // 数据库信息
    protected AuthenticationInfo masterInfo;                                   // 主库
    protected AuthenticationInfo standbyInfo;                                  // 备库
    // binlog信息
    protected EntryPosition      masterPosition;
    protected EntryPosition      standbyPosition;
    private long                 slaveId;                                      // 链接到mysql的slave
    // 心跳检查信息
    private String               detectingSQL;                                 // 心跳sql
    private MysqlConnection      metaConnection;                               // 查询meta信息的链接
    private TableMetaCache       tableMetaCache;                               // 对应meta
    private int                  fallbackIntervalInSeconds         = 60;       // 切换回退时间
    private BinlogFormat[]       supportBinlogFormats;                         // 支持的binlogFormat,如果设置会执行强校验
    private BinlogImage[]        supportBinlogImages;                          // 支持的binlogImage,如果设置会执行强校验

    // update by yishun.chen,特殊异常处理参数
    private int                  dumpErrorCount                    = 0;        // binlogDump失败异常计数
    private int                  dumpErrorCountThreshold           = 2;        // binlogDump失败异常计数阀值
    private boolean              rdsOssMode                        = false;
    private boolean              autoResetLatestPosMode            = false;    // binlog被删除之后，自动按最新的数据订阅
    private boolean              multiStreamEnable;                            // support for polardbx binlog-x

    protected ErosaConnection buildErosaConnection() {
        return buildMysqlConnection(this.runningInfo);
    }

    protected void preDump(ErosaConnection connection) {
        if (!(connection instanceof MysqlConnection)) {
            throw new CanalParseException("Unsupported connection type : " + connection.getClass().getSimpleName());
        }

        if (binlogParser != null && binlogParser instanceof LogEventConvert) {
            metaConnection = (MysqlConnection) connection.fork();
            try {
                metaConnection.connect();
            } catch (IOException e) {
                throw new CanalParseException(e);
            }

            if (supportBinlogFormats != null && supportBinlogFormats.length > 0) {
                BinlogFormat format = ((MysqlConnection) metaConnection).getBinlogFormat();
                boolean found = false;
                for (BinlogFormat supportFormat : supportBinlogFormats) {
                    if (supportFormat != null && format == supportFormat) {
                        found = true;
                        break;
                    }
                }

                if (!found) {
                    throw new CanalParseException("Unsupported BinlogFormat " + format);
                }
            }

            if (supportBinlogImages != null && supportBinlogImages.length > 0) {
                BinlogImage image = ((MysqlConnection) metaConnection).getBinlogImage();
                boolean found = false;
                for (BinlogImage supportImage : supportBinlogImages) {
                    if (supportImage != null && image == supportImage) {
                        found = true;
                        break;
                    }
                }

                if (!found) {
                    throw new CanalParseException("Unsupported BinlogImage " + image);
                }
            }

            if (tableMetaTSDB != null && tableMetaTSDB instanceof DatabaseTableMeta) {
                ((DatabaseTableMeta) tableMetaTSDB).setConnection(metaConnection);
                ((DatabaseTableMeta) tableMetaTSDB).setFilter(eventFilter);
                ((DatabaseTableMeta) tableMetaTSDB).setBlackFilter(eventBlackFilter);
                ((DatabaseTableMeta) tableMetaTSDB).setSnapshotInterval(tsdbSnapshotInterval);
                ((DatabaseTableMeta) tableMetaTSDB).setSnapshotExpire(tsdbSnapshotExpire);
                ((DatabaseTableMeta) tableMetaTSDB).init(destination);
            }

            tableMetaCache = new TableMetaCache(metaConnection, tableMetaTSDB);
            ((LogEventConvert) binlogParser).setTableMetaCache(tableMetaCache);
        }
    }

    protected void afterDump(ErosaConnection connection) {
        super.afterDump(connection);

        if (connection == null) {
            throw new CanalParseException("illegal connection is null");
        }

        if (!(connection instanceof MysqlConnection)) {
            throw new CanalParseException("Unsupported connection type : " + connection.getClass().getSimpleName());
        }

        if (metaConnection != null) {
            try {
                metaConnection.disconnect();
            } catch (IOException e) {
                logger.error("ERROR # disconnect meta connection for address:{}", metaConnection.getConnector()
                    .getAddress(), e);
            }
        }
    }

    public void start() throws CanalParseException {
        if (runningInfo == null) { // 第一次链接主库
            runningInfo = masterInfo;
        }

        super.start();
    }

    public void stop() throws CanalParseException {
        if (metaConnection != null) {
            try {
                metaConnection.disconnect();
            } catch (IOException e) {
                logger.error("ERROR # disconnect meta connection for address:{}", metaConnection.getConnector()
                    .getAddress(), e);
            }
        }

        if (tableMetaCache != null) {
            tableMetaCache.clearTableMeta();
        }

        super.stop();
    }

    protected TimerTask buildHeartBeatTimeTask(ErosaConnection connection) {
        if (!(connection instanceof MysqlConnection)) {
            throw new CanalParseException("Unsupported connection type : " + connection.getClass().getSimpleName());
        }

        // 开始mysql心跳sql
        if (detectingEnable && StringUtils.isNotBlank(detectingSQL)) {
            return new MysqlDetectingTimeTask((MysqlConnection) connection.fork());
        } else {
            return super.buildHeartBeatTimeTask(connection);
        }

    }

    protected void stopHeartBeat() {
        TimerTask heartBeatTimerTask = this.heartBeatTimerTask;
        super.stopHeartBeat();
        if (heartBeatTimerTask != null && heartBeatTimerTask instanceof MysqlDetectingTimeTask) {
            MysqlConnection mysqlConnection = ((MysqlDetectingTimeTask) heartBeatTimerTask).getMysqlConnection();
            try {
                mysqlConnection.disconnect();
            } catch (IOException e) {
                logger.error("ERROR # disconnect heartbeat connection for address:{}", mysqlConnection.getConnector()
                    .getAddress(), e);
            }
        }
    }

    /**
     * 心跳信息
     *
     * @author jianghang 2012-7-6 下午02:50:15
     * @version 1.0.0
     */
    class MysqlDetectingTimeTask extends TimerTask {

        private boolean         reconnect = false;
        private MysqlConnection mysqlConnection;

        public MysqlDetectingTimeTask(MysqlConnection mysqlConnection){
            this.mysqlConnection = mysqlConnection;
        }

        public void run() {
            try {
                if (reconnect) {
                    reconnect = false;
                    mysqlConnection.reconnect();
                } else if (!mysqlConnection.isConnected()) {
                    mysqlConnection.connect();
                }
                long startTime = System.currentTimeMillis();

                // 可能心跳sql为select 1
                if (StringUtils.startsWithIgnoreCase(detectingSQL.trim(), "select")
                    || StringUtils.startsWithIgnoreCase(detectingSQL.trim(), "show")
                    || StringUtils.startsWithIgnoreCase(detectingSQL.trim(), "explain")
                    || StringUtils.startsWithIgnoreCase(detectingSQL.trim(), "desc")) {
                    mysqlConnection.query(detectingSQL);
                } else {
                    mysqlConnection.update(detectingSQL);
                }

                long costTime = System.currentTimeMillis() - startTime;
                if (haController != null && haController instanceof HeartBeatCallback) {
                    ((HeartBeatCallback) haController).onSuccess(costTime);
                }
            } catch (Throwable e) {
                if (haController != null && haController instanceof HeartBeatCallback) {
                    ((HeartBeatCallback) haController).onFailed(e);
                }
                reconnect = true;
                logger.warn("connect failed by ", e);
            }
        }

        public MysqlConnection getMysqlConnection() {
            return mysqlConnection;
        }
    }

    // 处理主备切换的逻辑
    public void doSwitch() {
        AuthenticationInfo newRunningInfo = (runningInfo.equals(masterInfo) ? standbyInfo : masterInfo);
        this.doSwitch(newRunningInfo);
    }

    public void doSwitch(AuthenticationInfo newRunningInfo) {
        // 1. 需要停止当前正在复制的过程
        // 2. 找到新的position点
        // 3. 重新建立链接，开始复制数据
        // 切换ip
        String alarmMessage = null;

        if (this.runningInfo.equals(newRunningInfo)) {
            alarmMessage = "same runingInfo switch again : " + runningInfo.getAddress().toString();
            logger.warn(alarmMessage);
            return;
        }

        if (newRunningInfo == null) {
            alarmMessage = "no standby config, just do nothing, will continue try:"
                           + runningInfo.getAddress().toString();
            logger.warn(alarmMessage);
            sendAlarm(destination, alarmMessage);
            return;
        } else {
            stop();
            alarmMessage = "try to ha switch, old:" + runningInfo.getAddress().toString() + ", new:"
                           + newRunningInfo.getAddress().toString();
            logger.warn(alarmMessage);
            sendAlarm(destination, alarmMessage);
            runningInfo = newRunningInfo;
            start();
        }
    }

    // =================== helper method =================

    private MysqlConnection buildMysqlConnection(AuthenticationInfo runningInfo) {
        MysqlConnection connection = new MysqlConnection(runningInfo.getAddress(),
            runningInfo.getUsername(),
            runningInfo.getPassword(),
            runningInfo.getDefaultDatabaseName(),
            runningInfo.getSslInfo());
        connection.getConnector().setReceiveBufferSize(receiveBufferSize);
        connection.getConnector().setSendBufferSize(sendBufferSize);
        connection.getConnector().setSoTimeout(defaultConnectionTimeoutInSeconds * 1000);
        connection.setCharset(connectionCharset);
        connection.setReceivedBinlogBytes(receivedBinlogBytes);
        // 随机生成slaveId
        if (this.slaveId <= 0) {
            this.slaveId = generateUniqueServerId();
        }
        connection.setSlaveId(this.slaveId);
        return connection;
    }

    private final long generateUniqueServerId() {
        try {
            // a=`echo $masterip|cut -d\. -f1`
            // b=`echo $masterip|cut -d\. -f2`
            // c=`echo $masterip|cut -d\. -f3`
            // d=`echo $masterip|cut -d\. -f4`
            // #server_id=`expr $a \* 256 \* 256 \* 256 + $b \* 256 \* 256 + $c
            // \* 256 + $d `
            // #server_id=$b$c$d
            // server_id=`expr $b \* 256 \* 256 + $c \* 256 + $d `
            InetAddress localHost = InetAddress.getLocalHost();
            byte[] addr = localHost.getAddress();
            int salt = (destination != null) ? destination.hashCode() : 0;
            return ((0x7f & salt) << 24) + ((0xff & (int) addr[1]) << 16) // NL
                   + ((0xff & (int) addr[2]) << 8) // NL
                   + (0xff & (int) addr[3]);
        } catch (UnknownHostException e) {
            throw new CanalParseException("Unknown host", e);
        }
    }

    protected EntryPosition findStartPosition(ErosaConnection connection) throws IOException {
        if (isGTIDMode()) {
            // GTID模式下，CanalLogPositionManager里取最后的gtid，没有则取instance配置中的
            LogPosition logPosition = getLogPositionManager().getLatestIndexBy(destination);
            if (logPosition != null) {
                // 如果以前是非GTID模式，后来调整为了GTID模式，那么为了保持兼容，需要判断gtid是否为空
                if (StringUtils.isNotEmpty(logPosition.getPostion().getGtid())) {
                    return logPosition.getPostion();
                }
            } else {
                if (masterPosition != null && StringUtils.isNotEmpty(masterPosition.getGtid())) {
                    return masterPosition;
                }
            }
        }

        EntryPosition startPosition = findStartPositionInternal(connection);
        if (needTransactionPosition.get()) {
            logger.warn("prepare to find last position : {}", startPosition.toString());
            Long preTransactionStartPosition = findTransactionBeginPosition(connection, startPosition);
            if (!preTransactionStartPosition.equals(startPosition.getPosition())) {
                logger.warn("find new start Transaction Position , old : {} , new : {}",
                    startPosition.getPosition(),
                    preTransactionStartPosition);
                startPosition.setPosition(preTransactionStartPosition);
            }
            needTransactionPosition.compareAndSet(true, false);
        }
        return startPosition;
    }

    protected EntryPosition findEndPosition(ErosaConnection connection) throws IOException {
        MysqlConnection mysqlConnection = (MysqlConnection) connection;
        EntryPosition endPosition = findEndPosition(mysqlConnection);
        return endPosition;
    }

    protected EntryPosition findEndPositionWithMasterIdAndTimestamp(MysqlConnection connection) {
        MysqlConnection mysqlConnection = (MysqlConnection) connection;
        final EntryPosition endPosition = findEndPosition(mysqlConnection);
        if (tableMetaTSDB != null || isGTIDMode()) {
            long startTimestamp = System.currentTimeMillis();
            return findAsPerTimestampInSpecificLogFile(mysqlConnection,
                startTimestamp,
                endPosition,
                endPosition.getJournalName(),
                true);
        } else {
            return endPosition;
        }
    }

    protected EntryPosition findPositionWithMasterIdAndTimestamp(MysqlConnection connection, EntryPosition fixedPosition) {
        MysqlConnection mysqlConnection = (MysqlConnection) connection;
        if (tableMetaTSDB != null && (fixedPosition.getTimestamp() == null || fixedPosition.getTimestamp() <= 0)) {
            // 使用一个未来极大的时间，基于位点进行定位
            long startTimestamp = System.currentTimeMillis() + 102L * 365 * 24 * 3600 * 1000; // 当前时间的未来102年
            EntryPosition entryPosition = findAsPerTimestampInSpecificLogFile(mysqlConnection,
                startTimestamp,
                fixedPosition,
                fixedPosition.getJournalName(),
                true);
            if (entryPosition == null) {
                throw new CanalParseException("[fixed timestamp] can't found begin/commit position before with fixed position "
                                              + fixedPosition.getJournalName() + ":" + fixedPosition.getPosition());
            }
            return entryPosition;
        } else {
            return fixedPosition;
        }
    }

    protected EntryPosition findStartPositionInternal(ErosaConnection connection) {
        MysqlConnection mysqlConnection = (MysqlConnection) connection;
        LogPosition logPosition = logPositionManager.getLatestIndexBy(destination);
        if (logPosition == null) {// 找不到历史成功记录
            EntryPosition entryPosition = null;
            if (masterInfo != null && mysqlConnection.getConnector().getAddress().equals(masterInfo.getAddress())) {
                entryPosition = masterPosition;
            } else if (standbyInfo != null
                       && mysqlConnection.getConnector().getAddress().equals(standbyInfo.getAddress())) {
                entryPosition = standbyPosition;
            }

            if (entryPosition == null) {
                entryPosition =
                        findEndPositionWithMasterIdAndTimestamp(mysqlConnection); // 默认从当前最后一个位置进行消费
            }

            // 判断一下是否需要按时间订阅
            if (StringUtils.isEmpty(entryPosition.getJournalName())) {
                // 如果没有指定binlogName，尝试按照timestamp进行查找
                if (entryPosition.getTimestamp() != null && entryPosition.getTimestamp() > 0L) {
                    logger.warn("prepare to find start position {}:{}:{}",
                        new Object[] { "", "", entryPosition.getTimestamp() });
                    return findByStartTimeStamp(mysqlConnection, entryPosition.getTimestamp());
                } else {
                    logger.warn("prepare to find start position just show master status");
                    return findEndPositionWithMasterIdAndTimestamp(mysqlConnection); // 默认从当前最后一个位置进行消费
                }
            } else {
                if (entryPosition.getPosition() != null && entryPosition.getPosition() > 0L) {
                    // 如果指定binlogName + offest，直接返回
                    entryPosition = findPositionWithMasterIdAndTimestamp(mysqlConnection, entryPosition);
                    logger.warn("prepare to find start position {}:{}:{}",
                        new Object[] { entryPosition.getJournalName(), entryPosition.getPosition(),
                                entryPosition.getTimestamp() });
                    return entryPosition;
                } else {
                    EntryPosition specificLogFilePosition = null;
                    if (entryPosition.getTimestamp() != null && entryPosition.getTimestamp() > 0L) {
                        // 如果指定binlogName +
                        // timestamp，但没有指定对应的offest，尝试根据时间找一下offest
                        EntryPosition endPosition = findEndPosition(mysqlConnection);
                        if (endPosition != null) {
                            logger.warn("prepare to find start position {}:{}:{}",
                                new Object[] { entryPosition.getJournalName(), "", entryPosition.getTimestamp() });
                            specificLogFilePosition = findAsPerTimestampInSpecificLogFile(mysqlConnection,
                                entryPosition.getTimestamp(),
                                endPosition,
                                entryPosition.getJournalName(),
                                true);
                        }
                    }

                    if (specificLogFilePosition == null) {
                        if (isRdsOssMode()) {
                            // 如果binlog位点不存在，并且属于timestamp不为空,可以返回null走到oss binlog处理
                            return null;
                        }
                        // position不存在，从文件头开始
                        entryPosition.setPosition(BINLOG_START_OFFEST);
                        return entryPosition;
                    } else {
                        return specificLogFilePosition;
                    }
                }
            }
        } else {
            if (logPosition.getIdentity().getSourceAddress().equals(mysqlConnection.getConnector().getAddress())) {
                if (dumpErrorCountThreshold >= 0 && dumpErrorCount > dumpErrorCountThreshold) {
                    // binlog定位位点失败,可能有两个原因:
                    // 1. binlog位点被删除
                    // 2.vip模式的mysql,发生了主备切换,判断一下serverId是否变化,针对这种模式可以发起一次基于时间戳查找合适的binlog位点
                    boolean case2 = (standbyInfo == null || standbyInfo.getAddress() == null)
                                    && logPosition.getPostion().getServerId() != null
                                    && !logPosition.getPostion().getServerId().equals(findServerId(mysqlConnection));
                    if (case2) {
                        EntryPosition findPosition = fallbackFindByStartTimestamp(logPosition, mysqlConnection);
                        dumpErrorCount = 0;
                        return findPosition;
                    }
                    // 处理 binlog 位点被删除的情况，提供自动重置到当前位点的功能
                    // 应用场景: 测试环境不稳定，位点经常被删。强烈不建议在正式环境中开启此控制参数，因为binlog
                    // 丢失调到最新位点也即意味着数据丢失
                    if (isAutoResetLatestPosMode()) {
                        dumpErrorCount = 0;
                        return findEndPosition(mysqlConnection);
                    }
                    Long timestamp = logPosition.getPostion().getTimestamp();
                    if (isRdsOssMode() && (timestamp != null && timestamp > 0)) {
                        // 如果binlog位点不存在，并且属于timestamp不为空,可以返回null走到oss binlog处理
                        return null;
                    }
                } else if (StringUtils.isBlank(logPosition.getPostion().getJournalName())
                           && logPosition.getPostion().getPosition() <= 0
                           && logPosition.getPostion().getTimestamp() > 0) {
                    return fallbackFindByStartTimestamp(logPosition, mysqlConnection);
                }
                // 其余情况
                logger.warn("prepare to find start position just last position\n {}",
                    JsonUtils.marshalToString(logPosition));
                return logPosition.getPostion();
            } else {
                // 针对切换的情况，考虑回退时间
                long newStartTimestamp = logPosition.getPostion().getTimestamp() - fallbackIntervalInSeconds * 1000;
                logger.warn("prepare to find start position by switch {}:{}:{}", new Object[] { "", "",
                        logPosition.getPostion().getTimestamp() });
                return findByStartTimeStamp(mysqlConnection, newStartTimestamp);
            }
        }
    }

    /**
     * find position by timestamp with a fallback interval seconds.
     *
     * @param logPosition
     * @param mysqlConnection
     * @return
     */
    protected EntryPosition fallbackFindByStartTimestamp(LogPosition logPosition, MysqlConnection mysqlConnection) {
        long timestamp = logPosition.getPostion().getTimestamp();
        long newStartTimestamp = timestamp - fallbackIntervalInSeconds * 1000;
        logger.warn("prepare to find start position by last position {}:{}:{}", new Object[] { "", "",
                logPosition.getPostion().getTimestamp() });
        return findByStartTimeStamp(mysqlConnection, newStartTimestamp);
    }

    // 根据想要的position，可能这个position对应的记录为rowdata，需要找到事务头，避免丢数据
    // 主要考虑一个事务执行时间可能会几秒种，如果仅仅按照timestamp相同，则可能会丢失事务的前半部分数据
    private Long findTransactionBeginPosition(ErosaConnection mysqlConnection, final EntryPosition entryPosition)
                                                                                                                 throws IOException {
        // 针对开始的第一条为非Begin记录，需要从该binlog扫描
        final java.util.concurrent.atomic.AtomicLong preTransactionStartPosition = new java.util.concurrent.atomic.AtomicLong(0L);
        mysqlConnection.reconnect();
        mysqlConnection.seek(entryPosition.getJournalName(), 4L, entryPosition.getGtid(), new SinkFunction<LogEvent>() {

            private LogPosition lastPosition;

            public boolean sink(LogEvent event) {
                try {
                    CanalEntry.Entry entry = parseAndProfilingIfNecessary(event, true);
                    if (entry == null) {
                        return true;
                    }

                    // 直接查询第一条业务数据，确认是否为事务Begin
                    // 记录一下transaction begin position
                    if (entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONBEGIN
                        && entry.getHeader().getLogfileOffset() < entryPosition.getPosition()) {
                        preTransactionStartPosition.set(entry.getHeader().getLogfileOffset());
                    }

                    if (entry.getHeader().getLogfileOffset() >= entryPosition.getPosition()) {
                        return false;// 退出
                    }

                    lastPosition = buildLastPosition(entry);
                } catch (Exception e) {
                    processSinkError(e, lastPosition, entryPosition.getJournalName(), entryPosition.getPosition());
                    return false;
                }

                return running;
            }
        });

        // 判断一下找到的最接近position的事务头的位置
        if (preTransactionStartPosition.get() > entryPosition.getPosition()) {
            logger.error("preTransactionEndPosition greater than startPosition from zk or localconf, maybe lost data");
            throw new CanalParseException("preTransactionStartPosition greater than startPosition from zk or localconf, maybe lost data");
        }
        return preTransactionStartPosition.get();
    }

    // 根据时间查找binlog位置
    private EntryPosition findByStartTimeStamp(MysqlConnection mysqlConnection, Long startTimestamp) {
        EntryPosition endPosition = findEndPosition(mysqlConnection);
        EntryPosition startPosition = findStartPosition(mysqlConnection);
        String maxBinlogFileName = endPosition.getJournalName();
        String minBinlogFileName = startPosition.getJournalName();
        logger.info("show master status to set search end condition:{} ", endPosition);
        String startSearchBinlogFile = endPosition.getJournalName();
        boolean shouldBreak = false;
        while (running && !shouldBreak) {
            try {
                EntryPosition entryPosition = findAsPerTimestampInSpecificLogFile(mysqlConnection,
                    startTimestamp,
                    endPosition,
                    startSearchBinlogFile,
                    false);
                if (entryPosition == null) {
                    if (StringUtils.equalsIgnoreCase(minBinlogFileName, startSearchBinlogFile)) {
                        // 已经找到最早的一个binlog，没必要往前找了
                        shouldBreak = true;
                        logger.warn("Didn't find the corresponding binlog files from {} to {}",
                            minBinlogFileName,
                            maxBinlogFileName);
                    } else {
                        // 继续往前找
                        int binlogSeqNum = Integer.parseInt(startSearchBinlogFile.substring(startSearchBinlogFile.indexOf(".") + 1));
                        if (binlogSeqNum <= 1) {
                            logger.warn("Didn't find the corresponding binlog files");
                            shouldBreak = true;
                        } else {
                            int nextBinlogSeqNum = binlogSeqNum - 1;
                            String binlogFileNamePrefix = startSearchBinlogFile.substring(0,
                                startSearchBinlogFile.indexOf(".") + 1);
                            String binlogFileNameSuffix = String.format("%06d", nextBinlogSeqNum);
                            startSearchBinlogFile = binlogFileNamePrefix + binlogFileNameSuffix;
                        }
                    }
                } else {
                    logger.info("found and return:{} in findByStartTimeStamp operation.", entryPosition);
                    return entryPosition;
                }
            } catch (Exception e) {
                logger.warn(String.format("the binlogfile:%s doesn't exist, to continue to search the next binlogfile , caused by",
                    startSearchBinlogFile),
                    e);
                int binlogSeqNum = Integer.parseInt(startSearchBinlogFile.substring(startSearchBinlogFile.indexOf(".") + 1));
                if (binlogSeqNum <= 1) {
                    logger.warn("Didn't find the corresponding binlog files");
                    shouldBreak = true;
                } else {
                    int nextBinlogSeqNum = binlogSeqNum - 1;
                    String binlogFileNamePrefix = startSearchBinlogFile.substring(0,
                        startSearchBinlogFile.indexOf(".") + 1);
                    String binlogFileNameSuffix = String.format("%06d", nextBinlogSeqNum);
                    startSearchBinlogFile = binlogFileNamePrefix + binlogFileNameSuffix;
                }
            }
        }
        // 找不到
        return null;
    }

    /**
     * 查询当前db的serverId信息
     */
    private Long findServerId(MysqlConnection mysqlConnection) {
        try {
            ResultSetPacket packet = mysqlConnection.query("show variables like 'server_id'");
            List<String> fields = packet.getFieldValues();
            if (CollectionUtils.isEmpty(fields)) {
                throw new CanalParseException("command : show variables like 'server_id' has an error! pls check. you need (at least one of) the SUPER,REPLICATION CLIENT privilege(s) for this operation");
            }
            return Long.valueOf(fields.get(1));
        } catch (IOException e) {
            throw new CanalParseException("command : show variables like 'server_id' has an error!", e);
        }
    }

    /**
     * 查询当前的binlog位置
     */
    private EntryPosition findEndPosition(MysqlConnection mysqlConnection) {
        String showSql = "show master status";
        try {
            if (mysqlConnection.atLeastMySQL84()) {
                // 8.4新语法
                showSql = "show binary log status";
            } else if (multiStreamEnable) {
                // 兼容polardb-x的多流binlog
                showSql = "show master status with " + destination;
            }
            ResultSetPacket packet = mysqlConnection.query(showSql);
            List<String> fields = packet.getFieldValues();
            if (CollectionUtils.isEmpty(fields)) {
                throw new CanalParseException(
                    "command : '" + showSql + "' has an error! pls check. you need (at least one of) the SUPER,REPLICATION CLIENT privilege(s) for this operation");
            }
            EntryPosition endPosition = new EntryPosition(fields.get(0), Long.valueOf(fields.get(1)));
            if (isGTIDMode() && fields.size() > 4) {
                endPosition.setGtid(fields.get(4));
            }
            // MariaDB 无法通过`show master status`获取 gtid
            if (mysqlConnection.isMariaDB() && isGTIDMode()) {
                ResultSetPacket gtidPacket = mysqlConnection.query("SELECT @@global.gtid_binlog_pos");
                List<String> gtidFields = gtidPacket.getFieldValues();
                if (!CollectionUtils.isEmpty(gtidFields) && gtidFields.size() > 0) {
                    endPosition.setGtid(gtidFields.get(0));
                }
            }
            return endPosition;
        } catch (IOException e) {
            throw new CanalParseException("command : '" + showSql + "' has an error!", e);
        }
    }

    /**
     * 查询当前的binlog位置
     */
    private EntryPosition findStartPosition(MysqlConnection mysqlConnection) {
        try {
            String showSql = "show binlog events limit 1";
            if (multiStreamEnable) {
                showSql = "show binlog events with " + destination + " limit 1";
            }
            ResultSetPacket packet = mysqlConnection.query(showSql);
            List<String> fields = packet.getFieldValues();
            if (CollectionUtils.isEmpty(fields)) {
                throw new CanalParseException(
                        "command : 'show binlog events limit 1' has an error! pls check. you need (at least one of) the SUPER,REPLICATION CLIENT privilege(s) for this operation");
            }
            EntryPosition endPosition = new EntryPosition(fields.get(0), Long.valueOf(fields.get(1)));
            return endPosition;
        } catch (IOException e) {
            throw new CanalParseException("command : 'show binlog events limit 1' has an error!", e);
        }

    }

    /**
     * 查询当前的slave视图的binlog位置
     */
    @SuppressWarnings("unused")
    private SlaveEntryPosition findSlavePosition(MysqlConnection mysqlConnection) {
        try {
            String showSql = "show slave status";
            if (mysqlConnection.atLeastMySQL84()) {
                // 兼容mysql 8.4
                showSql = "show replica status";
            }
            ResultSetPacket packet = mysqlConnection.query(showSql);
            List<FieldPacket> names = packet.getFieldDescriptors();
            List<String> fields = packet.getFieldValues();
            if (CollectionUtils.isEmpty(fields)) {
                return null;
            }

            int i = 0;
            Map<String, String> maps = new HashMap<>(names.size(), 1f);
            for (FieldPacket name : names) {
                maps.put(name.getName(), fields.get(i));
                i++;
            }

            String errno = maps.get("Last_Errno");
            String slaveIORunning = maps.get("Slave_IO_Running"); // Slave_SQL_Running
            String slaveSQLRunning = maps.get("Slave_SQL_Running"); // Slave_SQL_Running
            if ((!"0".equals(errno)) || (!"Yes".equalsIgnoreCase(slaveIORunning))
                || (!"Yes".equalsIgnoreCase(slaveSQLRunning))) {
                logger.warn("Ignoring failed slave: " + mysqlConnection.getConnector().getAddress() + ", Last_Errno = "
                            + errno + ", Slave_IO_Running = " + slaveIORunning + ", Slave_SQL_Running = "
                            + slaveSQLRunning);
                return null;
            }

            String masterHost = maps.get("Master_Host");
            String masterPort = maps.get("Master_Port");
            String binlog = maps.get("Master_Log_File");
            String position = maps.get("Exec_Master_Log_Pos");
            return new SlaveEntryPosition(binlog, Long.valueOf(position), masterHost, masterPort);
        } catch (IOException e) {
            logger.error("find slave position error", e);
        }

        return null;
    }

    /**
     * 根据给定的时间戳，在指定的binlog中找到最接近于该时间戳(必须是小于时间戳)的一个事务起始位置。
     * 针对最后一个binlog会给定endPosition，避免无尽的查询
     */
    private EntryPosition findAsPerTimestampInSpecificLogFile(MysqlConnection mysqlConnection,
                                                              final Long startTimestamp,
                                                              final EntryPosition endPosition,
                                                              final String searchBinlogFile,
                                                              final Boolean justForPositionTimestamp) {

        final LogPosition logPosition = new LogPosition();
        try {
            mysqlConnection.reconnect();
            // 开始遍历文件
            mysqlConnection.seek(searchBinlogFile, 4L, endPosition.getGtid(), new SinkFunction<LogEvent>() {

                private LogPosition lastPosition;

                public boolean sink(LogEvent event) {
                    EntryPosition entryPosition = null;
                    try {
                        CanalEntry.Entry entry = parseAndProfilingIfNecessary(event, true);
                        if (justForPositionTimestamp && logPosition.getPostion() == null && event.getWhen() > 0) {
                            // 初始位点
                            entryPosition = new EntryPosition(searchBinlogFile,
                                event.getLogPos() - event.getEventLen(),
                                event.getWhen() * 1000,
                                event.getServerId());
                            entryPosition.setGtid(event.getHeader().getGtidSetStr());
                            logPosition.setPostion(entryPosition);
                        }

                        // 直接用event的位点来处理,解决一个binlog文件里没有任何事件导致死循环无法退出的问题
                        String logfilename = event.getHeader().getLogFileName();
                        // 记录的是binlog end offest,
                        // 因为与其对比的offest是show master status里的end offest
                        Long logfileoffset = event.getHeader().getLogPos();
                        Long logposTimestamp = event.getHeader().getWhen() * 1000;
                        Long serverId = event.getHeader().getServerId();

                        // 如果最小的一条记录都不满足条件，可直接退出
                        if (logposTimestamp >= startTimestamp) {
                            return false;
                        }

                        if (StringUtils.equals(endPosition.getJournalName(), logfilename)
                            && endPosition.getPosition() <= logfileoffset) {
                            return false;
                        }

                        if (entry == null) {
                            return true;
                        }

                        // 记录一下上一个事务结束的位置，即下一个事务的position
                        // position = current +
                        // data.length，代表该事务的下一条offest，避免多余的事务重复
                        if (CanalEntry.EntryType.TRANSACTIONEND.equals(entry.getEntryType())) {
                            entryPosition = new EntryPosition(logfilename, logfileoffset, logposTimestamp, serverId);
                            if (logger.isDebugEnabled()) {
                                logger.debug("set {} to be pending start position before finding another proper one...",
                                    entryPosition);
                            }
                            logPosition.setPostion(entryPosition);
                            entryPosition.setGtid(entry.getHeader().getGtid());
                        } else if (CanalEntry.EntryType.TRANSACTIONBEGIN.equals(entry.getEntryType())) {
                            // 当前事务开始位点
                            entryPosition = new EntryPosition(logfilename, logfileoffset, logposTimestamp, serverId);
                            if (logger.isDebugEnabled()) {
                                logger.debug("set {} to be pending start position before finding another proper one...",
                                    entryPosition);
                            }
                            entryPosition.setGtid(entry.getHeader().getGtid());
                            logPosition.setPostion(entryPosition);
                        }

                        lastPosition = buildLastPosition(entry);
                    } catch (Throwable e) {
                        processSinkError(e, lastPosition, searchBinlogFile, 4L);
                    }

                    return running;
                }
            });

        } catch (IOException e) {
            logger.error("ERROR ## findAsPerTimestampInSpecificLogFile has an error", e);
        }

        if (logPosition.getPostion() != null) {
            return logPosition.getPostion();
        } else {
            return null;
        }
    }

    @Override
    protected void processDumpError(Throwable e) {
        if (e instanceof IOException) {
            String message = e.getMessage();
            if (StringUtils.contains(message, "errno = 1236")) {
                // 1236 errorCode代表ER_MASTER_FATAL_ERROR_READING_BINLOG
                dumpErrorCount++;
            }
        }

        super.processDumpError(e);
    }

    public void setSupportBinlogFormats(String formatStrs) {
        String[] formats = StringUtils.split(formatStrs, ',');
        if (formats != null) {
            BinlogFormat[] supportBinlogFormats = new BinlogFormat[formats.length];
            int i = 0;
            for (String format : formats) {
                supportBinlogFormats[i++] = BinlogFormat.valuesOf(format);
            }

            this.supportBinlogFormats = supportBinlogFormats;
        }
    }

    public void setSupportBinlogImages(String imageStrs) {
        String[] images = StringUtils.split(imageStrs, ',');
        if (images != null) {
            BinlogImage[] supportBinlogImages = new BinlogImage[images.length];
            int i = 0;
            for (String image : images) {
                supportBinlogImages[i++] = BinlogImage.valuesOf(image);
            }

            this.supportBinlogImages = supportBinlogImages;
        }
    }

    // ===================== setter / getter ========================

    public void setDefaultConnectionTimeoutInSeconds(int defaultConnectionTimeoutInSeconds) {
        this.defaultConnectionTimeoutInSeconds = defaultConnectionTimeoutInSeconds;
    }

    public void setReceiveBufferSize(int receiveBufferSize) {
        this.receiveBufferSize = receiveBufferSize;
    }

    public void setSendBufferSize(int sendBufferSize) {
        this.sendBufferSize = sendBufferSize;
    }

    public void setMasterInfo(AuthenticationInfo masterInfo) {
        this.masterInfo = masterInfo;
    }

    public void setStandbyInfo(AuthenticationInfo standbyInfo) {
        this.standbyInfo = standbyInfo;
    }

    public void setMasterPosition(EntryPosition masterPosition) {
        this.masterPosition = masterPosition;
    }

    public void setStandbyPosition(EntryPosition standbyPosition) {
        this.standbyPosition = standbyPosition;
    }

    public void setSlaveId(long slaveId) {
        this.slaveId = slaveId;
    }

    public void setDetectingSQL(String detectingSQL) {
        this.detectingSQL = detectingSQL;
    }

    public void setDetectingIntervalInSeconds(Integer detectingIntervalInSeconds) {
        this.detectingIntervalInSeconds = detectingIntervalInSeconds;
    }

    public void setDetectingEnable(boolean detectingEnable) {
        this.detectingEnable = detectingEnable;
    }

    public void setFallbackIntervalInSeconds(int fallbackIntervalInSeconds) {
        this.fallbackIntervalInSeconds = fallbackIntervalInSeconds;
    }

    public CanalHAController getHaController() {
        return haController;
    }

    public void setHaController(CanalHAController haController) {
        this.haController = haController;
    }

    public void setDumpErrorCountThreshold(int dumpErrorCountThreshold) {
        this.dumpErrorCountThreshold = dumpErrorCountThreshold;
    }

    public boolean isRdsOssMode() {
        return rdsOssMode;
    }

    public void setRdsOssMode(boolean rdsOssMode) {
        this.rdsOssMode = rdsOssMode;
    }

    public void setDumpErrorCount(int dumpErrorCount) {
        this.dumpErrorCount = dumpErrorCount;
    }

    public boolean isAutoResetLatestPosMode() {
        return autoResetLatestPosMode;
    }

    public void setAutoResetLatestPosMode(boolean autoResetLatestPosMode) {
        this.autoResetLatestPosMode = autoResetLatestPosMode;
    }

    public void setMultiStreamEnable(boolean multiStreamEnable) {
        this.multiStreamEnable = multiStreamEnable;
    }
}

5. RdsBinlogEventParserProxy

/**
 * aliyun rds的binlog parser支持
 *
 * <pre>
 * 注意点：aliyun的binlog会有定期清理并备份到oss上, 这里实现了一份自动下载oss+rds binlog的机制
 * </pre>
 *
 * @author chengjin.lyf on 2018/7/20 上午10:52
 * @since 1.0.25
 */
public class RdsBinlogEventParserProxy extends MysqlEventParser {

    private String                    rdsOpenApiUrl             = "https://rds.aliyuncs.com/"; // openapi地址
    private String                    accesskey;                                              // 云账号的ak
    private String                    secretkey;                                              // 云账号sk
    private String                    instanceId;                                             // rds实例id
    private String                    directory;                                              // binlog目录
    private int                       batchFileSize             = 4;                          // 最多下载的binlog文件数量

    private RdsLocalBinlogEventParser rdsLocalBinlogEventParser = null;
    private ExecutorService           executorService           = Executors.newSingleThreadExecutor(r -> {
                                                                        Thread t = new Thread(r,
                                                                            "rds-binlog-daemon-thread");
                                                                        t.setDaemon(true);
                                                                        return t;
                                                                    });

    @Override
    public void start() {
        if (rdsLocalBinlogEventParser == null && StringUtils.isNotEmpty(accesskey) && StringUtils.isNotEmpty(secretkey)
            && StringUtils.isNotEmpty(instanceId)) {
            rdsLocalBinlogEventParser = new RdsLocalBinlogEventParser();
            // rds oss mode
            setRdsOssMode(true);
            final ParserExceptionHandler targetHandler = this.getParserExceptionHandler();
            if (directory == null) {
                directory = System.getProperty("java.io.tmpdir", "/tmp") + "/" + destination;
            }
            rdsLocalBinlogEventParser.setLogPositionManager(this.getLogPositionManager());
            rdsLocalBinlogEventParser.setDestination(destination);
            rdsLocalBinlogEventParser.setAlarmHandler(this.getAlarmHandler());
            rdsLocalBinlogEventParser.setConnectionCharsetStd(this.connectionCharset);
            rdsLocalBinlogEventParser.setEnableTsdb(this.enableTsdb);
            rdsLocalBinlogEventParser.setEventBlackFilter(this.eventBlackFilter);
            rdsLocalBinlogEventParser.setFilterQueryDcl(this.filterQueryDcl);
            rdsLocalBinlogEventParser.setFilterQueryDdl(this.filterQueryDdl);
            rdsLocalBinlogEventParser.setFilterQueryDml(this.filterQueryDml);
            rdsLocalBinlogEventParser.setFilterRows(this.filterRows);
            rdsLocalBinlogEventParser.setFilterTableError(this.filterTableError);
            // rdsLocalBinlogEventParser.setIsGTIDMode(this.isGTIDMode);
            rdsLocalBinlogEventParser.setMasterInfo(this.masterInfo);
            rdsLocalBinlogEventParser.setEventFilter(this.eventFilter);
            rdsLocalBinlogEventParser.setMasterPosition(this.masterPosition);
            rdsLocalBinlogEventParser.setTransactionSize(this.transactionSize);
            rdsLocalBinlogEventParser.setUrl(this.rdsOpenApiUrl);
            rdsLocalBinlogEventParser.setAccesskey(this.accesskey);
            rdsLocalBinlogEventParser.setSecretkey(this.secretkey);
            rdsLocalBinlogEventParser.setInstanceId(this.instanceId);
            rdsLocalBinlogEventParser.setEventSink(eventSink);
            rdsLocalBinlogEventParser.setDirectory(directory);
            rdsLocalBinlogEventParser.setBatchFileSize(batchFileSize);
            rdsLocalBinlogEventParser.setParallel(this.parallel);
            rdsLocalBinlogEventParser.setParallelBufferSize(this.parallelBufferSize);
            rdsLocalBinlogEventParser.setParallelThreadSize(this.parallelThreadSize);
            rdsLocalBinlogEventParser.setFinishListener(() -> executorService.execute(() -> {
                rdsLocalBinlogEventParser.stop();
                // empty the dump error count,or will go into local binlog mode again,with error
                // position,never get out,fixed by bucketli
                RdsBinlogEventParserProxy.this.setDumpErrorCount(0);
                RdsBinlogEventParserProxy.this.start();
            }));
            this.setParserExceptionHandler(e -> {
                handleMysqlParserException(e);
                if (targetHandler != null) {
                    targetHandler.handle(e);
                }
            });
        }

        super.start();
    }

    private void handleMysqlParserException(Throwable throwable) {
        if (throwable instanceof PositionNotFoundException) {
            logger.info("remove rds not found position, try download rds binlog!");
            executorService.execute(() -> {
                try {
                    logger.info("stop mysql parser!");
                    RdsBinlogEventParserProxy rdsBinlogEventParserProxy = RdsBinlogEventParserProxy.this;
                    long serverId = rdsBinlogEventParserProxy.getServerId();
                    rdsLocalBinlogEventParser.setServerId(serverId);
                    rdsBinlogEventParserProxy.stop();
                } catch (Throwable e) {
                    logger.info("handle exception failed", e);
                }

                try {
                    logger.info("start rds mysql binlog parser!");
                    rdsLocalBinlogEventParser.start();
                } catch (Throwable e) {
                    logger.info("handle exception failed", e);
                    rdsLocalBinlogEventParser.stop();
                    RdsBinlogEventParserProxy rdsBinlogEventParserProxy = RdsBinlogEventParserProxy.this;
                    rdsBinlogEventParserProxy.start();// 继续重试
                }
            });
        }
    }

    @Override
    public void stop() {
        super.stop();
    }

    @Override
    public boolean isStart() {
        return super.isStart();
    }

    public void setRdsOpenApiUrl(String rdsOpenApiUrl) {
        this.rdsOpenApiUrl = rdsOpenApiUrl;
    }

    public void setAccesskey(String accesskey) {
        this.accesskey = accesskey;
    }

    public void setSecretkey(String secretkey) {
        this.secretkey = secretkey;
    }

    public void setInstanceId(String instanceId) {
        this.instanceId = instanceId;
    }

    public void setDirectory(String directory) {
        this.directory = directory;
    }

    public void setBatchFileSize(int batchFileSize) {
        this.batchFileSize = batchFileSize;
    }

}
