cannal源码赏析 - sink模块

/**
 * event事件消费者
 *
 * <pre>
 * 1. 剥离filter/sink为独立的两个动作，方便在快速判断数据是否有效
 * </pre>
 *
 * @author jianghang 2012-6-21 下午05:03:40
 * @version 1.0.0
 */

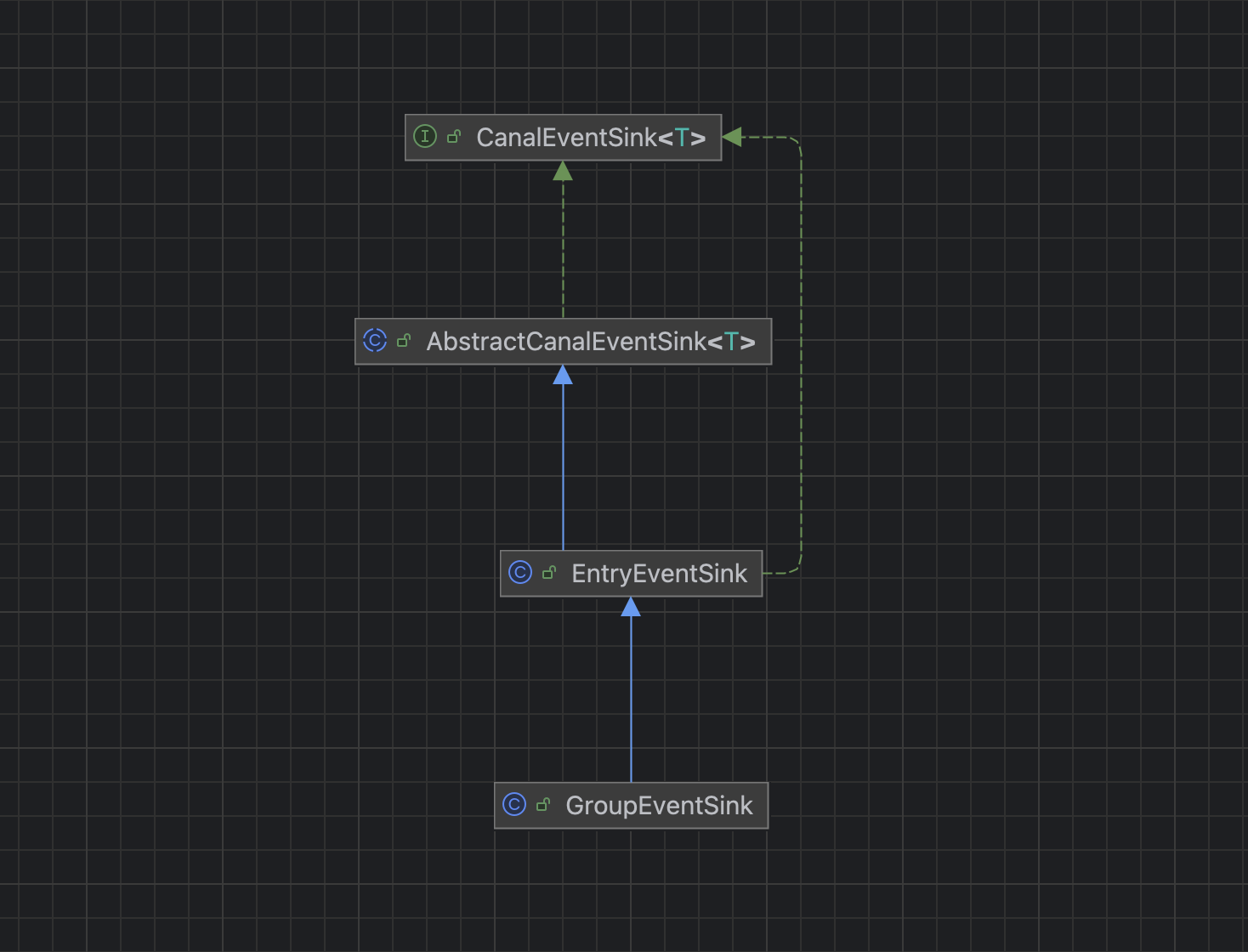

public interface CanalEventSink<T> extends CanalLifeCycle {

    /**
     * 提交数据
     *
     * @param event
     * @param remoteAddress
     * @param destination
     * @throws CanalSinkException
     * @throws InterruptedException
     */
    boolean sink(T event, InetSocketAddress remoteAddress, String destination) throws CanalSinkException,
                                                                              InterruptedException;

    /**
     * 中断消费，比如解析模块发生了切换，想临时中断当前的merge请求，清理对应的上下文状态，可见{@linkplain GroupEventSink}
     */
    void interrupt();

}

/**
 * @author jianghang 2012-7-23 下午01:02:45
 */
public abstract class AbstractCanalEventSink<T> extends AbstractCanalLifeCycle implements CanalEventSink<T> {

    protected CanalEventFilter                  filter;
    protected List<CanalEventDownStreamHandler> handlers = new ArrayList<>();

    public void setFilter(CanalEventFilter filter) {
        this.filter = filter;
    }

    public void addHandler(CanalEventDownStreamHandler handler) {
        this.handlers.add(handler);
    }

    public CanalEventDownStreamHandler getHandler(int index) {
        return this.handlers.get(index);
    }

    public void addHandler(CanalEventDownStreamHandler handler, int index) {
        this.handlers.add(index, handler);
    }

    public void removeHandler(int index) {
        this.handlers.remove(index);
    }

    public void removeHandler(CanalEventDownStreamHandler handler) {
        this.handlers.remove(handler);
    }

    public CanalEventFilter getFilter() {
        return filter;
    }

    public List<CanalEventDownStreamHandler> getHandlers() {
        return handlers;
    }

    public void interrupt() {
        // do nothing
    }

}

/**
 * mysql binlog数据对象输出
 *
 * @author jianghang 2012-7-4 下午03:23:16
 * @version 1.0.0
 */
public class EntryEventSink extends AbstractCanalEventSink<List<CanalEntry.Entry>> implements CanalEventSink<List<CanalEntry.Entry>> {

    private static final Logger    logger                        = LoggerFactory.getLogger(EntryEventSink.class);
    private static final int       maxFullTimes                  = 10;
    private CanalEventStore<Event> eventStore;
    protected boolean              filterTransactionEntry        = false;                                        // 是否需要尽可能过滤事务头/尾
    protected boolean              filterEmtryTransactionEntry   = true;                                         // 是否需要过滤空的事务头/尾
    protected long                 emptyTransactionInterval      = 5 * 1000;                                     // 空的事务输出的频率
    protected long                 emptyTransctionThresold       = 8192;                                         // 超过8192个事务头，输出一个

    protected volatile long        lastTransactionTimestamp      = 0L;
    protected AtomicLong           lastTransactionCount          = new AtomicLong(0L);
    protected volatile long        lastEmptyTransactionTimestamp = 0L;
    protected AtomicLong           lastEmptyTransactionCount     = new AtomicLong(0L);
    protected AtomicLong           eventsSinkBlockingTime        = new AtomicLong(0L);
    protected boolean              raw;

    public EntryEventSink(){
        addHandler(new HeartBeatEntryEventHandler());
    }

    public void start() {
        super.start();
        Assert.notNull(eventStore);

        if (eventStore instanceof MemoryEventStoreWithBuffer) {
            this.raw = ((MemoryEventStoreWithBuffer) eventStore).isRaw();
        }

        for (CanalEventDownStreamHandler handler : getHandlers()) {
            if (!handler.isStart()) {
                handler.start();
            }
        }
    }

    public void stop() {
        super.stop();

        for (CanalEventDownStreamHandler handler : getHandlers()) {
            if (handler.isStart()) {
                handler.stop();
            }
        }
    }

    public boolean filter(List<Entry> event, InetSocketAddress remoteAddress, String destination) {

        return false;
    }

    public boolean sink(List<CanalEntry.Entry> entrys, InetSocketAddress remoteAddress, String destination)
                                                                                                           throws CanalSinkException,
                                                                                                           InterruptedException {
        return sinkData(entrys, remoteAddress);
    }

    private boolean sinkData(List<CanalEntry.Entry> entrys, InetSocketAddress remoteAddress)
                                                                                            throws InterruptedException {
        boolean hasRowData = false;
        boolean hasHeartBeat = false;
        List<Event> events = new ArrayList<>();
        for (CanalEntry.Entry entry : entrys) {
            if (!doFilter(entry)) {
                continue;
            }

            if (filterTransactionEntry
                && (entry.getEntryType() == EntryType.TRANSACTIONBEGIN || entry.getEntryType() == EntryType.TRANSACTIONEND)) {
                long currentTimestamp = entry.getHeader().getExecuteTime();
                // 基于一定的策略控制，放过空的事务头和尾，便于及时更新数据库位点，表明工作正常
                if (lastTransactionCount.incrementAndGet() <= emptyTransctionThresold
                    && Math.abs(currentTimestamp - lastTransactionTimestamp) <= emptyTransactionInterval) {
                    continue;
                } else {
                    // fixed issue https://github.com/alibaba/canal/issues/2616
                    // 主要原因在于空事务只发送了begin，没有同步发送commit信息，这里修改为只对commit事件做计数更新，确保begin/commit成对出现
                    if (entry.getEntryType() == EntryType.TRANSACTIONEND) {
                        lastTransactionCount.set(0L);
                        lastTransactionTimestamp = currentTimestamp;
                    }
                }
            }

            hasRowData |= (entry.getEntryType() == EntryType.ROWDATA);
            hasHeartBeat |= (entry.getEntryType() == EntryType.HEARTBEAT);
            Event event = new Event(new LogIdentity(remoteAddress, -1L), entry, raw);
            events.add(event);
        }

        if (hasRowData || hasHeartBeat) {
            // 存在row记录 或者 存在heartbeat记录，直接跳给后续处理
            return doSink(events);
        } else {
            // 需要过滤的数据
            if (filterEmtryTransactionEntry && !CollectionUtils.isEmpty(events)) {
                long currentTimestamp = events.get(0).getExecuteTime();
                // 基于一定的策略控制，放过空的事务头和尾，便于及时更新数据库位点，表明工作正常
                if (Math.abs(currentTimestamp - lastEmptyTransactionTimestamp) > emptyTransactionInterval
                    || lastEmptyTransactionCount.incrementAndGet() > emptyTransctionThresold) {
                    lastEmptyTransactionCount.set(0L);
                    lastEmptyTransactionTimestamp = currentTimestamp;
                    return doSink(events);
                }
            }

            // 直接返回true，忽略空的事务头和尾
            return true;
        }
    }

    protected boolean doFilter(CanalEntry.Entry entry) {
        if (filter != null && entry.getEntryType() == EntryType.ROWDATA) {
            String name = getSchemaNameAndTableName(entry);
            boolean need = filter.filter(name);
            if (!need) {
                logger.debug("filter name[{}] entry : {}:{}",
                    name,
                    entry.getHeader().getLogfileName(),
                    entry.getHeader().getLogfileOffset());
            }

            return need;
        } else {
            return true;
        }
    }

    protected boolean doSink(List<Event> events) {
        for (CanalEventDownStreamHandler<List<Event>> handler : getHandlers()) {
            events = handler.before(events);
        }
        long blockingStart = 0L;
        int fullTimes = 0;
        do {
            if (eventStore.tryPut(events)) {
                if (fullTimes > 0) {
                    eventsSinkBlockingTime.addAndGet(System.nanoTime() - blockingStart);
                }
                for (CanalEventDownStreamHandler<List<Event>> handler : getHandlers()) {
                    events = handler.after(events);
                }
                return true;
            } else {
                if (fullTimes == 0) {
                    blockingStart = System.nanoTime();
                }
                applyWait(++fullTimes);
                if (fullTimes % 100 == 0) {
                    long nextStart = System.nanoTime();
                    eventsSinkBlockingTime.addAndGet(nextStart - blockingStart);
                    blockingStart = nextStart;
                }
            }

            for (CanalEventDownStreamHandler<List<Event>> handler : getHandlers()) {
                events = handler.retry(events);
            }

        } while (running && !Thread.interrupted());
        return false;
    }

    // 处理无数据的情况，避免空循环挂死
    private void applyWait(int fullTimes) {
        int newFullTimes = fullTimes > maxFullTimes ? maxFullTimes : fullTimes;
        if (fullTimes <= 3) { // 3次以内
            Thread.yield();
        } else { // 超过3次，最多只sleep 10ms
            LockSupport.parkNanos(1000 * 1000L * newFullTimes);
        }

    }

    private String getSchemaNameAndTableName(CanalEntry.Entry entry) {
        return entry.getHeader().getSchemaName() + "." + entry.getHeader().getTableName();
    }

    public void setEventStore(CanalEventStore<Event> eventStore) {
        this.eventStore = eventStore;
    }

    public void setFilterTransactionEntry(boolean filterTransactionEntry) {
        this.filterTransactionEntry = filterTransactionEntry;
    }

    public void setFilterEmtryTransactionEntry(boolean filterEmtryTransactionEntry) {
        this.filterEmtryTransactionEntry = filterEmtryTransactionEntry;
    }

    public void setEmptyTransactionInterval(long emptyTransactionInterval) {
        this.emptyTransactionInterval = emptyTransactionInterval;
    }

    public void setEmptyTransctionThresold(long emptyTransctionThresold) {
        this.emptyTransctionThresold = emptyTransctionThresold;
    }

    public AtomicLong getEventsSinkBlockingTime() {
        return eventsSinkBlockingTime;
    }

}

/**
 * 基于归并排序的sink处理
 *
 * <pre>
 * 几点设计说明：
 * 1. 多库合并时，需要控制不满足groupSize的条件，就会阻塞其他库的合并操作.  (比如刚启动时会所有通道正常工作才开始合并，或者中间过程出现主备切换)
 * 2. 库解析出现问题，但没有进行主备切换，此时需要通过{@linkplain CanalEventDownStreamHandler}进行定时监听合并数据的产生时间间隔
 *    a. 因为一旦库解析异常，就不会再sink数据，此时groupSize就会一直缺少，就会阻塞其他库的合并，也就是不会有数据写入到store中
 * </pre>
 *
 * @author jianghang 2012-10-15 下午09:54:18
 * @version 1.0.0
 */
public class GroupEventSink extends EntryEventSink {

    private int          groupSize;
    private GroupBarrier barrier;  // 归并排序需要预先知道组的大小，用于判断是否组内所有的sink都已经开始正常取数据

    public GroupEventSink(){
        this(1);
    }

    public GroupEventSink(int groupSize){
        super();
        this.groupSize = groupSize;
    }

    public void start() {
        super.start();

        if (filterTransactionEntry) {
            barrier = new TimelineBarrier(groupSize);
        } else {
            barrier = new TimelineTransactionBarrier(groupSize);// 支持事务保留
        }
    }

    protected boolean doSink(List<Event> events) {
        int size = events.size();
        for (int i = 0; i < events.size(); i++) {
            Event event = events.get(i);
            try {
                barrier.await(event);// 进行timeline的归并调度处理
                if (filterTransactionEntry) {
                    super.doSink(Arrays.asList(event));
                } else if (i == size - 1) {
                    // 针对事务数据，只有到最后一条数据都通过后，才进行sink操作，保证原子性
                    // 同时批量sink，也要保证在最后一条数据释放状态之前写出数据，否则就有并发问题
                    return super.doSink(events);
                }
            } catch (InterruptedException e) {
                return false;
            } finally {
                barrier.clear(event);
            }
        }

        return false;
    }

    public void interrupt() {
        super.interrupt();
        barrier.interrupt();
    }

}

/**
 * 针对group合并的barrier接口，控制多个sink操作的合并处理
 *
 * @author jianghang 2012-10-18 下午05:07:35
 * @version 1.0.0
 */
public interface GroupBarrier<T> {

    /**
     * 判断当前的数据对象是否允许通过
     *
     * @param event
     * @throws InterruptedException
     */
    public void await(T event) throws InterruptedException;

    /**
     * 判断当前的数据对象是否允许通过，带超时控制
     *
     * @param event
     * @param timeout
     * @param unit
     * @throws InterruptedException
     * @throws TimeoutException
     */
    public void await(T event, long timeout, TimeUnit unit) throws InterruptedException, TimeoutException;

    /**
     * sink成功，清理对应barrier的状态
     */
    public void clear(T event);

    /**
     * 出现切换，发起interrupt，清理对应的上下文
     */
    public void interrupt();
}

/**
 * 时间归并控制
 *
 * <pre>
 * 大致设计：
 *  1. 多个队列都提交一个timestamp，判断出最小的一个timestamp做为通过的条件，然后唤醒<=该最小时间的线程通过
 *  2. 只有当多个队列都提交了一个timestamp，缺少任何一个提交，都会阻塞其他队列通过。(解决当一个库启动过慢或者发生主备切换时出现延迟等问题)
 *
 * 存在一个假定，认为提交的timestamp是一个顺序递增，但是在两种case下会出现时间回退
 * a. 大事务时，事务头的时间会晚于事务当中数据的时间，相当于出现一个时间回退
 * b. 出现主备切换，从备机上发过来的数据会回退几秒钟
 *
 * </pre>
 *
 * @author jianghang 2012-10-15 下午10:01:53
 * @version 1.0.0
 */
public class TimelineBarrier implements GroupBarrier<Event> {

    protected int                 groupSize;
    protected ReentrantLock       lock           = new ReentrantLock();
    protected Condition           condition      = lock.newCondition();
    protected volatile long       threshold;
    protected BlockingQueue<Long> lastTimestamps = new PriorityBlockingQueue<>(); // 当前通道最后一次single的时间戳

    public TimelineBarrier(int groupSize){
        this.groupSize = groupSize;
        threshold = Long.MIN_VALUE;
    }

    /**
     * 判断自己的timestamp是否可以通过
     *
     * @throws InterruptedException
     */
    public void await(Event event) throws InterruptedException {
        long timestamp = getTimestamp(event);
        try {
            lock.lockInterruptibly();
            single(timestamp);
            while (isPermit(event, timestamp) == false) {
                condition.await();
            }
        } finally {
            lock.unlock();
        }
    }

    /**
     * 判断自己的timestamp是否可以通过,带超时控制
     *
     * @throws InterruptedException
     * @throws TimeoutException
     */
    public void await(Event event, long timeout, TimeUnit unit) throws InterruptedException, TimeoutException {
        long timestamp = getTimestamp(event);
        try {
            lock.lockInterruptibly();
            single(timestamp);
            while (isPermit(event, timestamp) == false) {
                condition.await(timeout, unit);
            }
        } finally {
            lock.unlock();
        }
    }

    public void clear(Event event) {
        // 出现中断有两种可能：
        // 1.出现主备切换，需要剔除到Timeline中的时间占位(这样合并时就会小于groupSize，不满足调度条件，直到主备切换完成后才能重新开启合并处理)
        // 2.出现关闭操作，退出即可
        lastTimestamps.remove(getTimestamp(event));
    }

    public void interrupt() {
        // do nothing，没有需要清理的上下文状态
    }

    public long state() {
        return threshold;
    }

    /**
     * 判断是否允许通过
     */
    protected boolean isPermit(Event event, long state) {
        return state <= state();
    }

    /**
     * 通知一下
     */
    protected void notify(long minTimestamp) {
        // 通知阻塞的线程恢复, 这里采用single all操作，当group中的几个时间都相同时，一次性触发通过多个
        condition.signalAll();
    }

    /**
     * 通知下一个minTimestamp数据出队列
     *
     * @throws InterruptedException
     */
    private void single(long timestamp) throws InterruptedException {
        lastTimestamps.add(timestamp);

        if (timestamp < state()) {
            // 针对mysql事务中会出现时间跳跃
            // 例子：
            // 2012-08-08 16:24:26 事务头
            // 2012-08-08 16:24:24 变更记录
            // 2012-08-08 16:24:25 变更记录
            // 2012-08-08 16:24:26　事务尾

            // 针对这种case，一旦发现timestamp有回退的情况，直接更新threshold，强制阻塞其他的操作，等待最小数据优先处理完成
            threshold = timestamp; // 更新为最小值
        }

        if (lastTimestamps.size() >= groupSize) {// 判断队列是否需要触发
            // 触发下一个出队列的数据
            Long minTimestamp = this.lastTimestamps.peek();
            if (minTimestamp != null) {
                threshold = minTimestamp;
                notify(minTimestamp);
            }
        } else {
            threshold = Long.MIN_VALUE;// 如果不满足队列长度，需要阻塞等待
        }
    }

    private Long getTimestamp(Event event) {
        return event.getExecuteTime();
    }

}

/**
 * 相比于{@linkplain TimelineBarrier}，增加了按事务支持，会按照事务进行分库合并处理
 *
 * @author jianghang 2012-10-18 下午05:18:38
 * @version 1.0.0
 */
public class TimelineTransactionBarrier extends TimelineBarrier {

    private ThreadLocal<Boolean> inTransaction = ThreadLocal.withInitial(() -> false);

    /**
     * <pre>
     * 几种状态：
     * 0：初始状态，允许大家竞争
     * 1: 事务数据处理中
     * 2: 非事务数据处理中
     * </pre>
     */
    private AtomicInteger        txState       = new AtomicInteger(0);

    public TimelineTransactionBarrier(int groupSize){
        super(groupSize);
    }

    public void await(Event event) throws InterruptedException {
        try {
            super.await(event);
        } catch (InterruptedException e) {
            // 出现线程中断，可能是因为关闭或者主备切换
            // 主备切换对应的事务尾会未正常发送，需要强制设置为事务结束，允许其他队列通过
            reset();
            throw e;
        }
    }

    public void await(Event event, long timeout, TimeUnit unit) throws InterruptedException, TimeoutException {
        try {
            super.await(event, timeout, unit);
        } catch (InterruptedException e) {
            // 出现线程中断，可能是因为关闭或者主备切换
            // 主备切换对应的事务尾会未正常发送，需要强制设置为事务结束，允许其他队列通过
            reset();
            throw e;
        }
    }

    public void clear(Event event) {
        super.clear(event);

        // 应该先判断2，再判断是否是事务尾，因为事务尾也可以导致txState的状态为2
        // 如果先判断事务尾，那么2的状态可能永远没机会被修改了，系统出现死锁
        // CanalSinkException被注释的代码是不是可以放开？？我们内部使用的时候已经放开了，从代码逻辑的分析上以及实践效果来看，应该抛异常
        if (txState.intValue() == 2) {// 非事务中
            boolean result = txState.compareAndSet(2, 0);
            if (result == false) {
                throw new CanalSinkException("state is not correct in non-transaction");
            }
        } else if (isTransactionEnd(event)) {
            inTransaction.set(false); // 事务结束并且已经成功写入store，清理标记，进入重新排队判断，允许新的事务进入
            boolean result = txState.compareAndSet(1, 0);
            if (result == false) {
                throw new CanalSinkException("state is not correct in transaction");
            }
        }
    }

    protected boolean isPermit(Event event, long state) {
        if (txState.intValue() == 1 && inTransaction.get()) { // 如果处于事务中，直接允许通过。因为事务头已经做过判断
            return true;
        } else if (txState.intValue() == 0) {
            boolean result = super.isPermit(event, state);
            if (result) {
                // 可能第一条送过来的数据不为Begin，需要做判断处理，如果非事务，允许直接通过，比如DDL语句
                if (isTransactionBegin(event)) {
                    if (txState.compareAndSet(0, 1)) {
                        inTransaction.set(true);
                        return true; // 事务允许通过
                    }
                } else if (txState.compareAndSet(0, 2)) { // 非事务保护中
                    // 当基于zk-cursor启动的时候，拿到的第一个Event是TransactionEnd
                    return true; // DDL/DCL/TransactionEnd允许通过
                }
            }
        }

        return false;
    }

    public void interrupt() {
        super.interrupt();
        reset();
    }

    // 重新设置状态
    private void reset() {
        inTransaction.remove();
        txState.set(0);// 重新置位
    }

    private boolean isTransactionBegin(Event event) {
        return event.getEntryType() == EntryType.TRANSACTIONBEGIN;
    }

    private boolean isTransactionEnd(Event event) {
        return event.getEntryType() == EntryType.TRANSACTIONEND;
    }

}

/**
 * 处理下sink时的数据流
 *
 * @author jianghang 2012-7-31 下午03:06:26
 * @version 1.0.0
 */
public interface CanalEventDownStreamHandler<T> extends CanalLifeCycle {

    /**
     * 提交到store之前做一下处理，允许替换Event
     */
    public T before(T events);

    /**
     * store处于full后，retry时处理做一下处理
     */
    public T retry(T events);

    /**
     * 提交store成功后做一下处理
     */
    public T after(T events);
}

/**
 * 默认的实现
 *
 * @author jianghang 2013-10-8 下午8:35:29
 * @since 1.0.12
 */
public class AbstractCanalEventDownStreamHandler<T> extends AbstractCanalLifeCycle implements CanalEventDownStreamHandler<T> {

    public T before(T events) {
        return events;
    }

    public T retry(T events) {
        return events;
    }

    public T after(T events) {
        return events;
    }

}

/**
 * 处理一下一下heartbeat数据
 *
 * @author jianghang 2013-10-8 下午6:03:53
 * @since 1.0.12
 */
public class HeartBeatEntryEventHandler extends AbstractCanalEventDownStreamHandler<List<Event>> {

    public List<Event> before(List<Event> events) {
        boolean existHeartBeat = false;
        for (Event event : events) {
            if (event.getEntryType() == EntryType.HEARTBEAT) {
                existHeartBeat = true;
                break;
            }
        }

        if (!existHeartBeat) {
            return events;
        } else {
            // 目前heartbeat和其他事件是分离的，保险一点还是做一下检查处理
            List<Event> result = new ArrayList<>();
            for (Event event : events) {
                if (event.getEntryType() != EntryType.HEARTBEAT) {
                    result.add(event);
                }
            }

            return result;
        }
    }

}
