cannal源码赏析 - connector模块

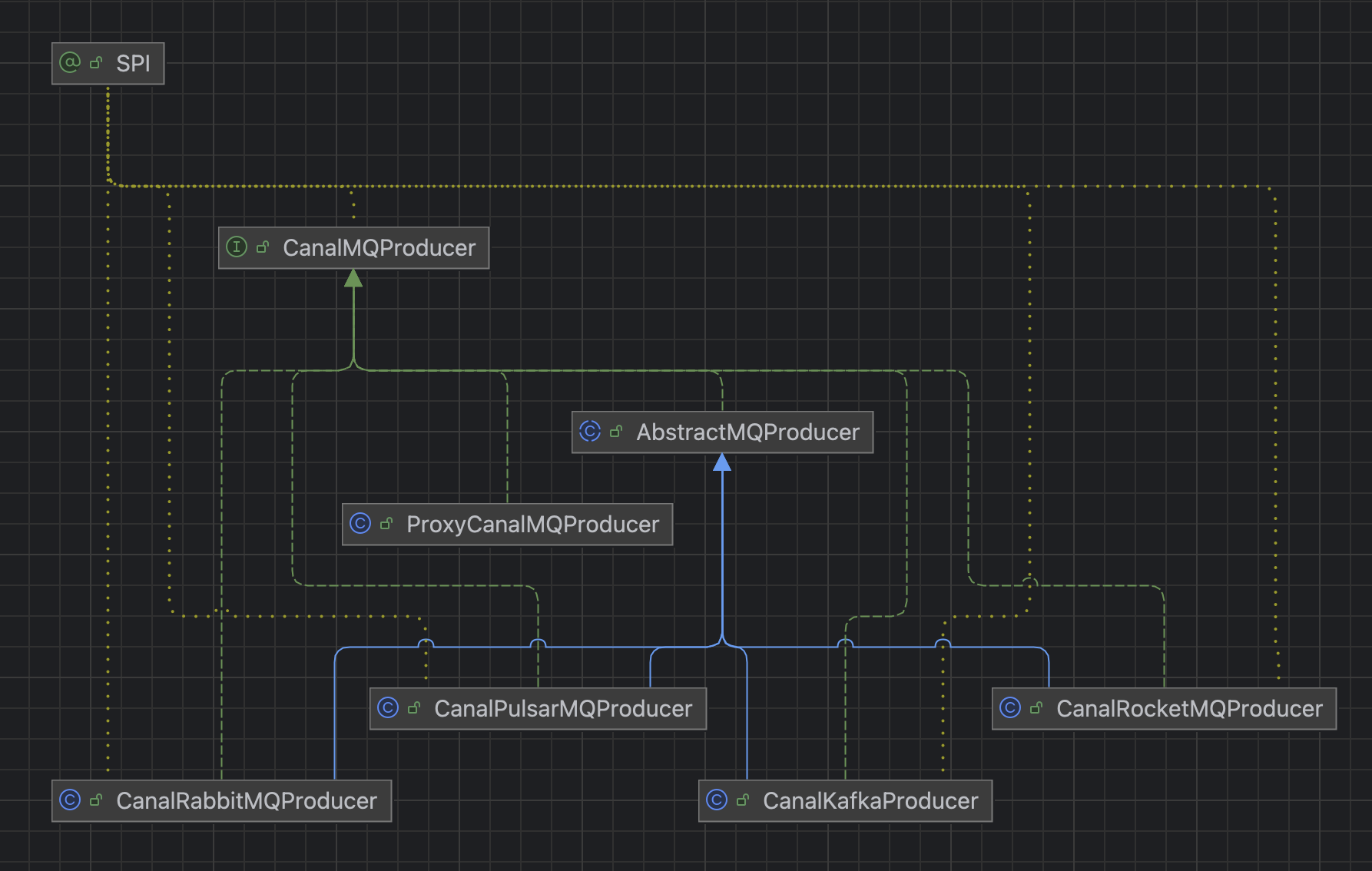

private CanalMQProducer canalMQProducer = null;


public synchronized void start() throws Throwable {
    String serverMode = CanalController.getProperty(properties, CanalConstants.CANAL_SERVER_MODE);
    if (!"tcp".equalsIgnoreCase(serverMode)) {
        ExtensionLoader<CanalMQProducer> loader = ExtensionLoader.getExtensionLoader(CanalMQProducer.class);
        canalMQProducer = loader
            .getExtension(serverMode.toLowerCase(), CONNECTOR_SPI_DIR, CONNECTOR_STANDBY_SPI_DIR);
        if (canalMQProducer != null) {
            canalMQProducer =  new ProxyCanalMQProducer(canalMQProducer);
            canalMQProducer.init(properties);
        }
    }
}

/**
 * SPI 类加载器
 *
 * @author rewerma 2018-8-19 下午11:30:49
 * @version 1.0.0
 */
public class ExtensionLoader<T> {

    private static final Logger                                      logger                     = LoggerFactory.getLogger(ExtensionLoader.class);

    private static final String                                      SERVICES_DIRECTORY         = "META-INF/services/";

    private static final String                                      CANAL_DIRECTORY            = "META-INF/canal/";

    private static final String                                      DEFAULT_CLASSLOADER_POLICY = "internal";

    private static final Pattern                                     NAME_SEPARATOR             = Pattern.compile("\\s*[,]+\\s*");

    private static final ConcurrentMap<Class<?>, ExtensionLoader<?>> EXTENSION_LOADERS          = new ConcurrentHashMap<>();

    private static final ConcurrentMap<Class<?>, Object>             EXTENSION_INSTANCES        = new ConcurrentHashMap<>();

    private static final ConcurrentMap<String, Object>               EXTENSION_KEY_INSTANCE     = new ConcurrentHashMap<>();

    private final Class<?>                                           type;

    private final String                                             classLoaderPolicy;

    private final ConcurrentMap<Class<?>, String>                    cachedNames                = new ConcurrentHashMap<>();

    private final Holder<Map<String, Class<?>>>                      cachedClasses              = new Holder<>();

    private final ConcurrentMap<String, Holder<Object>>              cachedInstances            = new ConcurrentHashMap<>();

    private String                                                   cachedDefaultName;

    private ConcurrentHashMap<String, IllegalStateException>         exceptions                 = new ConcurrentHashMap<>();

    private static <T> boolean withExtensionAnnotation(Class<T> type) {
        return type.isAnnotationPresent(SPI.class);
    }

    public static <T> ExtensionLoader<T> getExtensionLoader(Class<T> type) {
        return getExtensionLoader(type, DEFAULT_CLASSLOADER_POLICY);
    }

    @SuppressWarnings("unchecked")
    public static <T> ExtensionLoader<T> getExtensionLoader(Class<T> type, String classLoaderPolicy) {
        if (type == null) throw new IllegalArgumentException("Extension type == null");
        if (!type.isInterface()) {
            throw new IllegalArgumentException("Extension type(" + type + ") is not interface!");
        }
        if (!withExtensionAnnotation(type)) {
            throw new IllegalArgumentException("Extension type(" + type + ") is not extension, because WITHOUT @"
                                               + SPI.class.getSimpleName() + " Annotation!");
        }

        ExtensionLoader<T> loader = (ExtensionLoader<T>) EXTENSION_LOADERS.get(type);
        if (loader == null) {
            EXTENSION_LOADERS.putIfAbsent(type, new ExtensionLoader<T>(type, classLoaderPolicy));
            loader = (ExtensionLoader<T>) EXTENSION_LOADERS.get(type);
        }
        return loader;
    }

    public ExtensionLoader(Class<?> type){
        this.type = type;
        this.classLoaderPolicy = DEFAULT_CLASSLOADER_POLICY;
    }

    public ExtensionLoader(Class<?> type, String classLoaderPolicy){
        this.type = type;
        this.classLoaderPolicy = classLoaderPolicy;
    }

    /**
     * 返回指定名字的扩展
     *
     * @param name
     * @return
     */
    @SuppressWarnings("unchecked")
    public T getExtension(String name, String spiDir, String standbyDir) {
        if (name == null || name.length() == 0) throw new IllegalArgumentException("Extension name == null");
        if ("true".equals(name)) {
            return getDefaultExtension(spiDir, standbyDir);
        }
        Holder<Object> holder = cachedInstances.get(name);
        if (holder == null) {
            cachedInstances.putIfAbsent(name, new Holder<>());
            holder = cachedInstances.get(name);
        }
        Object instance = holder.get();
        if (instance == null) {
            synchronized (holder) {
                instance = holder.get();
                if (instance == null) {
                    instance = createExtension(name, spiDir, standbyDir);
                    holder.set(instance);
                }
            }
        }
        return (T) instance;
    }

    @SuppressWarnings("unchecked")
    public T getExtension(String name, String key, String spiDir, String standbyDir) {
        if (name == null || name.length() == 0) throw new IllegalArgumentException("Extension name == null");
        if ("true".equals(name)) {
            return getDefaultExtension(spiDir, standbyDir);
        }
        String extKey = name + "-" + StringUtils.trimToEmpty(key);
        Holder<Object> holder = cachedInstances.get(extKey);
        if (holder == null) {
            cachedInstances.putIfAbsent(extKey, new Holder<>());
            holder = cachedInstances.get(extKey);
        }
        Object instance = holder.get();
        if (instance == null) {
            synchronized (holder) {
                instance = holder.get();
                if (instance == null) {
                    instance = createExtension(name, key, spiDir, standbyDir);
                    holder.set(instance);
                }
            }
        }
        return (T) instance;
    }

    /**
     * 返回缺省的扩展，如果没有设置则返回<code>null</code>
     */
    public T getDefaultExtension(String spiDir, String standbyDir) {
        getExtensionClasses(spiDir, standbyDir);
        if (null == cachedDefaultName || cachedDefaultName.length() == 0 || "true".equals(cachedDefaultName)) {
            return null;
        }
        return getExtension(cachedDefaultName, spiDir, standbyDir);
    }

    @SuppressWarnings("unchecked")
    public T createExtension(String name, String spiDir, String standbyDir) {
        Class<?> clazz = getExtensionClasses(spiDir, standbyDir).get(name);
        if (clazz == null) {
            throw new IllegalStateException("Extension instance(name: " + name + ", class: " + type
                                            + ")  could not be instantiated: class could not be found");
        }
        try {
            T instance = (T) EXTENSION_INSTANCES.get(clazz);
            if (instance == null) {
                EXTENSION_INSTANCES.putIfAbsent(clazz, (T) clazz.newInstance());
                instance = (T) EXTENSION_INSTANCES.get(clazz);
            }
            return instance;
        } catch (Throwable t) {
            throw new IllegalStateException("Extension instance(name: " + name + ", class: " + type
                                            + ")  could not be instantiated: " + t.getMessage(), t);
        }
    }

    @SuppressWarnings("unchecked")
    private T createExtension(String name, String key, String spiDir, String standbyDir) {
        Class<?> clazz = getExtensionClasses(spiDir, standbyDir).get(name);
        if (clazz == null) {
            throw new IllegalStateException("Extension instance(name: " + name + ", class: " + type
                                            + ")  could not be instantiated: class could not be found");
        }
        try {
            T instance = (T) EXTENSION_KEY_INSTANCE.get(name + "-" + key);
            if (instance == null) {
                EXTENSION_KEY_INSTANCE.putIfAbsent(name + "-" + key, clazz.newInstance());
                instance = (T) EXTENSION_KEY_INSTANCE.get(name + "-" + key);
            }
            return instance;
        } catch (Throwable t) {
            throw new IllegalStateException("Extension instance(name: " + name + ", class: " + type
                                            + ")  could not be instantiated: " + t.getMessage(), t);
        }
    }

    private Map<String, Class<?>> getExtensionClasses(String spiDir, String standbyDir) {
        Map<String, Class<?>> classes = cachedClasses.get();
        if (classes == null) {
            synchronized (cachedClasses) {
                classes = cachedClasses.get();
                if (classes == null) {
                    classes = loadExtensionClasses(spiDir, standbyDir);
                    cachedClasses.set(classes);
                }
            }
        }

        return classes;
    }

    private String getJarDirectoryPath() {
        URL url = Thread.currentThread().getContextClassLoader().getResource("");
        String dirtyPath;
        if (url != null) {
            dirtyPath = url.toString();
        } else {
            File file = new File("");
            dirtyPath = file.getAbsolutePath();
        }
        String jarPath = dirtyPath.replaceAll("^.*file:/", ""); // removes
                                                                // file:/ and
                                                                // everything
                                                                // before it
        jarPath = jarPath.replaceAll("jar!.*", "jar"); // removes everything
                                                       // after .jar, if .jar
                                                       // exists in dirtyPath
        jarPath = jarPath.replaceAll("%20", " "); // necessary if path has
                                                  // spaces within
        if (!jarPath.endsWith(".jar")) { // this is needed if you plan to run
                                         // the app using Spring Tools Suit play
                                         // button.
            jarPath = jarPath.replaceAll("/classes/.*", "/classes/");
        }
        Path path = Paths.get(jarPath).getParent(); // Paths - from java 8
        if (path != null) {
            return path.toString();
        }
        return null;
    }

    private Map<String, Class<?>> loadExtensionClasses(String spiDir, String standbyDir) {
        final SPI defaultAnnotation = type.getAnnotation(SPI.class);
        if (defaultAnnotation != null) {
            String value = defaultAnnotation.value();
            if ((value = value.trim()).length() > 0) {
                String[] names = NAME_SEPARATOR.split(value);
                if (names.length > 1) {
                    throw new IllegalStateException("more than 1 default extension name on extension " + type.getName()
                                                    + ": " + Arrays.toString(names));
                }
                if (names.length == 1) cachedDefaultName = names[0];
            }
        }

        Map<String, Class<?>> extensionClasses = new HashMap<>();

        if (spiDir != null && standbyDir != null) {
            // 1. plugin folder，customized extension classLoader
            // （jar_dir/plugin）
            String dir = File.separator + this.getJarDirectoryPath() + spiDir; // +
                                                                               // "plugin";

            File externalLibDir = new File(dir);
            if (!externalLibDir.exists()) {
                externalLibDir = new File(File.separator + this.getJarDirectoryPath() + standbyDir);
            }
            logger.info("extension classpath dir: " + externalLibDir.getAbsolutePath());
            if (externalLibDir.exists()) {
                File[] files = externalLibDir.listFiles((dir1, name) -> name.endsWith(".jar"));
                if (files != null) {
                    for (File f : files) {
                        URL url;
                        try {
                            url = f.toURI().toURL();
                        } catch (MalformedURLException e) {
                            throw new RuntimeException("load extension jar failed!", e);
                        }

                        ClassLoader parent = Thread.currentThread().getContextClassLoader();
                        URLClassLoader localClassLoader;
                        if (classLoaderPolicy == null || "".equals(classLoaderPolicy)
                            || DEFAULT_CLASSLOADER_POLICY.equalsIgnoreCase(classLoaderPolicy)) {
                            localClassLoader = new URLClassExtensionLoader(new URL[] { url });
                        } else {
                            localClassLoader = new URLClassLoader(new URL[] { url }, parent);
                        }

                        loadFile(extensionClasses, CANAL_DIRECTORY, localClassLoader);
                        loadFile(extensionClasses, SERVICES_DIRECTORY, localClassLoader);
                    }
                }
            }
        }

        // 2. load inner extension class with default classLoader
        ClassLoader classLoader = findClassLoader();
        loadFile(extensionClasses, CANAL_DIRECTORY, classLoader);
        loadFile(extensionClasses, SERVICES_DIRECTORY, classLoader);

        return extensionClasses;
    }

    private void loadFile(Map<String, Class<?>> extensionClasses, String dir, ClassLoader classLoader) {
        String fileName = dir + type.getName();
        try {
            Enumeration<URL> urls;
            if (classLoader != null) {
                urls = classLoader.getResources(fileName);
            } else {
                urls = ClassLoader.getSystemResources(fileName);
            }
            if (urls != null) {
                while (urls.hasMoreElements()) {
                    URL url = urls.nextElement();
                    try {
                        BufferedReader reader = null;
                        try {
                            reader = new BufferedReader(new InputStreamReader(url.openStream(), StandardCharsets.UTF_8));
                            String line = null;
                            while ((line = reader.readLine()) != null) {
                                final int ci = line.indexOf('#');
                                if (ci >= 0) line = line.substring(0, ci);
                                line = line.trim();
                                if (line.length() > 0) {
                                    try {
                                        String name = null;
                                        int i = line.indexOf('=');
                                        if (i > 0) {
                                            name = line.substring(0, i).trim();
                                            line = line.substring(i + 1).trim();
                                        }
                                        if (line.length() > 0) {
                                            Class<?> clazz = classLoader.loadClass(line);
                                            // Class<?> clazz =
                                            // Class.forName(line, true,
                                            // classLoader);
                                            if (!type.isAssignableFrom(clazz)) {
                                                throw new IllegalStateException("Error when load extension class(interface: "
                                                                                + type
                                                                                + ", class line: "
                                                                                + clazz.getName()
                                                                                + "), class "
                                                                                + clazz.getName()
                                                                                + "is not subtype of interface.");
                                            } else {
                                                try {
                                                    clazz.getConstructor(type);
                                                } catch (NoSuchMethodException e) {
                                                    clazz.getConstructor();
                                                    String[] names = NAME_SEPARATOR.split(name);
                                                    if (names != null && names.length > 0) {
                                                        for (String n : names) {
                                                            if (!cachedNames.containsKey(clazz)) {
                                                                cachedNames.put(clazz, n);
                                                            }
                                                            Class<?> c = extensionClasses.get(n);
                                                            if (c == null) {
                                                                extensionClasses.put(n, clazz);
                                                            } else if (c != clazz) {
                                                                cachedNames.remove(clazz);
                                                                throw new IllegalStateException("Duplicate extension "
                                                                                                + type.getName()
                                                                                                + " name " + n + " on "
                                                                                                + c.getName() + " and "
                                                                                                + clazz.getName());
                                                            }
                                                        }
                                                    }
                                                }
                                            }
                                        }
                                    } catch (Throwable t) {
                                        IllegalStateException e = new IllegalStateException("Failed to load extension class(interface: "
                                                                                            + type
                                                                                            + ", class line: "
                                                                                            + line
                                                                                            + ") in "
                                                                                            + url
                                                                                            + ", cause: "
                                                                                            + t.getMessage(),
                                            t);
                                        exceptions.put(line, e);
                                    }
                                }
                            } // end of while read lines
                        } finally {
                            if (reader != null) {
                                reader.close();
                            }
                        }
                    } catch (Throwable t) {
                        logger.error("Exception when load extension class(interface: " + type + ", class file: " + url
                                     + ") in " + url, t);
                    }
                } // end of while urls
            }
        } catch (Throwable t) {
            logger.error("Exception when load extension class(interface: " + type + ", description file: " + fileName
                         + ").", t);
        }
    }

    private static ClassLoader findClassLoader() {
        return ExtensionLoader.class.getClassLoader();
    }

    @Override
    public String toString() {
        return this.getClass().getName() + "[" + type.getName() + "]";
    }

    private static class Holder<T> {

        private volatile T value;

        private void set(T value) {
            this.value = value;
        }

        private T get() {
            return value;
        }

    }
}

public class URLClassExtensionLoader extends URLClassLoader {

    public URLClassExtensionLoader(URL[] urls){
        super(urls);
    }

    @Override
    public Class<?> loadClass(String name) throws ClassNotFoundException {
        Class<?> c = findLoadedClass(name);
        if (c != null) {
            return c;
        }

        if (name.startsWith("java.") || name.startsWith("org.slf4j.") || name.startsWith("org.apache.logging")
            || name.startsWith("org.apache.zookeeper.") || name.startsWith("org.I0Itec.zkclient.")
            || name.startsWith("org.apache.commons.logging.")) {
            // || name.startsWith("org.apache.hadoop."))
            // {
            c = super.loadClass(name);
        }
        if (c != null) return c;

        try {
            // 先加载jar内的class，可避免jar冲突
            c = findClass(name);
        } catch (ClassNotFoundException e) {
            c = null;
        }
        if (c != null) {
            return c;
        }

        return super.loadClass(name);
    }

    @Override
    public Enumeration<URL> getResources(String name) throws IOException {
        @SuppressWarnings("unchecked")
        Enumeration<URL>[] tmp = (Enumeration<URL>[]) new Enumeration<?>[2];

        tmp[0] = findResources(name); // local class
        // path first
        // tmp[1] = super.getResources(name);

        return new CompoundEnumeration<>(tmp);
    }

    private static class CompoundEnumeration<E> implements Enumeration<E> {

        private Enumeration<E>[] enums;
        private int              index = 0;

        public CompoundEnumeration(Enumeration<E>[] enums){
            this.enums = enums;
        }

        private boolean next() {
            while (this.index < this.enums.length) {
                if (this.enums[this.index] != null && this.enums[this.index].hasMoreElements()) {
                    return true;
                }

                ++this.index;
            }

            return false;
        }

        public boolean hasMoreElements() {
            return this.next();
        }

        public E nextElement() {
            if (!this.next()) {
                throw new NoSuchElementException();
            } else {
                return this.enums[this.index].nextElement();
            }
        }
    }
}

/**
 * SPI装载器注解
 *
 * @author rewerma @ 2018-10-20
 * @version 1.0.0
 */
@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target({ ElementType.TYPE })
public @interface SPI {

    // Default SPI name
    String value() default "";
}

/**
 * MQ producer 抽象类
 *
 * @author rewerma 2020-01-27
 * @version 1.0.0
 */
public abstract class AbstractMQProducer implements CanalMQProducer {

    protected MQProperties mqProperties;

    protected ThreadPoolExecutor sendExecutor;
    protected ThreadPoolExecutor buildExecutor;

    @Override
    public void init(Properties properties) {
        // parse canal mq properties
        loadCanalMqProperties(properties);

        int parallelBuildThreadSize = mqProperties.getParallelBuildThreadSize();
        buildExecutor = new ThreadPoolExecutor(parallelBuildThreadSize,
                parallelBuildThreadSize,
                0,
                TimeUnit.SECONDS,
                new ArrayBlockingQueue<>(parallelBuildThreadSize * 2),
                new NamedThreadFactory("MQ-Parallel-Builder"),
                new ThreadPoolExecutor.CallerRunsPolicy());

        int parallelSendThreadSize = mqProperties.getParallelSendThreadSize();
        sendExecutor = new ThreadPoolExecutor(parallelSendThreadSize,
                parallelSendThreadSize,
                0,
                TimeUnit.SECONDS,
                new ArrayBlockingQueue<>(parallelSendThreadSize * 2),
                new NamedThreadFactory("MQ-Parallel-Sender"),
                new ThreadPoolExecutor.CallerRunsPolicy());
    }

    @Override
    public MQProperties getMqProperties() {
        return this.mqProperties;
    }

    @Override
    public void stop() {
        if (buildExecutor != null) {
            buildExecutor.shutdownNow();
        }

        if (sendExecutor != null) {
            sendExecutor.shutdownNow();
        }
    }

    /**
     * 初始化配置
     * <p>
     * canal.mq.flat.message = true <br/>
     * canal.mq.database.hash = true <br/>
     * canal.mq.filter.transaction.entry = true <br/>
     * canal.mq.parallel.build.thread.size = 8 <br/>
     * canal.mq.parallel.send.thread.size = 8 <br/>
     * canal.mq.batch.size = 50 <br/>
     * canal.mq.timeout = 100 <br/>
     * canal.mq.access.channel = local <br/>
     * </p>
     *
     * @param properties 总配置对象
     */
    private void loadCanalMqProperties(Properties properties) {
        String flatMessage = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_MQ_FLAT_MESSAGE);
        if (!StringUtils.isEmpty(flatMessage)) {
            mqProperties.setFlatMessage(Boolean.parseBoolean(flatMessage));
        }

        String databaseHash = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_MQ_DATABASE_HASH);
        if (!StringUtils.isEmpty(databaseHash)) {
            mqProperties.setDatabaseHash(Boolean.parseBoolean(databaseHash));
        }
        String filterTranEntry = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_FILTER_TRANSACTION_ENTRY);
        if (!StringUtils.isEmpty(filterTranEntry)) {
            mqProperties.setFilterTransactionEntry(Boolean.parseBoolean(filterTranEntry));
        }
        String parallelBuildThreadSize = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_MQ_BUILD_THREAD_SIZE);
        if (!StringUtils.isEmpty(parallelBuildThreadSize)) {
            mqProperties.setParallelBuildThreadSize(Integer.parseInt(parallelBuildThreadSize));
        }
        String parallelSendThreadSize = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_MQ_SEND_THREAD_SIZE);
        if (!StringUtils.isEmpty(parallelSendThreadSize)) {
            mqProperties.setParallelSendThreadSize(Integer.parseInt(parallelSendThreadSize));
        }
        String batchSize = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_MQ_CANAL_BATCH_SIZE);
        if (!StringUtils.isEmpty(batchSize)) {
            mqProperties.setBatchSize(Integer.parseInt(batchSize));
        }
        String timeOut = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_MQ_CANAL_GET_TIMEOUT);
        if (!StringUtils.isEmpty(timeOut)) {
            mqProperties.setFetchTimeout(Integer.parseInt(timeOut));
        }
        String accessChannel = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_MQ_ACCESS_CHANNEL);
        if (!StringUtils.isEmpty(accessChannel)) {
            mqProperties.setAccessChannel(accessChannel);
        }
        String aliyunAccessKey = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_ALIYUN_ACCESS_KEY);
        if (!StringUtils.isEmpty(aliyunAccessKey)) {
            mqProperties.setAliyunAccessKey(aliyunAccessKey);
        }
        String aliyunSecretKey = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_ALIYUN_SECRET_KEY);
        if (!StringUtils.isEmpty(aliyunSecretKey)) {
            mqProperties.setAliyunSecretKey(aliyunSecretKey);
        }
        String aliyunUid = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_ALIYUN_UID);
        if (!StringUtils.isEmpty(aliyunUid)) {
            mqProperties.setAliyunUid(Integer.parseInt(aliyunUid));
        }
    }

    /**
     * 兼容下<=1.1.4的mq配置项
     */
    protected void doMoreCompatibleConvert(String oldKey, String newKey, Properties properties) {
        String value = PropertiesUtils.getProperty(properties, oldKey);
        if (StringUtils.isNotEmpty(value)) {
            properties.setProperty(newKey, value);
        }
    }
}

/**
 * kafka producer SPI 实现
 *
 * @author rewerma 2018-6-11 下午05:30:49
 * @version 1.0.0
 */
@SuppressWarnings({ "rawtypes", "unchecked" })
@SPI("kafka")
public class CanalKafkaProducer extends AbstractMQProducer implements CanalMQProducer {

    private static final Logger      logger              = LoggerFactory.getLogger(CanalKafkaProducer.class);

    private static final String      PREFIX_KAFKA_CONFIG = "kafka.";

    private Producer<String, byte[]> producer;

    @Override
    public void init(Properties properties) {
        KafkaProducerConfig kafkaProducerConfig = new KafkaProducerConfig();
        this.mqProperties = kafkaProducerConfig;
        super.init(properties);
        // load properties
        this.loadKafkaProperties(properties);

        Properties kafkaProperties = new Properties();
        kafkaProperties.putAll(kafkaProducerConfig.getKafkaProperties());
        kafkaProperties.put("max.in.flight.requests.per.connection", 1);
        kafkaProperties.put("key.serializer", StringSerializer.class);
        if (kafkaProducerConfig.isKerberosEnabled()) {
            File krb5File = new File(kafkaProducerConfig.getKrb5File());
            File jaasFile = new File(kafkaProducerConfig.getJaasFile());
            if (krb5File.exists() && jaasFile.exists()) {
                // 配置kerberos认证，需要使用绝对路径
                System.setProperty("java.security.krb5.conf", krb5File.getAbsolutePath());
                System.setProperty("java.security.auth.login.config", jaasFile.getAbsolutePath());
                System.setProperty("javax.security.auth.useSubjectCredsOnly", "false");
                kafkaProperties.put("security.protocol", "SASL_PLAINTEXT");
                kafkaProperties.put("sasl.kerberos.service.name", "kafka");
            } else {
                String errorMsg = "ERROR # The kafka kerberos configuration file does not exist! please check it";
                logger.error(errorMsg);
                throw new RuntimeException(errorMsg);
            }
        }
        kafkaProperties.put("value.serializer", KafkaMessageSerializer.class);
        producer = new KafkaProducer<>(kafkaProperties);
    }

    private void loadKafkaProperties(Properties properties) {
        KafkaProducerConfig kafkaProducerConfig = (KafkaProducerConfig) this.mqProperties;
        Map<String, Object> kafkaProperties = kafkaProducerConfig.getKafkaProperties();
        // 兼容下<=1.1.4的mq配置
        doMoreCompatibleConvert("canal.mq.servers", "kafka.bootstrap.servers", properties);
        doMoreCompatibleConvert("canal.mq.acks", "kafka.acks", properties);
        doMoreCompatibleConvert("canal.mq.compressionType", "kafka.compression.type", properties);
        doMoreCompatibleConvert("canal.mq.retries", "kafka.retries", properties);
        doMoreCompatibleConvert("canal.mq.batchSize", "kafka.batch.size", properties);
        doMoreCompatibleConvert("canal.mq.lingerMs", "kafka.linger.ms", properties);
        doMoreCompatibleConvert("canal.mq.maxRequestSize", "kafka.max.request.size", properties);
        doMoreCompatibleConvert("canal.mq.bufferMemory", "kafka.buffer.memory", properties);
        doMoreCompatibleConvert("canal.mq.kafka.kerberos.enable", "kafka.kerberos.enable", properties);
        doMoreCompatibleConvert("canal.mq.kafka.kerberos.krb5.file", "kafka.kerberos.krb5.file", properties);
        doMoreCompatibleConvert("canal.mq.kafka.kerberos.jaas.file", "kafka.kerberos.jaas.file", properties);

        for (Map.Entry<Object, Object> entry : properties.entrySet()) {
            String key = (String) entry.getKey();
            Object value = entry.getValue();
            if (key.startsWith(PREFIX_KAFKA_CONFIG) && value != null) {
                // check env config
                value = PropertiesUtils.getProperty(properties, key);
                key = key.substring(PREFIX_KAFKA_CONFIG.length());
                kafkaProperties.put(key, value);
            }
        }
        String kerberosEnabled = PropertiesUtils.getProperty(properties, KafkaConstants.CANAL_MQ_KAFKA_KERBEROS_ENABLE);
        if (!StringUtils.isEmpty(kerberosEnabled)) {
            kafkaProducerConfig.setKerberosEnabled(Boolean.parseBoolean(kerberosEnabled));
        }
        String krb5File = PropertiesUtils.getProperty(properties, KafkaConstants.CANAL_MQ_KAFKA_KERBEROS_KRB5_FILE);
        if (!StringUtils.isEmpty(krb5File)) {
            kafkaProducerConfig.setKrb5File(krb5File);
        }
        String jaasFile = PropertiesUtils.getProperty(properties, KafkaConstants.CANAL_MQ_KAFKA_KERBEROS_JAAS_FILE);
        if (!StringUtils.isEmpty(jaasFile)) {
            kafkaProducerConfig.setJaasFile(jaasFile);
        }
    }

    @Override
    public void stop() {
        try {
            logger.info("## stop the kafka producer");
            if (producer != null) {
                producer.close();
            }
            super.stop();
        } catch (Throwable e) {
            logger.warn("##something goes wrong when stopping kafka producer:", e);
        } finally {
            logger.info("## kafka producer is down.");
        }
    }

    @Override
    public void send(MQDestination mqDestination, Message message, Callback callback) {
        ExecutorTemplate template = new ExecutorTemplate(sendExecutor);

        try {
            List result;
            if (!StringUtils.isEmpty(mqDestination.getDynamicTopic())) {
                // 动态topic路由计算,只是基于schema/table,不涉及proto数据反序列化
                Map<String, Message> messageMap = MQMessageUtils.messageTopics(message,
                    mqDestination.getTopic(),
                    mqDestination.getDynamicTopic());

                // 针对不同的topic,引入多线程提升效率
                for (Map.Entry<String, Message> entry : messageMap.entrySet()) {
                    final String topicName = entry.getKey().replace('.', '_');
                    final Message messageSub = entry.getValue();
                    template.submit((Callable) () -> {
                        try {
                            return send(mqDestination, topicName, messageSub, mqProperties.isFlatMessage());
                        } catch (Exception e) {
                            throw new RuntimeException(e);
                        }
                    });
                }

                result = template.waitForResult();
            } else {
                result = new ArrayList();
                List<Future> futures = send(mqDestination,
                    mqDestination.getTopic(),
                    message,
                    mqProperties.isFlatMessage());
                result.add(futures);
            }

            // 一个批次的所有topic和分区的队列，都采用异步的模式进行多线程批量发送
            // 最后在集结点进行flush等待，确保所有数据都写出成功
            // 注意：kafka的异步模式如果要保证顺序性，需要设置max.in.flight.requests.per.connection=1，确保在网络异常重试时有排他性
            producer.flush();
            // flush操作也有可能是发送失败,这里需要异步关注一下发送结果,针对有异常的直接出发rollback
            for (Object obj : result) {
                List<Future> futures = (List<Future>) obj;
                for (Future future : futures) {
                    try {
                        future.get();
                    } catch (InterruptedException | ExecutionException e) {
                        throw new RuntimeException(e);
                    }
                }
            }

            callback.commit();
        } catch (Throwable e) {
            logger.error(e.getMessage(), e);
            callback.rollback();
        } finally {
            template.clear();
        }
    }

    private List<Future> send(MQDestination mqDestination, String topicName, Message message, boolean flat) {
        List<ProducerRecord<String, byte[]>> records = new ArrayList<>();
        // 获取当前topic的分区数
        Integer partitionNum = MQMessageUtils.parseDynamicTopicPartition(topicName, mqDestination.getDynamicTopicPartitionNum());
        if (partitionNum == null) {
            partitionNum = mqDestination.getPartitionsNum();
        }
        if (!flat) {
            if (mqDestination.getPartitionHash() != null && !mqDestination.getPartitionHash().isEmpty()) {
                // 并发构造
                EntryRowData[] datas = MQMessageUtils.buildMessageData(message, buildExecutor);
                // 串行分区
                Message[] messages = MQMessageUtils.messagePartition(datas,
                    message.getId(),
                    partitionNum,
                    mqDestination.getPartitionHash(),
                    this.mqProperties.isDatabaseHash());
                int length = messages.length;
                for (int i = 0; i < length; i++) {
                    Message messagePartition = messages[i];
                    if (messagePartition != null) {
                        records.add(new ProducerRecord<>(topicName,
                            i,
                            null,
                            CanalMessageSerializerUtil.serializer(messagePartition,
                                mqProperties.isFilterTransactionEntry())));
                    }
                }
            } else {
                final int partition = mqDestination.getPartition() != null ? mqDestination.getPartition() : 0;
                records.add(new ProducerRecord<>(topicName,
                    partition,
                    null,
                    CanalMessageSerializerUtil.serializer(message, mqProperties.isFilterTransactionEntry())));
            }
        } else {
            // 发送扁平数据json
            // 并发构造
            EntryRowData[] datas = MQMessageUtils.buildMessageData(message, buildExecutor);
            // 串行分区
            List<FlatMessage> flatMessages = MQMessageUtils.messageConverter(datas, message.getId());
            for (FlatMessage flatMessage : flatMessages) {
                if (mqDestination.getPartitionHash() != null && !mqDestination.getPartitionHash().isEmpty()) {
                    FlatMessage[] partitionFlatMessage = MQMessageUtils.messagePartition(flatMessage,
                        partitionNum,
                        mqDestination.getPartitionHash(),
                        this.mqProperties.isDatabaseHash());
                    int length = partitionFlatMessage.length;
                    for (int i = 0; i < length; i++) {
                        FlatMessage flatMessagePart = partitionFlatMessage[i];
                        if (flatMessagePart != null) {
                            records.add(new ProducerRecord<>(topicName, i, null, JSON.toJSONBytes(flatMessagePart,
                                JSONWriter.Feature.WriteNulls,
                                JSONWriter.Feature.LargeObject)));
                        }
                    }
                } else {
                    final int partition = mqDestination.getPartition() != null ? mqDestination.getPartition() : 0;
                    records.add(new ProducerRecord<>(topicName, partition, null, JSON.toJSONBytes(flatMessage,
                        JSONWriter.Feature.WriteNulls,
                        JSONWriter.Feature.LargeObject)));
                }
            }
        }

        return produce(records);
    }

    private List<Future> produce(List<ProducerRecord<String, byte[]>> records) {
        List<Future> futures = new ArrayList<>();
        // 异步发送，因为在partition hash的时候已经按照每个分区合并了消息，走到这一步不需要考虑单个分区内的顺序问题
        for (ProducerRecord record : records) {
            futures.add(producer.send(record));
        }

        return futures;
    }

}

/**
 * PulsarMQ Producer SPI 实现
 *
 * @author chad 2021/9/2
 * @version 1.0.0
 */
@SPI("pulsarmq")
public class CanalPulsarMQProducer extends AbstractMQProducer implements CanalMQProducer {

    /**
     * 消息体分区属性名称
     */
    public static final String                         MSG_PROPERTY_PARTITION_NAME = "partitionNum";
    private static final Logger                        logger                      = LoggerFactory
        .getLogger(CanalPulsarMQProducer.class);
    private static final Map<String, Producer<byte[]>> PRODUCERS                   = new HashMap<>();
    protected ThreadPoolExecutor                       sendPartitionExecutor;
    /**
     * pulsar客户端，管理连接
     */
    protected PulsarClient                             client;
    /**
     * Pulsar admin 客户端
     */
    protected PulsarAdmin                              pulsarAdmin;

    @Override
    public void init(Properties properties) {
        // 加载配置
        PulsarMQProducerConfig pulsarMQProducerConfig = new PulsarMQProducerConfig();
        this.mqProperties = pulsarMQProducerConfig;
        super.init(properties);
        loadPulsarMQProperties(properties);

        // 初始化连接客户端
        try {
            ClientBuilder builder = PulsarClient.builder()
                // 填写pulsar的连接地址
                .serviceUrl(pulsarMQProducerConfig.getServerUrl());
            if (StringUtils.isNotEmpty(pulsarMQProducerConfig.getRoleToken())) {
                // 角色权限认证的token
                builder.authentication(AuthenticationFactory.token(pulsarMQProducerConfig.getRoleToken()));
            }
            if (StringUtils.isNotEmpty(pulsarMQProducerConfig.getListenerName())) {
                // listener name
                builder.listenerName(pulsarMQProducerConfig.getListenerName());
            }

            client = builder.build();
        } catch (PulsarClientException e) {
            throw new RuntimeException(e);
        }

        // 初始化Pulsar admin
        if (StringUtils.isNotEmpty(pulsarMQProducerConfig.getAdminServerUrl())) {
            try {
                pulsarAdmin = PulsarAdmin.builder().serviceHttpUrl(pulsarMQProducerConfig.getAdminServerUrl()).build();
            } catch (PulsarClientException e) {
                throw new RuntimeException(e);
            }
        }

        // 加载所有生产者 --> topic可能有正则或表名，无法确认所有topic，在使用时再加载
        int parallelPartitionSendThreadSize = mqProperties.getParallelSendThreadSize();
        sendPartitionExecutor = new ThreadPoolExecutor(parallelPartitionSendThreadSize,
            parallelPartitionSendThreadSize,
            0,
            TimeUnit.SECONDS,
            new ArrayBlockingQueue<>(parallelPartitionSendThreadSize * 2),
            new NamedThreadFactory("MQ-Parallel-Sender-Partition"),
            new ThreadPoolExecutor.CallerRunsPolicy());
    }

    /**
     * 加载配置
     *
     * @param properties
     * @return void
     * @date 2021/9/15 11:22
     * @author chad
     * @since 1 by chad at 2021/9/15 新增
     */
    private void loadPulsarMQProperties(Properties properties) {
        PulsarMQProducerConfig tmpProperties = (PulsarMQProducerConfig) this.mqProperties;
        String serverUrl = PropertiesUtils.getProperty(properties, PulsarMQConstants.PULSARMQ_SERVER_URL);
        if (!StringUtils.isEmpty(serverUrl)) {
            tmpProperties.setServerUrl(serverUrl);
        }

        String roleToken = PropertiesUtils.getProperty(properties, PulsarMQConstants.PULSARMQ_ROLE_TOKEN);
        if (!StringUtils.isEmpty(roleToken)) {
            tmpProperties.setRoleToken(roleToken);
        }
        String topicTenantPrefix = PropertiesUtils.getProperty(properties,
            PulsarMQConstants.PULSARMQ_TOPIC_TENANT_PREFIX);
        if (!StringUtils.isEmpty(topicTenantPrefix)) {
            tmpProperties.setTopicTenantPrefix(topicTenantPrefix);
        }
        String adminServerUrl = PropertiesUtils.getProperty(properties, PulsarMQConstants.PULSARMQ_ADMIN_SERVER_URL);
        if (!StringUtils.isEmpty(adminServerUrl)) {
            tmpProperties.setAdminServerUrl(adminServerUrl);
        }
        String listenerName = PropertiesUtils.getProperty(properties, PulsarMQConstants.PULSARMQ_LISTENER_NAME);
        if (!StringUtils.isEmpty(listenerName)) {
            tmpProperties.setListenerName(listenerName);
        }

        String enableChunkingStr = PropertiesUtils.getProperty(properties, PulsarMQConstants.PULSARMQ_ENABLE_CHUNKING);
        if (!StringUtils.isEmpty(enableChunkingStr)) {
            tmpProperties.setEnableChunking(Boolean.parseBoolean(enableChunkingStr));
        }

        String compressionType = PropertiesUtils.getProperty(properties, PulsarMQConstants.PULSARMQ_COMPRESSION_TYPE);
        if (!StringUtils.isEmpty(compressionType)) {
            tmpProperties.setCompressionType(compressionType);
        }

        if (logger.isDebugEnabled()) {
            logger.debug("Load pulsar properties ==> {}", JSON.toJSON(this.mqProperties));
        }
    }

    /**
     * 发送消息，处理的任务：
     * <p>
     * 1. 动态 Topic，根据schema.table或schema来匹配topic配置，将改变发送到指定的一个或多个具体的Topic<br/>
     * 2. 使用线程池发送多个消息，单个消息不使用线程池
     * </p>
     *
     * @param destination 消息目标信息
     * @param message 消息
     * @param callback 消息发送结果回调
     * @return void
     * @date 2021/9/2 22:01
     * @author chad
     * @since 1.0.0 by chad at 2021/9/2: 新增
     */
    @Override
    public void send(MQDestination destination, com.alibaba.otter.canal.protocol.Message message, Callback callback) {

        ExecutorTemplate template = new ExecutorTemplate(sendExecutor);
        try {
            if (!StringUtils.isEmpty(destination.getDynamicTopic())) {
                // 动态topic
                Map<String, com.alibaba.otter.canal.protocol.Message> messageMap = MQMessageUtils
                    .messageTopics(message, destination.getTopic(), destination.getDynamicTopic());

                for (Map.Entry<String, com.alibaba.otter.canal.protocol.Message> entry : messageMap.entrySet()) {
                    String topicName = entry.getKey().replace('.', '_');
                    com.alibaba.otter.canal.protocol.Message messageSub = entry.getValue();
                    template.submit(() -> {
                        try {
                            send(destination, topicName, messageSub);
                        } catch (Exception e) {
                            throw new RuntimeException(e);
                        }
                    });
                }

                template.waitForResult();
            } else {
                send(destination, destination.getTopic(), message);
            }

            callback.commit();
        } catch (Throwable e) {
            logger.error(e.getMessage(), e);
            callback.rollback();
        } finally {
            template.clear();
        }
    }

    /**
     * 发送单条消息到指定topic。区分是否发送扁平消息
     *
     * @param destination
     * @param topicName
     * @param message
     * @return void
     * @date 2021/9/2 22:05
     * @author chad
     * @since 1.0.0 by chad at 2021/9/2: 新增
     */
    public void send(final MQDestination destination, String topicName,
                     com.alibaba.otter.canal.protocol.Message message) {

        // 获取当前topic的分区数
        Integer partitionNum = MQMessageUtils.parseDynamicTopicPartition(topicName,
            destination.getDynamicTopicPartitionNum());
        if (partitionNum == null) {
            partitionNum = destination.getPartitionsNum();
        }
        // 创建多分区topic
        if (pulsarAdmin != null && partitionNum != null && partitionNum > 0 && PRODUCERS.get(topicName) == null) {
            createMultipleTopic(topicName, partitionNum);
        }

        ExecutorTemplate template = new ExecutorTemplate(sendPartitionExecutor);
        // 并发构造
        MQMessageUtils.EntryRowData[] datas = MQMessageUtils.buildMessageData(message, buildExecutor);
        if (!mqProperties.isFlatMessage()) {
            // 动态计算目标分区
            if (destination.getPartitionHash() != null && !destination.getPartitionHash().isEmpty()) {
                for (MQMessageUtils.EntryRowData r : datas) {
                    CanalEntry.Entry entry = r.entry;
                    if (null == entry) {
                        continue;
                    }
                    // 串行分区
                    com.alibaba.otter.canal.protocol.Message[] messages = MQMessageUtils.messagePartition(datas,
                        message.getId(),
                        partitionNum,
                        destination.getPartitionHash(),
                        mqProperties.isDatabaseHash());
                    // 发送
                    int len = messages.length;
                    for (int i = 0; i < len; i++) {
                        final int partition = i;
                        com.alibaba.otter.canal.protocol.Message m = messages[i];
                        template.submit(() -> {
                            sendMessage(topicName, partition, m);
                        });
                    }
                }
            } else {
                // 默认分区
                final int partition = destination.getPartition() != null ? destination.getPartition() : 0;
                sendMessage(topicName, partition, message);
            }
        } else {
            // 串行分区
            List<FlatMessage> flatMessages = MQMessageUtils.messageConverter(datas, message.getId());

            // 初始化分区合并队列
            if (destination.getPartitionHash() != null && !destination.getPartitionHash().isEmpty()) {
                List<List<FlatMessage>> partitionFlatMessages = new ArrayList<>();
                int len = partitionNum;
                for (int i = 0; i < len; i++) {
                    partitionFlatMessages.add(new ArrayList<>());
                }

                for (FlatMessage flatMessage : flatMessages) {
                    FlatMessage[] partitionFlatMessage = MQMessageUtils.messagePartition(flatMessage,
                        partitionNum,
                        destination.getPartitionHash(),
                        mqProperties.isDatabaseHash());
                    int length = partitionFlatMessage.length;
                    for (int i = 0; i < length; i++) {
                        // 增加null判断,issue #3267
                        if (partitionFlatMessage[i] != null) {
                            partitionFlatMessages.get(i).add(partitionFlatMessage[i]);
                        }
                    }
                }

                for (int i = 0; i < len; i++) {
                    final List<FlatMessage> flatMessagePart = partitionFlatMessages.get(i);
                    if (flatMessagePart != null && flatMessagePart.size() > 0) {
                        final int partition = i;
                        template.submit(() -> {
                            // 批量发送
                            sendMessage(topicName, partition, flatMessagePart);
                        });
                    }
                }

                // 批量等所有分区的结果
                template.waitForResult();
            } else {
                // 默认分区
                final int partition = destination.getPartition() != null ? destination.getPartition() : 0;
                sendMessage(topicName, partition, flatMessages);
            }
        }
    }

    /**
     * 发送原始消息，需要做分区处理
     *
     * @param topic topic
     * @param partitionNum 目标分区
     * @param msg 原始消息内容
     * @return void
     * @date 2021/9/10 17:55
     * @author chad
     * @since 1 by chad at 2021/9/10 新增
     */
    private void sendMessage(String topic, int partitionNum, com.alibaba.otter.canal.protocol.Message msg) {
        Producer<byte[]> producer = getProducer(topic);
        byte[] msgBytes = CanalMessageSerializerUtil.serializer(msg, mqProperties.isFilterTransactionEntry());
        try {
            MessageId msgResultId = producer.newMessage()
                .property(MSG_PROPERTY_PARTITION_NAME, String.valueOf(partitionNum))
                .value(msgBytes)
                .send();
            // todo 判断发送结果
            if (logger.isDebugEnabled()) {
                logger.debug("Send Message to topic:{} Result: {}", topic, msgResultId);
            }
        } catch (Throwable e) {
            throw new RuntimeException(e);
        }
    }

    /**
     * 发送扁平消息
     *
     * @param topic topic主题
     * @param flatMessages 扁平消息
     * @return void
     * @date 2021/9/10 18:22
     * @author chad
     * @since 1 by chad at 2021/9/10 新增
     */
    private void sendMessage(String topic, int partition, List<FlatMessage> flatMessages) {
        Producer<byte[]> producer = getProducer(topic);
        for (FlatMessage f : flatMessages) {
            try {
                MessageId msgResultId = producer.newMessage()
                    .property(MSG_PROPERTY_PARTITION_NAME, String.valueOf(partition))
                    .value(JSON.toJSONBytes(f, Feature.WriteNulls, JSONWriter.Feature.LargeObject))
                    .send()
                //
                ;
                if (logger.isDebugEnabled()) {
                    logger.debug("Send Messages to topic:{} Result: {}", topic, msgResultId);
                }
            } catch (Throwable e) {
                throw new RuntimeException(e);
            }
        }
    }

    /**
     * 创建多分区topic
     *
     * @param topic
     * @param partitionNum
     */
    private void createMultipleTopic(String topic, Integer partitionNum) {
        // 拼接topic前缀
        PulsarMQProducerConfig pulsarMQProperties = (PulsarMQProducerConfig) this.mqProperties;
        String prefix = pulsarMQProperties.getTopicTenantPrefix();
        String fullTopic = topic;
        if (!StringUtils.isEmpty(prefix)) {
            if (!prefix.endsWith("/")) {
                fullTopic = "/" + fullTopic;
            }
            fullTopic = pulsarMQProperties.getTopicTenantPrefix() + fullTopic;
        }

        // 创建分区topic
        try {
            pulsarAdmin.topics().createPartitionedTopic(fullTopic, partitionNum);
        } catch (PulsarAdminException e) {
            // TODO 无论是否报错，都继续后续的操作，此处不进行阻塞
        }
    }

    /**
     * 获取topic
     *
     * @param topic
     * @return
     */
    private Producer<byte[]> getProducer(String topic) {
        Producer producer = PRODUCERS.get(topic);
        if (null == producer || !producer.isConnected()) {
            try {
                synchronized (PRODUCERS) {
                    producer = PRODUCERS.get(topic);
                    if (null != producer && producer.isConnected()) {
                        return producer;
                    }

                    // 拼接topic前缀
                    PulsarMQProducerConfig pulsarMQProperties = (PulsarMQProducerConfig) this.mqProperties;
                    String prefix = pulsarMQProperties.getTopicTenantPrefix();
                    String fullTopic = topic;
                    if (!StringUtils.isEmpty(prefix)) {
                        if (!prefix.endsWith("/")) {
                            fullTopic = "/" + fullTopic;
                        }
                        fullTopic = pulsarMQProperties.getTopicTenantPrefix() + fullTopic;
                    }

                    // 创建指定topic的生产者
                    ProducerBuilder producerBuilder = client.newProducer();
                    if (pulsarMQProperties.getEnableChunking()) {
                        producerBuilder.enableChunking(true);
                        producerBuilder.enableBatching(false);
                    }

                    if (!StringUtils.isEmpty(pulsarMQProperties.getCompressionType())) {
                        switch (pulsarMQProperties.getCompressionType().toLowerCase()) {
                            case "lz4":
                                producerBuilder.compressionType(CompressionType.LZ4);
                                break;
                            case "zlib":
                                producerBuilder.compressionType(CompressionType.ZLIB);
                                break;
                            case "zstd":
                                producerBuilder.compressionType(CompressionType.ZSTD);
                                break;
                            case "snappy":
                                producerBuilder.compressionType(CompressionType.SNAPPY);
                                break;
                        }
                    }

                    producer = producerBuilder.topic(fullTopic)
                        // 指定路由器
                        .messageRouter(new MessageRouterImpl(topic))
                        .create();

                    // 放入缓存
                    PRODUCERS.put(topic, producer);
                }
            } catch (PulsarClientException e) {
                logger.error("create producer failed for topic: " + topic, e);
                throw new RuntimeException(e);
            }
        }

        return producer;
    }

    @Override
    public void stop() {
        logger.info("## Stop PulsarMQ producer##");

        for (Producer p : PRODUCERS.values()) {
            try {
                if (null != p && p.isConnected()) {
                    p.close();
                }
            } catch (PulsarClientException e) {
                logger.warn("close producer name: {}, topic: {}, error: {}",
                    p.getProducerName(),
                    p.getTopic(),
                    e.getMessage());
            }
        }

        super.stop();
    }

    /**
     * Pulsar自定义路由策略
     *
     * @author chad
     * @version 1
     * @since 1 by chad at 2021/9/10 新增
     * @since 2 by chad at 2021/9/17 修改为msg自带目标分区
     */
    private static class MessageRouterImpl implements MessageRouter {

        private String topicLocal;

        public MessageRouterImpl(String topicLocal){
            this.topicLocal = topicLocal;
        }

        @Override
        public int choosePartition(Message<?> msg, TopicMetadata metadata) {
            String partitionStr = msg.getProperty(MSG_PROPERTY_PARTITION_NAME);
            int partition = 0;
            if (!StringUtils.isEmpty(partitionStr)) {
                try {
                    partition = Integer.parseInt(partitionStr);
                } catch (NumberFormatException e) {
                    logger
                        .warn("Parse msg {} property failed for value: {}", MSG_PROPERTY_PARTITION_NAME, partitionStr);
                }
            }
            // topic创建时设置的分区数
            Integer partitionNum = metadata.numPartitions();
            // 如果 partition 超出 partitionNum，取余数
            if (null != partitionNum && partition >= partitionNum) {
                partition = partition % partitionNum;
            }
            return partition;
        }
    }
}

/**
 * RabbitMQ Producer SPI 实现
 *
 * @author rewerma 2020-01-27
 * @version 1.0.0
 */
@SPI("rabbitmq")
public class CanalRabbitMQProducer extends AbstractMQProducer implements CanalMQProducer {

    private static final Logger logger = LoggerFactory.getLogger(CanalRabbitMQProducer.class);

    private Connection          connect;
    private Channel             channel;

    @Override
    public void init(Properties properties) {
        RabbitMQProducerConfig rabbitMQProperties = new RabbitMQProducerConfig();
        this.mqProperties = rabbitMQProperties;
        super.init(properties);
        loadRabbitMQProperties(properties);

        ConnectionFactory factory = new ConnectionFactory();
        String servers = rabbitMQProperties.getHost();
        if (servers.startsWith("amqp")) {
            try {
                factory.setUri(servers);
            } catch (URISyntaxException | NoSuchAlgorithmException | KeyManagementException ex) {
                throw new CanalException("failed to parse host", ex);
            }
        } else if (servers.contains(":")) {
            String[] serverHostAndPort = AddressUtils.splitIPAndPort(servers);
            factory.setHost(serverHostAndPort[0]);
            factory.setPort(Integer.parseInt(serverHostAndPort[1]));
        } else {
            factory.setHost(servers);
        }

        if (mqProperties.getAliyunAccessKey().length() > 0 && mqProperties.getAliyunSecretKey().length() > 0
            && mqProperties.getAliyunUid() > 0) {
            factory.setCredentialsProvider(new AliyunCredentialsProvider(mqProperties.getAliyunAccessKey(),
                mqProperties.getAliyunSecretKey(),
                mqProperties.getAliyunUid()));
        } else {
            factory.setUsername(rabbitMQProperties.getUsername());
            factory.setPassword(rabbitMQProperties.getPassword());
        }
        factory.setVirtualHost(rabbitMQProperties.getVirtualHost());
        try {
            connect = factory.newConnection();
            channel = connect.createChannel();
            String queue = rabbitMQProperties.getQueue();
            String exchange = rabbitMQProperties.getExchange();
            String deliveryMode = rabbitMQProperties.getDeliveryMode();
            String routingKey = rabbitMQProperties.getRoutingKey();
            if (!StringUtils.isEmpty(queue)) {
                channel.queueDeclare(queue, true, false, false, null);
            }
            if (!StringUtils.isEmpty(queue) && !StringUtils.isEmpty(exchange) && !StringUtils.isEmpty(deliveryMode)
                && !StringUtils.isEmpty(routingKey)) {
                channel.exchangeDeclare(exchange, deliveryMode, true, false, false, null);
                channel.queueBind(queue, exchange, routingKey);
            }
        } catch (IOException | TimeoutException ex) {
            throw new CanalException("Start RabbitMQ producer error", ex);
        }
    }

    private void loadRabbitMQProperties(Properties properties) {
        RabbitMQProducerConfig rabbitMQProperties = (RabbitMQProducerConfig) this.mqProperties;
        // 兼容下<=1.1.4的mq配置
        doMoreCompatibleConvert("canal.mq.servers", "rabbitmq.host", properties);

        String host = PropertiesUtils.getProperty(properties, RabbitMQConstants.RABBITMQ_HOST);
        if (!StringUtils.isEmpty(host)) {
            rabbitMQProperties.setHost(host);
        }
        String vhost = PropertiesUtils.getProperty(properties, RabbitMQConstants.RABBITMQ_VIRTUAL_HOST);
        if (!StringUtils.isEmpty(vhost)) {
            rabbitMQProperties.setVirtualHost(vhost);
        }
        String exchange = PropertiesUtils.getProperty(properties, RabbitMQConstants.RABBITMQ_EXCHANGE);
        if (!StringUtils.isEmpty(exchange)) {
            rabbitMQProperties.setExchange(exchange);
        }
        String username = PropertiesUtils.getProperty(properties, RabbitMQConstants.RABBITMQ_USERNAME);
        if (!StringUtils.isEmpty(username)) {
            rabbitMQProperties.setUsername(username);
        }
        String password = PropertiesUtils.getProperty(properties, RabbitMQConstants.RABBITMQ_PASSWORD);
        if (!StringUtils.isEmpty(password)) {
            rabbitMQProperties.setPassword(password);
        }
        String queue = PropertiesUtils.getProperty(properties, RabbitMQConstants.RABBITMQ_QUEUE);
        if (!StringUtils.isEmpty(queue)) {
            rabbitMQProperties.setQueue(queue);
        }
        String routingKey = PropertiesUtils.getProperty(properties, RabbitMQConstants.RABBITMQ_ROUTING_KEY);
        if (!StringUtils.isEmpty(routingKey)) {
            rabbitMQProperties.setRoutingKey(routingKey);
        }
        String deliveryMode = PropertiesUtils.getProperty(properties, RabbitMQConstants.RABBITMQ_DELIVERY_MODE);
        if (!StringUtils.isEmpty(deliveryMode)) {
            rabbitMQProperties.setDeliveryMode(deliveryMode);
        }
    }

    @Override
    public void send(final MQDestination destination, Message message, Callback callback) {
        ExecutorTemplate template = new ExecutorTemplate(sendExecutor);
        try {
            if (!StringUtils.isEmpty(destination.getDynamicTopic())) {
                // 动态topic
                Map<String, Message> messageMap = MQMessageUtils
                    .messageTopics(message, destination.getTopic(), destination.getDynamicTopic());

                for (Map.Entry<String, com.alibaba.otter.canal.protocol.Message> entry : messageMap.entrySet()) {
                    final String topicName = entry.getKey().replace('.', '_');
                    final com.alibaba.otter.canal.protocol.Message messageSub = entry.getValue();

                    template.submit(() -> send(destination, topicName, messageSub));
                }

                template.waitForResult();
            } else {
                send(destination, destination.getTopic(), message);
            }
            callback.commit();
        } catch (Throwable e) {
            logger.error(e.getMessage(), e);
            callback.rollback();
        } finally {
            template.clear();
        }
    }

    private void send(MQDestination canalDestination, String topicName, Message messageSub) {
        if (!mqProperties.isFlatMessage()) {
            byte[] message = CanalMessageSerializerUtil.serializer(messageSub, mqProperties.isFilterTransactionEntry());
            if (logger.isDebugEnabled()) {
                logger.debug("send message:{} to destination:{}", message, canalDestination.getCanalDestination());
            }
            sendMessage(topicName, message);
        } else {
            // 并发构造
            MQMessageUtils.EntryRowData[] datas = MQMessageUtils.buildMessageData(messageSub, buildExecutor);
            // 串行分区
            List<FlatMessage> flatMessages = MQMessageUtils.messageConverter(datas, messageSub.getId());
            for (FlatMessage flatMessage : flatMessages) {
                byte[] message = JSON
                    .toJSONBytes(flatMessage, JSONWriter.Feature.WriteNulls, JSONWriter.Feature.LargeObject);
                if (logger.isDebugEnabled()) {
                    logger.debug("send message:{} to destination:{}", message, canalDestination.getCanalDestination());
                }
                sendMessage(topicName, message);
            }
        }

    }

    private void sendMessage(String queueName, byte[] message) {
        // tips: 目前逻辑中暂不处理对exchange处理，请在Console后台绑定 才可使用routekey
        try {
            RabbitMQProducerConfig rabbitMQProperties = (RabbitMQProducerConfig) this.mqProperties;
            channel.basicPublish(rabbitMQProperties.getExchange(),
                queueName,
                MessageProperties.PERSISTENT_TEXT_PLAIN,
                message);
        } catch (Throwable e) {
            throw new RuntimeException(e);
        }
    }

    @Override
    public void stop() {
        logger.info("## Stop RabbitMQ producer##");
        try {
            this.channel.close();
            this.connect.close();
            super.stop();
        } catch (AlreadyClosedException ex) {
            logger.error("Connection is already closed", ex);
        } catch (IOException | TimeoutException ex) {
            throw new CanalException("Stop RabbitMQ producer error", ex);
        }

        super.stop();
    }
}

/**
 * RocketMQ Producer SPI 实现
 *
 * @author rewerma 2020-01-27
 * @version 1.0.0
 */
@SPI("rocketmq")
public class CanalRocketMQProducer extends AbstractMQProducer implements CanalMQProducer {

    private static final Logger  logger               = LoggerFactory.getLogger(CanalRocketMQProducer.class);

    private DefaultMQProducer    defaultMQProducer;
    private static final String  CLOUD_ACCESS_CHANNEL = "cloud";
    private static final String  NAMESPACE_SEPARATOR  = "%";
    protected ThreadPoolExecutor sendPartitionExecutor;

    @Override
    public void init(Properties properties) {
        RocketMQProducerConfig rocketMQProperties = new RocketMQProducerConfig();
        this.mqProperties = rocketMQProperties;
        super.init(properties);
        loadRocketMQProperties(properties);

        RPCHook rpcHook = null;
        if (mqProperties.getAliyunAccessKey().length() > 0 && mqProperties.getAliyunSecretKey().length() > 0) {
            SessionCredentials sessionCredentials = new SessionCredentials();
            sessionCredentials.setAccessKey(mqProperties.getAliyunAccessKey());
            sessionCredentials.setSecretKey(mqProperties.getAliyunSecretKey());
            rpcHook = new AclClientRPCHook(sessionCredentials);
        }

        defaultMQProducer = new DefaultMQProducer(rocketMQProperties.getProducerGroup(),
            rpcHook,
            rocketMQProperties.isEnableMessageTrace(),
            rocketMQProperties.getCustomizedTraceTopic());
        if (CLOUD_ACCESS_CHANNEL.equals(rocketMQProperties.getAccessChannel())) {
            defaultMQProducer.setAccessChannel(AccessChannel.CLOUD);
        }
        if (!StringUtils.isEmpty(rocketMQProperties.getNamespace())) {
            defaultMQProducer.setNamespace(rocketMQProperties.getNamespace());
        }
        defaultMQProducer.setNamesrvAddr(rocketMQProperties.getNamesrvAddr());
        defaultMQProducer.setRetryTimesWhenSendFailed(rocketMQProperties.getRetryTimesWhenSendFailed());
        defaultMQProducer.setVipChannelEnabled(rocketMQProperties.isVipChannelEnabled());
        logger.info("##Start RocketMQ producer##");
        try {
            defaultMQProducer.start();
        } catch (MQClientException ex) {
            throw new CanalException("Start RocketMQ producer error", ex);
        }

        int parallelPartitionSendThreadSize = mqProperties.getParallelSendThreadSize();
        sendPartitionExecutor = new ThreadPoolExecutor(parallelPartitionSendThreadSize,
            parallelPartitionSendThreadSize,
            0,
            TimeUnit.SECONDS,
            new ArrayBlockingQueue<>(parallelPartitionSendThreadSize * 2),
            new NamedThreadFactory("MQ-Parallel-Sender-Partition"),
            new ThreadPoolExecutor.CallerRunsPolicy());
    }

    private void loadRocketMQProperties(Properties properties) {
        RocketMQProducerConfig rocketMQProperties = (RocketMQProducerConfig) this.mqProperties;
        // 兼容下<=1.1.4的mq配置
        doMoreCompatibleConvert("canal.mq.servers", "rocketmq.namesrv.addr", properties);
        doMoreCompatibleConvert("canal.mq.producerGroup", "rocketmq.producer.group", properties);
        doMoreCompatibleConvert("canal.mq.namespace", "rocketmq.namespace", properties);
        doMoreCompatibleConvert("canal.mq.retries", "rocketmq.retry.times.when.send.failed", properties);

        String producerGroup = PropertiesUtils.getProperty(properties, RocketMQConstants.ROCKETMQ_PRODUCER_GROUP);
        if (!StringUtils.isEmpty(producerGroup)) {
            rocketMQProperties.setProducerGroup(producerGroup);
        }
        String enableMessageTrace = PropertiesUtils.getProperty(properties,
            RocketMQConstants.ROCKETMQ_ENABLE_MESSAGE_TRACE);
        if (!StringUtils.isEmpty(enableMessageTrace)) {
            rocketMQProperties.setEnableMessageTrace(Boolean.parseBoolean(enableMessageTrace));
        }
        String customizedTraceTopic = PropertiesUtils.getProperty(properties,
            RocketMQConstants.ROCKETMQ_CUSTOMIZED_TRACE_TOPIC);
        if (!StringUtils.isEmpty(customizedTraceTopic)) {
            rocketMQProperties.setCustomizedTraceTopic(customizedTraceTopic);
        }
        String namespace = PropertiesUtils.getProperty(properties, RocketMQConstants.ROCKETMQ_NAMESPACE);
        if (!StringUtils.isEmpty(namespace)) {
            rocketMQProperties.setNamespace(namespace);
        }
        String namesrvAddr = PropertiesUtils.getProperty(properties, RocketMQConstants.ROCKETMQ_NAMESRV_ADDR);
        if (!StringUtils.isEmpty(namesrvAddr)) {
            rocketMQProperties.setNamesrvAddr(namesrvAddr);
        }
        String retry = PropertiesUtils.getProperty(properties, RocketMQConstants.ROCKETMQ_RETRY_TIMES_WHEN_SEND_FAILED);
        if (!StringUtils.isEmpty(retry)) {
            rocketMQProperties.setRetryTimesWhenSendFailed(Integer.parseInt(retry));
        }
        String vipChannelEnabled = PropertiesUtils.getProperty(properties,
            RocketMQConstants.ROCKETMQ_VIP_CHANNEL_ENABLED);
        if (!StringUtils.isEmpty(vipChannelEnabled)) {
            rocketMQProperties.setVipChannelEnabled(Boolean.parseBoolean(vipChannelEnabled));
        }
        String tag = PropertiesUtils.getProperty(properties, RocketMQConstants.ROCKETMQ_TAG);
        if (!StringUtils.isEmpty(tag)) {
            rocketMQProperties.setTag(tag);
        }
    }

    @Override
    public void send(MQDestination destination, com.alibaba.otter.canal.protocol.Message message, Callback callback) {
        ExecutorTemplate template = new ExecutorTemplate(sendExecutor);
        try {
            if (!StringUtils.isEmpty(destination.getDynamicTopic())) {
                // 动态topic
                Map<String, com.alibaba.otter.canal.protocol.Message> messageMap = MQMessageUtils
                    .messageTopics(message, destination.getTopic(), destination.getDynamicTopic());

                for (Map.Entry<String, com.alibaba.otter.canal.protocol.Message> entry : messageMap.entrySet()) {
                    String topicName = entry.getKey().replace('.', '_');
                    com.alibaba.otter.canal.protocol.Message messageSub = entry.getValue();
                    template.submit(() -> {
                        try {
                            send(destination, topicName, messageSub);
                        } catch (Exception e) {
                            throw new RuntimeException(e);
                        }
                    });
                }

                template.waitForResult();
            } else {
                send(destination, destination.getTopic(), message);
            }

            callback.commit();
        } catch (Throwable e) {
            logger.error(e.getMessage(), e);
            callback.rollback();
        } finally {
            template.clear();
        }
    }

    public void send(final MQDestination destination, String topicName,
                     com.alibaba.otter.canal.protocol.Message message) {
        // 获取当前topic的分区数
        Integer partitionNum = MQMessageUtils.parseDynamicTopicPartition(topicName,
            destination.getDynamicTopicPartitionNum());

        // 获取topic的队列数为分区数
        if (partitionNum == null) {
            partitionNum = getTopicDynamicQueuesSize(destination.getEnableDynamicQueuePartition(), topicName);
        }

        if (partitionNum == null) {
            partitionNum = destination.getPartitionsNum();
        }
        if (!mqProperties.isFlatMessage()) {
            if (destination.getPartitionHash() != null && !destination.getPartitionHash().isEmpty()) {
                // 并发构造
                MQMessageUtils.EntryRowData[] datas = MQMessageUtils.buildMessageData(message, buildExecutor);
                // 串行分区
                com.alibaba.otter.canal.protocol.Message[] messages = MQMessageUtils.messagePartition(datas,
                    message.getId(),
                    partitionNum,
                    destination.getPartitionHash(),
                    mqProperties.isDatabaseHash());
                int length = messages.length;

ExecutorTemplate template = new ExecutorTemplate(sendPartitionExecutor);
for (int i = 0; i < length; i++) {
    com.alibaba.otter.canal.protocol.Message dataPartition = messages[i];
    if (dataPartition != null) {
        final int index = i;
        template.submit(() -> {
            Message data = new Message(topicName,
                ((RocketMQProducerConfig) this.mqProperties).getTag(),
                CanalMessageSerializerUtil.serializer(dataPartition,
                    mqProperties.isFilterTransactionEntry()));
            sendMessage(data, index);
        });
    }
}
// 等所有分片发送完毕
template.waitForResult();
            } else {
                final int partition = destination.getPartition() != null ? destination.getPartition() : 0;
                Message data = new Message(topicName,
                    ((RocketMQProducerConfig) this.mqProperties).getTag(),
                    CanalMessageSerializerUtil.serializer(message, mqProperties.isFilterTransactionEntry()));
                sendMessage(data, partition);
            }
        } else {
            // 并发构造
            MQMessageUtils.EntryRowData[] datas = MQMessageUtils.buildMessageData(message, buildExecutor);
            // 串行分区
            List<FlatMessage> flatMessages = MQMessageUtils.messageConverter(datas, message.getId());
            // 初始化分区合并队列
            if (destination.getPartitionHash() != null && !destination.getPartitionHash().isEmpty()) {
                List<List<FlatMessage>> partitionFlatMessages = new ArrayList<>();
                for (int i = 0; i < partitionNum; i++) {
                    partitionFlatMessages.add(new ArrayList<>());
                }

                for (FlatMessage flatMessage : flatMessages) {
                    FlatMessage[] partitionFlatMessage = MQMessageUtils.messagePartition(flatMessage,
                        partitionNum,
                        destination.getPartitionHash(),
                        mqProperties.isDatabaseHash());
                    int length = partitionFlatMessage.length;
                    for (int i = 0; i < length; i++) {
                        // 增加null判断,issue #3267
                        if (partitionFlatMessage[i] != null) {
                            partitionFlatMessages.get(i).add(partitionFlatMessage[i]);
                        }
                    }
                }

                ExecutorTemplate template = new ExecutorTemplate(sendPartitionExecutor);
                for (int i = 0; i < partitionFlatMessages.size(); i++) {
                    final List<FlatMessage> flatMessagePart = partitionFlatMessages.get(i);
                    if (flatMessagePart != null && flatMessagePart.size() > 0) {
                        final int index = i;
                        template.submit(() -> {
                            List<Message> messages = flatMessagePart.stream()
                                .map(flatMessage -> new Message(topicName,
                                    ((RocketMQProducerConfig) this.mqProperties).getTag(),
                                    JSON.toJSONBytes(flatMessage,
                                        JSONWriter.Feature.WriteNulls,
                                        JSONWriter.Feature.LargeObject)))
                                .collect(Collectors.toList());
                            // 批量发送
                            sendMessage(messages, index);
                        });
                    }
                }

                // 批量等所有分区的结果
                template.waitForResult();
            } else {
                final int partition = destination.getPartition() != null ? destination.getPartition() : 0;
                List<Message> messages = flatMessages.stream()
                    .map(flatMessage -> new Message(topicName,
                        ((RocketMQProducerConfig) this.mqProperties).getTag(),
                        JSON.toJSONBytes(flatMessage, JSONWriter.Feature.WriteNulls, JSONWriter.Feature.LargeObject)))
                    .collect(Collectors.toList());
                // 批量发送
                sendMessage(messages, partition);
            }
        }
    }

    private void sendMessage(Message message, int partition) {
        try {
            SendResult sendResult = this.defaultMQProducer.send(message, (mqs, msg, arg) -> {
                if (partition >= mqs.size()) {
                    return mqs.get(partition % mqs.size());
                } else {
                    return mqs.get(partition);
                }
            }, null);

            if (logger.isDebugEnabled()) {
                logger.debug("Send Message Result: {}", sendResult);
            }
        } catch (Throwable e) {
            throw new RuntimeException(e);
        }
    }

    @SuppressWarnings("deprecation")
    private void sendMessage(List<Message> messages, int partition) {
        if (messages.isEmpty()) {
            return;
        }

        // 获取一下messageQueue
        DefaultMQProducerImpl innerProducer = this.defaultMQProducer.getDefaultMQProducerImpl();
        String topic = messages.get(0).getTopic();
        if (StringUtils.isNotBlank(this.defaultMQProducer.getNamespace())) {
            topic = this.defaultMQProducer.getNamespace() + NAMESPACE_SEPARATOR + topic;
        }
        TopicPublishInfo topicInfo = innerProducer.getTopicPublishInfoTable().get(topic);
        if (topicInfo == null) {
            for (Message message : messages) {
                sendMessage(message, partition);
            }
        } else {
            // 批量发送
            List<MessageQueue> queues = topicInfo.getMessageQueueList();
            int size = queues.size();
            if (size <= 0) {
                // 可能是第一次创建
                for (Message message : messages) {
                    sendMessage(message, partition);
                }
            } else {
                MessageQueue queue;
                if (partition >= size) {
                    queue = queues.get(partition % size);
                } else {
                    queue = queues.get(partition);
                }

                try {
                    // 阿里云RocketMQ暂不支持批量发送消息，当canal.mq.flatMessage = true时，会发送失败
                    SendResult sendResult = this.defaultMQProducer.send(messages, queue);
                    if (logger.isDebugEnabled()) {
                        logger.debug("Send Message Result: {}", sendResult);
                    }
                } catch (Throwable e) {
                    throw new RuntimeException(e);
                }
            }
        }
    }

    @Override
    public void stop() {
        logger.info("## Stop RocketMQ producer##");
        this.defaultMQProducer.shutdown();
        if (sendPartitionExecutor != null) {
            sendPartitionExecutor.shutdownNow();
        }

        super.stop();
    }

    private Integer getTopicDynamicQueuesSize(Boolean enable, String topicName) {
        if (enable != null && enable) {
            topicName = this.defaultMQProducer.withNamespace(topicName);
            DefaultMQProducerImpl innerProducer = this.defaultMQProducer.getDefaultMQProducerImpl();
            TopicPublishInfo topicInfo = innerProducer.getTopicPublishInfoTable().get(topicName);
            if (topicInfo == null) {
                return null;
            } else {
                return topicInfo.getMessageQueueList().size();
            }
        }
        return null;
    }
}

public class ProxyCanalMQProducer implements CanalMQProducer {

    private CanalMQProducer canalMQProducer;

    public ProxyCanalMQProducer(CanalMQProducer canalMQProducer) {
        this.canalMQProducer = canalMQProducer;
    }

    private ClassLoader changeCL() {
        ClassLoader cl = Thread.currentThread().getContextClassLoader();
        Thread.currentThread().setContextClassLoader(canalMQProducer.getClass().getClassLoader());
        return cl;
    }

    private void revertCL(ClassLoader cl) {
        Thread.currentThread().setContextClassLoader(cl);
    }

    @Override
    public void init(Properties properties) {
        ClassLoader cl = changeCL();
        try {
            canalMQProducer.init(properties);
        } finally {
            revertCL(cl);
        }
    }

    @Override
    public MQProperties getMqProperties() {
        ClassLoader cl = changeCL();
        try {
            return canalMQProducer.getMqProperties();
        } finally {
            revertCL(cl);
        }
    }

    @Override
    public void send(MQDestination canalDestination, Message message, Callback callback) {
        ClassLoader cl = changeCL();
        try {
            canalMQProducer.send(canalDestination, message, callback);
        } finally {
            revertCL(cl);
        }
    }

    @Override
    public void stop() {
        ClassLoader cl = changeCL();
        try {
            canalMQProducer.stop();
        } finally {
            revertCL(cl);
        }
    }
}

/**
 * Canal/MQ consumer SPI 接口
 *
 * @author rewerma @ 2020-02-01
 * @version 1.0.0
 */
@SPI("kafka")
public interface CanalMsgConsumer {

    /**
     * 初始化
     *
     * @param properties consumer properties
     * @param topic topic/destination
     * @param groupId mq group id
     */
    void init(Properties properties, String topic, String groupId);

    /**
     * 连接Canal/MQ
     */
    void connect();

    /**
     * 批量拉取数据
     *
     * @param timeout 超时时间
     * @param unit 时间单位
     * @return Message列表
     */
    List<CommonMessage> getMessage(Long timeout, TimeUnit unit);

    /**
     * 提交
     */
    void ack();

    /**
     * 回滚
     */
    void rollback();

    /**
     * 断开连接
     */
    void disconnect();
}

/**
 * Kafka consumer SPI 实现
 *
 * @author rewerma @ 2020-02-01
 * @version 1.0.0
 */
@SPI("kafka")
public class CanalKafkaConsumer implements CanalMsgConsumer {

    private static final String      PREFIX_KAFKA_CONFIG = "kafka.";

    private KafkaConsumer<String, ?> kafkaConsumer;
    private boolean                  flatMessage         = true;
    private String                   topic;

    private Map<Integer, Long>       currentOffsets      = new ConcurrentHashMap<>();
    private Properties               kafkaProperties     = new Properties();

    @Override
    public void init(Properties properties, String topic, String groupId) {
        this.topic = topic;

        Boolean flatMessage = (Boolean) properties.get(CanalConstants.CANAL_MQ_FLAT_MESSAGE);
        if (flatMessage != null) {
            this.flatMessage = flatMessage;
        }
        for (Map.Entry<Object, Object> entry : properties.entrySet()) {
            String k = (String) entry.getKey();
            Object v = entry.getValue();
            if (k.startsWith(PREFIX_KAFKA_CONFIG) && v != null) {
                // check env config
                v = PropertiesUtils.getProperty(properties, k);
                kafkaProperties.put(k.substring(PREFIX_KAFKA_CONFIG.length()), v);
            }
        }
        kafkaProperties.put("group.id", groupId);
        kafkaProperties.put("key.deserializer", StringDeserializer.class);
        kafkaProperties.put("client.id", UUID.randomUUID().toString().substring(0, 6));
    }

    @Override
    public void connect() {
        if (this.flatMessage) {
            kafkaProperties.put("value.deserializer", StringDeserializer.class);
            this.kafkaConsumer = new KafkaConsumer<String, String>(kafkaProperties);
        } else {
            kafkaProperties.put("value.deserializer", KafkaMessageDeserializer.class);
            this.kafkaConsumer = new KafkaConsumer<String, Message>(kafkaProperties);
        }
        kafkaConsumer.subscribe(Collections.singletonList(topic));
    }

    @SuppressWarnings("unchecked")
    @Override
    public List<CommonMessage> getMessage(Long timeout, TimeUnit unit) {
        if (!flatMessage) {
            ConsumerRecords<String, Message> records = (ConsumerRecords<String, Message>) kafkaConsumer.poll(unit.toMillis(timeout));
            if (!records.isEmpty()) {
                currentOffsets.clear();
                List<CommonMessage> messages = new ArrayList<>();
                for (ConsumerRecord<String, Message> record : records) {
                    if (currentOffsets.get(record.partition()) == null) {
                        currentOffsets.put(record.partition(), record.offset());
                    }
                    messages.addAll(MessageUtil.convert(record.value()));
                }
                return messages;
            }
        } else {
            ConsumerRecords<String, String> records = (ConsumerRecords<String, String>) kafkaConsumer.poll(unit.toMillis(timeout));

            if (!records.isEmpty()) {
                List<CommonMessage> messages = new ArrayList<>();
                currentOffsets.clear();
                for (ConsumerRecord<String, String> record : records) {
                    if (currentOffsets.get(record.partition()) == null) {
                        currentOffsets.put(record.partition(), record.offset());
                    }
                    String flatMessageJson = record.value();
                    CommonMessage flatMessages = JSON.parseObject(flatMessageJson, CommonMessage.class);
                    messages.add(flatMessages);
                }
                return messages;
            }
        }
        return null;
    }

    @Override
    public void rollback() {
        // 回滚所有分区
        if (kafkaConsumer != null) {
            for (Map.Entry<Integer, Long> entry : currentOffsets.entrySet()) {
                kafkaConsumer.seek(new TopicPartition(topic, entry.getKey()), currentOffsets.get(entry.getKey()));
                kafkaConsumer.commitSync();
            }
        }
    }

    @Override
    public void ack() {
        if (kafkaConsumer != null) {
            kafkaConsumer.commitSync();
        }
    }

    @Override
    public void disconnect() {
        if (kafkaConsumer != null) {
            kafkaConsumer.unsubscribe();
        }
        if (kafkaConsumer != null) {
            kafkaConsumer.close();
            kafkaConsumer = null;
        }
    }
}

/**
 * Pulsar consumer SPI 实现
 *
 * @author rewerma @ 2020-02-01
 * @version 1.0.0
 */
@SPI("pulsarmq")
public class CanalPulsarMQConsumer implements CanalMsgConsumer {

    /**
     * 连接pulsar客户端
     */
    private PulsarClient              pulsarClient;
    private Consumer<byte[]>          pulsarMQConsumer;
    /**
     * 是否为扁平消息
     */
    private boolean                   flatMessage            = false;
    /**
     * 主题名称
     */
    private String                    topic;
    /**
     * 单线程控制
     */
    private volatile Messages<byte[]> lastGetBatchMessage;
    /**
     * 环境连接URL
     */
    private String                    serviceUrl;
    /**
     * 角色认证token
     */
    private String                    roleToken;

    /**
     * listener name
     */
    private String                    listenerName;

    /**
     * 订阅客户端名称
     */
    private String                    subscriptName;
    /**
     * 每次批量获取数据的最大条目数，默认30
     */
    private int                       batchSize              = 30;
    /**
     * 与{@code batchSize}一起决定批量获取的数据大小 当：
     * <p>
     * 1. {@code batchSize} 条消息未消费时<br/>
     * 2. 距上一次批量消费时间达到{@code batchTimeoutSeconds}秒时
     * </p>
     * 任一条件满足，即执行批量消费
     */
    private int                       getBatchTimeoutSeconds = 30;
    /**
     * 批量处理消息时，一次批量处理的超时时间
     * <p>
     * 该时间应该根据{@code batchSize}和{@code batchTimeoutSeconds}合理设置
     * </p>
     */
    private long                      batchProcessTimeout    = 60 * 1000;
    /**
     * 消费失败后的重试秒数，默认60秒
     */
    private int                       redeliveryDelaySeconds = 60;
    /**
     * 当客户端接收到消息，30秒还没有返回ack给服务端时，ack超时，会重新消费该消息
     */
    private int                       ackTimeoutSeconds      = 30;
    /**
     * 是否开启消息失败重试功能，默认开启
     */
    private boolean                   isRetry                = true;
    /**
     * <p>
     * true重试(-RETRY)和死信队列(-DLQ)后缀为大写，有些地方创建的为小写，需确保正确
     * </p>
     */
    private boolean                   isRetryDLQUpperCase    = false;
    /**
     * 最大重试次数
     */
    private int                       maxRedeliveryCount     = 128;

    @Override
    public void init(Properties properties, String topic, String groupId) {
        this.topic = topic;
        String flatMessageStr = properties.getProperty(CanalConstants.CANAL_MQ_FLAT_MESSAGE);
        if (StringUtils.isNotEmpty(flatMessageStr)) {
            this.flatMessage = Boolean.parseBoolean(flatMessageStr);
        }
        this.serviceUrl = properties.getProperty(PulsarMQConstants.PULSARMQ_SERVER_URL);
        this.roleToken = properties.getProperty(PulsarMQConstants.PULSARMQ_ROLE_TOKEN);
        this.listenerName = properties.getProperty(PulsarMQConstants.PULSARMQ_LISTENER_NAME);
        this.subscriptName = properties.getProperty(PulsarMQConstants.PULSARMQ_SUBSCRIPT_NAME);
        // 采用groupId作为subscriptName，避免所有的都是同一个订阅者名称
        if (StringUtils.isEmpty(this.subscriptName)) {
            this.subscriptName = groupId;
        }

        if (StringUtils.isEmpty(this.subscriptName)) {
            throw new RuntimeException("Pulsar Consumer subscriptName required");
        }
        String batchSizeStr = properties.getProperty(CanalConstants.CANAL_MQ_CANAL_BATCH_SIZE);
        if (StringUtils.isNotEmpty(batchSizeStr)) {
            this.batchSize = Integer.parseInt(batchSizeStr);
        }
        String getBatchTimeoutSecondsStr = properties.getProperty(PulsarMQConstants.PULSARMQ_GET_BATCH_TIMEOUT_SECONDS);
        if (StringUtils.isNotEmpty(getBatchTimeoutSecondsStr)) {
            this.getBatchTimeoutSeconds = Integer.parseInt(getBatchTimeoutSecondsStr);
        }
        String batchProcessTimeoutStr = properties.getProperty(PulsarMQConstants.PULSARMQ_BATCH_PROCESS_TIMEOUT);
        if (StringUtils.isNotEmpty(batchProcessTimeoutStr)) {
            this.batchProcessTimeout = Integer.parseInt(batchProcessTimeoutStr);
        }
        String redeliveryDelaySecondsStr = properties.getProperty(PulsarMQConstants.PULSARMQ_REDELIVERY_DELAY_SECONDS);
        if (StringUtils.isNotEmpty(redeliveryDelaySecondsStr)) {
            this.redeliveryDelaySeconds = Integer.parseInt(redeliveryDelaySecondsStr);
        }
        String ackTimeoutSecondsStr = properties.getProperty(PulsarMQConstants.PULSARMQ_ACK_TIMEOUT_SECONDS);
        if (StringUtils.isNotEmpty(ackTimeoutSecondsStr)) {
            this.ackTimeoutSeconds = Integer.parseInt(ackTimeoutSecondsStr);
        }
        String isRetryStr = properties.getProperty(PulsarMQConstants.PULSARMQ_IS_RETRY);
        if (StringUtils.isNotEmpty(isRetryStr)) {
            this.isRetry = Boolean.parseBoolean(isRetryStr);
        }
        String isRetryDLQUpperCaseStr = properties.getProperty(PulsarMQConstants.PULSARMQ_IS_RETRY_DLQ_UPPERCASE);
        if (StringUtils.isNotEmpty(isRetryDLQUpperCaseStr)) {
            this.isRetryDLQUpperCase = Boolean.parseBoolean(isRetryDLQUpperCaseStr);
        }
        String maxRedeliveryCountStr = properties.getProperty(PulsarMQConstants.PULSARMQ_MAX_REDELIVERY_COUNT);
        if (StringUtils.isNotEmpty(maxRedeliveryCountStr)) {
            this.maxRedeliveryCount = Integer.parseInt(maxRedeliveryCountStr);
        }
    }

    @Override
    public void connect() {
        if (isConsumerActive()) {
            return;
        }
        // 连接创建客户端
        try {
            // AuthenticationDataProvider
            ClientBuilder builder = PulsarClient.builder().serviceUrl(serviceUrl);
            if (StringUtils.isNotEmpty(roleToken)) {
                builder.authentication(AuthenticationFactory.token(roleToken));
            }
            if (StringUtils.isNotEmpty(listenerName)) {
                builder.authentication(AuthenticationFactory.token(listenerName));
            }
            pulsarClient = builder.build();
        } catch (PulsarClientException e) {
            throw new RuntimeException(e);
        }
        ConsumerBuilder<byte[]> builder = pulsarClient.newConsumer();
        if (MQUtil.isPatternTopic(this.topic)) {
            // 正则只支持一个
            builder.topicsPattern(this.topic);
        } else {// 多个topic
            builder.topic(this.topic);
        }
        // 为保证消息的有序性，仅支持单消费实例模式
        // 灾备模式，一个分区只能有一个消费者，如果当前消费者不可用，自动切换到其他消费者
        builder.subscriptionType(SubscriptionType.Failover);

        builder
            // 调用consumer.negativeAcknowledge(message) （即nack）来表示消费失败的消息
            // 在指定的时间进行重新消费，默认是1分钟。
            .negativeAckRedeliveryDelay(this.redeliveryDelaySeconds, TimeUnit.SECONDS)
            .subscriptionName(this.subscriptName);
        if (this.isRetry) {
            DeadLetterPolicy.DeadLetterPolicyBuilder dlqBuilder = DeadLetterPolicy.builder()
                // 最大重试次数
                .maxRedeliverCount(this.maxRedeliveryCount);
            // 指定重试队列，不是多个或通配符topic才能判断重试队列
            if (!MQUtil.isPatternTag(this.topic)) {
                String retryTopic = this.topic + (this.isRetryDLQUpperCase ? "-RETRY" : "-retry");
                dlqBuilder.retryLetterTopic(retryTopic);
                String dlqTopic = this.topic + (this.isRetryDLQUpperCase ? "-DLQ" : "-dlq");
                dlqBuilder.deadLetterTopic(dlqTopic);
            }

            // 默认关闭，如果需要重试则开启
            builder.enableRetry(true).deadLetterPolicy(dlqBuilder.build());
        }

        // ack超时
        builder.ackTimeout(this.ackTimeoutSeconds, TimeUnit.SECONDS);

        // pulsar批量获取消息设置
        builder.batchReceivePolicy(new BatchReceivePolicy.Builder().maxNumMessages(this.batchSize)
            .timeout(this.getBatchTimeoutSeconds, TimeUnit.SECONDS)
            .build());

        try {
            this.pulsarMQConsumer = builder.subscribe();
        } catch (PulsarClientException e) {
            throw new CanalClientException("Subscript pulsar consumer error", e);
        }
    }

    @SuppressWarnings("unchecked")
    @Override
    public List<CommonMessage> getMessage(Long timeout, TimeUnit unit) {
        List<CommonMessage> messageList = Lists.newArrayList();
        try {
            Messages<byte[]> messages = pulsarMQConsumer.batchReceive();
            if (null == messages || messages.size() == 0) {
                return messageList;
            }
            // 保存当前消费记录，用于ack和rollback
            this.lastGetBatchMessage = messages;
            for (org.apache.pulsar.client.api.Message<byte[]> msg : messages) {
                byte[] data = msg.getData();
                if (!this.flatMessage) {
                    Message message = CanalMessageSerializerUtil.deserializer(data);
                    List<CommonMessage> list = MessageUtil.convert(message);
                    messageList.addAll(list);
                } else {
                    CommonMessage commonMessage = JSON.parseObject(data, CommonMessage.class);
                    messageList.add(commonMessage);
                }
            }
        } catch (PulsarClientException e) {
            throw new CanalClientException("Receive pulsar batch message error", e);
        }

        return messageList;
    }

    @Override
    public void rollback() {
        try {
            if (isConsumerActive() && hasLastMessages()) {
                // 回滚所有消息
                this.pulsarMQConsumer.negativeAcknowledge(this.lastGetBatchMessage);
            }
        } finally {
            this.lastGetBatchMessage = null;
        }
    }

    @Override
    public void ack() {
        try {
            if (isConsumerActive() && hasLastMessages()) {
                // 确认所有消息
                this.pulsarMQConsumer.acknowledge(this.lastGetBatchMessage);
            }
        } catch (PulsarClientException e) {
            if (isConsumerActive() && hasLastMessages()) {
                this.pulsarMQConsumer.negativeAcknowledge(this.lastGetBatchMessage);
            }
        } finally {
            this.lastGetBatchMessage = null;
        }
    }

    @Override
    public void disconnect() {
        if (null == this.pulsarMQConsumer || !this.pulsarMQConsumer.isConnected()) {
            return;
        }
        try {
            // 会导致暂停期间数据丢失
            // this.pulsarMQConsumer.unsubscribe();
            this.pulsarClient.close();
        } catch (PulsarClientException e) {
            throw new CanalClientException("Disconnect pulsar consumer error", e);
        }
    }

    /**
     * 是否消费可用
     *
     * @return true消费者可用
     */
    private boolean isConsumerActive() {
        return null != this.pulsarMQConsumer && this.pulsarMQConsumer.isConnected();
    }

    /**
     * 是否有未确认消息
     *
     * @return true有正在消费的待确认消息
     */
    private boolean hasLastMessages() {
        return null != this.lastGetBatchMessage && this.lastGetBatchMessage.size() > 0;
    }
}

/**
 * RabbitMQ consumer SPI 实现
 *
 * @author rewerma 2020-02-01
 * @version 1.0.0
 */
@SPI("rabbitmq")
public class CanalRabbitMQConsumer implements CanalMsgConsumer {

    private static final Logger                                logger              = LoggerFactory
        .getLogger(CanalRabbitMQConsumer.class);

    // 链接地址
    private String                                             nameServer;
    // 主机名
    private String                                             vhost;
    private String                                             queueName;

    // 一些鉴权信息
    private String                                             accessKey;
    private String                                             secretKey;
    private Long                                               resourceOwnerId;
    private String                                             username;
    private String                                             password;

    private boolean                                            flatMessage;

    private Connection                                         connect;
    private Channel                                            channel;

    private long                                               batchProcessTimeout = 60 * 1000;
    private BlockingQueue<ConsumerBatchMessage<CommonMessage>> messageBlockingQueue;
    private volatile ConsumerBatchMessage<CommonMessage>       lastGetBatchMessage = null;

    @Override
    public void init(Properties properties, String topic, String groupId) {
        this.nameServer = PropertiesUtils.getProperty(properties, "rabbitmq.host");
        this.vhost = PropertiesUtils.getProperty(properties, "rabbitmq.virtual.host");
        this.queueName = topic;
        this.accessKey = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_ALIYUN_ACCESS_KEY);
        this.secretKey = PropertiesUtils.getProperty(properties, CanalConstants.CANAL_ALIYUN_SECRET_KEY);
        this.username = PropertiesUtils.getProperty(properties, RabbitMQConstants.RABBITMQ_USERNAME);
        this.password = PropertiesUtils.getProperty(properties, RabbitMQConstants.RABBITMQ_PASSWORD);
        Long resourceOwnerIdPro = (Long) properties.get(RabbitMQConstants.RABBITMQ_RESOURCE_OWNERID);
        if (resourceOwnerIdPro != null) {
            this.resourceOwnerId = resourceOwnerIdPro;
        }
        this.flatMessage = (Boolean) properties.get(CanalConstants.CANAL_MQ_FLAT_MESSAGE);
        this.messageBlockingQueue = new LinkedBlockingQueue<>(1024);
    }

    @Override
    public void connect() {
        ConnectionFactory factory = new ConnectionFactory();
        if (accessKey.length() > 0 && secretKey.length() > 0) {
            factory.setCredentialsProvider(new AliyunCredentialsProvider(accessKey, secretKey, resourceOwnerId));
        } else {
            factory.setUsername(username);
            factory.setPassword(password);
        }
        // 解析出端口 modified by 16075140
        if (nameServer != null && nameServer.contains(":")) {
            String[] serverHostAndPort = AddressUtils.splitIPAndPort(nameServer);
            factory.setHost(serverHostAndPort[0]);
            factory.setPort(Integer.parseInt(serverHostAndPort[1]));
        } else {
            factory.setHost(nameServer);
        }

        factory.setAutomaticRecoveryEnabled(true);
        factory.setNetworkRecoveryInterval(5000);
        factory.setVirtualHost(vhost);
        try {
            connect = factory.newConnection();
            channel = connect.createChannel();
        } catch (IOException | TimeoutException e) {
            throw new CanalClientException("Start RabbitMQ producer error", e);
        }

        // 不存在连接 则重新连接
        if (connect == null) {
            this.connect();
        }

        Consumer consumer = new DefaultConsumer(channel) {

            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties,
                                       byte[] body) throws IOException {

                if (body != null) {
                    channel.basicAck(envelope.getDeliveryTag(), process(body));
                }
            }
        };
        try {
            channel.basicConsume(queueName, false, consumer);
        } catch (IOException e) {
            throw new CanalClientException("error", e);
        }
    }

    private boolean process(byte[] messageData) {
        if (logger.isDebugEnabled()) {
            logger.debug("Get Message: {}", new String(messageData));
        }
        List<CommonMessage> messageList = new ArrayList<>();
        if (!flatMessage) {
            Message message = CanalMessageSerializerUtil.deserializer(messageData);
            messageList.addAll(MessageUtil.convert(message));
        } else {
            CommonMessage commonMessage = JSON.parseObject(messageData, CommonMessage.class);
            messageList.add(commonMessage);
        }
        ConsumerBatchMessage<CommonMessage> batchMessage = new ConsumerBatchMessage<>(messageList);
        try {
            messageBlockingQueue.put(batchMessage);
        } catch (InterruptedException e) {
            logger.error("Put message to queue error", e);
            throw new RuntimeException(e);
        }
        boolean isCompleted;
        try {
            isCompleted = batchMessage.waitFinish(batchProcessTimeout);
        } catch (InterruptedException e) {
            logger.error("Interrupted when waiting messages to be finished.", e);
            throw new RuntimeException(e);
        }
        boolean isSuccess = batchMessage.isSuccess();
        return isCompleted && isSuccess;
    }

    @Override
    public List<CommonMessage> getMessage(Long timeout, TimeUnit unit) {
        try {
            if (this.lastGetBatchMessage != null) {
                throw new CanalClientException("mq get/ack not support concurrent & async ack");
            }

            ConsumerBatchMessage<CommonMessage> batchMessage = messageBlockingQueue.poll(timeout, unit);
            if (batchMessage != null) {
                this.lastGetBatchMessage = batchMessage;
                return batchMessage.getData();
            }
        } catch (InterruptedException ex) {
            logger.warn("Get message timeout", ex);
            throw new CanalClientException("Failed to fetch the data after: " + timeout);
        }
        return null;
    }

    @Override
    public void rollback() {
        try {
            if (this.lastGetBatchMessage != null) {
                this.lastGetBatchMessage.fail();
            }
        } finally {
            this.lastGetBatchMessage = null;
        }
    }

    @Override
    public void ack() {
        try {
            if (this.lastGetBatchMessage != null) {
                this.lastGetBatchMessage.ack();
            }
        } catch (Throwable e) {
            if (this.lastGetBatchMessage != null) {
                this.lastGetBatchMessage.fail();
            }
        } finally {
            this.lastGetBatchMessage = null;
        }
    }

    @Override
    public void disconnect() {
        if (channel != null) {
            try {
                channel.close();
            } catch (IOException | TimeoutException e) {
                throw new CanalClientException("stop channel error", e);
            }
        }

        if (connect != null) {
            try {
                connect.close();
            } catch (IOException e) {
                throw new CanalClientException("stop connect error", e);
            }
        }
    }
}
