1 控制器介绍 1.1 控制器的必要性 自主式Pod对象由调度器调度到目标工作节点后即由相应节点上的kubelet负责监控其容器的存活状态，容器主进程崩溃后，kubelet能够自动重启相应的容器。但对出现非主进程崩溃类的容器错误却无从感知，这便依赖于pod资源对象定义的存活探测，以便kubelet能够探知到此类故障。但若pod被删除或者工作节点自身发生故障（工作节点上都有kubelet，kubelet不可用，因此其健康状态便无法保证），则便需要控制器来处理相应的容器重启和配置。
1.2 常见的工作负载控制器 Pod控制器由master的kube-controller-manager组件提供，常见的此类控制器有：
ReplicationController
ReplicaSet： 代用户创建指定数量的pod副本数量，确保pod副本数量符合预期状态，并且支持滚动式自动扩容和缩容功能
Deployment： 工作在ReplicaSet之上，用于管理无状态应用，目前来说最好的控制器。支持滚动更新和回滚功能，还提供声明式配置。
DaemonSet： 用于确保集群中的每一个节点只运行特定的pod副本，常用于实现系统级**后台任务。比如ELK服务
StatefulSet： 管理有状态应用
Job： 只要完成就立即退出，不需要重启或重建
CronJob： 周期性任务控制，不需要持续后台运行
1.3 Pod控制器概述 Kubernetes的核心功能之一还在于要确保各资源对象的当前状态（status）以匹配用户期望的状态（spec），使当前状态不断地向期望状态“和解”（reconciliation）来完成容器应用管理。而这些则是kube-controller-manager的任务。
创建为具体的控制器对象之后，每个控制器均通过API Server提供的接口持续监控相关资源对象的当前状态，并在因故障、更新或其他原因导致系统状态发生变化时，尝试让资源的当前状态想期望状态迁移和逼近。
List-Watch是kubernetes实现的核心机制之一，在资源对象的状态发生变动时，由API Server负责写入etcd并通过水平触发（level-triggered）机制主动通知给相关的客户端程序以确保其不会错过任何一个事件。控制器通过API Server的watch接口实时监控目标资源对象的变动并执行和解操作，但并不会与其他控制器进行任何交互。
1.4 Pod和Pod控制器 Pod控制器资源通过持续性地监控集群中运行着的Pod资源对象来确保受其管控的资源严格符合用户期望的状态，例如资源副本的数量要精确符合期望等。通常，一个Pod控制器资源至少应该包含三个基本的组成部分：
标签选择器：匹配并关联Pod资源对象，并据此完成受其管控的Pod资源计数。
期望的副本数：期望在集群中精确运行着的Pod资源的对象数量。
Pod模板：用于新建Pod资源对象的Pod模板资源。
2 ReplicaSet控制器 2.1 ReplicaSet概述 ReplicaSet是取代早期版本中的ReplicationController控制器，其功能基本上与ReplicationController相同
ReplicaSet（简称RS）是Pod控制器类型的一种实现，用于确保由其管控的Pod对象副本数在任意时刻都能精确满足期望的数量。ReplicaSet控制器资源启动后会查找集群中匹配器标签选择器的Pod资源对象，当前活动对象的数量与期望的数量不吻合时，多则删除，少则通过Pod模板创建以补足。
ReplicaSet能够实现以下功能：
确保Pod资源对象的数量精确反映期望值： ReplicaSet需要确保由其控制运行的Pod副本数量精确吻合配置中定义的期望值，否则就会自动补足所缺或终止所余。
确保Pod健康运行： 探测到由其管控的Pod对象因其所在的工作节点故障而不可用时，自动请求由调度器于其他工作节点创建缺失的Pod副本。
弹性伸缩： 可通过ReplicaSet控制器动态扩容或者缩容Pod资源对象的数量。必要时还可以通过HPA控制器实现Pod资源规模的自动伸缩。
2.2 创建ReplicaSet 2.2.1 核心字段 spec字段一般嵌套使用以下几个属性字段：
1 2 3 4 replicas <integer>：指定期望的Pod对象副本数量 selector <Object>：当前控制器匹配Pod对象副本的标签选择器，支持matchLabels和matchExpressions两种匹配机制 template <Object>：用于定义Pod时的Pod资源信息 minReadySeconds <integer>：用于定义Pod启动后多长时间为可用状态，默认为0秒
2.2.2 ReplicaSet示例 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 [root@k8s-master ~ ] [root@k8s-master ~ ] [root@k8s-master ~ ] [root@k8s-master ~ ] apiVersion: apps/v1 kind: ReplicaSet metadata: name: myapp namespace: default spec: replicas: 2 selector: matchLabels: app: myapp release: canary template: metadata: name: myapp-pod labels: app: myapp release: canary spec: containers: - name: myapp-containers image: ikubernetes/myapp:v1 imagePullPolicy: IfNotPresent ports: - name: http containerPort: 80 [root@k8s-master ~ ] replicaset.apps/myapp created [root@k8s-master ~ ] NAME DESIRED CURRENT READY AGE myapp 4 4 4 3m23s [root@k8s-master ~ ] NAME READY STATUS RESTARTS AGE myapp-bln4v 1 /1 Running 0 6s myapp-bxpzt 1 /1 Running 0 6s [root@k8s-master ~ ] replicas: 4 [root@k8s-master ~ ] NAME DESIRED CURRENT READY AGE CONTAINERS IMAGES SELECTOR myapp 4 4 4 2m50s myapp-containers ikubernetes/myapp:v2 app=myapp,release=canary [root@k8s-master ~ ] NAME READY STATUS RESTARTS AGE LABELS myapp-8hkcr 1 /1 Running 0 2m2s app=myapp,release=canary myapp-bln4v 1 /1 Running 0 3m40s app=myapp,release=canary myapp-bxpzt 1 /1 Running 0 3m40s app=myapp,release=canary myapp-ql2wk 1 /1 Running 0 2m2s app=myapp,release=canary
2.2.3 更新ReplicaSet控制器 修改Pod模板：升级应用
修改上面创建的replicaset示例文件，将镜像ikubernetes/myapp:v1改为v2版本
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 [root@k8s-master ~]# vim manfests/rs-demo.yaml spec: #Pod的规格定义 containers: #容器定义 - name: myapp-containers #容器名称 image: ikubernetes/myapp:v2 #容器镜像 imagePullPolicy: IfNotPresent #拉取镜像的规则 ports: #暴露端口 - name: http #端口名称 containerPort: 80 [root@k8s-master ~]# kubectl apply -f manfests/rs-demo.yaml #执行apply让其重载 [root@k8s-master ~]# kubectl get pods -o custom-columns=Name:metadata.name,Image:spec.containers[0].image Name Image myapp-bln4v ikubernetes/myapp:v1 myapp-bxpzt ikubernetes/myapp:v1 # 说明：这里虽然重载了，但是已有的pod所使用的镜像仍然是v1版本的，只是新建pod时才会使用v2版本，这里测试先手动删除已有的pod。 [root@k8s-master ~]# kubectl delete pods -l app=myapp #删除标签app=myapp的pod资源 pod "myapp-bln4v" deleted pod "myapp-bxpzt" deleted [root@k8s-master ~]# kubectl get pods -o custom-columns=Name:metadata.name,Image:spec.containers[0].image #再次查看通过ReplicaSet新建的pod资源对象。镜像已使用v2版本 Name Image myapp-mdn8j ikubernetes/myapp:v2 myapp-v5bgr ikubernetes/myapp:v2
扩容和缩容
可以直接通过vim 编辑清单文件修改replicas字段，也可以通过kubect edit 命令去编辑。kubectl还提供了一个专用的子命令scale用于实现应用规模的伸缩，支持从资源清单文件中获取新的目标副本数量，也可以直接在命令行通过“--replicas”选项进行读取。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 [root@k8s-master ~]# kubectl get rs #查看ReplicaSet NAME DESIRED CURRENT READY AGE myapp 2 2 2 154m [root@k8s-master ~]# kubectl get pods #查看Pod NAME READY STATUS RESTARTS AGE myapp-mdn8j 1/1 Running 0 5m26s myapp-v5bgr 1/1 Running 0 5m26s # 扩容 [root@k8s-master ~]# kubectl scale replicasets myapp --replicas=5 #将上面的Deployments控制器myapp的Pod副本数量提升为5个 replicaset.extensions/myapp scaled [root@k8s-master ~]# kubectl get rs #查看ReplicaSet NAME DESIRED CURRENT READY AGE myapp 5 5 5 156m [root@k8s-master ~]# kubectl get pods #查看Pod NAME READY STATUS RESTARTS AGE myapp-lrrp8 1/1 Running 0 8s myapp-mbqf8 1/1 Running 0 8s myapp-mdn8j 1/1 Running 0 6m48s myapp-ttmf5 1/1 Running 0 8s myapp-v5bgr 1/1 Running 0 6m48s # 收缩 [root@k8s-master ~]# kubectl scale replicasets myapp --replicas=3 replicaset.extensions/myapp scaled [root@k8s-master ~]# kubectl get rs NAME DESIRED CURRENT READY AGE myapp 3 3 3 159m [root@k8s-master ~]# kubectl get pods NAME READY STATUS RESTARTS AGE myapp-mdn8j 1/1 Running 0 10m myapp-ttmf5 1/1 Running 0 3m48s myapp-v5bgr 1/1 Running 0 10m
2.2.4 删除ReplicaSet控制器资源 使用Kubectl delete命令删除ReplicaSet对象时默认会一并删除其管控的各Pod对象，有时，考虑到这些Pod资源未必由其创建，或者即便由其创建也并非自身的组成部分，这时候可以添加“--cascade=false”选项，取消级联关系。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 [root@k8s-master ~]# kubectl get rs NAME DESIRED CURRENT READY AGE myapp 3 3 3 162m [root@k8s-master ~]# kubectl get pods NAME READY STATUS RESTARTS AGE myapp-mdn8j 1/1 Running 0 12m myapp-ttmf5 1/1 Running 0 6m18s myapp-v5bgr 1/1 Running 0 12m [root@k8s-master ~]# kubectl delete replicasets myapp --cascade=false replicaset.extensions "myapp" deleted [root@k8s-master ~]# kubectl get rs No resources found. [root@k8s-master ~]# kubectl get pods NAME READY STATUS RESTARTS AGE myapp-mdn8j 1/1 Running 0 13m myapp-ttmf5 1/1 Running 0 7m myapp-v5bgr 1/1 Running 0 13m # 通过上面的示例可以看出，添加--cascade=false 参数后再删除ReplicaSet资源对象时并没有将其管控的Pod资源对象一并删除。
3 Deployment控制器 3.1 Deployment概述 Deployment(简写为deploy)是kubernetes控制器的又一种实现，它构建于ReplicaSet控制器之上，可为Pod和ReplicaSet资源提供声明式更新。
Deployment控制器资源的主要职责是为了保证Pod资源的健康运行，其大部分功能均可通过调用ReplicaSet实现，同时还增添部分特性。
事件和状态查看：必要时可以查看Deployment对象升级的详细进度和状态。
回滚：升级操作完成后发现问题时，支持使用回滚机制将应用返回到前一个或由用户指定的历史记录中的版本上。
版本记录：对Deployment对象的每一个操作都予以保存，以供后续可能执行的回滚操作使用。
暂停和启动：对于每一次升级，都能够随时暂停和启动。
多种自动更新方案：一是Recreate，即重建更新机制，全面停止、删除旧有的Pod后用新版本替代；另一个是RollingUpdate，即滚动升级机制，逐步替换旧有的Pod至新的版本。
3.2 创建Deployment Deployment其核心资源和ReplicaSet相似
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 [root@k8s-master ~ ] [root@k8s-master ~ ] [root@k8s-master ~ ] [root@k8s-master ~ ] apiVersion: apps/v1 kind: Deployment metadata: name: deploy-demo namespace: default spec: replicas: 2 selector: matchLabels: app: deploy-app release: canary template: metadata: labels: app: deploy-app release: canary spec: containers: - name: myapp image: ikubernetes/myapp:v1 ports: - name: http containerPort: 80 [root@k8s-master ~ ] deployment.apps/deploy-demo created [root@k8s-master ~ ] NAME READY UP-TO-DATE AVAILABLE AGE deploy-demo 2 /2 2 2 10s [root@k8s-master ~ ] NAME DESIRED CURRENT READY AGE deploy-demo-78c84d4449 2 2 2 20s [root@k8s-master ~ ] NAME READY STATUS RESTARTS AGE deploy-demo-78c84d4449-22btc 1 /1 Running 0 23s deploy-demo-78c84d4449-5fn2k 1 /1 Running 0 23s --- 说明： 通过查看资源对象可以看出，Deployment会自动创建相关的ReplicaSet控制器资源，并以"[DEPLOYMENT-name]-[POD-TEMPLATE-HASH-VALUE]"格式为其命名，其中的hash值由Deployment自动生成。而Pod名则是以ReplicaSet控制器的名称为前缀，后跟5位随机字符。
3.3 更新策略 ReplicaSet控制器的应用更新需要手动分成多步并以特定的次序进行，过程繁杂且容易出错，而Deployment却只需要由用户指定在Pod模板中要改动的内容，（如镜像文件的版本），余下的步骤便会由其自动完成。Pod副本数量也是一样。
Deployment控制器支持两种更新策略：滚动更新（rollingUpdate）和重建创新（Recreate），默认为滚动更新

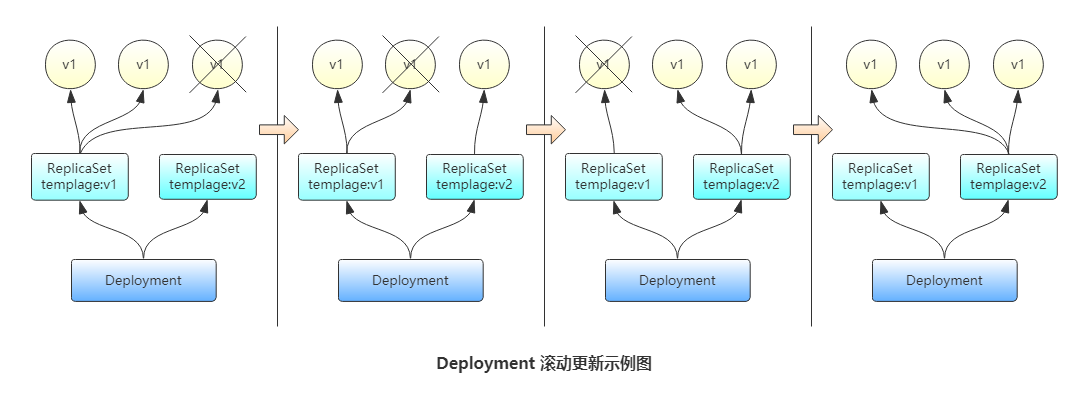

Deployment控制器的滚动更新操作并非在同一个ReplicaSet控制器对象下删除并创建Pod资源，新控制器的Pod对象数量不断增加，直到旧控制器不再拥有Pod对象，而新控制器的副本数量变得完全符合期望值为止。如图所示

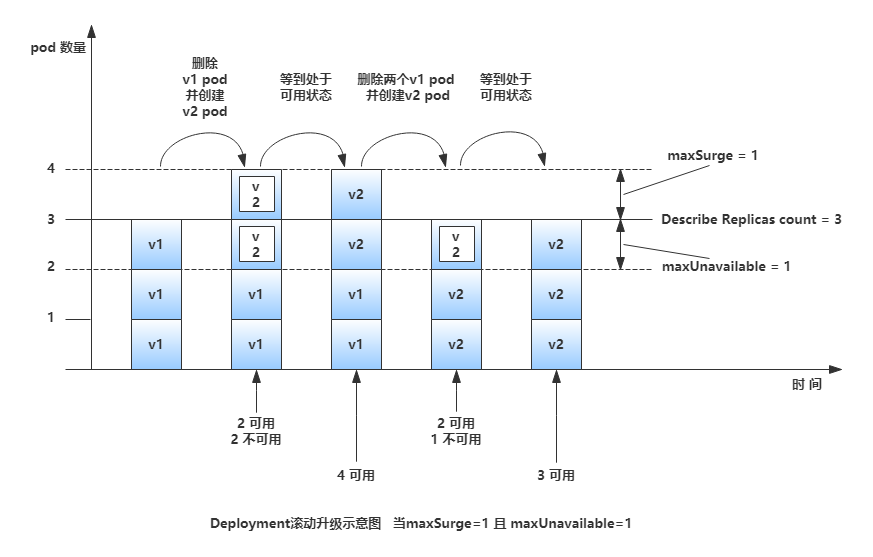

滚动更新时，应用还要确保可用的Pod对象数量不低于某阀值以确保可以持续处理客户端的服务请求，变动的方式和Pod对象的数量范围将通过kubectl explain deployment.spec.strategy.rollingUpdate.maxSurge和kubectl explain deployment.spec.strategy.rollingUpdate.maxUnavailable两个属性同时进行定义。其功能如下：
maxSurge：指定升级期间存在的总Pod对象数量最多可超出期望值的个数，其值可以是0或正整数，也可以是一个期望值的百分比；例如，如果期望值为3，当前的属性值为1，则表示Pod对象的总数不能超过4个。
maxUnavailable：升级期间正常可用的Pod副本数（包括新旧版本）最多不能低于期望值的个数，其值可以是0或正整数，也可以是期望值的百分比；默认值为1，该值意味着如果期望值是3，则升级期间至少要有两个Pod对象处于正常提供服务的状态。
maxSurge和maxUnavailable属性的值不可同时为0，否则Pod对象的副本数量在符合用户期望的数量后无法做出合理变动以进行滚动更新操作。
Deployment控制器可以保留其更新历史中的旧ReplicaSet对象版本，所保存的历史版本数量由kubectl explain deployment.spec.revisionHistoryLimit参数指定。只有保存于revision历史中的ReplicaSet版本可用于回滚。
注：为了保存版本升级的历史，需要在创建Deployment对象时于命令中使用“--record”选项。
3.4 Deployment更新升级 修改Pod模板相关的配置参数便能完成Deployment控制器资源的更新。由于是声明式配置，因此对Deployment控制器资源的修改尤其适合使用apply和patch命令来进行；如果仅只是修改容器镜像，“set image”命令更为易用。
1）首先通过set image命令将上面创建的Deployment对象的镜像版本改为v2版本
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 # 打开1个终端进行升级 [root@k8s-master ~]# kubectl set image deployment/deploy-demo myapp=ikubernetes/myapp:v2 deployment.extensions/deploy-demo image updated # 同时打开终端2进行查看pod资源对象升级过程 [root@k8s-master ~]# kubectl get pods -l app=deploy-app -w NAME READY STATUS RESTARTS AGE deploy-demo-78c84d4449-2rvxr 1/1 Running 0 33s deploy-demo-78c84d4449-nd7rr 1/1 Running 0 33s deploy-demo-7c66dbf45b-7k4xz 0/1 Pending 0 0s deploy-demo-7c66dbf45b-7k4xz 0/1 Pending 0 0s deploy-demo-7c66dbf45b-7k4xz 0/1 ContainerCreating 0 0s deploy-demo-7c66dbf45b-7k4xz 1/1 Running 0 2s deploy-demo-78c84d4449-2rvxr 1/1 Terminating 0 49s deploy-demo-7c66dbf45b-r88qr 0/1 Pending 0 0s deploy-demo-7c66dbf45b-r88qr 0/1 Pending 0 0s deploy-demo-7c66dbf45b-r88qr 0/1 ContainerCreating 0 0s deploy-demo-7c66dbf45b-r88qr 1/1 Running 0 1s deploy-demo-78c84d4449-2rvxr 0/1 Terminating 0 50s deploy-demo-78c84d4449-nd7rr 1/1 Terminating 0 51s deploy-demo-78c84d4449-nd7rr 0/1 Terminating 0 51s deploy-demo-78c84d4449-nd7rr 0/1 Terminating 0 57s deploy-demo-78c84d4449-nd7rr 0/1 Terminating 0 57s deploy-demo-78c84d4449-2rvxr 0/1 Terminating 0 60s deploy-demo-78c84d4449-2rvxr 0/1 Terminating 0 60s # 同时打开终端3进行查看pod资源对象变更过程 [root@k8s-master ~]# kubectl get deployment deploy-demo -w NAME READY UP-TO-DATE AVAILABLE AGE deploy-demo 2/2 2 2 37s deploy-demo 2/2 2 2 47s deploy-demo 2/2 2 2 47s deploy-demo 2/2 0 2 47s deploy-demo 2/2 1 2 47s deploy-demo 3/2 1 3 49s deploy-demo 2/2 1 2 49s deploy-demo 2/2 2 2 49s deploy-demo 3/2 2 3 50s deploy-demo 2/2 2 2 51s # 升级完成再次查看rs的情况，以下可以看到原的rs作为备份，而现在启动的是新的rs [root@k8s-master ~]# kubectl get rs NAME DESIRED CURRENT READY AGE deploy-demo-78c84d4449 0 0 0 4m41s deploy-demo-7c66dbf45b 2 2 2 3m54s
2）Deployment扩容
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 # 1、使用kubectl scale命令扩容 [root@k8s-master ~]# kubectl scale deployment deploy-demo --replicas=3 deployment.extensions/deploy-demo scaled [root@k8s-master ~]# kubectl get pods NAME READY STATUS RESTARTS AGE deploy-demo-7c66dbf45b-7k4xz 1/1 Running 0 10m deploy-demo-7c66dbf45b-gq2tw 1/1 Running 0 3s deploy-demo-7c66dbf45b-r88qr 1/1 Running 0 10m # 2、使用直接修改配置清单方式进行扩容 [root@k8s-master ~]# vim manfests/deploy-demo.yaml spec: #deployment控制器的规格定义 replicas: 4 #定义副本数量为2个 [root@k8s-master ~]# kubectl apply -f manfests/deploy-demo.yaml deployment.apps/deploy-demo configured [root@k8s-master ~]# kubectl get pods NAME READY STATUS RESTARTS AGE deploy-demo-78c84d4449-6rmnm 1/1 Running 0 61s deploy-demo-78c84d4449-9xfp9 1/1 Running 0 58s deploy-demo-78c84d4449-c2m6h 1/1 Running 0 61s deploy-demo-78c84d4449-sfxps 1/1 Running 0 57s # 3、使用kubectl patch打补丁的方式进行扩容 [root@k8s-master ~]# kubectl patch deployment deploy-demo -p '{"spec":{"replicas":5}}' deployment.extensions/deploy-demo patched [root@k8s-master ~]# [root@k8s-master ~]# kubectl get pods NAME READY STATUS RESTARTS AGE deploy-demo-78c84d4449-6rmnm 1/1 Running 0 3m44s deploy-demo-78c84d4449-9xfp9 1/1 Running 0 3m41s deploy-demo-78c84d4449-c2m6h 1/1 Running 0 3m44s deploy-demo-78c84d4449-sfxps 1/1 Running 0 3m40s deploy-demo-78c84d4449-t7jxb 1/1 Running 0 3s
3.5 金丝雀发布 采用先添加再删除的方式，且可用Pod资源对象总数不低于期望值的方式进行，配置如下：
1）添加其总数多余期望值一个
1 2 [root@k8s-master ~]# kubectl patch deployment deploy-demo -p '{"spec":{"strategy":{"rollingUpdate":{"maxSurge":1,"maxUnavailable":0}}}}' deployment.extensions/deploy-demo patched
2）启动更新过程，在修改相应容器的镜像版本后立即暂停更新进度。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 [root@k8s-master ~]# kubectl set image deployment/deploy-demo myapp=ikubernetes/myapp:v3 && kubectl rollout pause deployment deploy-demo deployment.extensions/deploy-demo image updated deployment.extensions/deploy-demo paused # 查看 [root@k8s-master ~]# kubectl get deployment #查看deployment资源对象 NAME READY UP-TO-DATE AVAILABLE AGE deploy-demo 6/5 1 6 37m [root@k8s-master ~]# kubectl get pods -o custom-columns=Name:metadata.name,Image:spec.containers[0].image #查看pod资源对象的name和image Name Image deploy-demo-6bf8dbdc9f-fjnzn ikubernetes/myapp:v3 deploy-demo-78c84d4449-6rmnm ikubernetes/myapp:v1 deploy-demo-78c84d4449-9xfp9 ikubernetes/myapp:v1 deploy-demo-78c84d4449-c2m6h ikubernetes/myapp:v1 deploy-demo-78c84d4449-sfxps ikubernetes/myapp:v1 deploy-demo-78c84d4449-t7jxb ikubernetes/myapp:v1 [root@k8s-master ~]# kubectl rollout status deployment/deploy-demo #查看更新情况 Waiting for deployment "deploy-demo" rollout to finish: 1 out of 5 new replicas have been updated... --- # 通过上面查看可以看出，当前的pod数量为6个，因为此前我们定义的期望值为5个，这里多出了一个，且这个镜像版本为v3版本。 # 全部更新 [root@k8s-master ~]# kubectl rollout resume deployment deploy-demo deployment.extensions/deploy-demo resumed # 再次查看 [root@k8s-master ~]# kubectl get deployment #查看deployment资源对象 NAME READY UP-TO-DATE AVAILABLE AGE deploy-demo 5/5 5 5 43m [root@k8s-master ~]# kubectl get pods -o custom-columns=Name:metadata.name,Image:spec.containers[0].image #查看pod资源对象的name和image Name Image deploy-demo-6bf8dbdc9f-2z6gt ikubernetes/myapp:v3 deploy-demo-6bf8dbdc9f-f79q2 ikubernetes/myapp:v3 deploy-demo-6bf8dbdc9f-fjnzn ikubernetes/myapp:v3 deploy-demo-6bf8dbdc9f-pjf4z ikubernetes/myapp:v3 deploy-demo-6bf8dbdc9f-x7fnk ikubernetes/myapp:v3 [root@k8s-master ~]# kubectl rollout status deployment/deploy-demo #查看更新情况 Waiting for deployment "deploy-demo" rollout to finish: 1 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 1 out of 5 new replicas have been updated... Waiting for deployment spec update to be observed... Waiting for deployment spec update to be observed... Waiting for deployment "deploy-demo" rollout to finish: 1 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 1 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 2 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 2 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 2 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 3 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 3 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 3 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 4 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 4 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 4 out of 5 new replicas have been updated... Waiting for deployment "deploy-demo" rollout to finish: 1 old replicas are pending termination... Waiting for deployment "deploy-demo" rollout to finish: 1 old replicas are pending termination... deployment "deploy-demo" successfully rolled out
3.6 回滚Deployment控制器下的应用发布 若因各种原因导致滚动更新无法正常进行，如镜像文件获取失败，等等；则应该将应用回滚到之前的版本，或者回滚到指定的历史记录中的版本。则通过kubectl rollout undo命令完成。如果回滚到指定版本则需要添加--to-revision选项
1）回到上一个版本
1 2 3 4 5 6 7 8 9 [root@k8s-master ~]# kubectl rollout undo deployment/deploy-demo deployment.extensions/deploy-demo rolled back [root@k8s-master ~]# kubectl get pods -o custom-columns=Name:metadata.name,Image:spec.containers[0].image Name Image deploy-demo-78c84d4449-2xspz ikubernetes/myapp:v1 deploy-demo-78c84d4449-f8p46 ikubernetes/myapp:v1 deploy-demo-78c84d4449-mnmvc ikubernetes/myapp:v1 deploy-demo-78c84d4449-tsl7r ikubernetes/myapp:v1 deploy-demo-78c84d4449-xdt8j ikubernetes/myapp:v1
2）回滚到指定版本
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 # 通过该命令查看更新历史记录 [root@k8s-master ~]# kubectl rollout history deployment/deploy-demo deployment.extensions/deploy-demo REVISION CHANGE-CAUSE 2 <none> 4 <none> 5 <none> # 回滚到版本2 [root@k8s-master ~]# kubectl rollout undo deployment/deploy-demo --to-revision=2 deployment.extensions/deploy-demo rolled back [root@k8s-master ~]# kubectl get pods -o custom-columns=Name:metadata.name,Image:spec.containers[0].image Name Image deploy-demo-7c66dbf45b-42nj4 ikubernetes/myapp:v2 deploy-demo-7c66dbf45b-8zhf5 ikubernetes/myapp:v2 deploy-demo-7c66dbf45b-bxw7x ikubernetes/myapp:v2 deploy-demo-7c66dbf45b-gmq8x ikubernetes/myapp:v2 deploy-demo-7c66dbf45b-mrfdb ikubernetes/myapp:v2
4 DaemonSet控制器 4.1 DaemonSet概述 DaemonSet用于在集群中的全部节点上同时运行一份指定Pod资源副本，后续新加入集群的工作节点也会自动创建一个相关的Pod对象，当从集群移除借点时，此类Pod对象也将被自动回收而无需重建。管理员也可以使用节点选择器及节点标签指定仅在具有特定特征的节点上运行指定的Pod对象。
应用场景
运行集群存储的守护进程，如在各个节点上运行glusterd或ceph。
在各个节点上运行日志收集守护进程，如fluentd和logstash。
在各个节点上运行监控系统的代理守护进程，如Prometheus Node Exporter、collectd、Datadog agent、New Relic agent和Ganglia gmond等。
4.2 创建DaemonSet DaemonSet控制器的spec字段中嵌套使用的相同字段selector、template和minReadySeconds，并且功能和用法基本相同，但它不支持replicas，因为毕竟不能通过期望值来确定Pod资源的数量，而是基于节点数量。
这里使用nginx来示例，生产环境就比如使用上面提到的logstash等。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 [root@k8s-master ~ ] apiVersion: apps/v1 kind: DaemonSet metadata: name: daemset-nginx namespace: default labels: app: daem-nginx spec: selector: matchLabels: app: daem-nginx template: metadata: name: nginx labels: app: daem-nginx spec: containers: - name: nginx-pod image: nginx:1.12 ports: - name: http containerPort: 80 [root@k8s-master ~ ] daemonset.apps/daemset-nginx created [root@k8s-master ~ ] NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES daemset-nginx-7s474 1 /1 Running 0 80s 10.244 .1 .61 k8s-node1 <none> <none> daemset-nginx-kxpl2 1 /1 Running 0 94s 10.244 .2 .58 k8s-node2 <none> <none> [root@k8s-master ~ ] ...... Name: daemset-nginx Selector: app=daem-nginx Node-Selector: <none> ...... Desired Number of Nodes Scheduled: 2 Current Number of Nodes Scheduled: 2 Number of Nodes Scheduled with Up-to-date Pods: 2 Number of Nodes Scheduled with Available Pods: 2 Number of Nodes Misscheduled: 0 Pods Status: 2 Running / 0 Waiting / 0 Succeeded / 0 Failed ......
通过上面验证查看，Node-Selector字段的值为空，表示它需要运行在集群中的每个节点之上。而当前的节点数是2个，所以其期望的Pod副本数（Desired Number of Nodes Scheduled）为2，而当前也已经创建了2个相关的Pod对象。
注意
对于特殊的硬件的节点来说，可能有的运行程序只需要在某一些节点上运行，那么通过Pod模板的spec字段中嵌套使用nodeSelector字段，并确保其值定义的标签选择器与部分特定工作节点的标签匹配即可。
4.3 更新DaemonSet对象 DaemonSet自Kubernetes1.6版本起也开始支持更新机制，相关配置嵌套在kubectl explain daemonset.spec.updateStrategy字段中。其支持RollingUpdate（滚动更新）和OnDelete（删除时更新）两种策略，滚动更新为默认的更新策略。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 # (1)查看镜像版本 [root@k8s-master ~]# kubectl get pods -l app=daem-nginx -o custom-columns=NAME:metadata.name,NODE:spec.nodeName,Image:spec.containers[0].image NAME NODE Image daemset-nginx-7s474 k8s-node1 nginx:1.12 daemset-nginx-kxpl2 k8s-node2 nginx:1.12 # (2)更新 [root@k8s-master ~]# kubectl set image daemonset/daemset-nginx nginx-pod=nginx:1.14 [root@k8s-master ~]# kubectl get pods -l app=daem-nginx -o custom-columns=NAME:metadata.name,NODE:spec.nodeName,Image:spec.containers[0].image #再次查看 NAME NODE Image daemset-nginx-74c95 k8s-node2 nginx:1.14 daemset-nginx-nz6n9 k8s-node1 nginx:1.14 # (3)查坎详细信息 [root@k8s-master ~]# kubectl describe daemonset daemset-nginx ...... Events: Type Reason Age From Message ---- ------ ---- ---- ------- Normal SuccessfulCreate 49m daemonset-controller Created pod: daemset-nginx-6kzg6 Normal SuccessfulCreate 49m daemonset-controller Created pod: daemset-nginx-jjnc2 Normal SuccessfulDelete 40m daemonset-controller Deleted pod: daemset-nginx-jjnc2 Normal SuccessfulCreate 40m daemonset-controller Created pod: daemset-nginx-kxpl2 Normal SuccessfulDelete 40m daemonset-controller Deleted pod: daemset-nginx-6kzg6 Normal SuccessfulCreate 40m daemonset-controller Created pod: daemset-nginx-7s474 Normal SuccessfulDelete 15s daemonset-controller Deleted pod: daemset-nginx-7s474 Normal SuccessfulCreate 8s daemonset-controller Created pod: daemset-nginx-nz6n9 Normal SuccessfulDelete 5s daemonset-controller Deleted pod: daemset-nginx-kxpl2
通过上面查看可以看出，默认的滚动更新策略是一次删除一个工作节点上的Pod资源，待其最新版本Pod重建完成后再开始操作另一个工作节点上的Pod资源。
DaemonSet控制器的滚动更新机制也可以借助于minReadySeconds字段控制滚动节奏；必要时也可以执行暂停和继续操作。其也可以进行回滚操作。
5 StatefulSet控制器 前面使用Deployment创建的Pod是无状态的，当挂载了volume之后，如果该Pod挂了，Replication Controller会再启动一个Pod来保证可用性，但是由于Pod是无状态的，pod挂了就会和之前的Volume的关系断开，新创建的Pod无法找到之前的Pod。但是对于用户来说，他们对底层的Pod挂了是没有感知的，但是当Pod挂了之后就无法再使用之前挂载的存储卷。为了解决这一问题，就引入了StatefulSet用于保留Pod的状态信息。
StatefulSet是Pod资源控制器的一种实现，用于部署和扩展有状态应用的Pod资源，确保它们的运行顺序及每个Pod资源的唯一性。其应用场景包括：
稳定的持久化存储，即Pod重新调度后还是能访问到相同的持久化数据，基于PVC来实现。
稳定的网络标识，即Pod重新调度后其PodName和HostName不变，基于Headless Service（即没有Cluster IP的Service）来实现
有序部署，有序扩展，即Pod是有顺序的，在部署或者扩展的时候要依据定义的顺序依次进行（即从0到N-1，在下一个Pod运行之前的所有之前的Pod必须都是Running和Ready状态），基于init Containers来实现
有序收缩，有序删除（即从N-1到0）
StatefulSet由以下几个部分组成：
用于定义网络标志（DNS domain）和Headless Service
用于创建PersistentVolumes和VolumeClaimTemplates
定义具体应用的StatefulSet
StatefulSet中的每个Pod的DNS格式为statefulSetName-{0..N-1}.serviceName.namespace.svc.cluster.local，其中
serviceName：为Headless Service的名字
0..N-1：为Pod所在的序号，从0开始到N-1
statefulSetName：为StatefulSet的名字
namespace：为服务所在的namaspace，Headless Service和StatefulSet必须在相同的namespace
.cluster.local：为Cluster Domain
5.1 为什么要有headless？ 在Deployment中，每一个pod是没有名称，是随机字符串，是无序的。而statefulSet中是要求有序的，每一个Pod的名称必须是固定的。当节点挂了，重建之后的标识符是不变的，每一个节点的节点名称是不会改变的。Pod名称是作为Pod识别的唯一标识符，必须保证其标识符的稳定并且唯一。
为了实现标识符的稳定，这时候就需要一个headless service解析直达到Pod，还需要给Pod配置一个唯一的名称。

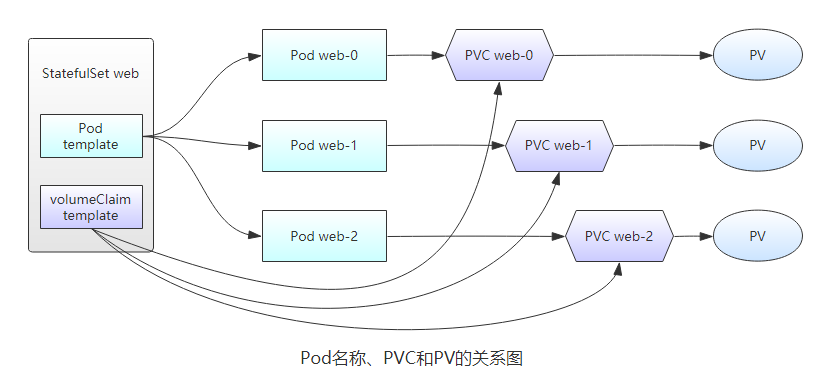

5.2 为什么要有volumeClainTemplate？ 大部分有状态副本集都会用到持久存储，比如分布式系统来说，由于数据是不一样的，每个节点都需要自己专用的存储节点。而在Deployment中Pod模板中创建的存储卷是一个共享的存储卷，多个Pod使用同一个存储卷，而statefulSet定义中的每一个Pod都不能使用同一个存储卷，由此基于Pod模板创建Pod是不适应的，这就需要引入volumeClainTemplate，当在使用StatefulSet创建Pod时，会自动生成一个PVC，从而请求绑定一个PV，从而有自己专用的存储卷。Pod名称、PVC和PV的关系图如下：
5.3 StatefulSet 定义 在创建StatefulSet之前需要准备的东西，创建顺序非常关键，如下
1、Volume
2、Persistent Volume
3、Persistent Volume Clain
4、Service
5、StatefulSet
Volume可以有很多中类型，比如nfs、gluster等，下面使用nfs
statefulSet字段说明：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 [root@k8s-master ~ ] KIND: StatefulSet VERSION: apps/v1 DESCRIPTION: StatefulSet represents a set of pods with consistent identities. Identities are defined as: - Network: A single stable DNS and hostname. - Storage: As many VolumeClaims as requested. The StatefulSet guarantees that a given network identity will always map to the same storage identity. FIELDS: apiVersion <string> kind <string> metadata <Object> spec <Object> status <Object> [root@k8s-master ~ ] podManagementPolicy <string> replicas <integer> revisionHistoryLimit <integer> selector <Object> -required- serviceName <string> -required- template <Object> -required- updateStrategy <Object> volumeClaimTemplates <[]Object>
5.3.1 清单定义StatefulSet 通过上面的描述，下面示例定义StatefulSet资源，在定义之前首先得准备PV资源对象。这里同样使用NFS作为后端存储。
1）准备NFS（安装软件省略，参考 ）
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 (1)创建存储卷对应的目录 [root@storage ~]# mkdir /data/volumes/v{1..5} -p (2)修改nfs的配置文件 [root@storage ~]# vim /etc/exports /data/volumes/v1 192.168.1.0/24(rw,no_root_squash) /data/volumes/v2 192.168.1.0/24(rw,no_root_squash) /data/volumes/v3 192.168.1.0/24(rw,no_root_squash) /data/volumes/v4 192.168.1.0/24(rw,no_root_squash) /data/volumes/v5 192.168.1.0/24(rw,no_root_squash) (3)查看nfs的配置 [root@storage ~]# exportfs -arv exporting 192.168.1.0/24:/data/volumes/v5 exporting 192.168.1.0/24:/data/volumes/v4 exporting 192.168.1.0/24:/data/volumes/v3 exporting 192.168.1.0/24:/data/volumes/v2 exporting 192.168.1.0/24:/data/volumes/v1 (4)使配置生效 [root@storage ~]# showmount -e Export list for storage: /data/volumes/v5 192.168.1.0/24 /data/volumes/v4 192.168.1.0/24 /data/volumes/v3 192.168.1.0/24 /data/volumes/v2 192.168.1.0/24 /data/volumes/v1 192.168.1.0/24
2）创建PV；这里创建5个PV，存储大小各不相等，是否可读也不相同，这里新创建一个目录用于存放statefulset所有的资源清单文件等
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 [root@k8s-master ~ ] (1)编写创建pv的资源清单 [root@k8s-master statefulset ] apiVersion: v1 kind: PersistentVolume metadata: name: pv-nfs-001 labels: name: pv001 spec: nfs: path: /data/volumes/v1 server: 192.168 .1 .34 readOnly: false accessModes: ["ReadWriteOnce" ,"ReadWriteMany" ] capacity: storage: 5Gi persistentVolumeReclaimPolicy: Retain --- apiVersion: v1 kind: PersistentVolume metadata: name: pv-nfs-002 labels: name: pv002 spec: nfs: path: /data/volumes/v2 server: 192.168 .1 .34 readOnly: false accessModes: ["ReadWriteOnce" ] capacity: storage: 5Gi persistentVolumeReclaimPolicy: Retain --- apiVersion: v1 kind: PersistentVolume metadata: name: pv-nfs-003 labels: name: pv003 spec: nfs: path: /data/volumes/v3 server: 192.168 .1 .34 readOnly: false accessModes: ["ReadWriteOnce" ,"ReadWriteMany" ] capacity: storage: 5Gi persistentVolumeReclaimPolicy: Retain --- apiVersion: v1 kind: PersistentVolume metadata: name: pv-nfs-004 labels: name: pv004 spec: nfs: path: /data/volumes/v4 server: 192.168 .1 .34 readOnly: false accessModes: ["ReadWriteOnce" ,"ReadWriteMany" ] capacity: storage: 5Gi persistentVolumeReclaimPolicy: Retain --- apiVersion: v1 kind: PersistentVolume metadata: name: pv-nfs-005 labels: name: pv005 spec: nfs: path: /data/volumes/v5 server: 192.168 .1 .34 readOnly: false accessModes: ["ReadWriteOnce" ,"ReadWriteMany" ] capacity: storage: 5Gi persistentVolumeReclaimPolicy: Retain (2)创建PV [root@k8s-master statefulset ] persistentvolume/pv-nfs-001 created persistentvolume/pv-nfs-002 created persistentvolume/pv-nfs-003 created persistentvolume/pv-nfs-004 created persistentvolume/pv-nfs-005 created (3)查看PV [root@k8s-master statefulset ] NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE pv-nfs-001 2Gi RWO,RWX Retain Available 3s pv-nfs-002 5Gi RWO Retain Available 3s pv-nfs-003 5Gi RWO,RWX Retain Available 3s pv-nfs-004 5Gi RWO,RWX Retain Available 3s pv-nfs-005 5Gi RWO,RWX Retain Available 3s
3）编写定义StatefulSet的资源清单，首先我们要定义一个Headless Service，这里headless Service和StatefulSet写在一个文件。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 [root@k8s-master statefulset ] apiVersion: v1 kind: Service metadata: name: nginx-svc labels: app: nginx-svc spec: ports: - name: http port: 80 clusterIP: None selector: app: nginx-pod --- apiVersion: apps/v1 kind: StatefulSet metadata: name: nginx-statefulset spec: serviceName: nginx-svc replicas: 5 selector: matchLabels: app: nginx-pod template: metadata: labels: app: nginx-pod spec: containers: - name: nginx image: nginx:1.12 imagePullPolicy: IfNotPresent ports: - name: http containerPort: 80 volumeMounts: - name: nginxdata mountPath: /usr/share/nginx/html volumeClaimTemplates: - metadata: name: nginxdata spec: accessModes: ["ReadWriteOnce" ] resources: requests: storage: 5Gi
解析上面的资源清单：由于StatefulSet资源依赖于一个事先存在的Service资源，所以需要先定义一个名为nginx-svc的Headless Service资源，用于关联到每个Pod资源创建DNS资源记录。接着定义了一个名为nginx-statefulset的StatefulSet资源，它通过Pod模板创建了5个Pod资源副本，并基于volumeClaiTemplate向前面创建的PV进行了请求大小为5Gi的专用存储卷。
4）创建StatefulSet资源，这里打开另外一个窗口实时查看pod
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 [root @k8s -master statefulset ] service/nginx-svc created statefulset.apps/nginx-statefulset created [root @k8s -master statefulset ] NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 10.96 .0.1 <none> 443 /TCP 5 d19h nginx-svc ClusterIP None <none> 80 /TCP 29 s [root @k8s -master statefulset ] NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE pv-nfs-001 2 Gi RWO,RWX Retain Available 3 m49s pv-nfs-002 5 Gi RWO Retain Bound default/nginxdata-nginx-statefulset-0 3 m49s pv-nfs-003 5 Gi RWO,RWX Retain Bound default/nginxdata-nginx-statefulset-1 3 m49s pv-nfs-004 5 Gi RWO,RWX Retain Bound default/nginxdata-nginx-statefulset-2 3 m49s pv-nfs-005 5 Gi RWO,RWX Retain Available 3 m48s [root @k8s -master statefulset ] NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE nginxdata-nginx-statefulset-0 Bound pv-nfs-002 5 Gi RWO 21 s nginxdata-nginx-statefulset-1 Bound pv-nfs-003 5 Gi RWO,RWX 18 s nginxdata-nginx-statefulset-2 Bound pv-nfs-004 5 Gi RWO,RWX 15 s [root @k8s -master statefulset ] NAME READY AGE nginx-statefulset 3 /3 58 s [root @k8s -master statefulset ] NAME READY STATUS RESTARTS AGE nginx-statefulset-0 1 /1 Running 0 78 s nginx-statefulset-1 1 /1 Running 0 75 s nginx-statefulset-2 1 /1 Running 0 72 s [root @k8s -master ~] nginx-statefulset-0 0 /1 Pending 0 0 s nginx-statefulset-0 0 /1 Pending 0 0 s nginx-statefulset-0 0 /1 Pending 0 1 s nginx-statefulset-0 0 /1 ContainerCreating 0 1 s nginx-statefulset-0 1 /1 Running 0 3 s nginx-statefulset-1 0 /1 Pending 0 0 s nginx-statefulset-1 0 /1 Pending 0 0 s nginx-statefulset-1 0 /1 Pending 0 1 s nginx-statefulset-1 0 /1 ContainerCreating 0 1 s nginx-statefulset-1 1 /1 Running 0 3 s nginx-statefulset-2 0 /1 Pending 0 0 s nginx-statefulset-2 0 /1 Pending 0 0 s nginx-statefulset-2 0 /1 Pending 0 2 s nginx-statefulset-2 0 /1 ContainerCreating 0 2 s nginx-statefulset-2 1 /1 Running 0 4 s
5）删除测试，同样在另外一个窗口动态查看pod
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 [root@k8s-master statefulset]# kubectl delete -f statefulset-demo.yaml service "nginx-svc" deleted statefulset.apps "nginx-statefulset" deleted [root@k8s-master ~]# kubectl get pods -w #动态查看删除过程，可以也是按照顺序删除，逆向关闭。 NAME READY STATUS RESTARTS AGE nginx-statefulset-0 1/1 Running 0 18m nginx-statefulset-1 1/1 Running 0 18m nginx-statefulset-2 1/1 Running 0 18m nginx-statefulset-2 1/1 Terminating 0 18m nginx-statefulset-0 1/1 Terminating 0 18m nginx-statefulset-1 1/1 Terminating 0 18m nginx-statefulset-2 0/1 Terminating 0 18m nginx-statefulset-0 0/1 Terminating 0 18m nginx-statefulset-1 0/1 Terminating 0 18m nginx-statefulset-2 0/1 Terminating 0 18m nginx-statefulset-2 0/1 Terminating 0 18m nginx-statefulset-2 0/1 Terminating 0 18m nginx-statefulset-1 0/1 Terminating 0 18m nginx-statefulset-1 0/1 Terminating 0 18m nginx-statefulset-0 0/1 Terminating 0 18m nginx-statefulset-0 0/1 Terminating 0 18m 此时PVC依旧存在的，再重新创建pod时，依旧会重新去绑定原来的PVC [root@k8s-master statefulset]# kubectl apply -f statefulset-demo.yaml service/nginx-svc created statefulset.apps/nginx-statefulset created [root@k8s-master statefulset]# kubectl get pvc #查看PVC绑定 NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE nginxdata-nginx-statefulset-0 Bound pv-nfs-002 5Gi RWO 30m nginxdata-nginx-statefulset-1 Bound pv-nfs-003 5Gi RWO,RWX 30m nginxdata-nginx-statefulset-2 Bound pv-nfs-004 5Gi RWO,RWX 30m
6）名称解析，在创建的每一个Pod中，每一个Pod自己的名称都是可以被解析的，如下：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 [root@k8s-master statefulset]# kubectl get pods -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES nginx-statefulset-0 1/1 Running 0 12m 10.244.2.96 k8s-node2 <none> <none> nginx-statefulset-1 1/1 Running 0 12m 10.244.1.96 k8s-node1 <none> <none> nginx-statefulset-2 1/1 Running 0 12m 10.244.2.97 k8s-node2 <none> <none> [root@k8s-master statefulset]# dig -t A nginx-statefulset-0.nginx-svc.default.svc.cluster.local @10.96.0.10 ...... ;; ANSWER SECTION: nginx-statefulset-0.nginx-svc.default.svc.cluster.local. 30 IN A 10.244.2.96 [root@k8s-master statefulset]# dig -t A nginx-statefulset-1.nginx-svc.default.svc.cluster.local @10.96.0.10 ...... ;; ANSWER SECTION: nginx-statefulset-1.nginx-svc.default.svc.cluster.local. 30 IN A 10.244.1.96 [root@k8s-master statefulset]# dig -t A nginx-statefulset-2.nginx-svc.default.svc.cluster.local @10.96.0.10 ...... ;; ANSWER SECTION: nginx-statefulset-2.nginx-svc.default.svc.cluster.local. 30 IN A 10.244.2.97 也可以进入到容器中进行解析，通过对Pod的名称解析得到IP # pod_name.service_name.ns_name.svc.cluster.local eg: nginx-statefulset-0.nginx-svc.default.svc.cluster.local
5.3.2 StatefulSet资源扩缩容 StatefulSet资源的扩缩容与Deployment资源相似，即通过修改资源的副本数来改动其目标Pod资源数量。对StatefulSet资源来说，kubectl scale和kubectl patch命令均可以实现此功能，也可以使用kubectl edit命令直接修改其副本数，或者修改资源清单文件，由kubectl apply命令重新声明。
1）通过scale将nginx-statefulset资源副本数量扩容为4个
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 [root@k8s-master statefulset]# kubectl scale statefulset/nginx-statefulset --replicas=4 #扩容副本增加到4个 statefulset.apps/nginx-statefulset scaled [root@k8s-master statefulset]# kubectl get pods #查看pv信息 NAME READY STATUS RESTARTS AGE nginx-statefulset-0 1/1 Running 0 16m nginx-statefulset-1 1/1 Running 0 16m nginx-statefulset-2 1/1 Running 0 16m nginx-statefulset-3 1/1 Running 0 3s [root@k8s-master statefulset]# kubectl get pv #查看pv绑定 NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE pv-nfs-001 2Gi RWO,RWX Retain Available 21m pv-nfs-002 5Gi RWO Retain Bound default/nginxdata-nginx-statefulset-0 21m pv-nfs-003 5Gi RWO,RWX Retain Bound default/nginxdata-nginx-statefulset-1 21m pv-nfs-004 5Gi RWO,RWX Retain Bound default/nginxdata-nginx-statefulset-2 21m pv-nfs-005 5Gi RWO,RWX Retain Bound default/nginxdata-nginx-statefulset-3 21m
2）通过patch将nginx-statefulset资源副本数量缩容为3个
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 [root@k8s-master statefulset]# kubectl patch sts/nginx-statefulset -p '{"spec":{"replicas":2}}' #通过patch打补丁方式缩容 statefulset.apps/nginx-statefulset patched [root@k8s-master ~]# kubectl get pods -w #动态查看缩容过程 NAME READY STATUS RESTARTS AGE nginx-statefulset-0 1/1 Running 0 17m nginx-statefulset-1 1/1 Running 0 17m nginx-statefulset-2 1/1 Running 0 17m nginx-statefulset-3 1/1 Running 0 1m nginx-statefulset-3 1/1 Terminating 0 20s nginx-statefulset-3 0/1 Terminating 0 20s nginx-statefulset-3 0/1 Terminating 0 22s nginx-statefulset-3 0/1 Terminating 0 22s nginx-statefulset-2 1/1 Terminating 0 24s nginx-statefulset-2 0/1 Terminating 0 24s nginx-statefulset-2 0/1 Terminating 0 36s nginx-statefulset-2 0/1 Terminating 0 36s
5.3.3 更新策略 StatefulSet的默认更新策略为滚动更新，也可以暂停更新
5.3.3.1 滚动更新示例 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 [root@k8s-master statefulset]# kubectl patch sts/nginx-statefulset -p '{"spec":{"replicas":4}}' #这里先将副本扩容到4个。方便测试 [root@k8s-master ~]# kubectl set image statefulset nginx-statefulset nginx=nginx:1.14 #更新镜像版本 statefulset.apps/nginx-statefulset image updated [root@k8s-master ~]# kubectl get pods -w #动态查看更新 NAME READY STATUS RESTARTS AGE nginx-statefulset-0 1/1 Running 0 18m nginx-statefulset-1 1/1 Running 0 18m nginx-statefulset-2 1/1 Running 0 13m nginx-statefulset-3 1/1 Running 0 13m nginx-statefulset-3 1/1 Terminating 0 13m nginx-statefulset-3 0/1 Terminating 0 13m nginx-statefulset-3 0/1 Terminating 0 13m nginx-statefulset-3 0/1 Terminating 0 13m nginx-statefulset-3 0/1 Pending 0 0s nginx-statefulset-3 0/1 Pending 0 0s nginx-statefulset-3 0/1 ContainerCreating 0 0s nginx-statefulset-3 1/1 Running 0 2s nginx-statefulset-2 1/1 Terminating 0 13m nginx-statefulset-2 0/1 Terminating 0 13m nginx-statefulset-2 0/1 Terminating 0 14m nginx-statefulset-2 0/1 Terminating 0 14m nginx-statefulset-2 0/1 Pending 0 0s nginx-statefulset-2 0/1 Pending 0 0s nginx-statefulset-2 0/1 ContainerCreating 0 0s nginx-statefulset-2 1/1 Running 0 1s nginx-statefulset-1 1/1 Terminating 0 18m nginx-statefulset-1 0/1 Terminating 0 18m nginx-statefulset-1 0/1 Terminating 0 18m nginx-statefulset-1 0/1 Terminating 0 18m nginx-statefulset-1 0/1 Pending 0 0s nginx-statefulset-1 0/1 Pending 0 0s nginx-statefulset-1 0/1 ContainerCreating 0 0s nginx-statefulset-1 1/1 Running 0 2s nginx-statefulset-0 1/1 Terminating 0 18m nginx-statefulset-0 0/1 Terminating 0 18m nginx-statefulset-0 0/1 Terminating 0 18m nginx-statefulset-0 0/1 Terminating 0 18m nginx-statefulset-0 0/1 Pending 0 0s nginx-statefulset-0 0/1 Pending 0 0s nginx-statefulset-0 0/1 ContainerCreating 0 0s nginx-statefulset-0 1/1 Running 0 2s [root@k8s-master statefulset]# kubectl get pods -l app=nginx-pod -o custom-columns=NAME:metadata.name,IMAGE:spec.containers[0].image #查看更新完成后的镜像版本 NAME IMAGE nginx-statefulset-0 nginx:1.14 nginx-statefulset-1 nginx:1.14 nginx-statefulset-2 nginx:1.14 nginx-statefulset-3 nginx:1.14
通过上面示例可以看出，默认为滚动更新，倒序更新，更新完成一个接着更新下一个。
5.3.3.2 暂停更新示例 有时候设定了一个更新操作，但是又不希望一次性全部更新完成，想先更新几个，观察其是否稳定，然后再更新所有的。这时候只需要将.spec.spec.updateStrategy.rollingUpdate.partition字段的值进行修改即可。（默认值为0，所以我们看到了更新效果为上面那样，全部更新）。该字段表示如果设置为2，那么只有当编号大于等于2的才会进行更新。类似于金丝雀的发布方式。示例如下：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 [root@k8s-master ~]# kubectl patch sts/nginx-statefulset -p '{"spec":{"updateStrategy":{"rollingUpdate":{"partition":2}}}}}' #将更新值partition设置为2 statefulset.apps/nginx-statefulset patched [root@k8s-master ~]# kubectl set image statefulset nginx-statefulset nginx=nginx:1.12 #更新镜像版本 statefulset.apps/nginx-statefulset image updated [root@k8s-master ~]# kubectl get pods -w #动态查看更新 NAME READY STATUS RESTARTS AGE nginx-statefulset-0 1/1 Running 0 11m nginx-statefulset-1 1/1 Running 0 11m nginx-statefulset-2 1/1 Running 0 11m nginx-statefulset-3 1/1 Running 0 11m nginx-statefulset-3 1/1 Terminating 0 12m nginx-statefulset-3 0/1 Terminating 0 12m nginx-statefulset-3 0/1 Terminating 0 12m nginx-statefulset-3 0/1 Terminating 0 12m nginx-statefulset-3 0/1 Pending 0 0s nginx-statefulset-3 0/1 Pending 0 0s nginx-statefulset-3 0/1 ContainerCreating 0 0s nginx-statefulset-3 1/1 Running 0 2s nginx-statefulset-2 1/1 Terminating 0 11m nginx-statefulset-2 0/1 Terminating 0 11m nginx-statefulset-2 0/1 Terminating 0 12m nginx-statefulset-2 0/1 Terminating 0 12m nginx-statefulset-2 0/1 Pending 0 0s nginx-statefulset-2 0/1 Pending 0 0s nginx-statefulset-2 0/1 ContainerCreating 0 0s nginx-statefulset-2 1/1 Running 0 2s [root@k8s-master statefulset]# kubectl get pods -l app=nginx-pod -o custom-columns=NAME:metadata.name,IMAGE:spec.containers[0].image #查看更新完成后的镜像版本，可以发现只有当编号大于等于2的进行了更新。 NAME IMAGE nginx-statefulset-0 nginx:1.14 nginx-statefulset-1 nginx:1.14 nginx-statefulset-2 nginx:1.12 nginx-statefulset-3 nginx:1.12 将剩余的也全部更新，只需要将更新策略的partition的值改为0即可，如下： [root@k8s-master ~]# kubectl patch sts/nginx-statefulset -p '{"spec":{"updateStrategy":{"rollingUpdate":{"partition":0}}}}}' #将更新值partition设置为0 statefulset.apps/nginx-statefulset patche [root@k8s-master ~]# kubectl get pods -w #动态查看更新 NAME READY STATUS RESTARTS AGE nginx-statefulset-0 1/1 Running 0 18m nginx-statefulset-1 1/1 Running 0 18m nginx-statefulset-2 1/1 Running 0 6m44s nginx-statefulset-3 1/1 Running 0 6m59s nginx-statefulset-1 1/1 Terminating 0 19m nginx-statefulset-1 0/1 Terminating 0 19m nginx-statefulset-1 0/1 Terminating 0 19m nginx-statefulset-1 0/1 Terminating 0 19m nginx-statefulset-1 0/1 Pending 0 0s nginx-statefulset-1 0/1 Pending 0 0s nginx-statefulset-1 0/1 ContainerCreating 0 0s nginx-statefulset-1 1/1 Running 0 2s nginx-statefulset-0 1/1 Terminating 0 19m nginx-statefulset-0 0/1 Terminating 0 19m nginx-statefulset-0 0/1 Terminating 0 19m nginx-statefulset-0 0/1 Terminating 0 19m nginx-statefulset-0 0/1 Pending 0 0s nginx-statefulset-0 0/1 Pending 0 0s nginx-statefulset-0 0/1 ContainerCreating 0 0s nginx-statefulset-0 1/1 Running 0 2s
