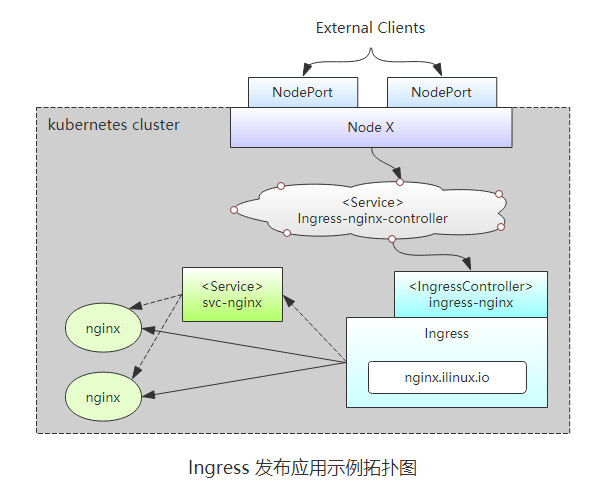

1 示例1：使用Ingress发布Nginx

该示例中创建的所有资源都位于新建的testing名称空间中。与其他的资源在逻辑上进行隔离，以方便管理。


首先创建一个单独的目录为了方便管理

1
2
[root@k8s-master ~]# mkdir ingress-nginx/ingress
[root@k8s-master ~]# cd ingress-nginx/ingress/

（1）、创建testing名称空间(也可以使用命令直接创建# kubectl create namespace my-namespace，不过这里使用资源清单格式创建)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[root@k8s-master ingress]# vim namespace-testing.yaml    #编写namespace清单文件
apiVersion: v1
kind: Namespace
metadata:
  name: testing
  labels:
    env: testing
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl apply -f namespace-testing.yaml    #创建namespace
namespace/testing created
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get namespace testing    #验证
NAME      STATUS   AGE
testing   Active   12s

（2）、部署nginx实例，这里使用Deployment控制器于testing中部署nginx相关的Pod对象。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
[root@k8s-master ingress]# vim deployment-nginx.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deploy-nginx
  namespace: testing
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.12
        ports:
        - name: http
          containerPort: 80
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl apply -f deployment-nginx.yaml
deployment.apps/deploy-nginx created
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get deploy -n testing
NAME           READY   UP-TO-DATE   AVAILABLE   AGE
deploy-nginx   3/3     3            3           5s
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get pods -n testing
NAME                            READY   STATUS    RESTARTS   AGE
deploy-nginx-686bddcb56-9g7pq   1/1     Running   0          6s
deploy-nginx-686bddcb56-gqpm2   1/1     Running   0          6s
deploy-nginx-686bddcb56-vtwkq   1/1     Running   0          6s

（3）、创建Service资源，关联后端的Pod资源。这里通过service资源svc-nginx的80端口去暴露容器的80端口。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
[root@k8s-master ingress]# vim service-nginx.yaml
apiVersion: v1
kind: Service
metadata:
  name: svc-nginx
  namespace: testing
  labels:
    app: svc-nginx
spec:
  selector:
    app: nginx
  ports:
  - name: http
    port: 80
    targetPort: 80
    protocol: TCP
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl apply -f service-nginx.yaml
service/svc-nginx created
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get svc -n testing
NAME        TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)          AGE
svc-nginx   ClusterIP   10.99.233.90   <none>        80/TCP           6s
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl describe svc/svc-nginx -n testing
Name:              svc-nginx
Namespace:         testing
Labels:            app=svc-nginx
Annotations:       kubectl.kubernetes.io/last-applied-configuration:
                     {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"labels":{"app":"svc-nginx"},"name":"svc-nginx","namespace":"testing"},"s...
Selector:          app=nginx
Type:              ClusterIP
IP:                10.99.233.90
Port:              http  80/TCP
TargetPort:        80/TCP
Endpoints:         10.244.1.76:80,10.244.1.77:80,10.244.2.74:80
Session Affinity:  None
Events:            <none>

（4）、创建Ingress资源，匹配Service资源svc-nginx，并将svc-nginx的80端口暴露。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
[root@k8s-master ingress]# vim ingress-nginx.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginx
  namespace: testing
  annotations:
    kubernetes.io/ingress.class: "nginx"
spec:
  rules:
  - host: nginx.ilinux.io
    http:
      paths:
      - path:
        backend:
          serviceName: svc-nginx
          servicePort: 80
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl apply -f ingress-nginx.yaml
ingress.extensions/nginx created
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl get ingress -n testing
NAME    HOSTS              ADDRESS   PORTS   AGE
nginx   nginx.ilinux.io             80      16s
[root@k8s-master ingress]#
[root@k8s-master ingress]# kubectl describe ingress -n testing
Name:             nginx
Namespace:        testing
Address:
Default backend:  default-http-backend:80 (<none>)
Rules:
  Host              Path  Backends
  ----              ----  --------
  tomcat.ilinux.io
                       svc-nginx:80 (10.244.1.76:80,10.244.1.77:80,10.244.2.74:80)
Annotations:
  kubectl.kubernetes.io/last-applied-configuration:  {"apiVersion":"extensions/v1beta1","kind":"Ingress","metadata":{"annotations":{"kubernetes.io/ingress.class":"nginx"},"name":"nginx","namespace":"testing"},"spec":{"rules":[{"host":"nginx.ilinux.io","http":{"paths":[{"backend":{"serviceName":"svc-nginx","servicePort":80},"path":null}]}}]}}

  kubernetes.io/ingress.class:  nginx
Events:                         <none>

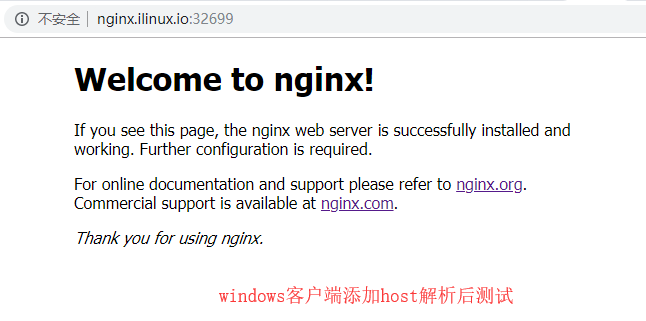

（5）、测试，通过Ingress控制器的前端的Service资源的NodePort来访问此服务，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
#首先查看前面部署Ingress控制器的前端的Service资源的映射端口
[root@k8s-master ingress-nginx]# kubectl get svc -n ingress-nginx
NAME            TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx   NodePort   10.107.40.182   <none>        80:32699/TCP,443:30842/TCP   3m59s

#终端测试，添加hosts
[root@k8s-master ~]# cat /etc/hosts
192.168.1.31	k8s-master nginx.ilinux.io
192.168.1.32	k8s-node1 nginx.ilinux.io
192.168.1.33	k8s-node2 nginx.ilinux.io

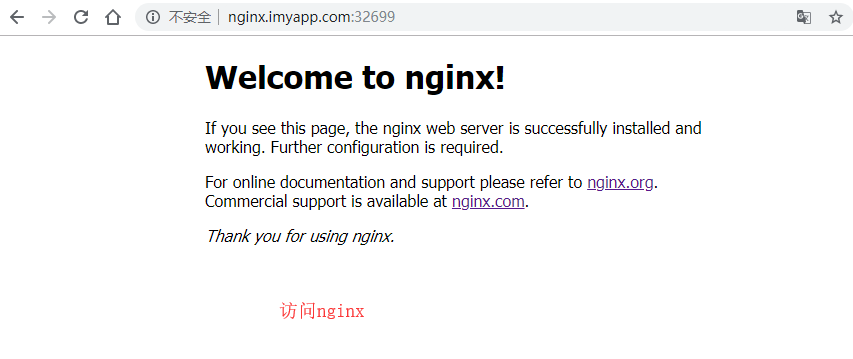

#访问测试
[root@k8s-master ~]# curl nginx.ilinux.io:32699
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
......


验证是否调度到后端的Pod资源，查看日志

1
2
3
4
5
6
7
8
[root@k8s-master ~]# kubectl get pods -n testing
NAME                            READY   STATUS    RESTARTS   AGE
deploy-nginx-686bddcb56-9g7pq   1/1     Running   0          56m
deploy-nginx-686bddcb56-gqpm2   1/1     Running   0          56m
deploy-nginx-686bddcb56-vtwkq   1/1     Running   0          56m
[root@k8s-master ~]# kubectl logs deploy-nginx-686bddcb56-9g7pq -n testing
10.244.2.75 - - [28/Sep/2019:02:33:45 +0000] "GET / HTTP/1.1" 200 612 "-" "curl/7.29.0" "10.244.0.0"
10.244.2.75 - - [28/Sep/2019:02:44:02 +0000] "GET / HTTP/1.1" 200 612 "-" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/76.0.3809.100 Safari/537.36" "10.244.0.0"

（6）、配置TLS Ingress资源（这里使用自签证书）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
1)生成key
[root@k8s-master ingress]# openssl genrsa -out tls.key 2048
2)生成证书
[root@k8s-master ingress]# openssl req -new -x509 -key tls.key -out tls.crt -subj /C=CN/ST=ShenZhen/L=ShenZhen/O=DevOps/CN=nginx.ilinux.io -days 3650

3)创建secret资源
[root@k8s-master ingress]# kubectl create secret tls nginx-ingress-secret --cert=tls.crt --key=tls.key -n testing
secret/nginx-ingress-secret created
[root@k8s-master ingress]# kubectl get secret -n testing
NAME                   TYPE                                  DATA   AGE
default-token-lfzrt    kubernetes.io/service-account-token   3      116m
nginx-ingress-secret   kubernetes.io/tls                     2      16s

4)编写Ingress资源清单文件
[root@k8s-master ingress]# vim ingress-nginx-https.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginx-ingress-tls
  namespace: testing
  annotations:
    kubernetes.io/ingress.class: "nginx"
spec:
  tls:
  - hosts:
    - nginx.ilinux.io
    secretName: nginx-ingress-secret
  rules:
  - host: nginx.ilinux.io
    http:
      paths:
      - path: /
        backend:
          serviceName: svc-nginx
          servicePort: 80

5)查看Ingress资源信息
[root@k8s-master ingress]# kubectl get ingress -n testing
NAME                HOSTS             ADDRESS   PORTS     AGE
nginx               nginx.ilinux.io             80        66m
nginx-ingress-tls   nginx.ilinux.io             80, 443   15s
[root@k8s-master ingress]# kubectl describe ingress/nginx-ingress-tls -n testing
Name:             nginx-ingress-tls
Namespace:        testing
Address:
Default backend:  default-http-backend:80 (<none>)
TLS:
  nginx-ingress-secret terminates nginx.ilinux.io
Rules:
  Host             Path  Backends
  ----             ----  --------
  nginx.ilinux.io
                   /   svc-nginx:80 (10.244.1.76:80,10.244.1.77:80,10.244.2.74:80)
Annotations:
  kubectl.kubernetes.io/last-applied-configuration:  {"apiVersion":"extensions/v1beta1","kind":"Ingress","metadata":{"annotations":{"kubernetes.io/ingress.class":"nginx"},"name":"nginx-ingress-tls","namespace":"testing"},"spec":{"rules":[{"host":"nginx.ilinux.io","http":{"paths":[{"backend":{"serviceName":"svc-nginx","servicePort":80},"path":"/"}]}}],"tls":[{"hosts":["nginx.ilinux.io"],"secretName":"nginx-ingress-secret"}]}}

  kubernetes.io/ingress.class:  nginx
Events:
  Type    Reason  Age   From                      Message
  ----    ------  ----  ----                      -------
  Normal  CREATE  64s   nginx-ingress-controller  Ingress testing/nginx-ingress-tls

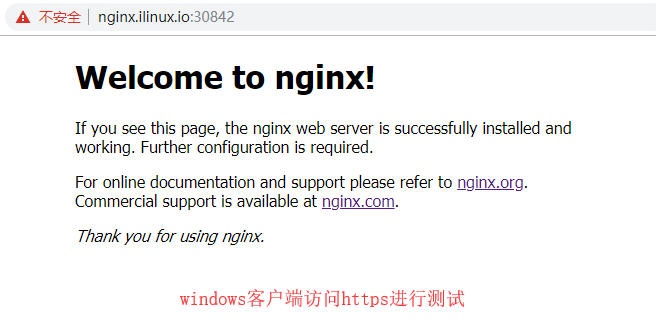

（7）、测试https（这里由于是自签，所以上面提示不安全）

1
2
3
4
#首先查看前面部署Ingress控制器的前端的Service资源的映射端口
[root@k8s-master ingress-nginx]# kubectl get svc -n ingress-nginx
NAME            TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx   NodePort   10.107.40.182   <none>        80:32699/TCP,443:30842/TCP   3m59s


2. 示例2：使用Ingress发布多个服务

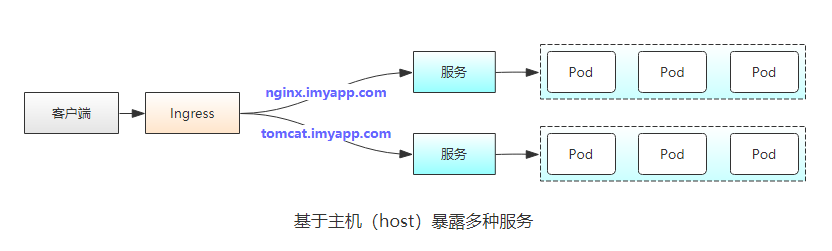

2.1 将不同的服务映射不同的主机上


准备工作：这里创建一个目录保存本示例的所有资源配置清单

1
2
[root@k8s-master ~]# mkdir ingress-nginx/multi_svc
[root@k8s-master ~]# cd !$
  • 创建名称空间

创建一个名称空间保存本示例的所有对象（方便管理）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[root@k8s-master multi_svc]# vim namespace-ms.yaml    #编写配置清单文件
apiVersion: v1
kind: Namespace
metadata:
  name: multisvc
  labels:
    env: multisvc

[root@k8s-master multi_svc]# kubectl apply -f namespace-ms.yaml     #创建上面定义的名称空间
namespace/multisvc created

[root@k8s-master multi_svc]# kubectl get namespace multisvc    #查看名称空间
NAME       STATUS   AGE
multisvc   Active   9s
  • 创建后端应用和Service

这里后端应用创建为一组nginx应用和一组tomcat应用

1）编写资源清单文件，这里将service资源对象和deployment控制器写在这一个文件里

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
[root@k8s-master multi_svc]# vim deploy_service-ms.yaml
#tomcat应用的Deployment控制器
apiVersion: apps/v1
kind: Deployment
metadata:
  name: tomcat-deploy
  namespace: multisvc
spec:
  replicas: 3
  selector:
    matchLabels:
      app: tomcat
  template:
    metadata:
      labels:
        app: tomcat
    spec:
      containers:
      - name: tomcat
        image: tomcat:jdk8
        imagePullPolicy: IfNotPresent
        ports:
        - name: httpport
          containerPort: 8080
        - name: ajpport
          containerPort: 8009
---
#tomcat应用的Service资源
apiVersion: v1
kind: Service
metadata:
  name: tomcat-svc
  namespace: multisvc
  labels:
    app: tomcat-svc
spec:
  selector:
    app: tomcat
  ports:
  - name: httpport
    port: 8080
    targetPort: 8080
    protocol: TCP
  - name: ajpport
    port: 8009
    targetPort: 8009
    protocol: TCP

---
#nginx应用的Deployment控制器
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deploy
  namespace: multisvc
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.12
        imagePullPolicy: IfNotPresent
        ports:
        - name: http
          containerPort: 80
---
#nginx应用的Service资源
apiVersion: v1
kind: Service
metadata:
  name: nginx-svc
  namespace: multisvc
  labels:
    app: nginx-svc
spec:
  selector:
    app: nginx
  ports:
  - name: http
    port: 80
    targetPort: 80
    protocol: TCP

2）创建上面定义资源对象并查看验证

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
[root@k8s-master multi_svc]# kubectl apply -f deploy_service-ms.yaml
deployment.apps/tomcat-deploy created
service/tomcat-svc created
deployment.apps/nginx-deploy created
service/nginx-svc created
[root@k8s-master multi_svc]# kubectl get pods -n multisvc -o wide    #查看pod资源
NAME                             READY   STATUS    RESTARTS   AGE   IP            NODE        NOMINATED NODE   READINESS GATES
nginx-deploy-86c667ff66-hl6rx    1/1     Running   0          13s   10.244.2.78   k8s-node2   <none>           <none>
nginx-deploy-86c667ff66-hx4j8    1/1     Running   0          13s   10.244.2.77   k8s-node2   <none>           <none>
nginx-deploy-86c667ff66-tl9mm    1/1     Running   0          13s   10.244.1.79   k8s-node1   <none>           <none>
tomcat-deploy-6484688ddc-n25hn   1/1     Running   0          13s   10.244.1.78   k8s-node1   <none>           <none>
tomcat-deploy-6484688ddc-s8dts   1/1     Running   0          13s   10.244.1.80   k8s-node1   <none>           <none>
tomcat-deploy-6484688ddc-snszk   1/1     Running   0          13s   10.244.2.76   k8s-node2   <none>           <none>
[root@k8s-master multi_svc]# kubectl get svc -n multisvc    #查看service资源对象
NAME         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)             AGE
nginx-svc    ClusterIP   10.104.213.237   <none>        80/TCP              26s
tomcat-svc   ClusterIP   10.103.75.161    <none>        8080/TCP,8009/TCP   26s

[root@k8s-master multi_svc]# kubectl describe svc/nginx-svc -n multisvc    #查看service对象nginx-svc的详细信息
Name:              nginx-svc
Namespace:         multisvc
Labels:            app=nginx-svc
Annotations:       kubectl.kubernetes.io/last-applied-configuration:
                     {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"labels":{"app":"nginx-svc"},"name":"nginx-svc","namespace":"multisvc"},"...
Selector:          app=nginx
Type:              ClusterIP
IP:                10.104.213.237
Port:              http  80/TCP
TargetPort:        80/TCP
Endpoints:         10.244.1.79:80,10.244.2.77:80,10.244.2.78:80
Session Affinity:  None
Events:            <none>

[root@k8s-master multi_svc]# kubectl describe svc/tomcat-svc -n multisvc    #查看service对象tomcat-svc的详细信息
Name:              tomcat-svc
Namespace:         multisvc
Labels:            app=tomcat-svc
Annotations:       kubectl.kubernetes.io/last-applied-configuration:
                     {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"labels":{"app":"tomcat-svc"},"name":"tomcat-svc","namespace":"multisvc"}...
Selector:          app=tomcat
Type:              ClusterIP
IP:                10.103.75.161
Port:              httpport  8080/TCP
TargetPort:        8080/TCP
Endpoints:         10.244.1.78:8080,10.244.1.80:8080,10.244.2.76:8080
Port:              ajpport  8009/TCP
TargetPort:        8009/TCP
Endpoints:         10.244.1.78:8009,10.244.1.80:8009,10.244.2.76:8009
Session Affinity:  None
Events:            <none>
  • 创建Ingress资源对象

1）编写资源清单文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
[root@k8s-master multi_svc]# vim ingress_host-ms.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: multi-ingress
  namespace: multisvc
spec:
  rules:
  - host: nginx.imyapp.com
    http:
      paths:
      - path: /
        backend:
          serviceName: nginx-svc
          servicePort: 80
  - host: tomcat.imyapp.com
    http:
      paths:
      - path: /
        backend:
          serviceName: tomcat-svc
          servicePort: 8080

2）创建上面定义资源对象并查看验证

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
[root@k8s-master multi_svc]# kubectl apply -f ingress_host-ms.yaml
ingress.extensions/multi-ingress created
[root@k8s-master multi_svc]# kubectl get ingress -n multisvc    #查看ingress资源对象
NAME            HOSTS                                ADDRESS   PORTS   AGE
multi-ingress   nginx.imyapp.com,tomcat.imyapp.com             80      18s

[root@k8s-master multi_svc]# kubectl describe ingress/multi-ingress -n multisvc    #查看ingress资源multi-ingrsss的详细信息
Name:             multi-ingress
Namespace:        multisvc
Address:
Default backend:  default-http-backend:80 (<none>)
Rules:
  Host               Path  Backends
  ----               ----  --------
  nginx.imyapp.com
                     /   nginx-svc:80 (10.244.1.79:80,10.244.2.77:80,10.244.2.78:80)
  tomcat.imyapp.com
                     /   tomcat-svc:8080 (10.244.1.78:8080,10.244.1.80:8080,10.244.2.76:8080)
Annotations:
  kubectl.kubernetes.io/last-applied-configuration:  {"apiVersion":"extensions/v1beta1","kind":"Ingress","metadata":{"annotations":{},"name":"multi-ingress","namespace":"multisvc"},"spec":{"rules":[{"host":"nginx.imyapp.com","http":{"paths":[{"backend":{"serviceName":"nginx-svc","servicePort":80},"path":"/"}]}},{"host":"tomcat.imyapp.com","http":{"paths":[{"backend":{"serviceName":"tomcat-svc","servicePort":8080},"path":"/"}]}}]}}

Events:
  Type    Reason  Age   From                      Message
  ----    ------  ----  ----                      -------
  Normal  CREATE  39s   nginx-ingress-controller  Ingress multisvc/multi-ingress
  • 测试访问

这是测试自定义的域名，故需要配置host

1
2
3
192.168.1.31	 nginx.imyapp.com tomcat.imyapp.com
192.168.1.32	 nginx.imyapp.com tomcat.imyapp.com
192.168.1.33	 nginx.imyapp.com tomcat.imyapp.com

查看部署的Ingress的Service对象的端口

1
2
3
[root@k8s-master multi_svc]# kubectl get svc -n ingress-nginx
NAME            TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx   NodePort   10.107.40.182   <none>        80:32699/TCP,443:30842/TCP   6h39m

访问nginx.imyapp.com:32699


访问tomcat.imyapp.com:32699


  • 配置Ingress处理TLS传输

这里使用自签证书，通过OpenSSL进行创建

1）创建证书

1
2
3
4
5
6
7
8
9
10
11
12
13
14
#创建nginx.imyapp.com域名的证书
[root@k8s-master multi_svc]# openssl genrsa -out nginx.imyapp.com.key 2048
[root@k8s-master multi_svc]# openssl req -new -x509 -key nginx.imyapp.com.key -out nginx.imyapp.com.crt -subj /C=CN/ST=ShenZhen/L=ShenZhen/O=DevOps/CN=nginx.imyapp.com -days 3650

#创建tomcat.imyapp.com域名的证书
[root@k8s-master multi_svc]# openssl genrsa -out tomcat.imyapp.com.key 2048
[root@k8s-master multi_svc]# openssl req -new -x509 -key tomcat.imyapp.com.key -out tomcat.imyapp.com.crt -subj /C=CN/ST=ShenZhen/L=ShenZhen/O=DevOps/CN=tomcat.imyapp.com -days 3650

#查看生成的证书
[root@k8s-master multi_svc]# ll *.com.*
-rw-r--r-- 1 root root 1298 9月  28 17:23 nginx.imyapp.com.crt
-rw-r--r-- 1 root root 1675 9月  28 17:22 nginx.imyapp.com.key
-rw-r--r-- 1 root root 1302 9月  28 17:24 tomcat.imyapp.com.crt
-rw-r--r-- 1 root root 1679 9月  28 17:24 tomcat.imyapp.com.key

2）创建secrte

1
2
3
4
5
6
7
8
9
10
11
12
13
14
#创建nginx域名的secret
[root@k8s-master multi_svc]# kubectl create secret tls nginx-ingress-secret --cert=nginx.imyapp.com.crt --key=nginx.imyapp.com.key -n multisvc
secret/nginx-ingress-secret created

#创建tomcat域名的secret
[root@k8s-master multi_svc]# kubectl create secret tls tomcat-ingress-secret --cert=tomcat.imyapp.com.crt --key=tomcat.imyapp.com.key -n multisvc
secret/tomcat-ingress-secret created

#查看secret
[root@k8s-master multi_svc]# kubectl get secret -n multisvc
NAME                    TYPE                                  DATA   AGE
default-token-mf5wd     kubernetes.io/service-account-token   3      5h12m
nginx-ingress-secret    kubernetes.io/tls                     2      53s
tomcat-ingress-secret   kubernetes.io/tls                     2      27s

3）编写带TLS的Ingress资源清单（这里通过复制，没有删除上面创建的ingress）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
[root@k8s-master multi_svc]# cp ingress_host-ms.yaml ingress_host_https-ms.yaml
[root@k8s-master multi_svc]# vim ingress_host_https-ms.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: multi-ingress-https
  namespace: multisvc
  annotations:
    kubernetes.io/ingress.class: "nginx"
spec:
  tls:
  - hosts:
    - nginx.imyapp.com
    secretName: nginx-ingress-secret
  - hosts:
    - tomcat.imyapp.com
    secretName: tomcat-ingress-secret
  rules:
  - host: nginx.imyapp.com
    http:
      paths:
      - path: /
        backend:
          serviceName: nginx-svc
          servicePort: 80
  - host: tomcat.imyapp.com
    http:
      paths:
      - path: /
        backend:
          serviceName: tomcat-svc
          servicePort: 8080

4）创建ingress资源

1
2
3
4
5
6
[root@k8s-master multi_svc]# kubectl apply -f ingress_host_https-ms.yaml
ingress.extensions/multi-ingress-https created
[root@k8s-master multi_svc]# kubectl get ingress -n multisvc
NAME                  HOSTS                                ADDRESS   PORTS     AGE
multi-ingress         nginx.imyapp.com,tomcat.imyapp.com             80        44m
multi-ingress-https   nginx.imyapp.com,tomcat.imyapp.com             80, 443   3s

5）测试，通过Ingress控制器的前端的Service资源的NodePort来访问此服务，上面看到ingress控制器的service资源的443端口对应的节点的30842端口。

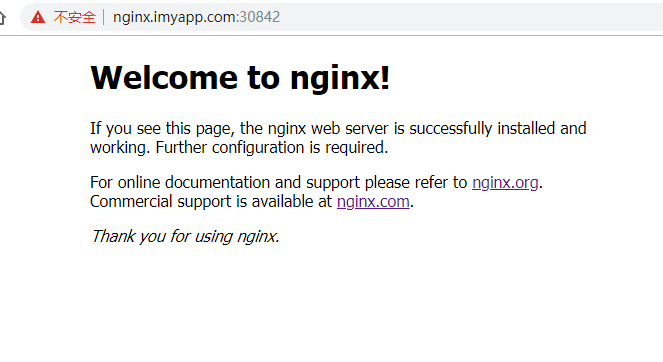

访问nginx

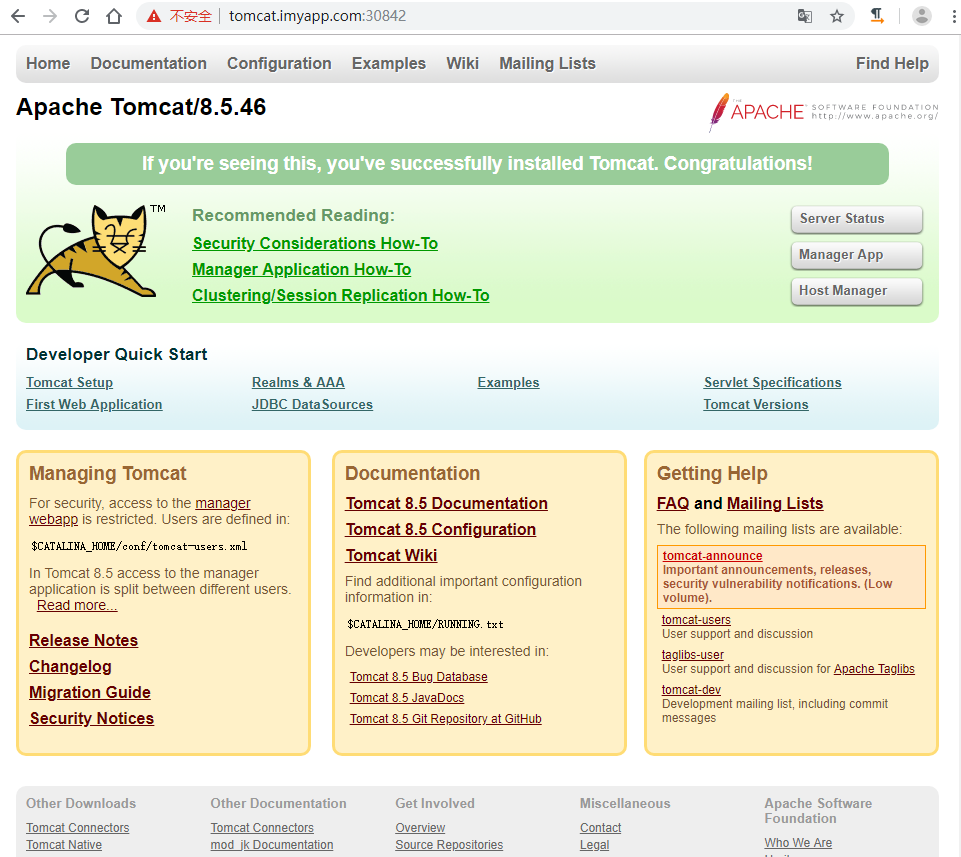

访问tomcat

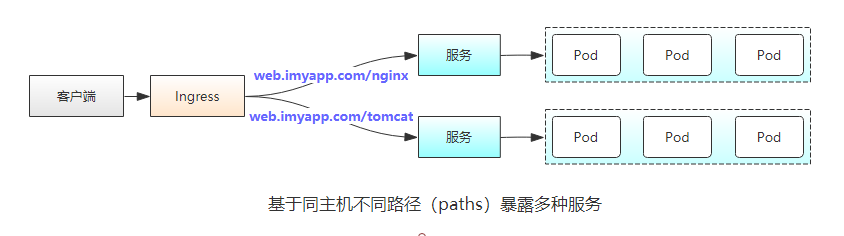

2.2 将不同的服务映射到相同主机的不同路径


在这种情况下，根据请求的URL中的路径，请求将发送到两个不同的服务。因此，客户端可以通过一个IP地址（Ingress 控制器的IP地址）访问两种不同的服务。

注意：这里Ingress中path的定义，需要与后端真实Service提供的Path一致，否则将被转发到一个不存在的path上，引发错误。

Ingress定义示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: tomcat-ingress
  namespace: multisvc
spec:
  rules:
  - host: www.imyapp.com
    http:
      paths:
      - path: /nginx
        backend:
          serviceName: nginx-svc
          servicePort: 80
      - path: /tomcat
        backend:
          serviceName: tomcat-svc
          servicePort: 8080

快来参与讨论吧~

博客近期分类标签归档
项目软件开发札记人工智能Staller
社交友链
更多关于本站
本站由 卡卡龙 使用 Stellar 1.27.0 主题创建

本站访问量 次. 本文阅读量 次.

Stellar Copyright Licenses Hexo 备案 描述文字 描述文字
