1. 基础概念

NameServer 是⼀个⾮常简单的 Topic 路由注册中⼼，其⻆⾊类似 Dubbo 中的 zookeeper ，⽀持 Broker 的动态注册与 发现。

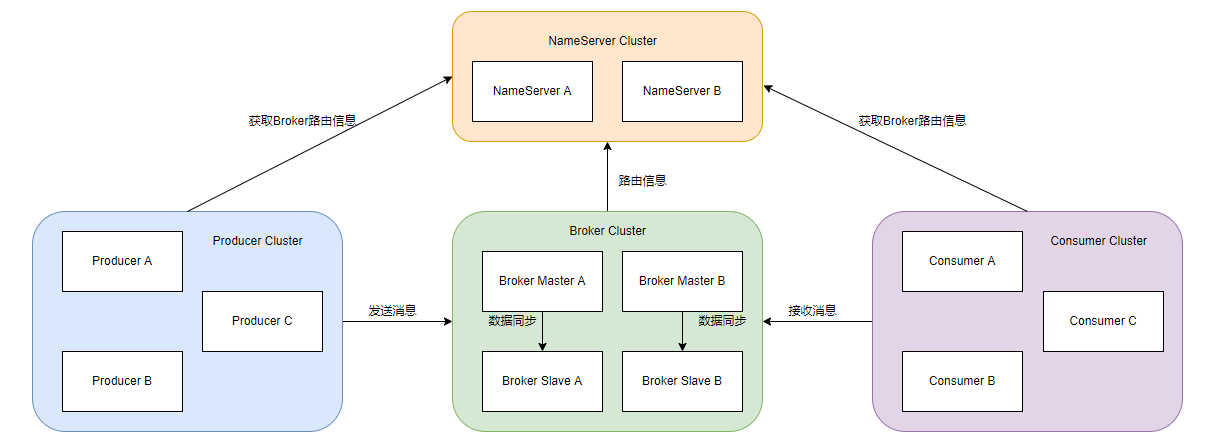

RocketMQ 集群⼯作流程：

1、NameServer 启动服务，监听 TCP 端⼝ ， 集群多节点之间⽆任何信息交互，然后等待 Broker、Producer 、 Consumer 连上来；

2、Broker 启动后，每隔 30 秒向所有的 NameServer 发送⼼跳命令 ；

3、NameServer 接收到请求之后，保存路由信息在本地内存⾥ ，将响应结果返给 Broker 服务；

4、Producer 启动之后，会随机的选择⼀个 NameServer ，并从 NameServer 中获取当前发送的 Topic 存在哪些 Broker 上，轮询从队列列表中选择⼀个队列，然后与队列所在的 Broker 建⽴⻓连接从⽽向 Broker 发消息；

5、Consumer 跟 Producer 类似，跟其中⼀台 NameServer 建⽴⻓连接，获取当前订阅 Topic 存在哪些 Broker 上，然 后直接跟 Broker 建⽴连接通道，开始消费消息。

2. Broker发送心跳包

发送心跳包使用的invokeOneway单向通信方式，注意下这里使用了CountDownLatch实现线程同步

1、Broker 会每隔 30 秒向所有的 NameServer 发送⼼跳命令 ；

使⽤ CountDownLatch 实现多线程同步，可以获取发往所有的 NameServer 的⼼跳命令的响应结果。

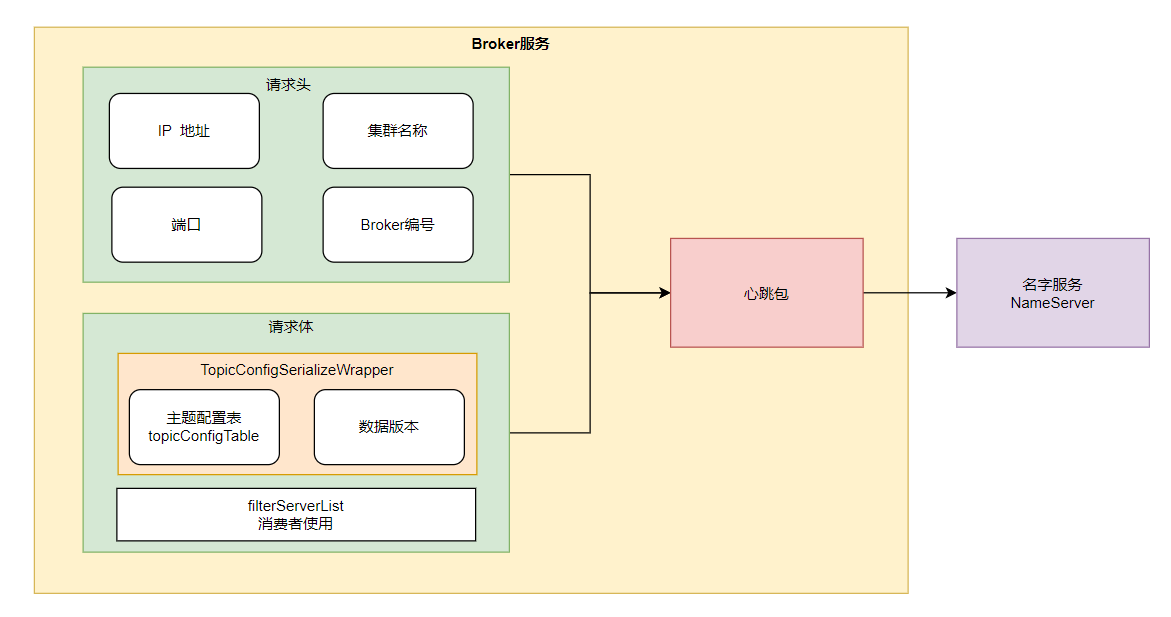

2、⼼跳命令包含两个部分：请求头和请求体

image-20240504153846290

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
public class BrokerOuterAPI {
    private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.BROKER_LOGGER_NAME);
    private final RemotingClient remotingClient;
    private final TopAddressing topAddressing = new TopAddressing(MixAll.getWSAddr());
    private String nameSrvAddr = null;
    private BrokerFixedThreadPoolExecutor brokerOuterExecutor = new BrokerFixedThreadPoolExecutor(4, 10, 1, TimeUnit.MINUTES,
        new ArrayBlockingQueue<Runnable>(32), new ThreadFactoryImpl("brokerOutApi_thread_", true));

    public BrokerOuterAPI(final NettyClientConfig nettyClientConfig) {
        this(nettyClientConfig, null);
    }

    public BrokerOuterAPI(final NettyClientConfig nettyClientConfig, RPCHook rpcHook) {
        this.remotingClient = new NettyRemotingClient(nettyClientConfig);
        this.remotingClient.registerRPCHook(rpcHook);
    }

    public void start() {
        this.remotingClient.start();
    }

    public void shutdown() {
        this.remotingClient.shutdown();
        this.brokerOuterExecutor.shutdown();
    }

    public String fetchNameServerAddr() {
        try {
            String addrs = this.topAddressing.fetchNSAddr();
            if (addrs != null) {
                if (!addrs.equals(this.nameSrvAddr)) {
                    log.info("name server address changed, old: {} new: {}", this.nameSrvAddr, addrs);
                    this.updateNameServerAddressList(addrs);
                    this.nameSrvAddr = addrs;
                    return nameSrvAddr;
                }
            }
        } catch (Exception e) {
            log.error("fetchNameServerAddr Exception", e);
        }
        return nameSrvAddr;
    }

    public void updateNameServerAddressList(final String addrs) {
        List<String> lst = new ArrayList<String>();
        String[] addrArray = addrs.split(";");
        for (String addr : addrArray) {
            lst.add(addr);
        }

        this.remotingClient.updateNameServerAddressList(lst);
    }

    public List<RegisterBrokerResult> registerBrokerAll(
        final String clusterName,
        final String brokerAddr,
        final String brokerName,
        final long brokerId,
        final String haServerAddr,
        final TopicConfigSerializeWrapper topicConfigWrapper,
        final List<String> filterServerList,
        final boolean oneway,
        final int timeoutMills,
        final boolean compressed) {

        final List<RegisterBrokerResult> registerBrokerResultList = new CopyOnWriteArrayList<>();
        List<String> nameServerAddressList = this.remotingClient.getNameServerAddressList();
        if (nameServerAddressList != null && nameServerAddressList.size() > 0) {

            final RegisterBrokerRequestHeader requestHeader = new RegisterBrokerRequestHeader();
            requestHeader.setBrokerAddr(brokerAddr);
            requestHeader.setBrokerId(brokerId);
            requestHeader.setBrokerName(brokerName);
            requestHeader.setClusterName(clusterName);
            requestHeader.setHaServerAddr(haServerAddr);
            requestHeader.setCompressed(compressed);

            RegisterBrokerBody requestBody = new RegisterBrokerBody();
            requestBody.setTopicConfigSerializeWrapper(topicConfigWrapper);
            requestBody.setFilterServerList(filterServerList);
            final byte[] body = requestBody.encode(compressed);
            final int bodyCrc32 = UtilAll.crc32(body);
            requestHeader.setBodyCrc32(bodyCrc32);
            final CountDownLatch countDownLatch = new CountDownLatch(nameServerAddressList.size());
            for (final String namesrvAddr : nameServerAddressList) {
                brokerOuterExecutor.execute(new Runnable() {
                    @Override
                    public void run() {
                        try {
                            RegisterBrokerResult result = registerBroker(namesrvAddr, oneway, timeoutMills, requestHeader, body);
                            if (result != null) {
                                registerBrokerResultList.add(result);
                            }

                            log.info("register broker[{}]to name server {} OK", brokerId, namesrvAddr);
                        } catch (Exception e) {
                            log.warn("registerBroker Exception, {}", namesrvAddr, e);
                        } finally {
                            countDownLatch.countDown();
                        }
                    }
                });
            }

            try {
                countDownLatch.await(timeoutMills, TimeUnit.MILLISECONDS);
            } catch (InterruptedException e) {
            }
        }

        return registerBrokerResultList;
    }

    private RegisterBrokerResult registerBroker(
        final String namesrvAddr,
        final boolean oneway,
        final int timeoutMills,
        final RegisterBrokerRequestHeader requestHeader,
        final byte[] body
    ) throws RemotingCommandException, MQBrokerException, RemotingConnectException, RemotingSendRequestException, RemotingTimeoutException,
        InterruptedException {
        RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.REGISTER_BROKER, requestHeader);
        request.setBody(body);

        if (oneway) {
            try {
                this.remotingClient.invokeOneway(namesrvAddr, request, timeoutMills);
            } catch (RemotingTooMuchRequestException e) {
                // Ignore
            }
            return null;
        }

        RemotingCommand response = this.remotingClient.invokeSync(namesrvAddr, request, timeoutMills);
        assert response != null;
        switch (response.getCode()) {
            case ResponseCode.SUCCESS: {
                RegisterBrokerResponseHeader responseHeader =
                    (RegisterBrokerResponseHeader) response.decodeCommandCustomHeader(RegisterBrokerResponseHeader.class);
                RegisterBrokerResult result = new RegisterBrokerResult();
                result.setMasterAddr(responseHeader.getMasterAddr());
                result.setHaServerAddr(responseHeader.getHaServerAddr());
                if (response.getBody() != null) {
                    result.setKvTable(KVTable.decode(response.getBody(), KVTable.class));
                }
                return result;
            }
            default:
                break;
        }

        throw new MQBrokerException(response.getCode(), response.getRemark(), requestHeader == null ? null : requestHeader.getBrokerAddr());
    }

    public void unregisterBrokerAll(
        final String clusterName,
        final String brokerAddr,
        final String brokerName,
        final long brokerId
    ) {
        List<String> nameServerAddressList = this.remotingClient.getNameServerAddressList();
        if (nameServerAddressList != null) {
            for (String namesrvAddr : nameServerAddressList) {
                try {
                    this.unregisterBroker(namesrvAddr, clusterName, brokerAddr, brokerName, brokerId);
                    log.info("unregisterBroker OK, NamesrvAddr: {}", namesrvAddr);
                } catch (Exception e) {
                    log.warn("unregisterBroker Exception, {}", namesrvAddr, e);
                }
            }
        }
    }

    public void unregisterBroker(
        final String namesrvAddr,
        final String clusterName,
        final String brokerAddr,
        final String brokerName,
        final long brokerId
    ) throws RemotingConnectException, RemotingSendRequestException, RemotingTimeoutException, InterruptedException, MQBrokerException {
        UnRegisterBrokerRequestHeader requestHeader = new UnRegisterBrokerRequestHeader();
        requestHeader.setBrokerAddr(brokerAddr);
        requestHeader.setBrokerId(brokerId);
        requestHeader.setBrokerName(brokerName);
        requestHeader.setClusterName(clusterName);
        RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.UNREGISTER_BROKER, requestHeader);

        RemotingCommand response = this.remotingClient.invokeSync(namesrvAddr, request, 3000);
        assert response != null;
        switch (response.getCode()) {
            case ResponseCode.SUCCESS: {
                return;
            }
            default:
                break;
        }

        throw new MQBrokerException(response.getCode(), response.getRemark(), brokerAddr);
    }

    public List<Boolean> needRegister(
        final String clusterName,
        final String brokerAddr,
        final String brokerName,
        final long brokerId,
        final TopicConfigSerializeWrapper topicConfigWrapper,
        final int timeoutMills) {
        final List<Boolean> changedList = new CopyOnWriteArrayList<>();
        List<String> nameServerAddressList = this.remotingClient.getNameServerAddressList();
        if (nameServerAddressList != null && nameServerAddressList.size() > 0) {
            final CountDownLatch countDownLatch = new CountDownLatch(nameServerAddressList.size());
            for (final String namesrvAddr : nameServerAddressList) {
                brokerOuterExecutor.execute(new Runnable() {
                    @Override
                    public void run() {
                        try {
                            QueryDataVersionRequestHeader requestHeader = new QueryDataVersionRequestHeader();
                            requestHeader.setBrokerAddr(brokerAddr);
                            requestHeader.setBrokerId(brokerId);
                            requestHeader.setBrokerName(brokerName);
                            requestHeader.setClusterName(clusterName);
                            RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.QUERY_DATA_VERSION, requestHeader);
                            request.setBody(topicConfigWrapper.getDataVersion().encode());
                            RemotingCommand response = remotingClient.invokeSync(namesrvAddr, request, timeoutMills);
                            DataVersion nameServerDataVersion = null;
                            Boolean changed = false;
                            switch (response.getCode()) {
                                case ResponseCode.SUCCESS: {
                                    QueryDataVersionResponseHeader queryDataVersionResponseHeader =
                                        (QueryDataVersionResponseHeader) response.decodeCommandCustomHeader(QueryDataVersionResponseHeader.class);
                                    changed = queryDataVersionResponseHeader.getChanged();
                                    byte[] body = response.getBody();
                                    if (body != null) {
                                        nameServerDataVersion = DataVersion.decode(body, DataVersion.class);
                                        if (!topicConfigWrapper.getDataVersion().equals(nameServerDataVersion)) {
                                            changed = true;
                                        }
                                    }
                                    if (changed == null || changed) {
                                        changedList.add(Boolean.TRUE);
                                    }
                                }
                                default:
                                    break;
                            }
                            log.warn("Query data version from name server {} OK,changed {}, broker {},name server {}", namesrvAddr, changed, topicConfigWrapper.getDataVersion(), nameServerDataVersion == null ? "" : nameServerDataVersion);
                        } catch (Exception e) {
                            changedList.add(Boolean.TRUE);
                            log.error("Query data version from name server {}  Exception, {}", namesrvAddr, e);
                        } finally {
                            countDownLatch.countDown();
                        }
                    }
                });

            }
            try {
                countDownLatch.await(timeoutMills, TimeUnit.MILLISECONDS);
            } catch (InterruptedException e) {
                log.error("query dataversion from nameserver countDownLatch await Exception", e);
            }
        }
        return changedList;
    }

    public TopicConfigSerializeWrapper getAllTopicConfig(
        final String addr) throws RemotingConnectException, RemotingSendRequestException,
        RemotingTimeoutException, InterruptedException, MQBrokerException {
        RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.GET_ALL_TOPIC_CONFIG, null);

        RemotingCommand response = this.remotingClient.invokeSync(MixAll.brokerVIPChannel(true, addr), request, 3000);
        assert response != null;
        switch (response.getCode()) {
            case ResponseCode.SUCCESS: {
                return TopicConfigSerializeWrapper.decode(response.getBody(), TopicConfigSerializeWrapper.class);
            }
            default:
                break;
        }

        throw new MQBrokerException(response.getCode(), response.getRemark(), addr);
    }

    public ConsumerOffsetSerializeWrapper getAllConsumerOffset(
        final String addr) throws InterruptedException, RemotingTimeoutException,
        RemotingSendRequestException, RemotingConnectException, MQBrokerException {
        RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.GET_ALL_CONSUMER_OFFSET, null);
        RemotingCommand response = this.remotingClient.invokeSync(addr, request, 3000);
        assert response != null;
        switch (response.getCode()) {
            case ResponseCode.SUCCESS: {
                return ConsumerOffsetSerializeWrapper.decode(response.getBody(), ConsumerOffsetSerializeWrapper.class);
            }
            default:
                break;
        }

        throw new MQBrokerException(response.getCode(), response.getRemark(), addr);
    }

    public String getAllDelayOffset(
        final String addr) throws InterruptedException, RemotingTimeoutException, RemotingSendRequestException,
        RemotingConnectException, MQBrokerException, UnsupportedEncodingException {
        RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.GET_ALL_DELAY_OFFSET, null);
        RemotingCommand response = this.remotingClient.invokeSync(addr, request, 3000);
        assert response != null;
        switch (response.getCode()) {
            case ResponseCode.SUCCESS: {
                return new String(response.getBody(), MixAll.DEFAULT_CHARSET);
            }
            default:
                break;
        }

        throw new MQBrokerException(response.getCode(), response.getRemark(), addr);
    }

    public SubscriptionGroupWrapper getAllSubscriptionGroupConfig(
        final String addr) throws InterruptedException, RemotingTimeoutException,
        RemotingSendRequestException, RemotingConnectException, MQBrokerException {
        RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.GET_ALL_SUBSCRIPTIONGROUP_CONFIG, null);
        RemotingCommand response = this.remotingClient.invokeSync(addr, request, 3000);
        assert response != null;
        switch (response.getCode()) {
            case ResponseCode.SUCCESS: {
                return SubscriptionGroupWrapper.decode(response.getBody(), SubscriptionGroupWrapper.class);
            }
            default:
                break;
        }

        throw new MQBrokerException(response.getCode(), response.getRemark(), addr);
    }

    public void registerRPCHook(RPCHook rpcHook) {
        remotingClient.registerRPCHook(rpcHook);
    }
}

3. NameServer维护路由

NameServer 在接收到 Broker 发送的⼼跳请求之后，通过默认的处理器来处理请求，保存路由信息成功后，注册成功状 态返回给 Broker 服务。

源码中，我们可以看到路由信息保存在 HashMap 中

1
2
3
4
5
6
7
8
9
10
11
public class RouteInfoManager {
    private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.NAMESRV_LOGGER_NAME);
    private final static long BROKER_CHANNEL_EXPIRED_TIME = 1000 * 60 * 2;
    private final ReadWriteLock lock = new ReentrantReadWriteLock();
    private final HashMap<String/* topic */, List<QueueData>> topicQueueTable;
    private final HashMap<String/* brokerName */, BrokerData> brokerAddrTable;
    private final HashMap<String/* clusterName */, Set<String/* brokerName */>> clusterAddrTable;
    private final HashMap<String/* brokerAddr */, BrokerLiveInfo> brokerLiveTable;
    private final HashMap<String/* brokerAddr */, List<String>/* Filter Server */> filterServerTable;
    // ··· ···
}

1、topicQueueTable：Topic 消息队列路由信息，包括 topic 所在的 broker 名称，读队列数量，写队列数量，同步标 记等信息，rocketmq 根据 topicQueueTable 的信息进⾏负载均衡消息发送。

2、brokerAddrTable：Broker 节点信息，包括 brokername，所在集群名称，还有主备节点信息。

3、clusterAddrTable：Broker 集群信息，存储了集群中所有的 Brokername。

4、brokerLiveTable：Broker 状态信息，NameServer 每次收到 Broker 的⼼跳包就会更新该信息。

当 Broker 向 NameServer 发送⼼跳包（路由信息），NameServer 需要对 HashMap 进⾏数据更新，但我们都知道 HashMap 并不是线程安全的，⾼并发场景下，容易出现 CPU 100% 问题，所以更新 HashMap 时需要加锁，RocketMQ 使⽤了 JDK 的读写锁 ReentrantReadWriteLock 。

下⾯我们看下路由信息如何更新和读取：

1、写操作：更新路由信息，操作写锁

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
public RegisterBrokerResult registerBroker(
    final String clusterName,
    final String brokerAddr,
    final String brokerName,
    final long brokerId,
    final String haServerAddr,
    final TopicConfigSerializeWrapper topicConfigWrapper,
    final List<String> filterServerList,
    final Channel channel) {
    RegisterBrokerResult result = new RegisterBrokerResult();
    try {
        try {
            // 1. 加写锁
            this.lock.writeLock().lockInterruptibly();

            Set<String> brokerNames = this.clusterAddrTable.get(clusterName);
            if (null == brokerNames) {
                brokerNames = new HashSet<String>();
                this.clusterAddrTable.put(clusterName, brokerNames);
            }
            brokerNames.add(brokerName);

            boolean registerFirst = false;

            BrokerData brokerData = this.brokerAddrTable.get(brokerName);
            if (null == brokerData) {
                registerFirst = true;
                brokerData = new BrokerData(clusterName, brokerName, new HashMap<Long, String>());
                this.brokerAddrTable.put(brokerName, brokerData);
            }
            Map<Long, String> brokerAddrsMap = brokerData.getBrokerAddrs();
            //Switch slave to master: first remove <1, IP:PORT> in namesrv, then add <0, IP:PORT>
            //The same IP:PORT must only have one record in brokerAddrTable
            Iterator<Entry<Long, String>> it = brokerAddrsMap.entrySet().iterator();
            while (it.hasNext()) {
                Entry<Long, String> item = it.next();
                if (null != brokerAddr && brokerAddr.equals(item.getValue()) && brokerId != item.getKey()) {
                    it.remove();
                }
            }

            String oldAddr = brokerData.getBrokerAddrs().put(brokerId, brokerAddr);
            registerFirst = registerFirst || (null == oldAddr);

            if (null != topicConfigWrapper
                && MixAll.MASTER_ID == brokerId) {
                if (this.isBrokerTopicConfigChanged(brokerAddr, topicConfigWrapper.getDataVersion())
                    || registerFirst) {
                    ConcurrentMap<String, TopicConfig> tcTable =
                        topicConfigWrapper.getTopicConfigTable();
                    if (tcTable != null) {
                        for (Map.Entry<String, TopicConfig> entry : tcTable.entrySet()) {
                            this.createAndUpdateQueueData(brokerName, entry.getValue());
                        }
                    }
                }
            }

            BrokerLiveInfo prevBrokerLiveInfo = this.brokerLiveTable.put(brokerAddr,
                new BrokerLiveInfo(
                    System.currentTimeMillis(),
                    topicConfigWrapper.getDataVersion(),
                    channel,
                    haServerAddr));
            if (null == prevBrokerLiveInfo) {
                log.info("new broker registered, {} HAServer: {}", brokerAddr, haServerAddr);
            }

            if (filterServerList != null) {
                if (filterServerList.isEmpty()) {
                    this.filterServerTable.remove(brokerAddr);
                } else {
                    this.filterServerTable.put(brokerAddr, filterServerList);
                }
            }

            if (MixAll.MASTER_ID != brokerId) {
                String masterAddr = brokerData.getBrokerAddrs().get(MixAll.MASTER_ID);
                if (masterAddr != null) {
                    BrokerLiveInfo brokerLiveInfo = this.brokerLiveTable.get(masterAddr);
                    if (brokerLiveInfo != null) {
                        result.setHaServerAddr(brokerLiveInfo.getHaServerAddr());
                        result.setMasterAddr(masterAddr);
                    }
                }
            }
        } finally {
            // 2. 释放写锁
            this.lock.writeLock().unlock();
        }
    } catch (Exception e) {
        log.error("registerBroker Exception", e);
    }

    return result;
}

2、读操作：查询主题信息，操作读锁

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public byte[] getAllTopicList() {
    TopicList topicList = new TopicList();
    try {
        try {
            this.lock.readLock().lockInterruptibly();
            topicList.getTopicList().addAll(this.topicQueueTable.keySet());
        } finally {
            this.lock.readLock().unlock();
        }
    } catch (Exception e) {
        log.error("getAllTopicList Exception", e);
    }

    return topicList.encode();
}

我们可以将 NameServer 实现注册中⼼的⽅式总结为： RPC 服务 + HashMap 存储容器 + 读写锁 + 定时任务 。

1、NameServer 监听固定的端⼝，提供 RPC 服务

2、HashMap 作为存储容器

3、读写锁控制锁的颗粒度

4、定时任务 每个 Broker

每隔 30 秒注册主题的路由信息到所有 NameServer NameServer 定时任务每隔10 秒清除已宕机的 Broker , 判断宕机的标准是：当前时间减去 Broker 最后⼀次⼼跳时 间⼤于2分钟

4. ZK VS NS

为什么rocketmq不适用zk作为注册中心呢？

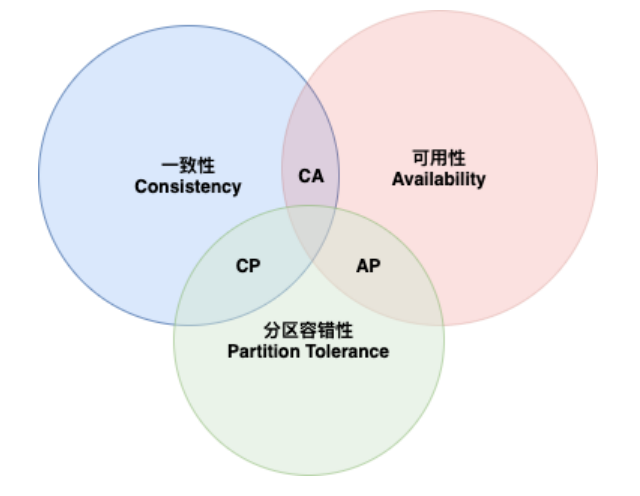

image-20240504155316640

CAP 理论是分布式架构中重要理论。

1、⼀致性( Consistency ) ：所有节点在同⼀时间具有相同的数据 ;

2、可⽤性( Availability ) ：保证每个请求不管成功或者失败都有响应 (某个系统的某个节点挂了，但是并不影响系统的 接受或者发出请求) ;

3、分隔容忍( Partition tolerance ) ：系统中任意信息的丢失或失败不会影响系统的继续运作。 (在整个系统中某个部 分，挂掉了，或者宕机了，并不影响整个系统的运作或者说使⽤) 。

Zookeeper 是⼀个典型的 CP 注册中⼼ ，通过使 ZAB 协议来保证节点之间数据的强⼀致性。

淘宝中间件博客出了⼀篇⽂章 : 阿里巴巴为什么不用 ZooKeeper 做服务发现？-阿里云开发者社区 (aliyun.com)

image-20240504160027996

1、当数据中⼼服务规模超过⼀定数量 ( 服务规模=F{服务 pub 数,服务 sub 数} )，作为注册中⼼的 ZooKeeper 很快就会 像下图的驴⼦⼀样不堪重负。

2、可以使⽤ ZooKeeper，但是⼤数据请向左，⽽交易则向右，分布式协调向左，服务发现向右。

NameServer 是⼀个典型的 AP 注册中⼼，它有如下优点：

1、代码不到 1000 ⾏，实现简单，易于维护 ;

2、性能极好，除了⽹络消耗，基本都是本地内存操作 ;

3、服务都是⽆状态，且节点之间并不交互，运维简单；

笔者⼀直认为：没有完美的技术，只有最合适的技术，架构设计之道在于简单⾼效和适当妥协。

快来参与讨论吧~

博客近期分类标签归档
项目软件开发札记人工智能Staller
社交友链
更多关于本站
本站由 卡卡龙 使用 Stellar 1.27.0 主题创建

本站访问量 次. 本文阅读量 次.

Stellar Copyright Licenses Hexo 备案 描述文字 描述文字
