1. 基础概念

消息轨迹是指⼀条消息从⽣产者发送到 Broker , 再到消费者消费，整个过程中的各个相关节点的时间、状态等数据汇聚⽽成的完整链路信息。

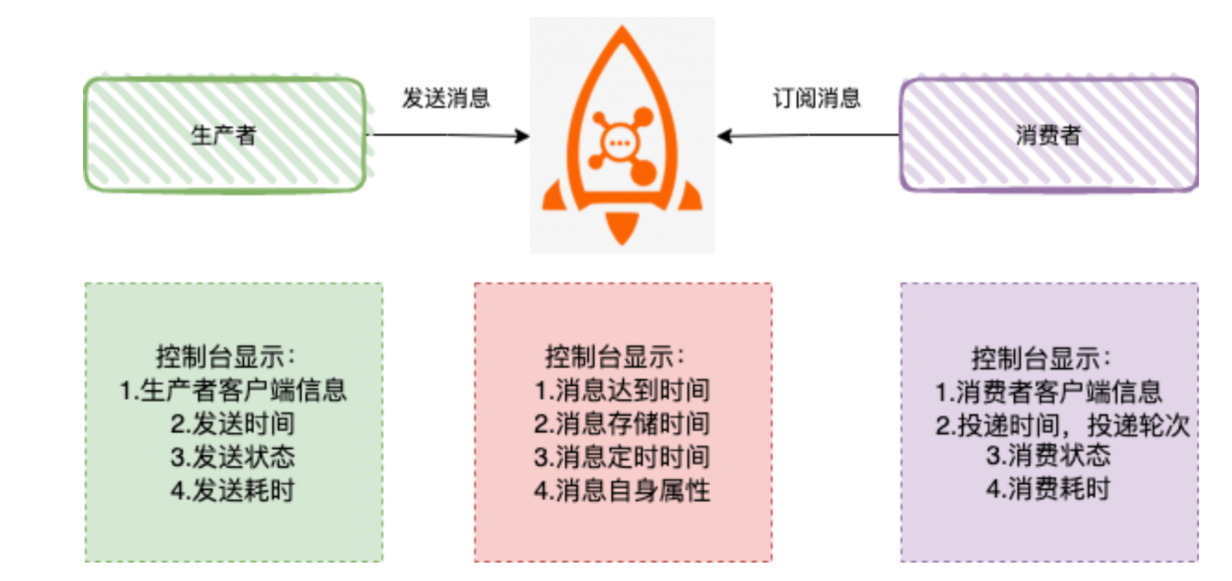

image-20240505165945261

当我们需要查询消息轨迹时，需要明⽩⼀点：消息轨迹数据是存储在 Broker 服务端，我们需要定义⼀个主题，在⽣产者，消费者端定义轨迹钩⼦。

2. 开启轨迹

2.1 Broker配置文件

1
2
# 开启消息轨迹
traceTopicEnable=true

2.2 生产者配置

1
2
3
public DefaultMQProducer(final String producerGroup, boolean enableMsgTrace)
public DefaultMQProducer(final String producerGroup, boolean enableMsgTrace, final String
customizedTraceTopic)

在⽣产者的构造函数⾥，有两个核⼼参数：

  • enableMsgTrace：是否开启消息轨迹

  • customizedTraceTopic：记录消息轨迹的 Topic , 默认是： RMQ_SYS_TRACE_TOPIC 。

执⾏如下的⽣产者代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
public class Producer {
    public static final String PRODUCER_GROUP = "mytestGroup";
    public static final String DEFAULT_NAMESRVADDR = "127.0.0.1:9876";
    public static final String TOPIC = "example";
    public static final String TAG = "TagA";
    public static void main(String[] args) throws MQClientException, InterruptedException {
    	DefaultMQProducer producer = new DefaultMQProducer(PRODUCER_GROUP, true);
    	producer.setNamesrvAddr(DEFAULT_NAMESRVADDR);
    	producer.start();
    	try {
    		String key = UUID.randomUUID().toString();
    		System.out.println(key);
    		Message msg = new Message(
    						TOPIC,
    						TAG,
    						key,
    						("Hello RocketMQ ").getBytes(RemotingHelper.DEFAULT_CHARSET)
    					);
    		SendResult sendResult = producer.send(msg);
    		System.out.printf("%s%n", sendResult);
    	} catch (Exception e) {
    		e.printStackTrace();
    	}
    	// 这⾥休眠⼗秒，是为了异步发送轨迹消息成功。
    	Thread.sleep(10000);
    	producer.shutdown();
    }
}

在⽣产者代码中，我们指定了消息的 key 属性， 便于对于消息进⾏⾼性能检索。

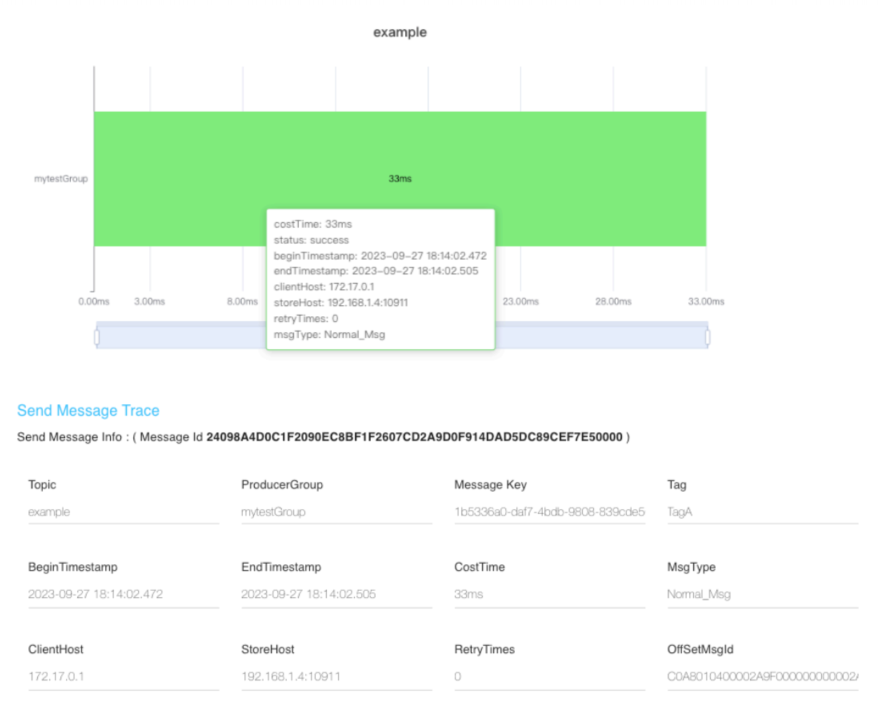

执⾏成功之后，我们从控制台查看轨迹信息。

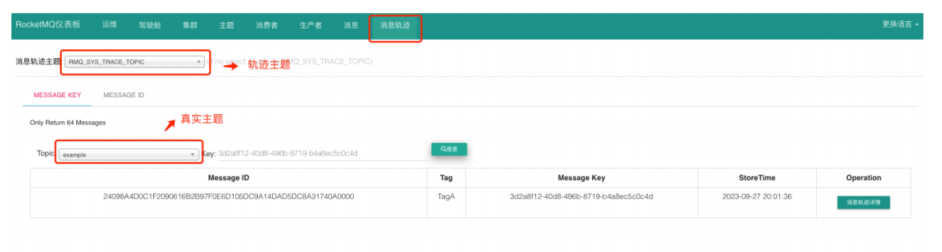

image-20240505170455488

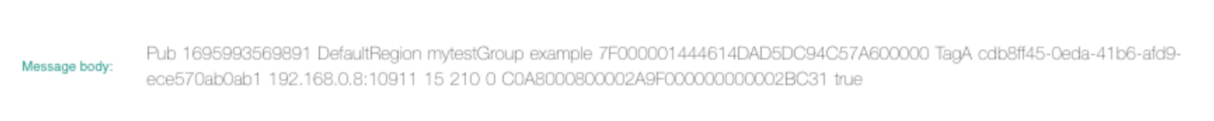

image-20240505170523703

从图中可以看到，消息轨迹中存储了消息的 存储时间 、 存储服务器IP 、 发送耗时 。

2.3 消费者配置

和⽣产者类似，消费者的构造函数可以传递轨迹参数：

1
2
3
public DefaultMQPushConsumer(final String consumerGroup, boolean enableMsgTrace);
public DefaultMQPushConsumer(final String consumerGroup, boolean enableMsgTrace, final
String customizedTraceTopic);

执⾏如下的消费者代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public class Consumer {
    public static final String CONSUMER_GROUP = "exampleGruop";
    public static final String DEFAULT_NAMESRVADDR = "127.0.0.1:9876";
    public static final String TOPIC = "example";

    public static void main(String[] args) throws InterruptedException, MQClientException {
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(CONSUMER_GROUP , true);
        consumer.setNamesrvAddr(DEFAULT_NAMESRVADDR);
        consumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_FIRST_OFFSET);
        consumer.subscribe(TOPIC, "*");
        consumer.registerMessageListener((MessageListenerConcurrently) (msg, context) -> {
			System.out.printf("%s Receive New Messages: %s %n",
			Thread.currentThread().getName(), msg);
			return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
        });
        consumer.start();
        System.out.printf("Consumer Started.%n");
    }
}

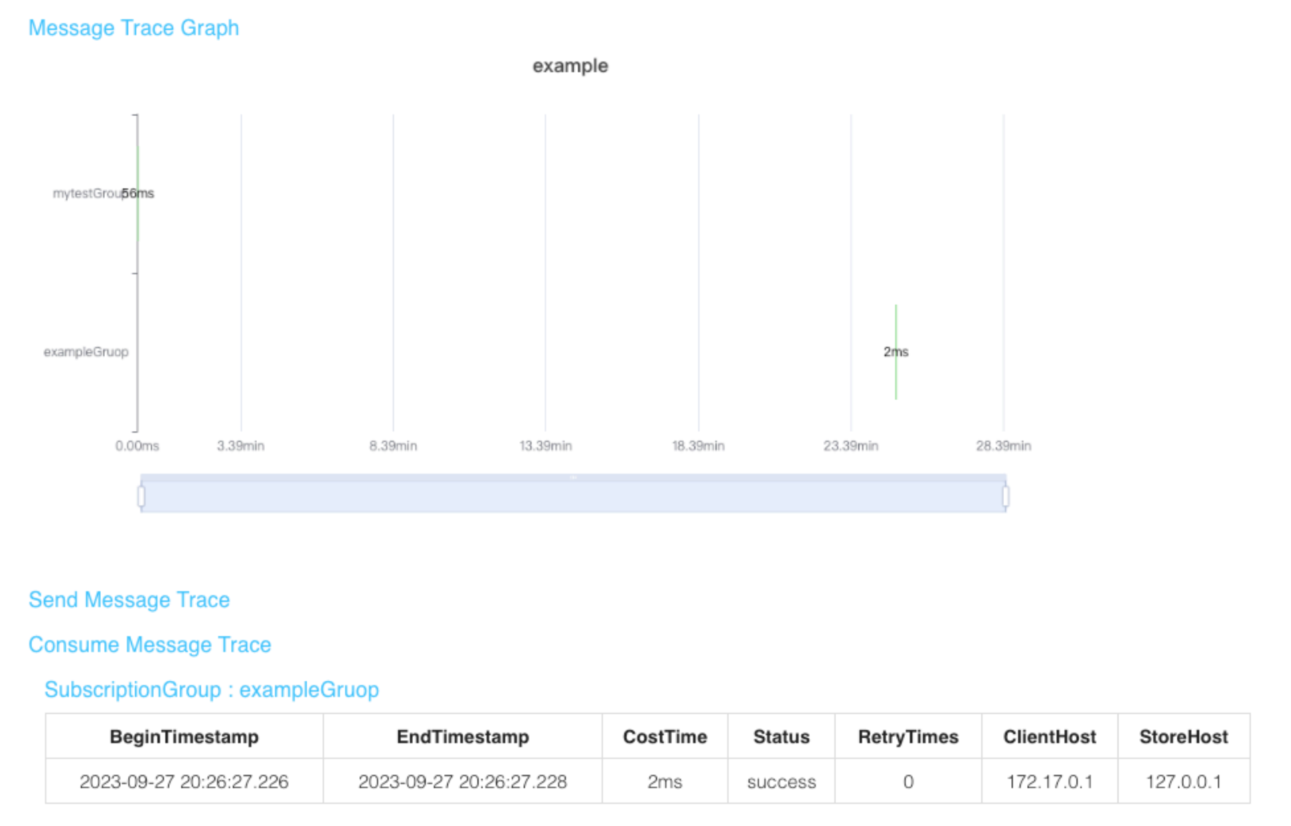

image-20240505170831705

3. 实现原理

轨迹的实现原理主要是在⽣产者发送、消费者消费时添加相关的钩⼦。 因此，我们只需要了解钩⼦的实现逻辑即可。

下⾯的代码是 DefaultMQProducer 的构造函数。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
public DefaultMQProducer(final String namespace, final String producerGroup, RPCHook rpcHook,boolean enableMsgTrace, final String customizedTraceTopic) {
    this.namespace = namespace;
    this.producerGroup = producerGroup;
    defaultMQProducerImpl = new DefaultMQProducerImpl(this, rpcHook);
    // if client open the message trace feature
    if (enableMsgTrace) {
        try {
                //异步轨迹分发器
                AsyncTraceDispatcher dispatcher = new AsyncTraceDispatcher(producerGroup,
                TraceDispatcher.Type.PRODUCE, customizedTraceTopic, rpcHook);
                dispatcher.setHostProducer(this.defaultMQProducerImpl);
                traceDispatcher = dispatcher;
                // 发送消息时添加执⾏钩⼦
                this.defaultMQProducerImpl.registerSendMessageHook(
                new SendMessageTraceHookImpl(traceDispatcher));
                // 结束事务时添加执⾏钩⼦
                this.defaultMQProducerImpl.registerEndTransactionHook(
                new EndTransactionTraceHookImpl(traceDispatcher));
            } catch (Throwable e) {
				log.error("system mqtrace hook init failed ,maybe can't send msg trace data");
			}
    }
}

当是否开启轨迹开关打开时，创建异步轨迹分发器 AsyncTraceDispatcher ，然后给默认的⽣产者实现类在发送消息的钩⼦ SendMessageTraceHookImpl 。

1
2
3
//发送消息时添加执⾏钩⼦
this.defaultMQProducerImpl.registerSendMessageHook(new
SendMessageTraceHookImpl(traceDispatcher));

我们把⽣产者发送消息的流程简化如下代码 ：

1
2
3
4
5
6
//DefaultMQProducerImpl#sendKernelImpl
this.executeSendMessageHookBefore(context);
// 发⽣消息
this.mQClientFactory.getMQClientAPIImpl().sendMessage(....)
// ⽣产者发送消息后会执⾏
this.executeSendMessageHookAfter(context);

进⼊ SendMessageTraceHookImpl 类 ，该类主要有两个⽅法 sendMessageBefore 和 sendMessageAfter 。

1、sendMessageBefore ⽅法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public void sendMessageBefore(SendMessageContext context) {
    //if it is message trace data,then it doesn't recorded
    if (context == null || context.getMessage().getTopic().startsWith(((AsyncTraceDispatcher) localDispatcher).getTraceTopicName())) {
        return;
    }
    //build the context content of TuxeTraceContext
    TraceContext tuxeContext = new TraceContext();
    tuxeContext.setTraceBeans(new ArrayList<TraceBean>(1));
    context.setMqTraceContext(tuxeContext);
    tuxeContext.setTraceType(TraceType.Pub);
    tuxeContext.setGroupName(NamespaceUtil.withoutNamespace(context.getProducerGroup()));
    //build the data bean object of message trace
    TraceBean traceBean = new TraceBean();
    traceBean.setTopic(NamespaceUtil.withoutNamespace(context.getMessage().getTopic()));
    traceBean.setTags(context.getMessage().getTags());
    traceBean.setKeys(context.getMessage().getKeys());
    traceBean.setStoreHost(context.getBrokerAddr());
    traceBean.setBodyLength(context.getMessage().getBody().length);
    traceBean.setMsgType(context.getMsgType());
    tuxeContext.getTraceBeans().add(traceBean);
}

2、sendMessageAfter ⽅法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
public void sendMessageAfter(SendMessageContext context) {
    //if it is message trace data,then it doesn't recorded
    if (context == null || context.getMessage().getTopic().startsWith(((AsyncTraceDispatcher) localDispatcher).getTraceTopicName())
        || context.getMqTraceContext() == null) {
        return;
    }
    if (context.getSendResult() == null) {
        return;
    }

    if (context.getSendResult().getRegionId() == null
        || !context.getSendResult().isTraceOn()) {
        // if switch is false,skip it
        return;
    }

    TraceContext tuxeContext = (TraceContext) context.getMqTraceContext();
    TraceBean traceBean = tuxeContext.getTraceBeans().get(0);
    int costTime = (int) ((System.currentTimeMillis() - tuxeContext.getTimeStamp()) / tuxeContext.getTraceBeans().size());
    tuxeContext.setCostTime(costTime);
    if (context.getSendResult().getSendStatus().equals(SendStatus.SEND_OK)) {
        tuxeContext.setSuccess(true);
    } else {
        tuxeContext.setSuccess(false);
    }
    tuxeContext.setRegionId(context.getSendResult().getRegionId());
    traceBean.setMsgId(context.getSendResult().getMsgId());
    traceBean.setOffsetMsgId(context.getSendResult().getOffsetMsgId());
    traceBean.setStoreTime(tuxeContext.getTimeStamp() + costTime / 2);
    localDispatcher.append(tuxeContext);
}

跟踪对象⾥会保存 costTime (消息发送时间)、 success （是否发送成功）、 regionId (发送到 Broker 所在的分区)、 msgId (消息 ID，全局唯⼀)、 offsetMsgId (消息物理偏移量) ， storeTime (存储时间 ) 。

存储时间并没有取消息的实际存储时间，⽽是估算出来的：客户端发送时间的⼀般的耗时表示消息的存储时间。

最后将跟踪上下⽂添加到本地轨迹分发器：

1
localDispatcher.append(tuxeContext);

下⾯我们分析下轨迹分发器的原理：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public AsyncTraceDispatcher(String group, Type type, String traceTopicName, RPCHook rpcHook) {
        // queueSize is greater than or equal to the n power of 2 of value
        this.queueSize = 2048;
        this.batchSize = 100;
        this.maxMsgSize = 128000;
        this.discardCount = new AtomicLong(0L);
        this.traceContextQueue = new ArrayBlockingQueue<TraceContext>(1024);
        this.group = group;
        this.type = type;

        this.appenderQueue = new ArrayBlockingQueue<Runnable>(queueSize);
        if (!UtilAll.isBlank(traceTopicName)) {
            this.traceTopicName = traceTopicName;
        } else {
            this.traceTopicName = TopicValidator.RMQ_SYS_TRACE_TOPIC;
        }
        this.traceExecutor = new ThreadPoolExecutor(//
                10, //
                20, //
                1000 * 60, //
                TimeUnit.MILLISECONDS, //
                this.appenderQueue, //
                new ThreadFactoryImpl("MQTraceSendThread_"));
        traceProducer = getAndCreateTraceProducer(rpcHook);
    }

    public void start(String nameSrvAddr, AccessChannel accessChannel) throws MQClientException {
        if (isStarted.compareAndSet(false, true)) {
            traceProducer.setNamesrvAddr(nameSrvAddr);
            traceProducer.setInstanceName(TRACE_INSTANCE_NAME + "_" + nameSrvAddr);
            traceProducer.start();
        }
        this.accessChannel = accessChannel;
        this.worker = new Thread(new AsyncRunnable(), "MQ-AsyncTraceDispatcher-Thread-" + dispatcherId);
        this.worker.setDaemon(true);
        this.worker.start();
        this.registerShutDownHook();
    }

上⾯的代码展示了分发器的构造函数和启动⽅法，构造函数创建了⼀个发送消息的线程池 traceExecutor ，启动 start后会启动⼀个 worker线程 。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
class AsyncRunnable implements Runnable {
       private boolean stopped;

       @Override
       public void run() {
           while (!stopped) {
               List<TraceContext> contexts = new ArrayList<TraceContext>(batchSize);
               synchronized (traceContextQueue) {
                   for (int i = 0; i < batchSize; i++) {
                       TraceContext context = null;
                       try {
                           //get trace data element from blocking Queue - traceContextQueue
                           context = traceContextQueue.poll(5, TimeUnit.MILLISECONDS);
                       } catch (InterruptedException e) {
                       }
                       if (context != null) {
                           contexts.add(context);
                       } else {
                           break;
                       }
                   }
                   if (contexts.size() > 0) {
                       AsyncAppenderRequest request = new AsyncAppenderRequest(contexts);
                       traceExecutor.submit(request);
                   } else if (AsyncTraceDispatcher.this.stopped) {
                       this.stopped = true;
                   }
               }
           }

       }
   }

worker 启动后，会从轨迹上下⽂队列 traceContextQueue 中不断的取出轨迹上下⽂，并将上下⽂转换成轨迹数据⽚段 TraceDataSegment 。

为了提升系统的性能，并不是每⼀次从队列中获取到数据就直接发送到 MQ ，⽽是积累到⼀定程度的临界点才触发这个操作，我们可以简单的理解为批量操作。

这⾥⾯有两个维度 :

  1. 轨迹数据⽚段的数据⼤⼩⼤于某个数据⼤⼩阈值。笔者认为这段 RocketMQ 4.9.4 版本代码存疑，因为最新的 5.0版本做了优化。
1
2
3
4
5
6
if (currentMsgSize >= traceProducer.getMaxMessageSize()) {
	List<TraceTransferBean> dataToSend = new ArrayList(traceTransferBeanList);
	AsyncDataSendTask asyncDataSendTask = new AsyncDataSendTask(traceTopicName,regionId,dataToSend);
	traceExecutor.submit(asyncDataSendTask);
	this.clear();
}
  1. 当前时间 - 轨迹数据⽚段的⾸次存储时间 是否⼤于刷新时间 ，也就是每500毫秒刷新⼀次。
1
2
3
4
5
6
7
8
private void sendDataByTimeThreshold() {
	long now = System.currentTimeMillis();
	for (TraceDataSegment taskInfo : taskQueueByTopic.values()) {
		if (now - taskInfo.firstBeanAddTime >= waitTimeThresholdMil) {
			taskInfo.sendAllData();
 		}
 	}
}

轨迹数据存储的格式如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

TraceBean bean = ctx.getTraceBeans().get(0);
//append the content of context and traceBean to transferBean's TransData
case Pub: {
sb.append(ctx.getTraceType()).append(TraceConstants.CONTENT_SPLITOR)
   .append(ctx.getTimeStamp()).append(TraceConstants.CONTENT_SPLITOR)
   .append(ctx.getRegionId()).append(TraceConstants.CONTENT_SPLITOR)
   .append(ctx.getGroupName()).append(TraceConstants.CONTENT_SPLITOR)
   .append(bean.getTopic()).append(TraceConstants.CONTENT_SPLITOR)
   .append(bean.getMsgId()).append(TraceConstants.CONTENT_SPLITOR)
   .append(bean.getTags()).append(TraceConstants.CONTENT_SPLITOR)
   .append(bean.getKeys()).append(TraceConstants.CONTENT_SPLITOR)
   .append(bean.getStoreHost()).append(TraceConstants.CONTENT_SPLITOR)
   .append(bean.getBodyLength()).append(TraceConstants.CONTENT_SPLITOR)
   .append(ctx.getCostTime()).append(TraceConstants.CONTENT_SPLITOR)
   .append(bean.getMsgType().ordinal()).append(TraceConstants.CONTENT_SPLITOR)
   .append(bean.getOffsetMsgId()).append(TraceConstants.CONTENT_SPLITOR)
   .append(ctx.isSuccess()).append(TraceConstants.FIELD_SPLITOR);
}
break;

下图展示了事务轨迹消息数据，每个数据字段是按照 CONTENT_SPLITOR 分隔。

image-20240505171727732

注意：

分隔符 CONTENT_SPLITOR = (char) 1 它在内存中的值是：00000001 , 但是 char i = ‘1’ 它在内存中的值是 49 ，即 00110001。

快来参与讨论吧~

博客近期分类标签归档
项目软件开发札记人工智能Staller
社交友链
更多关于本站
本站由 卡卡龙 使用 Stellar 1.27.0 主题创建

本站访问量 次. 本文阅读量 次.

Stellar Copyright Licenses Hexo 备案 描述文字 描述文字
