1. 同步与异步

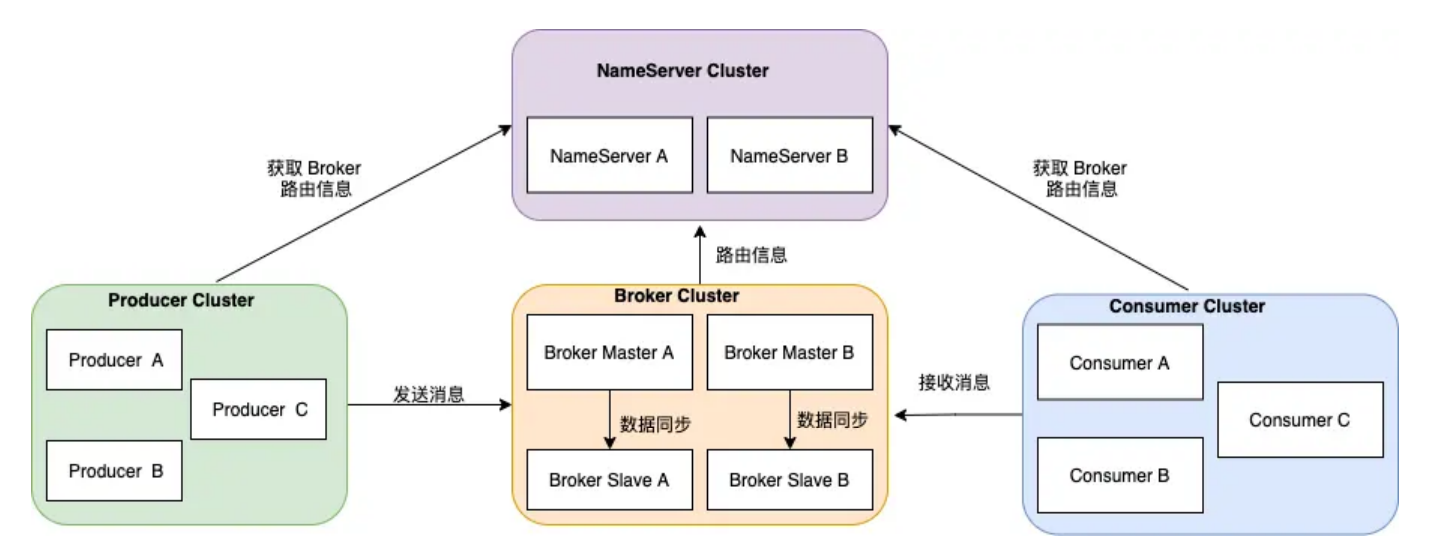

在 RocketMQ 的集群模式中，Broker 分为 Master 与 Slave，⼀个 Master 可以对应多个 Slave，但是⼀个 Slave 只能对应⼀个 Master。每个 Broker 与 Name Server 集群中的所有节点建⽴⻓连接，定时注册 Topic 信息到所有 Name Server。

image-20240505182927387

Master 节点负责接收客户端的写⼊请求，并将消息持久化到磁盘上。⽽ Slave 节点则负责从 Master 节点复制消息数据，并保持与 Master 节点的同步。

1.1 同步复制

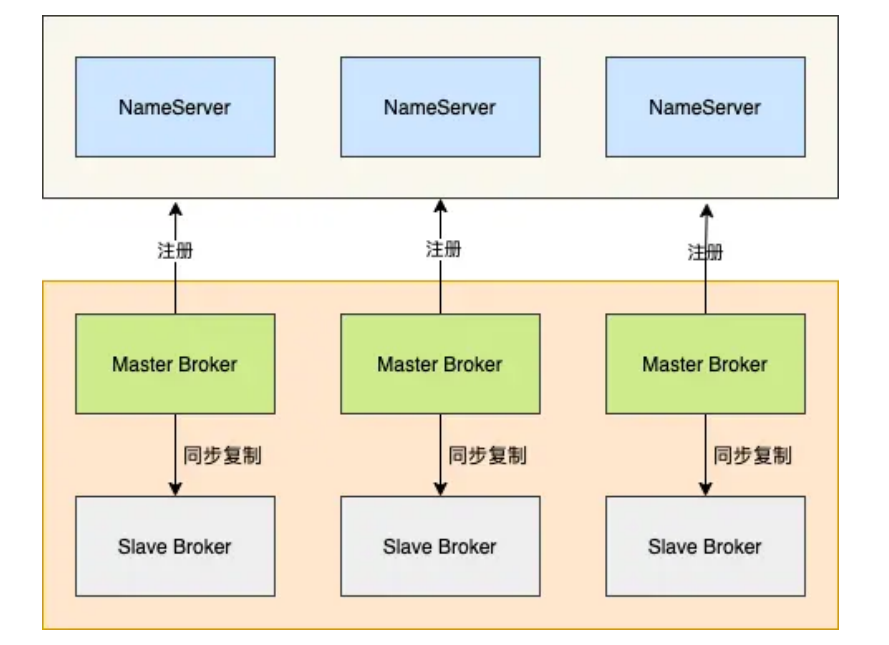

image-20240505183027152

每个 Master 配置⼀个 Slave ，有多对 Master-Slave ，HA 采⽤同步双写⽅式，即只有主备都写成功，才向应⽤返回成功。

这种模式的优缺点如下：

  • 优点：数据与服务都⽆单点故障，Master宕机情况下，消息⽆延迟，服务可⽤性与数据可⽤性都⾮常⾼；
  • 缺点：性能⽐异步复制模式略低（⼤约低10%左右），发送单个消息的 RT 会略⾼，且⽬前版本在主节点宕机后，备机不能⾃动切换为主机。

1.2 异步复制

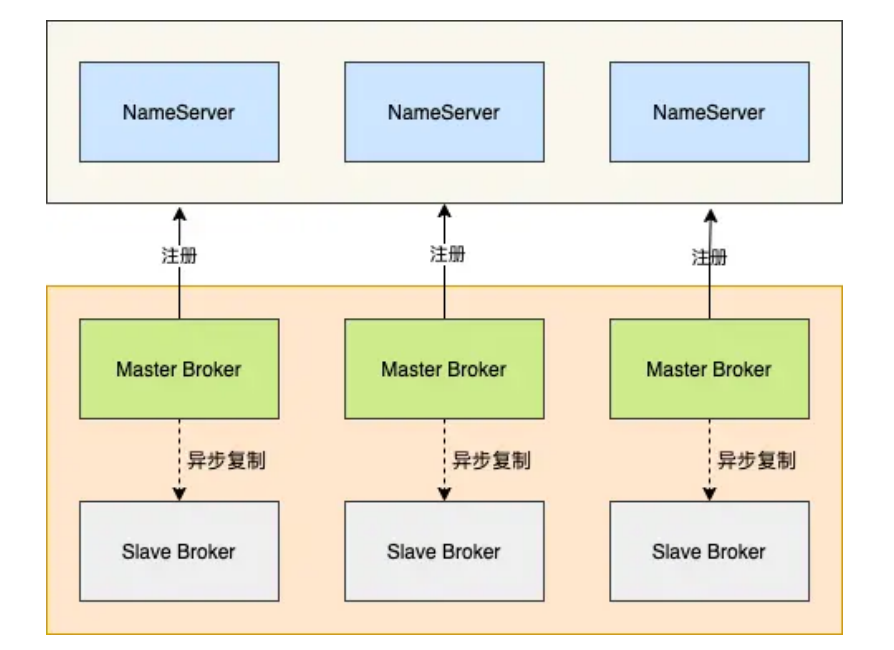

image-20240505183251376

每个 Master 配置⼀个 Slave ，有多对 Master-Slave ，HA 采⽤异步复制⽅式，主备有短暂消息延迟（毫秒级），这种模式的优缺点如下：

  • 优点：即使磁盘损坏，消息丢失的⾮常少，且消息实时性不会受影响，同时Master宕机后，消费者仍然可以从Slave消费，⽽且此过程对应⽤透明，不需要⼈⼯⼲预，性能同多 Master 模式⼏乎⼀样；
  • 缺点：Master 宕机，磁盘损坏情况下会丢失少量消息 。

复制流程分为两个部分：元数据复制和消息数据复制。

  • 主从服务器同步主题，消费者进度，延迟消费进度，消费者配置数据
  • 主从服务器同步消息数据

2. 元数据复制

Slave Broker 定时任务每隔 10 秒会同步元数据，包括主题，消费进度，延迟消费进度，消费者配置。

1
2
3
4
5
6
7
8
9
10
public void syncAll() {
    // 同步主题
    this.syncTopicConfig();
    // 同步消费者进度文件
    this.syncConsumerOffset();
    // 延迟消息进度
    this.syncDelayOffset();
    // 消费组配置
    this.syncSubscriptionGroupConfig();
}

同步主题时, Slave Broker 向 Master Broker 发送 RPC 请求，返回数据后，⾸先加⼊本地缓存⾥，然后持久化到本地。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
private void syncTopicConfig() {
    String masterAddrBak = this.masterAddr;
    if (masterAddrBak != null && !masterAddrBak.equals(brokerController.getBrokerAddr())) {
        try {
            TopicConfigSerializeWrapper topicWrapper =
                this.brokerController.getBrokerOuterAPI().getAllTopicConfig(masterAddrBak);
            if (!this.brokerController.getTopicConfigManager().getDataVersion()
                .equals(topicWrapper.getDataVersion())) {

                this.brokerController.getTopicConfigManager().getDataVersion()
                    .assignNewOne(topicWrapper.getDataVersion());
                this.brokerController.getTopicConfigManager().getTopicConfigTable().clear();
                this.brokerController.getTopicConfigManager().getTopicConfigTable()
                    .putAll(topicWrapper.getTopicConfigTable());
                this.brokerController.getTopicConfigManager().persist();

                log.info("Update slave topic config from master, {}", masterAddrBak);
            }
        } catch (Exception e) {
            log.error("SyncTopicConfig Exception, {}", masterAddrBak, e);
        }
    }
}

3. 消息数据复制

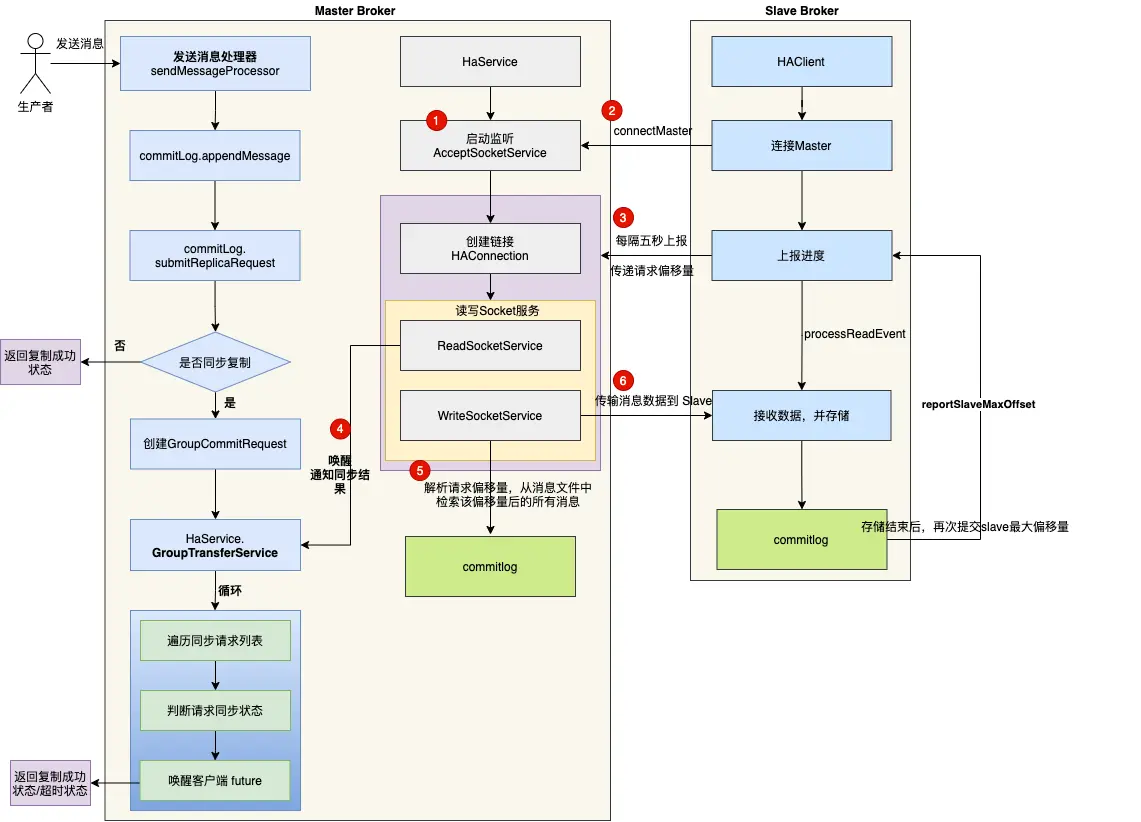

下图是 Master 和 Slave 消息数据同步的流程图。

3.1 Mster启动后监听指定端口

Master 启动后创建 AcceptSocketService 服务 , ⽤来创建客户端到服务端的 TCP 链接。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
class AcceptSocketService extends ServiceThread {
    private final SocketAddress socketAddressListen;
    private ServerSocketChannel serverSocketChannel;
    private Selector selector;

    public AcceptSocketService(final int port) {
        this.socketAddressListen = new InetSocketAddress(port);
    }

    /**
     * Starts listening to slave connections.
     *
     * @throws Exception If fails.
     */
    public void beginAccept() throws Exception {
        this.serverSocketChannel = ServerSocketChannel.open();
        this.selector = RemotingUtil.openSelector();
        this.serverSocketChannel.socket().setReuseAddress(true);
        this.serverSocketChannel.socket().bind(this.socketAddressListen);
        this.serverSocketChannel.configureBlocking(false);
        this.serverSocketChannel.register(this.selector, SelectionKey.OP_ACCEPT);
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public void shutdown(final boolean interrupt) {
        super.shutdown(interrupt);
        try {
            this.serverSocketChannel.close();
            this.selector.close();
        } catch (IOException e) {
            log.error("AcceptSocketService shutdown exception", e);
        }
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public void run() {
        log.info(this.getServiceName() + " service started");

        while (!this.isStopped()) {
            try {
                this.selector.select(1000);
                Set<SelectionKey> selected = this.selector.selectedKeys();

                if (selected != null) {
                    for (SelectionKey k : selected) {
                        if ((k.readyOps() & SelectionKey.OP_ACCEPT) != 0) {
                            SocketChannel sc = ((ServerSocketChannel) k.channel()).accept();

                            if (sc != null) {
                                HAService.log.info("HAService receive new connection, "
                                    + sc.socket().getRemoteSocketAddress());

                                try {
                                    HAConnection conn = new HAConnection(HAService.this, sc);
                                    conn.start();
                                    HAService.this.addConnection(conn);
                                } catch (Exception e) {
                                    log.error("new HAConnection exception", e);
                                    sc.close();
                                }
                            }
                        } else {
                            log.warn("Unexpected ops in select " + k.readyOps());
                        }
                    }

                    selected.clear();
                }
            } catch (Exception e) {
                log.error(this.getServiceName() + " service has exception.", e);
            }
        }

        log.info(this.getServiceName() + " service end");
    }

    /**
     * {@inheritDoc}
     */
    @Override
    public String getServiceName() {
        return AcceptSocketService.class.getSimpleName();
    }
}

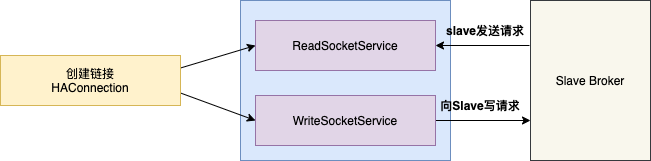

RocketMQ 抽象了链接对象 HAConnection , HAConnection 会启动两个线程，分别⽤于读服务和写服务：

  • 读服务：处理 Slave 发送的请求
  • 写服务：⽤于向 Slave 传输数据

3.2 Slave启动后，尝试连接Master，建立TCP连接

HAClient 是客户端 Slave 的核⼼类 ，负责和 Master 创建连接和数据交互。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
private boolean connectMaster() throws ClosedChannelException {
    if (null == socketChannel) {
        String addr = this.masterAddress.get();
        if (addr != null) {

            SocketAddress socketAddress = RemotingUtil.string2SocketAddress(addr);
            if (socketAddress != null) {
                this.socketChannel = RemotingUtil.connect(socketAddress);
                if (this.socketChannel != null) {
                    this.socketChannel.register(this.selector, SelectionKey.OP_READ);
                }
            }
        }

        this.currentReportedOffset = HAService.this.defaultMessageStore.getMaxPhyOffset();

        this.lastWriteTimestamp = System.currentTimeMillis();
    }

    return this.socketChannel != null;
}

客户端在启动后，⾸先尝试连接 Master , 查询当前消息存储中最⼤的物理偏移量 ，并存储在变量currentReportedOffset ⾥。

3.3 Slave向Mater汇报拉取消息偏移量

1
2
3
4
5
6
if (this.isTimeToReportOffset()) {
    boolean result = this.reportSlaveMaxOffset(this.currentReportedOffset);
    if (!result) {
        this.closeMaster();
    }
}

上报进度的数据格式是⼀个 Long 类型的 Offset , 8个字节 , ⾮常简洁 。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
private boolean reportSlaveMaxOffset(final long maxOffset) {
    this.reportOffset.position(0);
    this.reportOffset.limit(8);
    this.reportOffset.putLong(maxOffset);
    this.reportOffset.position(0);
    this.reportOffset.limit(8);

    for (int i = 0; i < 3 && this.reportOffset.hasRemaining(); i++) {
        try {
            this.socketChannel.write(this.reportOffset);
        } catch (IOException e) {
            log.error(this.getServiceName()
                + "reportSlaveMaxOffset this.socketChannel.write exception", e);
            return false;
        }
    }

    lastWriteTimestamp = HAService.this.defaultMessageStore.getSystemClock().now();
    return !this.reportOffset.hasRemaining();
}

发送到 Socket 缓冲区后 , 修改最后⼀次的写时间 lastWriteTimestamp 。

3.4 Master解析请求偏移量，从消息文件中检索该偏移量后的所有消息

当 Slave 上报数据到 Master 时，触发 SelectionKey.OP_READ 事件，Master 将请求交由 ReadSocketService 服务处理：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
public void run() {
    HAConnection.log.info(this.getServiceName() + " service started");

    while (!this.isStopped()) {
        try {
            this.selector.select(1000);
            boolean ok = this.processReadEvent();
            if (!ok) {
                HAConnection.log.error("processReadEvent error");
                break;
            }

            long interval = HAConnection.this.haService.getDefaultMessageStore().getSystemClock().now() - this.lastReadTimestamp;
            if (interval > HAConnection.this.haService.getDefaultMessageStore().getMessageStoreConfig().getHaHousekeepingInterval()) {
                log.warn("ha housekeeping, found this connection[" + HAConnection.this.clientAddr + "] expired, " + interval);
                break;
            }
        } catch (Exception e) {
            HAConnection.log.error(this.getServiceName() + " service has exception.", e);
            break;
        }
    }

    this.makeStop();

    writeSocketService.makeStop();

    haService.removeConnection(HAConnection.this);

    HAConnection.this.haService.getConnectionCount().decrementAndGet();

    SelectionKey sk = this.socketChannel.keyFor(this.selector);
    if (sk != null) {
        sk.cancel();
    }

    try {
        this.selector.close();
        this.socketChannel.close();
    } catch (IOException e) {
        HAConnection.log.error("", e);
    }

    HAConnection.log.info(this.getServiceName() + " service end");
}

当 Slave Broker 传递了⾃身 commitlog 的 maxPhyOffset 时，Master 会⻢上中断 selector.select(1000) ，执⾏processReadEvent ⽅法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
private boolean processReadEvent() {
    int readSizeZeroTimes = 0;

    if (!this.byteBufferRead.hasRemaining()) {
        this.byteBufferRead.flip();
        this.processPosition = 0;
    }

    while (this.byteBufferRead.hasRemaining()) {
        try {
            int readSize = this.socketChannel.read(this.byteBufferRead);
            if (readSize > 0) {
                readSizeZeroTimes = 0;
                this.lastReadTimestamp = HAConnection.this.haService.getDefaultMessageStore().getSystemClock().now();
                if ((this.byteBufferRead.position() - this.processPosition) >= 8) {
                    int pos = this.byteBufferRead.position() - (this.byteBufferRead.position() % 8);
                    long readOffset = this.byteBufferRead.getLong(pos - 8);
                    this.processPosition = pos;

                    HAConnection.this.slaveAckOffset = readOffset;
                    if (HAConnection.this.slaveRequestOffset < 0) {
                        HAConnection.this.slaveRequestOffset = readOffset;
                        log.info("slave[" + HAConnection.this.clientAddr + "] request offset " + readOffset);
                    } else if (HAConnection.this.slaveAckOffset > HAConnection.this.haService.getDefaultMessageStore().getMaxPhyOffset()) {
                        log.warn("slave[{}] request offset={} greater than local commitLog offset={}. ",
                                HAConnection.this.clientAddr,
                                HAConnection.this.slaveAckOffset,
                                HAConnection.this.haService.getDefaultMessageStore().getMaxPhyOffset());
                        return false;
                    }

                    HAConnection.this.haService.notifyTransferSome(HAConnection.this.slaveAckOffset);
                }
            } else if (readSize == 0) {
                if (++readSizeZeroTimes >= 3) {
                    break;
                }
            } else {
                log.error("read socket[" + HAConnection.this.clientAddr + "] < 0");
                return false;
            }
        } catch (IOException e) {
            log.error("processReadEvent exception", e);
            return false;
        }
    }

    return true;
}

processReadEvent ⽅法的核⼼逻辑是设置 Slave 的当前进度 offset ，然后通知复制线程当前的复制进度。

写服务 WriteSocketService 从消息⽂件中检索该偏移量后的所有消息（传输批次数据⼤⼩限制），并将消息数据发送给Slave。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
public void run() {
    HAConnection.log.info(this.getServiceName() + " service started");

    while (!this.isStopped()) {
        try {
            this.selector.select(1000);

            if (-1 == HAConnection.this.slaveRequestOffset) {
                Thread.sleep(10);
                continue;
            }

            if (-1 == this.nextTransferFromWhere) {
                if (0 == HAConnection.this.slaveRequestOffset) {
                    long masterOffset = HAConnection.this.haService.getDefaultMessageStore().getCommitLog().getMaxOffset();
                    masterOffset =
                        masterOffset
                            - (masterOffset % HAConnection.this.haService.getDefaultMessageStore().getMessageStoreConfig()
                            .getMappedFileSizeCommitLog());

                    if (masterOffset < 0) {
                        masterOffset = 0;
                    }

                    this.nextTransferFromWhere = masterOffset;
                } else {
                    this.nextTransferFromWhere = HAConnection.this.slaveRequestOffset;
                }

                log.info("master transfer data from " + this.nextTransferFromWhere + " to slave[" + HAConnection.this.clientAddr
                    + "], and slave request " + HAConnection.this.slaveRequestOffset);
            }

            if (this.lastWriteOver) {

                long interval =
                    HAConnection.this.haService.getDefaultMessageStore().getSystemClock().now() - this.lastWriteTimestamp;

                if (interval > HAConnection.this.haService.getDefaultMessageStore().getMessageStoreConfig()
                    .getHaSendHeartbeatInterval()) {

                    // Build Header
                    this.byteBufferHeader.position(0);
                    this.byteBufferHeader.limit(headerSize);
                    this.byteBufferHeader.putLong(this.nextTransferFromWhere);
                    this.byteBufferHeader.putInt(0);
                    this.byteBufferHeader.flip();

                    this.lastWriteOver = this.transferData();
                    if (!this.lastWriteOver)
                        continue;
                }
            } else {
                this.lastWriteOver = this.transferData();
                if (!this.lastWriteOver)
                    continue;
            }

            SelectMappedBufferResult selectResult =
                HAConnection.this.haService.getDefaultMessageStore().getCommitLogData(this.nextTransferFromWhere);
            if (selectResult != null) {
                int size = selectResult.getSize();
                if (size > HAConnection.this.haService.getDefaultMessageStore().getMessageStoreConfig().getHaTransferBatchSize()) {
                    size = HAConnection.this.haService.getDefaultMessageStore().getMessageStoreConfig().getHaTransferBatchSize();
                }

                long thisOffset = this.nextTransferFromWhere;
                this.nextTransferFromWhere += size;

                selectResult.getByteBuffer().limit(size);
                this.selectMappedBufferResult = selectResult;

                // Build Header
                this.byteBufferHeader.position(0);
                this.byteBufferHeader.limit(headerSize);
                this.byteBufferHeader.putLong(thisOffset);
                this.byteBufferHeader.putInt(size);
                this.byteBufferHeader.flip();

                this.lastWriteOver = this.transferData();
            } else {

                HAConnection.this.haService.getWaitNotifyObject().allWaitForRunning(100);
            }
        } catch (Exception e) {

            HAConnection.log.error(this.getServiceName() + " service has exception.", e);
            break;
        }
    }

    HAConnection.this.haService.getWaitNotifyObject().removeFromWaitingThreadTable();

    if (this.selectMappedBufferResult != null) {
        this.selectMappedBufferResult.release();
    }

    this.makeStop();

    readSocketService.makeStop();

    haService.removeConnection(HAConnection.this);

    SelectionKey sk = this.socketChannel.keyFor(this.selector);
    if (sk != null) {
        sk.cancel();
    }

    try {
        this.selector.close();
        this.socketChannel.close();
    } catch (IOException e) {
        HAConnection.log.error("", e);
    }

    HAConnection.log.info(this.getServiceName() + " service end");
}

3.5 Slave接收到数据，将消息数据append到消息文件commitlog里

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
private boolean dispatchReadRequest() {
    final int msgHeaderSize = 8 + 4; // phyoffset + size

    while (true) {
        int diff = this.byteBufferRead.position() - this.dispatchPosition;
        if (diff >= msgHeaderSize) {
            long masterPhyOffset = this.byteBufferRead.getLong(this.dispatchPosition);
            int bodySize = this.byteBufferRead.getInt(this.dispatchPosition + 8);

            long slavePhyOffset = HAService.this.defaultMessageStore.getMaxPhyOffset();

            if (slavePhyOffset != 0) {
                if (slavePhyOffset != masterPhyOffset) {
                    log.error("master pushed offset not equal the max phy offset in slave, SLAVE: "
                        + slavePhyOffset + " MASTER: " + masterPhyOffset);
                    return false;
                }
            }

            if (diff >= (msgHeaderSize + bodySize)) {
                byte[] bodyData = byteBufferRead.array();
                int dataStart = this.dispatchPosition + msgHeaderSize;

                HAService.this.defaultMessageStore.appendToCommitLog(
                        masterPhyOffset, bodyData, dataStart, bodySize);

                this.dispatchPosition += msgHeaderSize + bodySize;

                if (!reportSlaveMaxOffsetPlus()) {
                    return false;
                }

                continue;
            }
        }

        if (!this.byteBufferRead.hasRemaining()) {
            this.reallocateByteBuffer();
        }

        break;
    }

    return true;
}

⾸先 HAClient 类中调⽤ dispatchReadRequest ⽅法 ， 解析出消息数据 ；

然后将消息数据 append 到本地的消息存储。

1
2
3
4
5
6
7
8
9
10
11
byte[] bodyData = byteBufferRead.array();
int dataStart = this.dispatchPosition + msgHeaderSize;

HAService.this.defaultMessageStore.appendToCommitLog(
        masterPhyOffset, bodyData, dataStart, bodySize);

this.dispatchPosition += msgHeaderSize + bodySize;

if (!reportSlaveMaxOffsetPlus()) {
    return false;
}

4. 同步的实现

从数据复制流程图，我们发觉数据复制本身就是⼀个异步执⾏的，但是同步是如何实现的呢？

Master Broker 接收到写⼊消息的请求后 ，调⽤ Commitlog 的 aysncPutMessage ⽅法写⼊消息。

1
2
3
4
5
6
7
8
9
10
11
CompletableFuture<PutMessageStatus> flushResultFuture = submitFlushRequest(result, msg);
CompletableFuture<PutMessageStatus> replicaResultFuture = submitReplicaRequest(result, msg);
return flushResultFuture.thenCombine(replicaResultFuture, (flushStatus, replicaStatus) -> {
    if (flushStatus != PutMessageStatus.PUT_OK) {
        putMessageResult.setPutMessageStatus(flushStatus);
    }
    if (replicaStatus != PutMessageStatus.PUT_OK) {
        putMessageResult.setPutMessageStatus(replicaStatus);
    }
    return putMessageResult;
});

这段代码中，当 commitLog 执⾏完 appendMessage 后， 需要执⾏刷盘任务和同步复制两个任务。

但这两个任务并不是同步执⾏，⽽是异步的⽅式，使⽤了 CompletableFuture 这个异步神器。

当 HAConnection 读服务接收到 Slave 的进度反馈，发现消息数据复制成功，则唤醒 future 。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
private void doWaitTransfer() {
    if (!this.requestsRead.isEmpty()) {
        for (CommitLog.GroupCommitRequest req : this.requestsRead) {
            boolean transferOK = HAService.this.push2SlaveMaxOffset.get() >= req.getNextOffset();
            long deadLine = req.getDeadLine();
            while (!transferOK && deadLine - System.nanoTime() > 0) {
                this.notifyTransferObject.waitForRunning(1000);
                transferOK = HAService.this.push2SlaveMaxOffset.get() >= req.getNextOffset();
            }

            req.wakeupCustomer(transferOK ? PutMessageStatus.PUT_OK : PutMessageStatus.FLUSH_SLAVE_TIMEOUT);
        }

        this.requestsRead = new LinkedList<>();
    }
}

最后 Broker 组装响应命令 ，并将响应命令返回给客户端。

5. 总结

RocketMQ 主从复制的实现思路⾮常简单，Slave 启动⼀个线程，不断从 Master 拉取 Commit Log 中的数据，然后在异

步 build 出 Consume Queue 数据结构。

核⼼要点如下：

1、主从复制包含元数据复制和消息数据复制两个部分；

2、元数据复制

Slave Broker 定时任务每隔 10 秒向 Master Broker 发送 RPC 请求，将元数据同步到缓存后，然后持久化到磁盘⾥；

3、消息数据复制

  1. Master 启动监听指定端⼝

  2. Slave 启动 HaClient 服务，和 Master 创建 TCP 链接

  3. Slave 向 Master 上报存储进度

  4. Master 接收进度，消息⽂件中检索该偏移量后的所有消息，并传输给 Slave

  5. Slave 接收到数据后，将消息数据 append 到本地的消息存储。

4、同步的实现

当 commitLog 执⾏完 appendMessage 后， 需要执⾏刷盘任务和同步复制两个任务，这⾥⽤到了CompletableFuture 这个异步神器。

当 HAConnection 读服务接收到 Slave 的进度反馈，发现消息数据复制成功，则唤醒 future 。最后 Broker 组装响应命令 ，并将响应命令 返回给客户端 。

快来参与讨论吧~

博客近期分类标签归档
项目软件开发人工智能Staller
社交友链
更多关于本站
本站由 卡卡龙 使用 Stellar 1.29.1主题创建

本站访问量 次. 本文阅读量 次.

Stellar Copyright Licenses Hexo 备案 描述文字 描述文字
