RocketMq：09-广播消费

1. 基础概念

RocketMQ ⽀持两种消息模式：集群消费（ Clustering ）和⼴播消费（ Broadcasting ）。

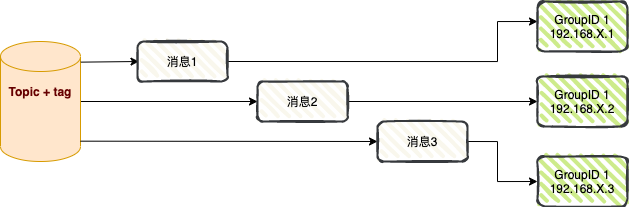

集群消费：

同⼀ Topic 下的⼀条消息只会被同⼀消费组中的⼀个消费者消费。也就是说，消息被负载均衡到了同⼀个消费组的多个消费者实例上。

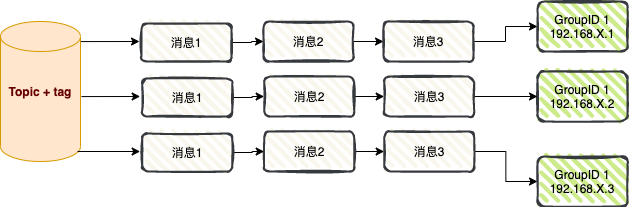

⼴播消费：

当使⽤⼴播消费模式时，每条消息推送给集群内所有的消费者，保证消息⾄少被每个消费者消费⼀次。

2. 源码解析

public class PushConsumer {
    public static final String CONSUMER_GROUP = "myconsumerGroup";
    public static final String DEFAULT_NAMESRVADDR = "localhost:9876";
    public static final String TOPIC = "mytest";
    public static final String SUB_EXPRESSION = "TagA || TagC || TagD";
    public static void main(String[] args) throws InterruptedException, MQClientException {
        // 定义 DefaultPushConsumer
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer(CONSUMER_GROUP);
        // 定义名字服务地址
        consumer.setNamesrvAddr(DEFAULT_NAMESRVADDR);
        // 定义消费读取位点
        consumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_LAST_OFFSET);
        // 定义消费模式
        consumer.setMessageModel(MessageModel.BROADCASTING);
        // 订阅主题信息
        consumer.subscribe(TOPIC, SUB_EXPRESSION);
        // 订阅消息监听器
        consumer.registerMessageListener((MessageListenerConcurrently) (msgs, context) -> {
			try {
				for (MessageExt messageExt : msgs) {
					System.out.println(new String(messageExt.getBody()));
			}
			}catch (Exception e) {
				e.printStackTrace();
			}
			return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
		});
        consumer.start();
        System.out.printf("Broadcast Consumer Started.%n");
    }
}

和集群消费不同的点在于下⾯的代码：

1	consumer.setMessageModel(MessageModel.BROADCASTING);

接下来，我们从源码⻆度来看看⼴播消费和集群消费有哪些差异点？

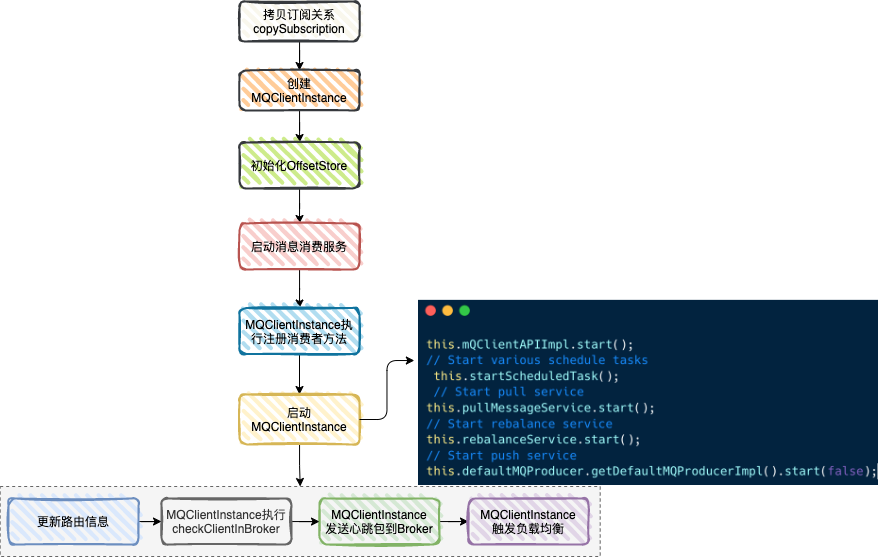

⾸先进⼊ DefaultMQPushConsumerImpl 类的 start ⽅法 , 分析启动流程中他们两者的差异点：

差异点1：拷⻉订阅关系

private void copySubscription() throws MQClientException {
    try {
        Map<String, String> sub = this.defaultMQPushConsumer.getSubscription();
        if (sub != null) {
            for (final Map.Entry<String, String> entry : sub.entrySet()) {
                final String topic = entry.getKey();
                final String subString = entry.getValue();
                SubscriptionData subscriptionData = FilterAPI.buildSubscriptionData(topic, subString);
                this.rebalanceImpl.getSubscriptionInner().put(topic, subscriptionData);
            }
        }

        if (null == this.messageListenerInner) {
            this.messageListenerInner = this.defaultMQPushConsumer.getMessageListener();
        }

        switch (this.defaultMQPushConsumer.getMessageModel()) {
            case BROADCASTING:
                break;
            case CLUSTERING:
                final String retryTopic = MixAll.getRetryTopic(this.defaultMQPushConsumer.getConsumerGroup());
                SubscriptionData subscriptionData = FilterAPI.buildSubscriptionData(retryTopic, SubscriptionData.SUB_ALL);
                this.rebalanceImpl.getSubscriptionInner().put(retryTopic, subscriptionData);
                break;
            default:
                break;
        }
    } catch (Exception e) {
        throw new MQClientException("subscription exception", e);
    }
}

在集群模式下，会⾃动订阅重试队列，⽽⼴播模式下，并没有这段代码。也就是说⼴播模式下，不⽀持消息重试。

差异点2：本地进度存储

switch (this.defaultMQPushConsumer.getMessageModel()) {
    case BROADCASTING:
        this.offsetStore = new LocalFileOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
        break;
    case CLUSTERING:
        this.offsetStore = new RemoteBrokerOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
        break;
    default:
        break;
}
this.defaultMQPushConsumer.setOffsetStore(this.offsetStore);

我们可以看到消费进度存储的对象是： LocalFileOffsetStore , 进度⽂件存储在如下的主⽬录 /{⽤户主目录}/.rocketmq_offsets 。

1
2
3

public final static String LOCAL_OFFSET_STORE_DIR = System.getProperty(
"rocketmq.client.localOffsetStoreDir",
System.getProperty("user.home") + File.separator + ".rocketmq_offsets");

进度⽂件是 /mqClientId/{consumerGroupName}/offsets.json 。

1
2
3

this.storePath = LOCAL_OFFSET_STORE_DIR + File.separator +
this.mQClientFactory.getClientId() + File.separator + this.groupName + File.separator +
"offsets.json";

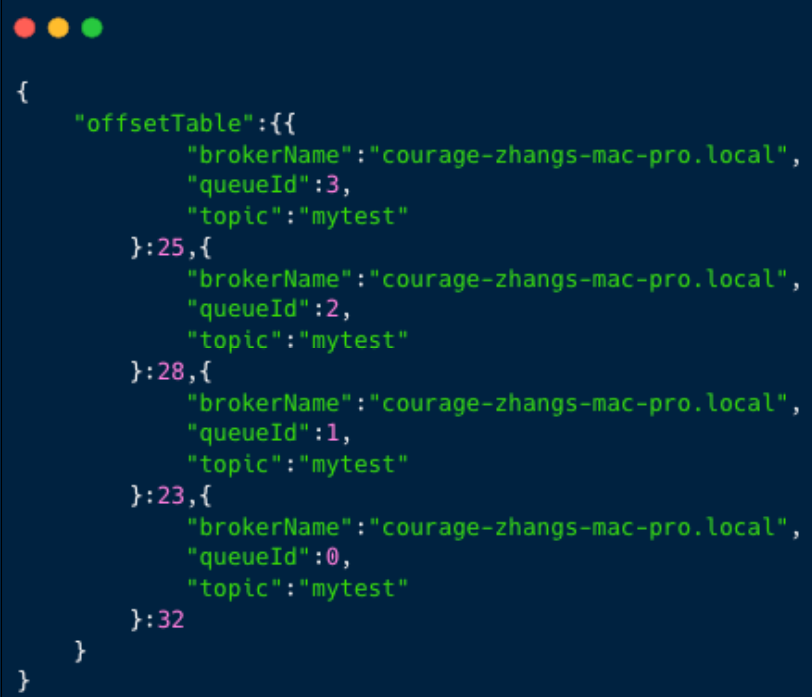

笔者创建了⼀个主题 mytest , 包含4个队列，进度⽂件内容如下

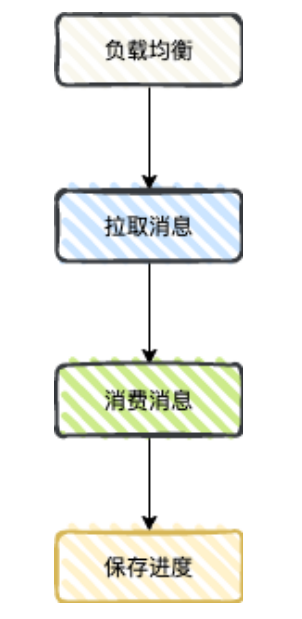

消费者启动后，我们可以将整个流程简化如下图，并继续整理差异点：

差异点3：改在均衡该主题的所有的MessageQueue

进⼊负载均衡抽象类 RebalanceImpl 的 rebalanceByTopic ⽅法。

private void rebalanceByTopic(final String topic, final boolean isOrder) {
    switch (messageModel) {
        case BROADCASTING: {
            Set<MessageQueue> mqSet = this.topicSubscribeInfoTable.get(topic);
            if (mqSet != null) {
                boolean changed = this.updateProcessQueueTableInRebalance(topic, mqSet, isOrder);
                if (changed) {
                    this.messageQueueChanged(topic, mqSet, mqSet);
                    log.info("messageQueueChanged {} {} {} {}",
                        consumerGroup,
                        topic,
                        mqSet,
                        mqSet);
                }
            } else {
                log.warn("doRebalance, {}, but the topic[{}] not exist.", consumerGroup, topic);
            }
            break;
        }
        case CLUSTERING: {
            Set<MessageQueue> mqSet = this.topicSubscribeInfoTable.get(topic);
            List<String> cidAll = this.mQClientFactory.findConsumerIdList(topic, consumerGroup);
            if (null == mqSet) {
                if (!topic.startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
                    log.warn("doRebalance, {}, but the topic[{}] not exist.", consumerGroup, topic);
                }
            }

            if (null == cidAll) {
                log.warn("doRebalance, {} {}, get consumer id list failed", consumerGroup, topic);
            }

            if (mqSet != null && cidAll != null) {
                List<MessageQueue> mqAll = new ArrayList<MessageQueue>();
                mqAll.addAll(mqSet);

                Collections.sort(mqAll);
                Collections.sort(cidAll);

                AllocateMessageQueueStrategy strategy = this.allocateMessageQueueStrategy;

                List<MessageQueue> allocateResult = null;
                try {
                    allocateResult = strategy.allocate(
                        this.consumerGroup,
                        this.mQClientFactory.getClientId(),
                        mqAll,
                        cidAll);
                } catch (Throwable e) {
                    log.error("AllocateMessageQueueStrategy.allocate Exception. allocateMessageQueueStrategyName={}", strategy.getName(),
                        e);
                    return;
                }

                Set<MessageQueue> allocateResultSet = new HashSet<MessageQueue>();
                if (allocateResult != null) {
                    allocateResultSet.addAll(allocateResult);
                }

                boolean changed = this.updateProcessQueueTableInRebalance(topic, allocateResultSet, isOrder);
                if (changed) {
                    log.info(
                        "rebalanced result changed. allocateMessageQueueStrategyName={}, group={}, topic={}, clientId={}, mqAllSize={}, cidAllSize={}, rebalanceResultSize={}, rebalanceResultSet={}",
                        strategy.getName(), consumerGroup, topic, this.mQClientFactory.getClientId(), mqSet.size(), cidAll.size(),
                        allocateResultSet.size(), allocateResultSet);
                    this.messageQueueChanged(topic, mqSet, allocateResultSet);
                }
            }
            break;
        }
        default:
            break;
    }
}

从上⾯代码我们可以看到消息模式为⼴播消费模式时，消费者会消费该主题下所有的队列，这⼀点也可以从本地的进度

⽂件 offsets.json 得到印证。

差异点4：不支持顺序消息

我们知道消费消息顺序服务会向 Borker 申请锁 。消费者根据分配的队列 messageQueue ，向 Borker 申请锁，如果申

请成功，则会拉取消息，如果失败，则定时任务每隔 20 秒会重新尝试。

if(MessageModel.CLUSTERING.equals(ConsumeMessageOrderlyService.this.defaultMQPushConsumerImpl.messageModel())) {

    this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
		@Override
		public void run() {
			try {
				ConsumeMessageOrderlyService.this.lockMQPeriodically();
			} catch (Throwable e) {
				log.error("scheduleAtFixedRate lockMQPeriodically exception", e);
			}
		}
     }, 1000 * 1, ProcessQueue.REBALANCE_LOCK_INTERVAL, TimeUnit.MILLISECONDS);
}

但是从上⾯的代码，我们发现只有在集群消费的时候才会定时申请锁，这样就会导致⼴播消费时，⽆法为负载均衡的队列申请锁，导致拉取消息服务⼀直⽆法获取消息数据。

笔者修改消费例⼦，在消息模式为⼴播模式的场景下，将消费模式从并发消费修改为顺序消费。

consumer.registerMessageListener((MessageListenerOrderly) (msgs, context) -> {
	try {
		for (MessageExt messageExt : msgs) {
			System.out.println(new String(messageExt.getBody()));
		}
	}catch (Exception e) {
		e.printStackTrace();
	}
	return ConsumeOrderlyStatus.SUCCESS;
});

因此，⼴播消费模式并不⽀持顺序消息。

差异点5：并发消息失败时，没有重试

进⼊并发消息消费类 ConsumeMessageConcurrentlyService 的处理消费结果⽅法 processConsumeResult 。

switch (this.defaultMQPushConsumer.getMessageModel()) {
    case BROADCASTING:
        for (int i = ackIndex + 1; i < consumeRequest.getMsgs().size(); i++) {
            MessageExt msg = consumeRequest.getMsgs().get(i);
            log.warn("BROADCASTING, the message consume failed, drop it, {}",
            msg.toString());
        }
		break;
    case CLUSTERING:
        List<MessageExt> msgBackFailed = new ArrayList<MessageExt>
        (consumeRequest.getMsgs().size());
        for (int i = ackIndex + 1; i < consumeRequest.getMsgs().size(); i++) {
            MessageExt msg = consumeRequest.getMsgs().get(i);
            boolean result = this.sendMessageBack(msg, context);
            if (!result) {
                msg.setReconsumeTimes(msg.getReconsumeTimes() + 1);
                msgBackFailed.add(msg);
            }
        }
        if (!msgBackFailed.isEmpty()) {
			consumeRequest.getMsgs().removeAll(msgBackFailed);
			this.submitConsumeRequestLater(msgBackFailed, consumeRequest.getProcessQueue(),
			consumeRequest.getMessageQueue());
        }
		break;
    default:
		break;
}
